High Density Card Edge
1.00 mm [.039”] Contact Centers, PCI Express,
Card Extender for Straddle Mount
High Density Card Edge

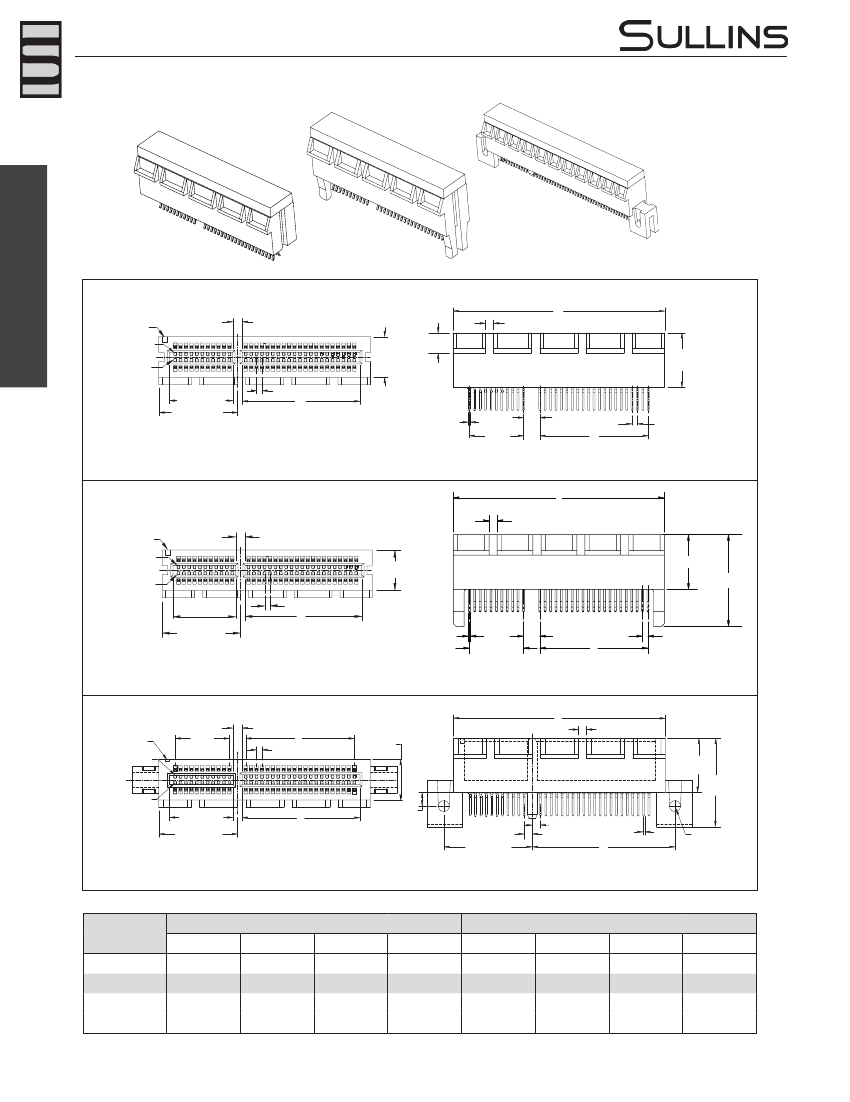

DIMENSIONS
Dimensions in [ ] are in inches, all others are in millimeters.
PIN A1
IDENTIFIER
PIN A1
PIN B1
1.00 [.039] TYP.
B
0.34 [.013]
TYP.
3.00 [.118]
10.00
[.394]
A
1.00 [.039]
1.73±0.08 [.068±.003]
7.50
[.295]
MAX.
3.75
[.148]
C
1.50 [.059] MAX.
10.25
[.404]
11.65 [.459]
14.50 [.571]
STRADDLE MOUNT without PEGS
Example Part Number: GBE18DHRN-T941
C
1.50 [.059]MAX.
PIN A1
IDENTIFIER
PIN A1
PIN B1
11.65 [.459]
14.50 [.571]
1.00 [.039] TYP.
B
1.73±0.08 [.068±.003]
7.50 [.295]
MAX.
10.25
[.404]
16.80
[.661]
0.34[.013]
TYP.
10.00
[.394]
3.00[.118]
A
1.00[.039]
STRADDLE MOUNT with PEGS
Example Part Number: GBE18DHRN-T9410
PIN A1
IDENTIFIER
PIN A1
10.00
[.394]
1.73±0.08 [.068±.003]
A
1.00 [.039] TYP.
C
7.50
[.295]
MAX.
1.50 [.059] MAX.
10.25
[.404]
16.30
[.642]
2X
2.50
[.098]
PIN B1
11.65 [.459]
14.50 [.571]
B
1.50 [.059]
0.34 [.013]
TYP.
D
1.50 [.059]
16.30 [.642]
2X Ø 2.00
[.079]
STRADDLE MOUNT with CLIPS
Example Part Number: GBE18DHRQ-T941
POSITIONS/
CONTACTS
18/36
32/64
49/98
82/164
MILLIMETERS
A
6.00
20.00
37.00
70.00
INCHES
C
D
12.30
26.30
43.30
76.30
B
7.65
21.65
38.65
71.65
A
0.236
0.787
1.457
2.756
B
0.301
0.852
1.522
2.821
C
0.984
1.535
2.205
3.504
D
0.484
1.035
1.705
3.004
25.00
39.00
56.00
89.00
14
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
High Density Card Edge
1.00 mm [.039”] Contact Centers, PCI Express,
Card Extender for Straddle Mount
PART NUMBER OPTIONS
MATERIALS (INSULATOR/CONTACT)
G
=
Nylon/Phosphor Bronze
CONTACT FINISH - RoHS Compliant
All platings are Lead Free and have .000050” Nickel underplate
G B E 18 D HR N -T9 4 1 0
MODIFICATION CODE
Omit '0' For Without Pegs ('N' or 'Q' Mounting)
0
=
Pegs
(Available in 'N' Mounting Only)
COLOR
1
=
Black
TAIL LENGTH
4
=
4.10 mm [.161”]
MOUNTING STYLE
N
=
No Mounting
Q
=
Straddle Mount with Clips
('Q' Only Available with T941 Modification)
TERMINATION TYPE
HR
=
Card Extender for Straddle Mount
High Density Card Edge
Contact Surface
B
=
.000010” Gold
C
=
.000030” Gold
W =
Gold Flash
Termination
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
CONTACT CENTERS
E =
1 mm [.039”]
NUMBER OF CONTACT POSITIONS
18, 32, 49, 82
READOUT
D =
Dual
Operating & Processing Temperature: Consult Factory
SPECIFICATIONS
• All PCI Express parts meet the latest PCI Express specifications
• Supports 2.5 GT/s, 5.0 GT/s or 8.0 GT/s Data Transfer Rate
(per pair data bandwidth)
• Accommodates 1.57 mm [.062”] PC board
• 1.1 Amp current rating per contact
• UL Flammability Rating: 94V-0
TERMINATION TYPE
3.75 [.148”]
5.10 [.201”]
3.75 [.148”] MAX.
READOUT
0.80 [.031”]
4.10 [.161”]
1.20 [.047”]
DUAL (D)
CARD EXTENDER
(HR)
MOUNTING STYLE
6.80 [.268”]
2X 1.60 [.063”]
2X 1.80 [.071”]
2X 6.50 [.256”]
8.60 [.339”]
2X Ø 2.00 [.079”]
WITHOUT PEGS
NO MOUNTING (N)
WITH PEGS
('N' Mounting Style with '0' Modification Code)
WITH CLIPS (Q)
