74ACT125SJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74ACT125SJ

74ACT125SJ: DescriptionACT SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14; Categorylogic logic; File Size306KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74ACT125SJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74ACT125SJ	-	-	View	Buy Now

74ACT125SJ Overview

ACT SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14

74ACT125SJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	SOIC
package instruction	SOP, SOP14,.3
Contacts	14
Reach Compliance Code	compli
Control type	ENABLE LOW
series	ACT
JESD-30 code	R-PDSO-G14
JESD-609 code	e3
length	10.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Humidity sensitivity level	1
Number of digits	1
Number of functions	4
Number of ports	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	RAIL
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Prop。Delay @ Nom-Su	10 ns
propagation delay (tpd)	10 ns
Certification status	Not Qualified
Maximum seat height	2.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

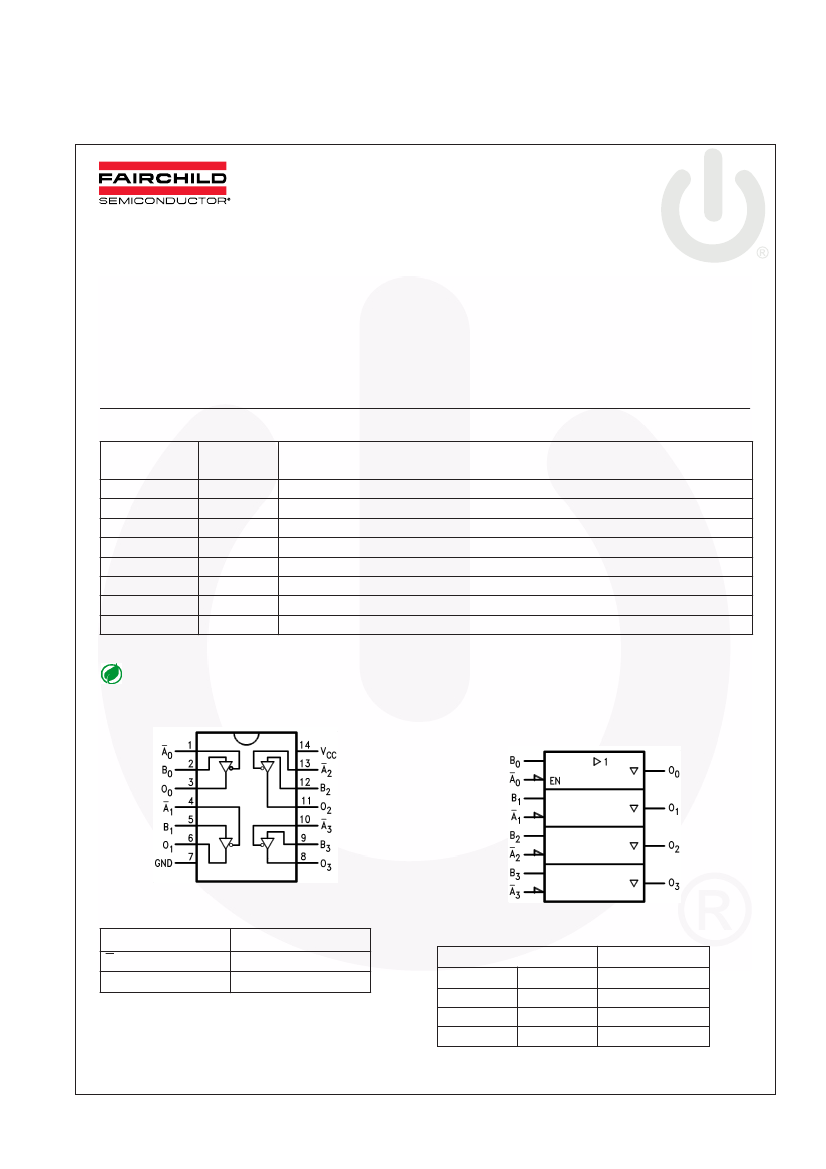

74AC125, 74ACT125 — Quad Buffer with 3-STATE Outputs

January 2008

74AC125, 74ACT125

Quad Buffer with 3-STATE Outputs

Features

■

reduced by 50%

■

Outputs source/sink 24mA

■

ACT125 has TTL-compatible outputs

General Description

The AC/ACT125 contains four independent non-inverting

buffers with 3-STATE outputs.

Ordering Information

Order

Number

74AC125SC

74AC125SJ

74AC125MTC

74AC125PC

74ACT125SC

74ACT125SJ

74ACT125MTC

74ACT125PC

Package

Number

M14A

M14D

MTC14

N14A

M14A

M14D

MTC14

N14A

Package Description

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide

Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.

All packages are lead free per JEDEC: J-STD-020B standard.

Connection Diagram

Logic Symbol

IEEE/IEC

Pin Description

Pin Names

, B

Description

Inputs

Outputs

Function Table

Inputs

Output

HIGH Voltage Level, L

LOW Voltage Level

HIGH Impedance, X

Immaterial

74AC125, 74ACT125 Rev. 1.4.1

www.fairchildsemi.com

74ACT125SJ Related Products

	74ACT125SJ	74ACT125	74AC125	74AC125_08	74ACT125SC	74ACT125PC	74ACT125MTC	74AC125SJ
Description	ACT SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14	ACT SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14	ACT SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14	ACT SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14	ACT SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14	ACT SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14	ACT SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14	ACT SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14
series	ACT	ACT	ACT	ACT	ACT	ACT	ACT	AC
Number of digits	1	1	1	1	1	1	1	1
Number of functions	4	4	4	4	4	4	4	4
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 Cel	85 Cel	85 Cel	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 Cel	-40 Cel	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-ST	3-ST	3-ST	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
surface mount	YES	Yes	Yes	Yes	YES	NO	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	conform to	-	-	-	conform to	conform to	conform to	conform to
Maker	Fairchild	-	-	-	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	SOIC	-	-	-	SOIC	DIP	TSSOP	SOIC
package instruction	SOP, SOP14,.3	-	-	-	0.150 INCH, LEAD FREE, MS-012, SOIC-14	DIP, DIP14,.3	TSSOP, TSSOP14,.25	5.30 MM, LEAD FREE, EIAJ TYPE2, SOP-14
Contacts	14	-	-	-	14	14	14	14
Reach Compliance Code	compli	-	-	-	unknow	compli	unknow	compli
Control type	ENABLE LOW	-	-	-	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
JESD-30 code	R-PDSO-G14	-	-	-	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e3	-	-	-	e3	e3	e3	e3
length	10.2 mm	-	-	-	8.625 mm	19.18 mm	5 mm	10.2 mm
Load capacitance (CL)	50 pF	-	-	-	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	-	-	-	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	-	-	-	0.024 A	0.024 A	0.024 A	0.012 A
Package body material	PLASTIC/EPOXY	-	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	-	-	-	SOP	DIP	TSSOP	SOP
Encapsulate equivalent code	SOP14,.3	-	-	-	SOP14,.25	DIP14,.3	TSSOP14,.25	SOP14,.3
Package shape	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	-	-	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	-	-	-	260	NOT APPLICABLE	260	260
power supply	5 V	-	-	-	5 V	5 V	5 V	3.3/5 V
Prop。Delay @ Nom-Su	10 ns	-	-	-	10 ns	10 ns	10 ns	10 ns
propagation delay (tpd)	10 ns	-	-	-	10 ns	10 ns	10 ns	10 ns
Certification status	Not Qualified	-	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.1 mm	-	-	-	1.75 mm	5.33 mm	1.2 mm	2.1 mm
Maximum supply voltage (Vsup)	5.5 V	-	-	-	5.5 V	5.5 V	5.5 V	6 V
Minimum supply voltage (Vsup)	4.5 V	-	-	-	4.5 V	4.5 V	4.5 V	2 V
Nominal supply voltage (Vsup)	5 V	-	-	-	5 V	5 V	5 V	3.3 V
technology	CMOS	-	-	-	CMOS	CMOS	CMOS	CMOS
Terminal surface	Matte Tin (Sn)	-	-	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal pitch	1.27 mm	-	-	-	1.27 mm	2.54 mm	0.65 mm	1.27 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	-	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
width	5.3 mm	-	-	-	3.9 mm	7.62 mm	4.4 mm	5.3 mm
Base Number Matches	1	-	-	-	1	1	1	1
