AQ147M300JAJME\500 datasheet, PDF

Datasheet> All Categories > Passive components> AQ147M300JAJME\500

AQ147M300JAJME\500: DescriptionCAP CER 30PF 500V 1111; CategoryPassive components; File Size854KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric View All

AQ147M300JAJME\500 Overview

CAP CER 30PF 500V 1111

AQ147M300JAJME\500 Parametric

Parameter Name	Attribute value
capacitance	30pF
Tolerance	±5%
Voltage - Rated	500V
Temperature Coefficient	M
Operating temperature	-55°C ~ 175°C
characteristic	High Q value, low loss
grade	-
application	RF, microwave, high frequency
Installation type	Surface mount, MLCC
Package/casing	1111 (2828 metric)
size/dimensions	0.110" long x 0.110" wide (2.79mm x 2.79mm)
Height - Installation (maximum)	-
Thickness (maximum)	0.102"（2.59mm）
lead spacing	-
Lead form	-

Preview

Download Datasheet

View All

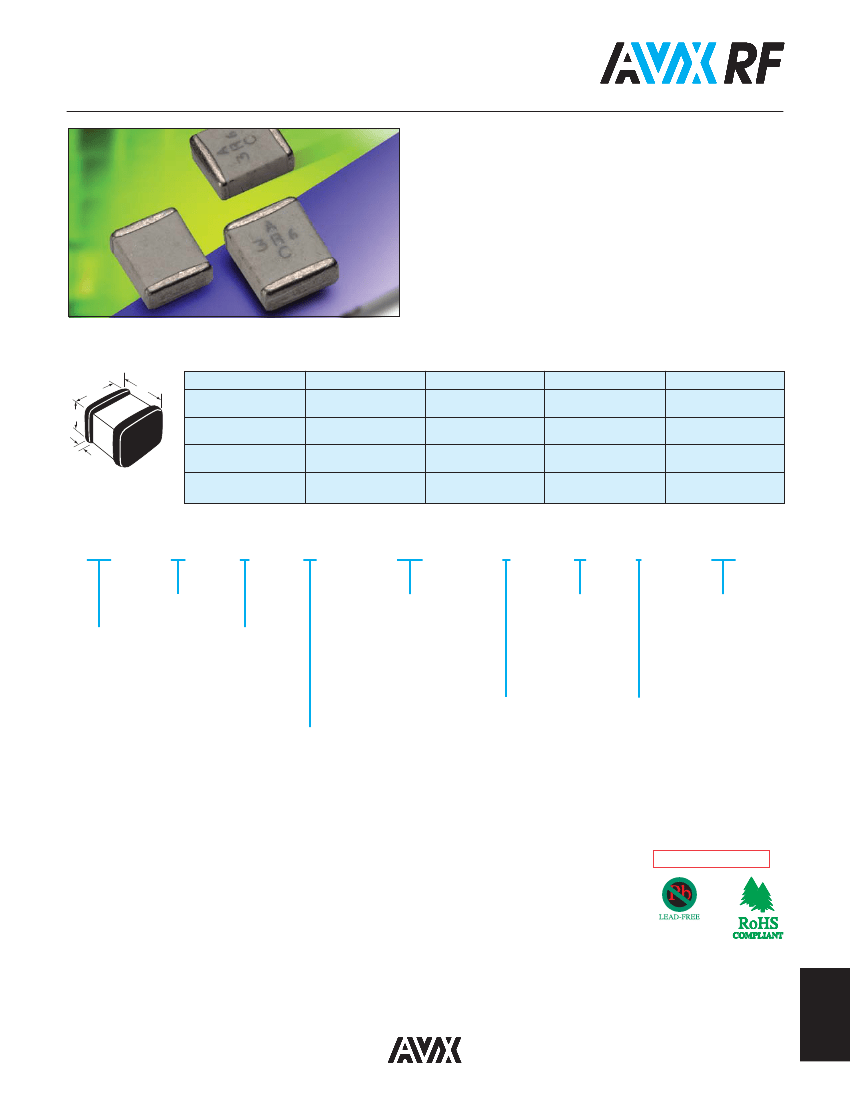

Microwave MLC’s

AQ Series

These porcelain and ceramic dielectric multilayer capacitor

(MLC) chips are best suited for RF/ Microwave applications

typically ranging from 10 MHz to 4.2 GHz. Characteristic is a

fine grained, high density, high purity dielectric material imper-

vious to moisture with heavy internal palladium electrodes.

These characteristics lend well to applications requiring:

1) high current carrying capabilities;

2) high quality factors;

3) very low equivalent series resistance;

4) very high series resonance;

5) excellent stability under stresses of changing volt-

age, frequency, time and temperature.

MECHANICAL DIMENSIONS:

inches (millimeters)

Width (W)

.055±.015

(1.40±.381)

.055±.015

(1.40±.381)

.110±.020

(2.79±.508)

.110±.010

(2.79±.508)

Case

AQ11

AQ12

Length (L)

.055±.015

(1.40±.381)

.055 + .015 - .010

(1.40+ .381 - .254)

.110±.020

(2.79±.508)

.110 + .020 - .010

(2.79 +.889 -.254)

Thickness (T)

.020/.057

(.508/1.45)

.020/.057

(.508/1.45)

.030/.102

(.762/2.59)

.030/.102

(.762/2.59)

Band Width (bw)

.010 + .010 -.005

(.254 +.254 -.127)

.010 + .010 -.005

(.254 +.254 -.127)

.015±.010

(.381±.254)

.015±.010

(.381±.254)

A 1J

AQ13

AQ14

HOW TO ORDER

100

Case

Size

AVX Style

AQ11, AQ12,

AQ13, AQ14

(See Chart)

Capacitance

Voltage

Code

5 = 50V

1 = 100V

E = 150V

2 = 200V

9 = 300V

7 = 500V

EIA Capacitance Code in pF.

First two digits = significant

figures or “R” for decimal

place.

Third digit = number of zeros

or after “R” significant figures.

Failure Rate

Code

A = Not

Applicable

Packaging*

Code

3A = 13" Reel Unmarked

ME = 7" Reel Marked

RE = 13" Reel Marked

WE = Waffle Pack Marked

BE = Bulk Marked

Temperature

Coefficient Code

M = +90±20ppm/°C (AQ11/12/13/14)

A = 0±30ppm/°C (AQ11/12/13/14)

C = 15% (“J” Termination only) (AQ12/14)

Capacitance

Tolerance

Code

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

N = ±30%

Termination

Style Code

7 = Ag/Ni/Au (AQ11/13 only)

J = Nickel Barrier Sn/Pb

(60/40) - (AQ12/14 only)

T = 100% Tin (AQ12/14 only)

PACKAGING

Standard Packaging = Waffle Pack (maximum quantity is 80)

Not RoHS Compliant

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481

(equivalent to IEC 286 part 3).

LEAD-FREE COMPATIBLE

COMPONENT

Sizes SQCA through SQCB, CDR11/12 through 13/14.

—8mm carrier

—7" reel: ≤0.040" thickness = 2000 pcs

≤0.075" thickness = 2000 pcs

—13" reel: ≤0.075" thickness = 10,000 pcs

092616

For RoHS compliant products,

please select correct termination style.

205
