2201801 Overview

ME-IO 18 8 C 3U S1 7035

2201801 Parametric

Parameter Name	Attribute value
type	shell, cover
characteristic	-
Supporting products/related products	ME series
size/dimensions	1.299" long x 0.740" wide x 1.024" high (33.00mm x 18.80mm x 26.00mm)
color	grey
Material	Plastic, polyamide

Preview

Download Datasheet

View All

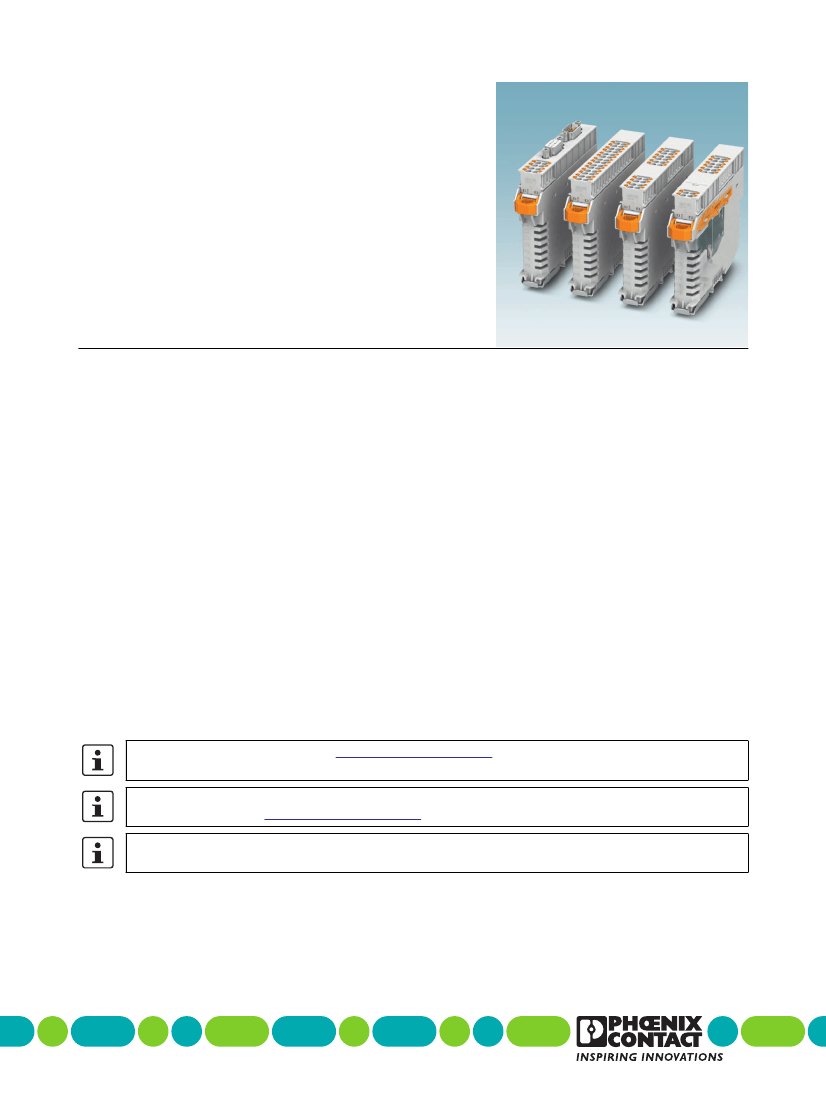

ME-IO 18,8...

Component housing

Data sheet

105787_en_02

Description

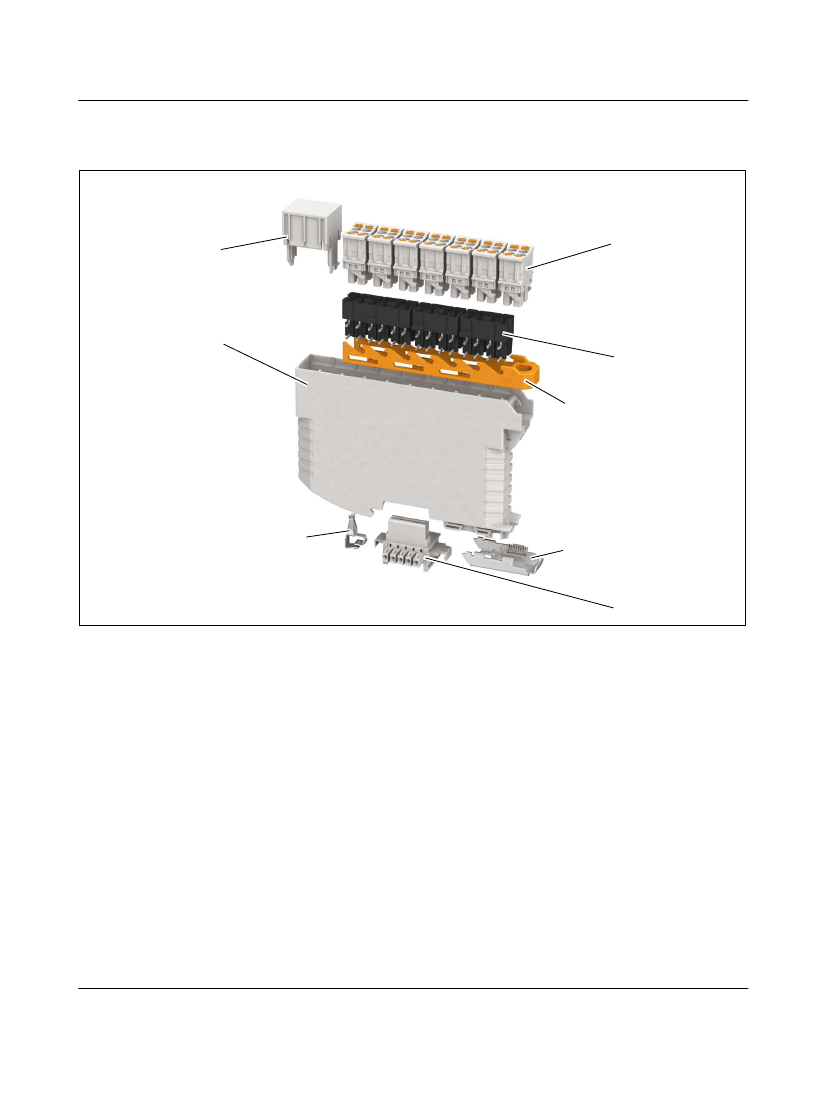

The housings of the ME-IO 18,8... product range consist of

a 18.8 mm wide

lower housing part

with space for the PCB

assembly.

The lower housing part can be combined with various hous-

ing covers. The lower housing part is subdivided into 9 units

(1 Unit = 11 mm). These units can be combined with con-

nectors and housing covers in various ways.

The

connectors

correspond to a unit and have a push-in

connection. There are 4-pos. connectors for conductor

cross sections of up to 2.5 mm

, and 6-pos. connectors for

conductor cross sections of up to 1.5 mm

. Partially assem-

bled or TWIN variants are also available. All in all, the 4-pos.

connectors allow for a maximum of 36 positions in a single

housing. The 6-pos. connectors even allow for up to 54 po-

sitions. As a counter-part to the connectors, there are

head-

ers

in 2 or 3 unit versions for soldering onto the PCB.

The

housing covers

in 2 to 7 unit versions are especially

suited for installing connection systems such as USB or

D-SUB as well as display and operating elements. We

would be glad to install the required openings for you.

The housings can be snapped onto an NS 35 DIN rail.

It is possible to use the housings with a

DIN rail connector

by means of which communication can be established be-

tween the housings, or the supply voltage can be transmit-

ted.

The 3D housing data can be found at

phoenixcontact.net/products.

Make sure you always use the latest documentation.

It can be downloaded at

phoenixcontact.net/products.

This data sheet is valid for all products listed on page 5.

ME-IO 18,8...

Table of contents

Description..................................................................................................................................

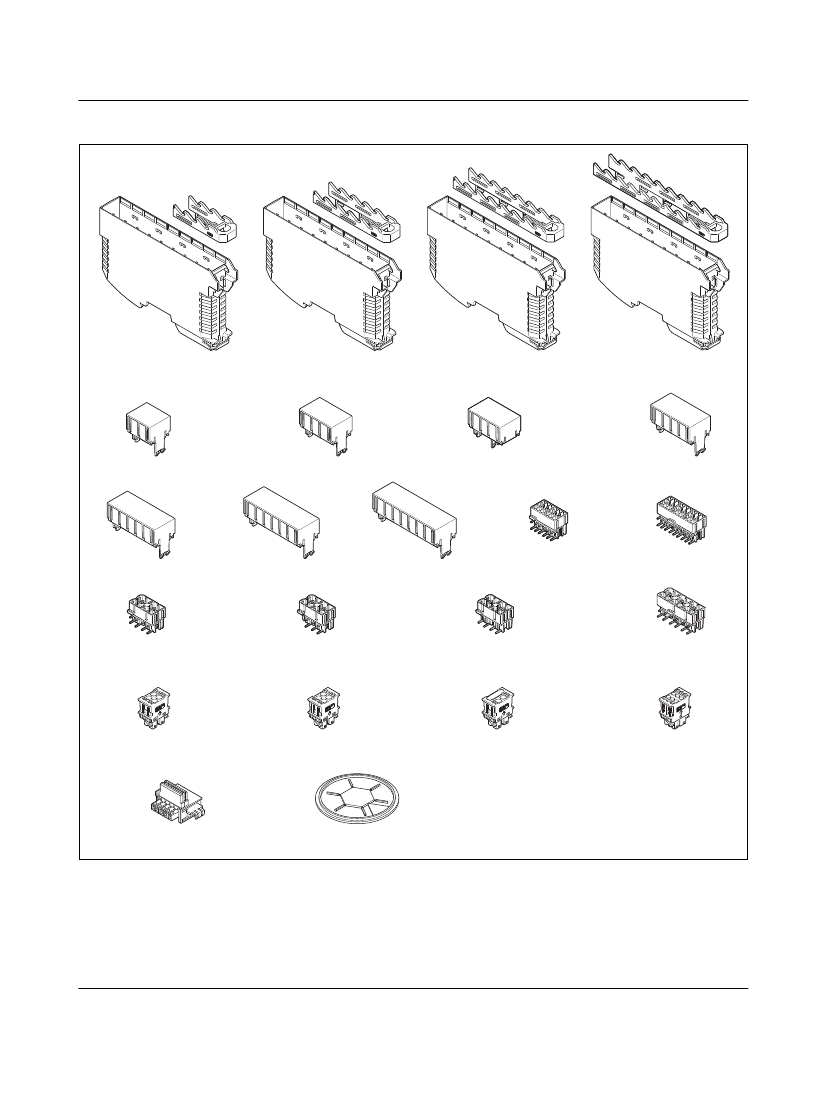

Overview of the ME-IO 18,8... products ......................................................................................

Ordering data..............................................................................................................................

Technical data ............................................................................................................................

Combination of headers and connectors ....................................................................................

5.1

5.2

5.3

Connections of headers and connectors ........................................................................................................6

Selecting headers and connectors .................................................................................................................6

Concatenating headers ..................................................................................................................................7

Dimensions.................................................................................................................................

6.1

6.2

6.3

External dimensions .......................................................................................................................................8

Internal dimensions of lower housing part ......................................................................................................8

Dimensions of the housing cover....................................................................................................................8

PCB dimensions .........................................................................................................................

7.1

7.2

7.3

7.4

Maximum PCB dimensions in the lower housing part .....................................................................................9

Maximum PCB dimensions with DIN rail connector......................................................................................10

PCB dimensions according to housing cover ...............................................................................................11

PCB with FE contact.....................................................................................................................................12

Connection technology .............................................................................................................

8.1

8.2

8.3

8.4

8.5

Header (pitch 5 mm).....................................................................................................................................13

Header (pitch 3.45 mm)................................................................................................................................16

Connector (pitch 5 mm) ................................................................................................................................18

Connector (pitch 3.45 mm) ...........................................................................................................................19

DIN rail connector.........................................................................................................................................20

Mounting the housing ...............................................................................................................

9.1

9.2

9.3

9.4

9.5

9.6

9.7

9.8

Assembling the Lock and Release system ...................................................................................................21

Inserting the PCB .........................................................................................................................................21

Assembling the housing covers....................................................................................................................22

Assembling the connectors ..........................................................................................................................22

Releasing the connectors (Lock and Release) .............................................................................................23

Coding the connectors .................................................................................................................................23

Connecting conductors (push-in connection) ...............................................................................................24

Mounting the housing on a DIN rail...............................................................................................................24

10 Removing the housing ..............................................................................................................

10.1

10.2

10.3

10.4

10.5

Taking the housing off the DIN rail................................................................................................................25

Removing the housing covers ......................................................................................................................25

Removing the base latch ..............................................................................................................................26

Taking out the PCB.......................................................................................................................................26

Taking off the Lock and Release system ......................................................................................................27

105787_en_02

PHOENIX CONTACT

2 / 27

2201801 Related Products

	2201801	2201790	2201782	2201803	2201800	2201963	2201792	2201804	2201805	2201781
Description	ME-IO 18 8 C 3U S1 7035	TERM BLOCK HDR 8POS 90DEG	TERM BLOCK PLUG 2POS STR 5MM	ME-IO 18 8 C 5U 7035	ME-IO 18 8 C 3U 7035	ME-IO 18 8 B/FE 3/9U TBUS 7035	TERM BLOCK HDR 6POS 90DEG	ME-IO 18 8 C 6U 7035	ME-IO 18 8 C 7U 7035	TERM BLOCK PLUG 4POS STR 5MM
type	shell, cover	Connector, male pins, shrouded (4 sides)	plug, female socket	shell, cover	shell, cover	base	-	shell, cover	shell, cover	plug, female socket
Supporting products/related products	ME series	-	-	ME series	ME series	ME series	-	ME series	ME series	-
size/dimensions	1.299" long x 0.740" wide x 1.024" high (33.00mm x 18.80mm x 26.00mm)	-	-	2.165" long x 0.740" wide x 1.024" high (55.00mm x 18.80mm x 26.00mm)	1.299" long x 0.740" wide x 1.024" high (33.00mm x 18.80mm x 26.00mm)	4.461" long x 0.740" wide x 2.551" high (113.30mm x 18.80mm x 64.80mm)	-	2.598" long x 0.740" wide x 1.024" high (66.00mm x 18.80mm x 26.00mm)	3.031" long x 0.740" wide x 1.024" high (77.00mm x 18.80mm x 26.00mm)	-
color	grey	black	grey	grey	grey	grey	-	grey	grey	grey
Material	Plastic, polyamide	-	-	Plastic, polyamide	Plastic, polyamide	Plastic, polyamide	-	Plastic, polyamide	Plastic, polyamide	-
