CC-SB-WMX-J97C Overview

CONNECTCORE 6 SBC I.MX6QUAD

Preview

Download Datasheet

View All

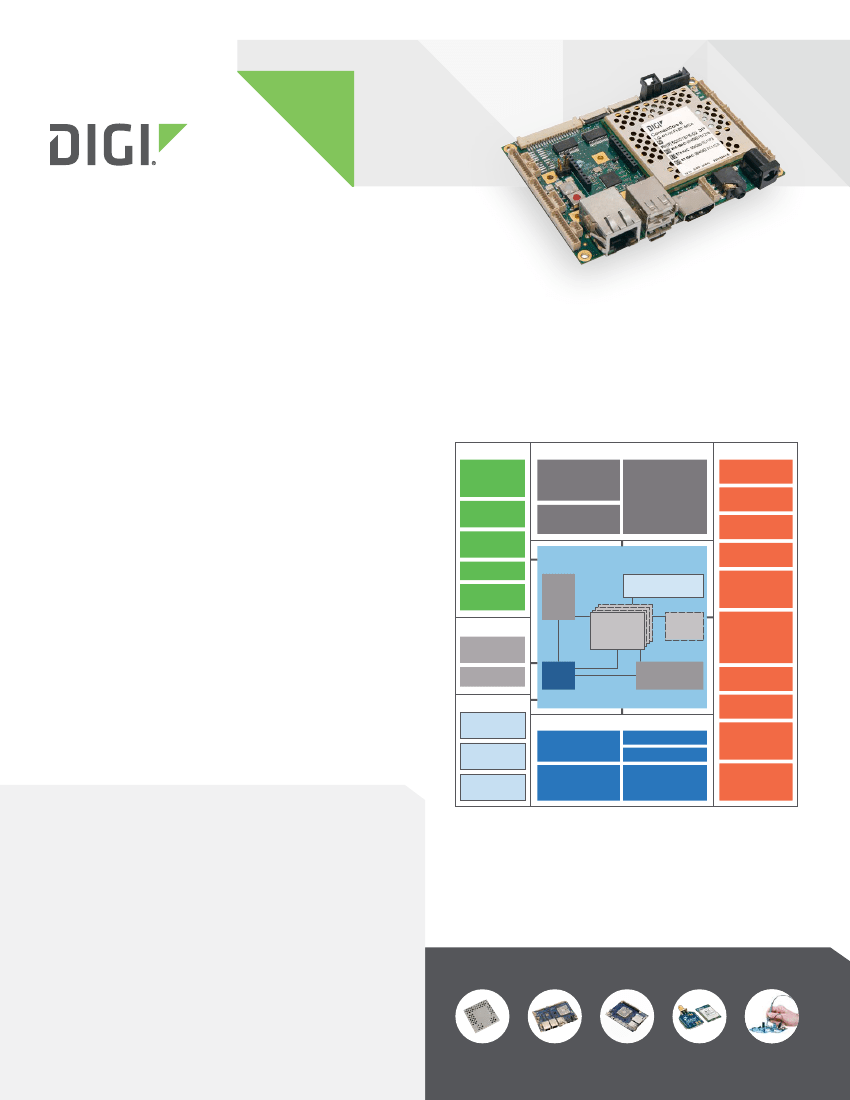

CONNECTED SINGLE

BOARD COMPUTER

FAMILY

CONNECTCORE 6 SBC

The ConnectCore 6 SBC is an ultra-compact and versatile

off-the-shelf single board computer (SBC) family. It offers

significantly reduced time to market by virtually eliminating

the traditional risk, effort and complexity of custom board

designs without sacrificing flexibility or capabilities.

Built on the ConnectCore 6 module, it provides a common

platform with scalable NXP i.MX6 performance, precertified

Bluetooth 4.0 and Wi-Fi integration, Digi XBee RF module

and cellular connectivity options, Gigabit Ethernet support,

multi display/camera and audio support, external storage,

expansion connectors, and reliability in harsh environments.

Leading and innovative features such as the Kinetis Micro

Controller Assist™ (MCA) enable the development of connected

products with highly optimized power footprints. Optional

Digi Remote Manager

integration provides secure remote

management and device health capabilities for the Internet

of Things.

POWER

5VDC Power-In

w/Over-Voltage

Protection

4.2V Li-Ion

Connector

Coin Cell

Connector

Power Reset

Boot

Configuration

STORAGE

HDD/SSD

SATA

MicroSD

DEBUG

JTAG

i.MX6

SWD

Kinesis

Console

UART

Reliable and compact NXP i.MX6 SBC family with integrated Ethernet,

Wi-Fi, Bluetooth 4.0, Digi XBee® and cellular connectivity options

BLOCK DIAGRAM

VIDEO/AUDIO

Camera

MIPI-CSI

CSI Camera0

Audio

Line Out via 3.5 mm Jack

HDD/SSD

HDMI

MIPI-DSI

LVDSO

Parallel LCD (24-Bit)

UART

SPI

Audio

Line In/Line Out/

Mic In

USB

USB 2.0 Host via

USB HUB

EXPANSION HEADERS

2 x Flexcan

ConnectCore® 6

Up to

2 GB

DDR3

NXP

i.MX6

802.11a/b/g/n +

Blue tooth 4.0

Kinetics

MCA

PMIC

Up to 64 GB

eMMC Flash

GPIO

User LEDs

COMMUNITY/CONNECTIVITY

Wi-Fi / Bluetooth 4.0

(on ConnectCore 6)

Cellular w/MicroSIM

(on ConnectCore 6)

XBee

Gigabit Ethernet

USB

USB 2.0 OTG + 2 x

USB 2.0 Host

Camera

CSI Camera1

Display

LVDS1

BENEFITS

– Compact off-the-shelf SBC family

– Scalable capabilities and i.MX6Quad/Dual/DualLite

performance

– Gigabit Ethernet and pre-certified dual-band Wi-Fi +

Bluetooth 4.0

– Ready for cellular connectivity and Digi XBee RF

– Complete set of available peripherals and

interfaces with customization options

– Designed for flexibility and reliability

– Windows Embedded Compact, Linux and Android

software platform support

– Industrial operating temperature available
