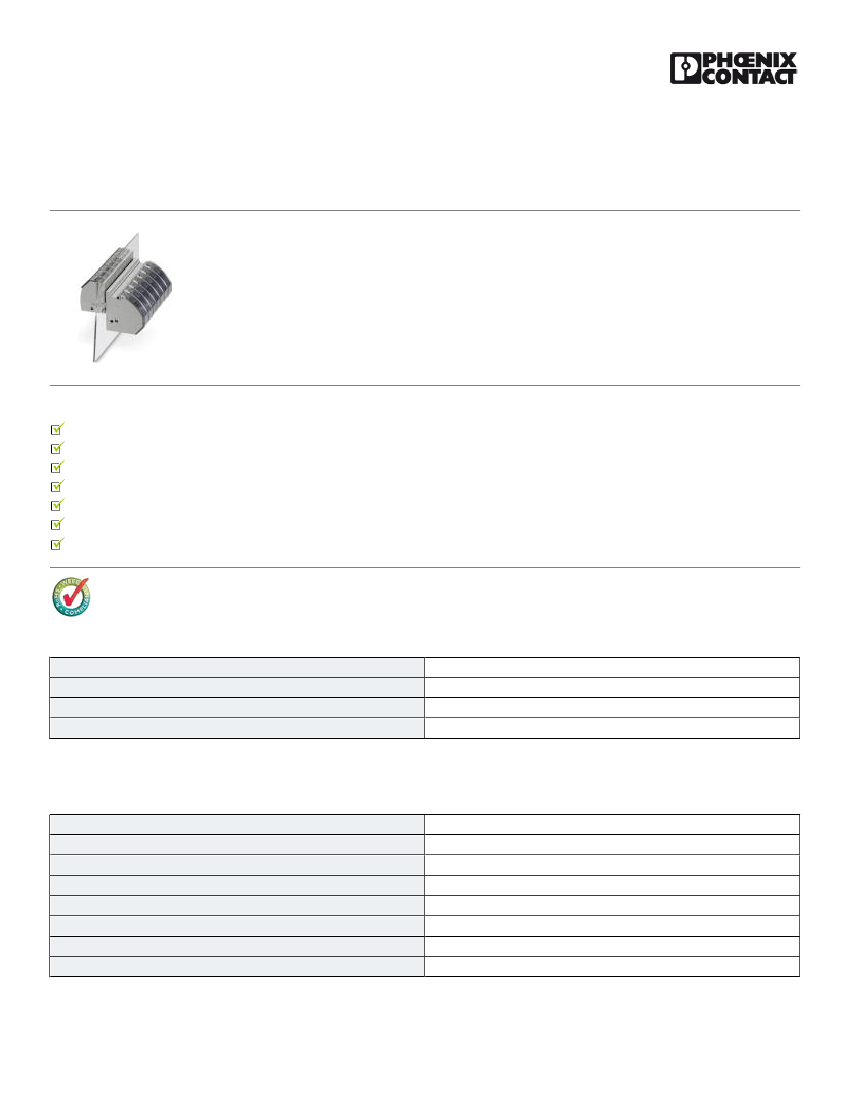

Bolt connection terminal block - RWOV 5-TC - 3075074
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bolt connection terminal block, Connection method: Bolt connection, Load current : 76 A, Cross section: 0.1
mm² - 16 mm², AWG 26 - 6, Connection direction of the conductor to plug-in direction: 90 °, Width: 16.3 mm,
Color: gray
Product Features
Easy grouping with engagement pin versions
Both terminal halves can be easily assembled by simply snapping them together
Molded versions ensure maximum tightness of seal
Spring-loaded spacers protect the bolt connection against loosening
Touch-proof insulating housing with transparent cover
Automatic compensation of the panel thickness via the snap principle integrated in the insulation housing
Key commercial data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
10 pc
85369010
China
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Rated surge voltage
Pollution degree
Surge voltage category
1
2
gray
PA
V0
8 kV
3
III
05/19/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/3075074
Bolt connection terminal block - RWOV 5-TC - 3075074
Technical data
General
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
I
IEC 60947-7-1
76 A
1000 V
ja
1
Dimensions
Width
Plate thickness
16.3 mm
1 mm ... 6 mm
Connection data
Note
Connection side
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Screw thread
Tightening torque, min
Tightening torque max
Connection bolts
Level 1 above 1 below 1
Bolt connection
0.1 mm²
16 mm²
0.1 mm²
16 mm²
26
6
M5
2.5 Nm
3 Nm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141111
27141111
27141134
27141134
27141134
27141134
27141134
ETIM
ETIM 3.0
EC001283
05/19/2015 Page 2 / 4
https://www.phoenixcontact.com/us/products/3075074
Bolt connection terminal block - RWOV 5-TC - 3075074
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC001283
EC001283
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
UL Recognized / EAC
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
65 A
600 V
C
65 A
600 V
EAC
Drawings
05/19/2015 Page 3 / 4
https://www.phoenixcontact.com/us/products/3075074
Bolt connection terminal block - RWOV 5-TC - 3075074
Dimensional drawing
28,7
47,3
16,3
Dimensional drawing
14,4
Ø4,3
38,7
19,4
18,2
10
46,2
7,8
16,3
16,45*
1-6
* Only when using the RW...‑F flange plate
