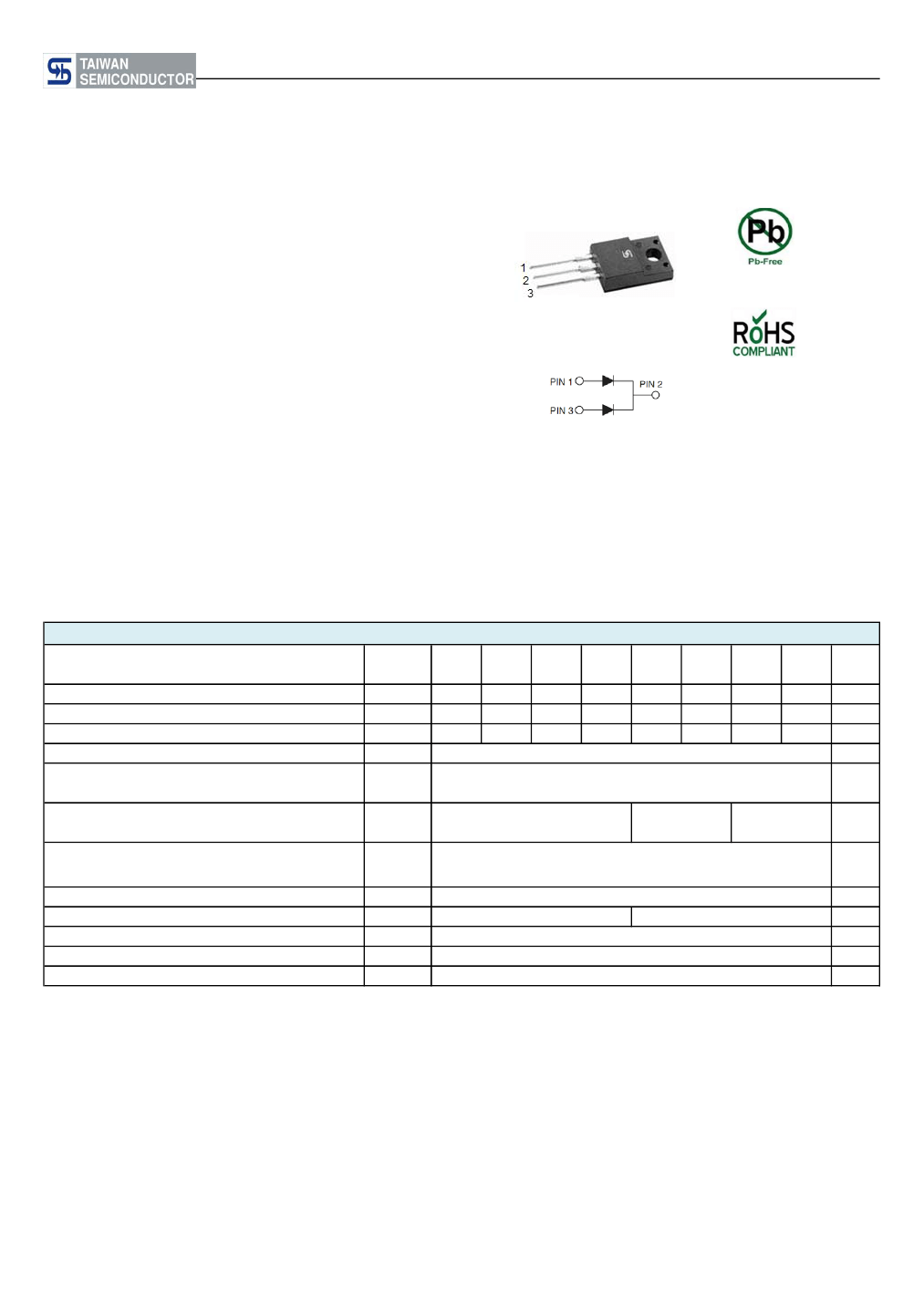

SFF1601G thru SFF1608G
Taiwan Semiconductor
CREAT BY ART
Isolated Glass Passivated Super Fast Rectifiers
FEATURES
- High efficiency, low VF.
- High current capavility
- High reliability
- High surge current capability
- Low power loss.
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
ITO-220AB
MECHANICAL DATA
Case:
ITO-220AB
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - (green compound) halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
5 in-lbs maximum
Weight:
1.7 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 8 A
Maximum reverse current @ Rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with PW=300μs, 1% Duty Cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A.
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJC
T
J
T
STG
80
1.5
- 55 to +150
- 55 to +150
0.975
10
400
35
50
O
SFF
50
35
50
SFF
100
70
100
SFF
150
105
150
SFF
200
140
200
16
125
SFF
300
210
300
SFF
400
280
400
SFF
500
350
500
SFF
600
420
600
1601G 1602G 1603G 1604G 1605G 1606G 1607G 1608G
UNIT
V
V
V
A
A
1.3
1.7
V
μA
ns
pF
C/W
O
O
C
C
Document Number: DS_D1405031
Version: H14
SFF1601G thru SFF1608G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SFF160xG
(Note 1)
AEC-Q101
QUALIFIED
Prefix "H"
C0
PACKING CODE
GREEN COMPOUND
CODE
Suffix "G"
ITO-220AB
50 / Tube
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (SFF1601G) to 600V (SFF1608G)
EXAMPLE
PREFERRED P/N
SFF1608G C0
SFF1608G C0G
SFF1608GHC0
PART NO.
SFF1608G
SFF1608G
SFF1608G
H
AEC-Q101
QUALIFIED
PACKING CODE
C0
C0
C0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

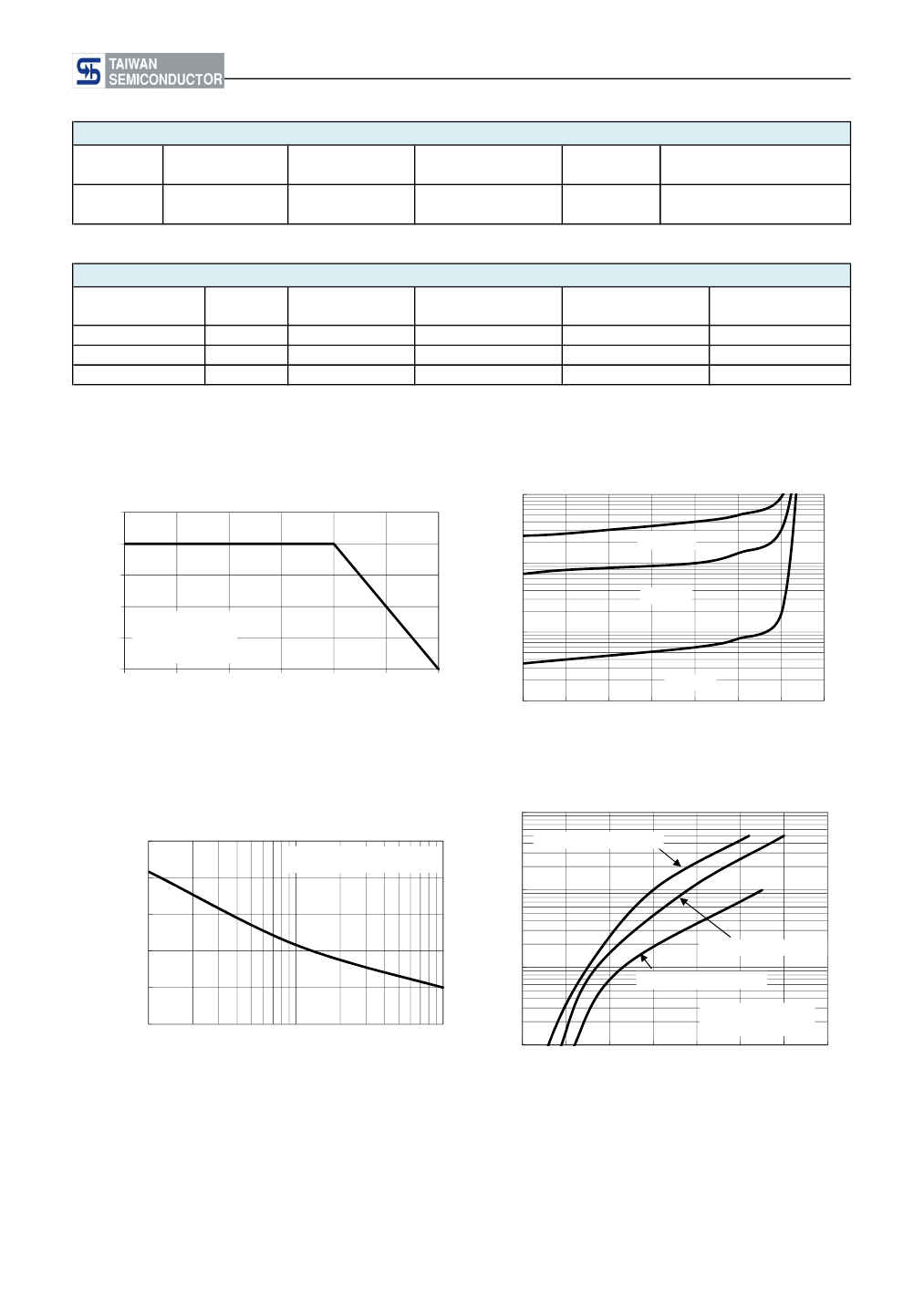

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
INSTANTANEOUS REVERSE CURRENT
(μA)
20
AVERAGE FORWARD
A
CURRENT (A)
16
12
8
4
0
0
25
50
75
100
125
150
100
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
TJ=100℃
10
TJ=75℃
1
RESISTER OR
INDUCTIVE LOAD
WITH HEATSINK
TJ=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
CASE TEMPERATURE (
o
C)
150
INSTANTANEOUS FORWARD CURRENT (A)
PEAK FORWARD SURGE CURRENT (A)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
8.3ms Single Half Sine Wave
120
90
60
30
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
SFF1601G-SFF1604G
10
SFF1605G-SFF1606G
1
SFF1607G-SFF1608G
Pulse Width=300us
1% Duty Cycle
0.1
0.4
0.6
0.8
FORWARD VOLTAGE (V)
1
1.2
1.4
1.6
1.8
Document Number: DS_D1405031
Version: H14

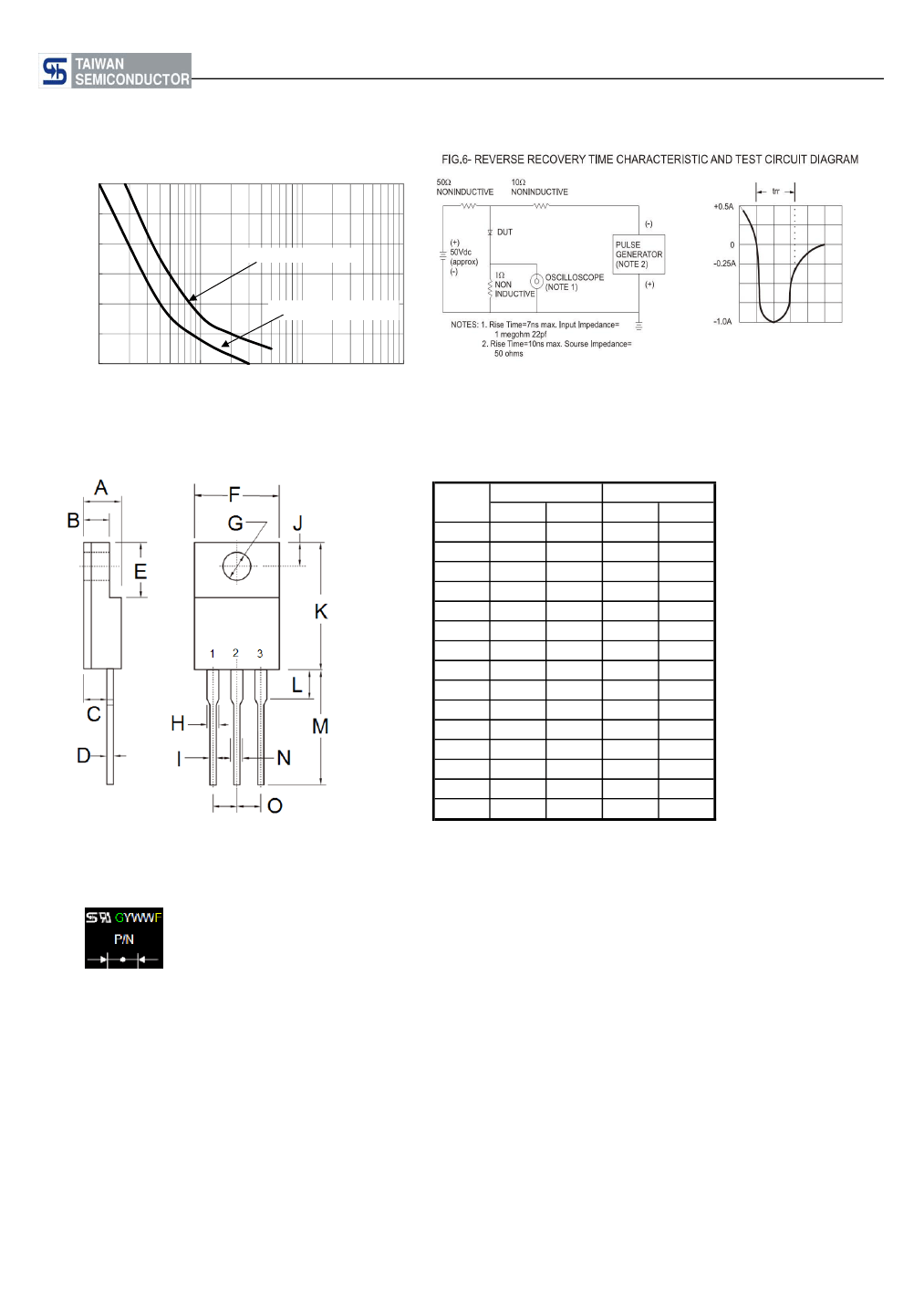

SFF1601G thru SFF1608G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1405031
Version: H14
