HM2P08PDW2F1N9LF datasheet, PDF

Datasheet> All Categories > The connector> HM2P08PDW2F1N9LF

HM2P08PDW2F1N9LF: DescriptionMPAC 5R ST PF HDR; CategoryThe connector; File Size113KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HM2P08PDW2F1N9LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM2P08PDW2F1N9LF	-	-	View	Buy Now

HM2P08PDW2F1N9LF Overview

MPAC 5R ST PF HDR

HM2P08PDW2F1N9LF Parametric

Parameter Name	Attribute value
Connector type	Connector, male pin
Connector style	B 25
Number of pins	175 (125 + 50 ground)
Number of pins loaded	all
spacing	0.079"（2.00mm）
Number of rows	5 + 2
Installation type	Through hole
Termination	Press fit
Connector usage	-
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
Rated current	1.5A
Rated voltage	750Vrms
Operating temperature	-55°C ~ 125°C
characteristic	-

Preview

Download Datasheet

View All

1 e

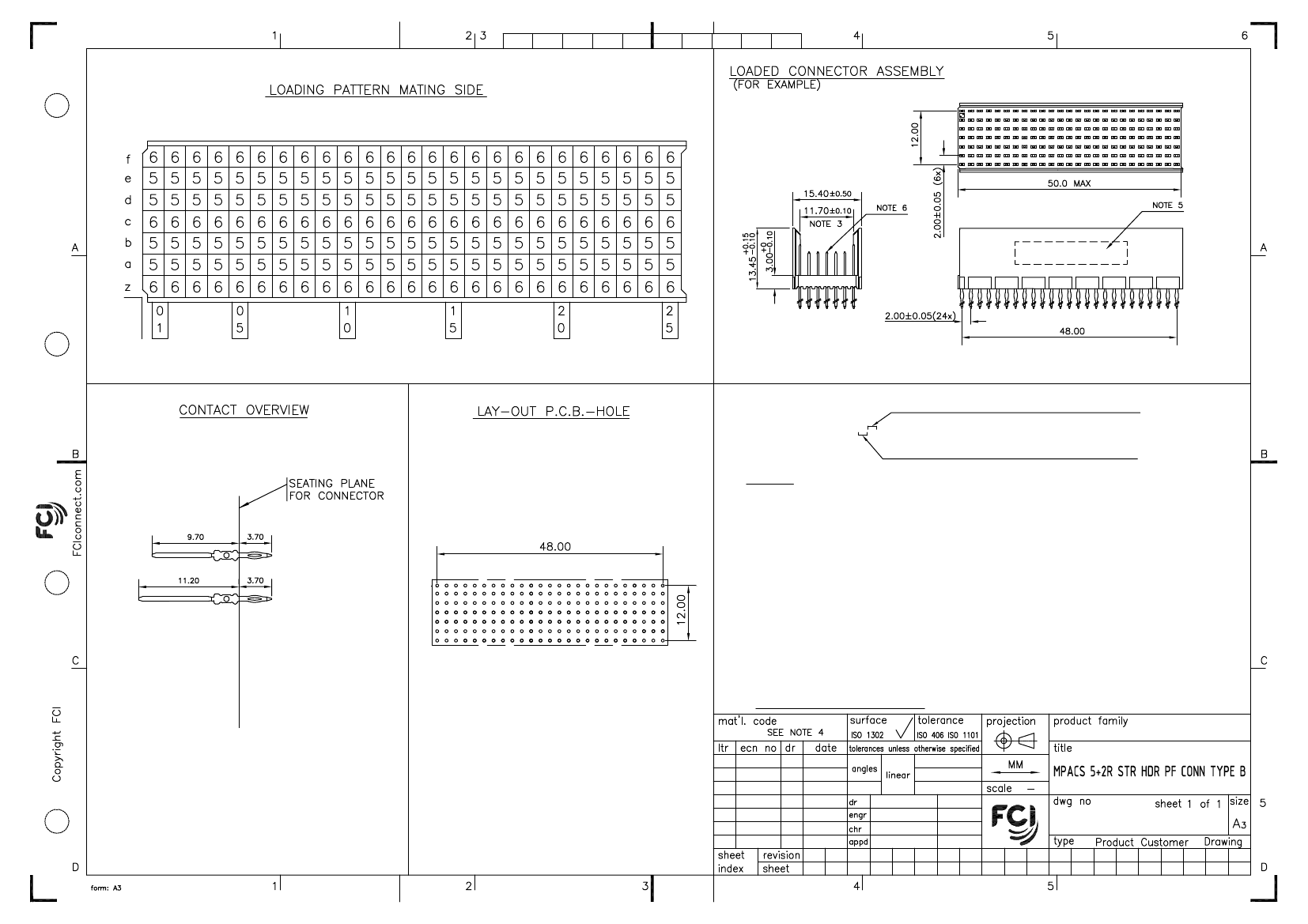

HM2P08PDW2F1----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

CATALOG NO: HM2P08PDW2F1----

MILLIPACS

I03-0037

I05-0182

I06-0077

MKV 30/07/2003

MINI

03/10/2005

0°±1°

BIJU K PAUL

MINI 22/06/2006

.0±0.2

.00±0.1

.000±.00X

30/07/2003

22/06/2006

MINI K VANDANATH 30/07/2003

BS, C ,203028, 063

PDM: Rev:C

STATUS:

Released

2 5

Printed: Dec 03, 2007

HM2P08PDW2F1N9LF Related Products

	HM2P08PDW2F1N9LF	HM2P08PDW2F1N9
Description	MPAC 5R ST PF HDR	MPAC 5R ST PF HDR
Connector type	Connector, male pin	Connector, male pin
Connector style	B 25	B 25
Number of pins	175 (125 + 50 ground)	175 (125 + 50 ground)
Number of pins loaded	all	all
spacing	0.079"（2.00mm）	0.079"（2.00mm）
Number of rows	5 + 2	5 + 2
Installation type	Through hole	Through hole
Termination	Press fit	Press fit
Contact plating	gold	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）
Rated current	1.5A	1.5A
Rated voltage	750Vrms	750Vrms
Operating temperature	-55°C ~ 125°C	-55°C ~ 125°C
