7090-06-BI-V1-R1 datasheet, PDF

Datasheet> All Categories > 7090-06-BI-V1-R1

Preview

7090-06-BI-V1-R1: DescriptionNetwork Interface Device; File Size452KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet View All

7090-06-BI-V1-R1 Overview

Network Interface Device

7090-06-BI-V1-R1 Preview

Features

■

Expands to add POTS lines, DSL or both

Manufactured from high-impact resistant,

ultraviolet-desensitized, flame retardant,

UL Recognized plastic

Optional sealed switching jacks with

Insulation DIsplacement Connectors

(IDCs)

Subscriber lockable with Telco override

■

Convenient

■

ground attachment

Listed per UL 497 (File: E53117)

7090 Series – Network Interface Device

Bourns

7090 NID provides a secure and weather resistant enclosure for Telco service for residential or commercial installa-

tions. The 7090 supplies station protection and test access points and can be configured for a maximum of six POTS lines or

three lines with DSL. The 7090 features plenty of working space for wire management.

How To Order

7090 - 0X - X X - XX - XX

Model Number Designator

Number of Twisted Pairs

1 = One

3 = Three 5 = Five

2 = Two

4 = Four

6 = Six

Station Protector Options

= 455HS-MSP (2377-45-HS) Voice / DSL / Data (UL, cUL)

= 455HS-BC* (2377-45-BC) Balance-Sensitive DSL (UL, cUL)

= 155HS-MSP (2378-35-HS) Voice / DSL / Data (UL, cUL)

= 155HS-BC* (2378-35-BC) Balance-Sensitive DSL (UL, cUL)

B = 125EW (2374-01) Dual Gas Tube (UL, cUL, Telcordia)

C = 125EW-R (2375-01) Dual Gas Tube (UL, cUL, RUS)

L = 356M (2377-01) Balanced Gas Tube (UL, cUL, RUS)

M = J130S (2380-27-01) Solid State Protector (UL, cUL)

T = Tii355M

O = No Station Protectors (Not available with DSL Configurations)

*For DSL systems requiring capacitive balance within 1 pF.

Note 1 = Digi.Guard - 356 size, RUS Maximum Duty

Note 2 = Digi.Guard II - 125 size, RUS Heavy Duty

Special Options

G = Security Screw in Telco Cover

H = Security Screw in security plate

S = Sealed Switching Jack w/IDC (85122-T-IDC)

F = Sealed Switching Jack 4-Post (85122-T4)

B = Expansion Bridge w/Binding Posts (85122-B)

I =

Expansion Bridge w/IDC (85122-IDC)

O = No options (standard 85122 jack)

DSL Options

†

A1 = (1) 3610A ADSL POTS Splitter

A2 = (2) 3610A ADSL POTS Splitters

A3 = (3) 3610A ADSL POTS Splitters

†

P1 = (1) 3610A2 DSL 2+ POTS Splitter

P2 = (2) 3610A2 DSL 2+ POTS Splitters

P3 = (3) 3610A2 DSL 2+ POTS Splitters

V1 = (1) 3630A VDSL POTS Splitter

V2 = (2) 3630A VDSL POTS Splitters

V3 = (3) 3630A VDSL POTS Splitters

DSL Configuration Note:

The

3610A, 3610A2

and

3630A

must be ordered with options

D, Z, E or Y

Station Protectors. 7090 NIDs ordered with DSL units

will include

Special Option F

(4-post sealed switching jacks). Example: 7090-01-EF-A1

DSL Equalization Option

R1 = (1) 3660 Equalization Module

To add lines, use station protector +

85122

Standard Jack (Not available with DSL configurations)

85122-T4

Sealed Switching Jack, 4-post

85122-T-IDC Sealed Switching Jack w/IDC

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

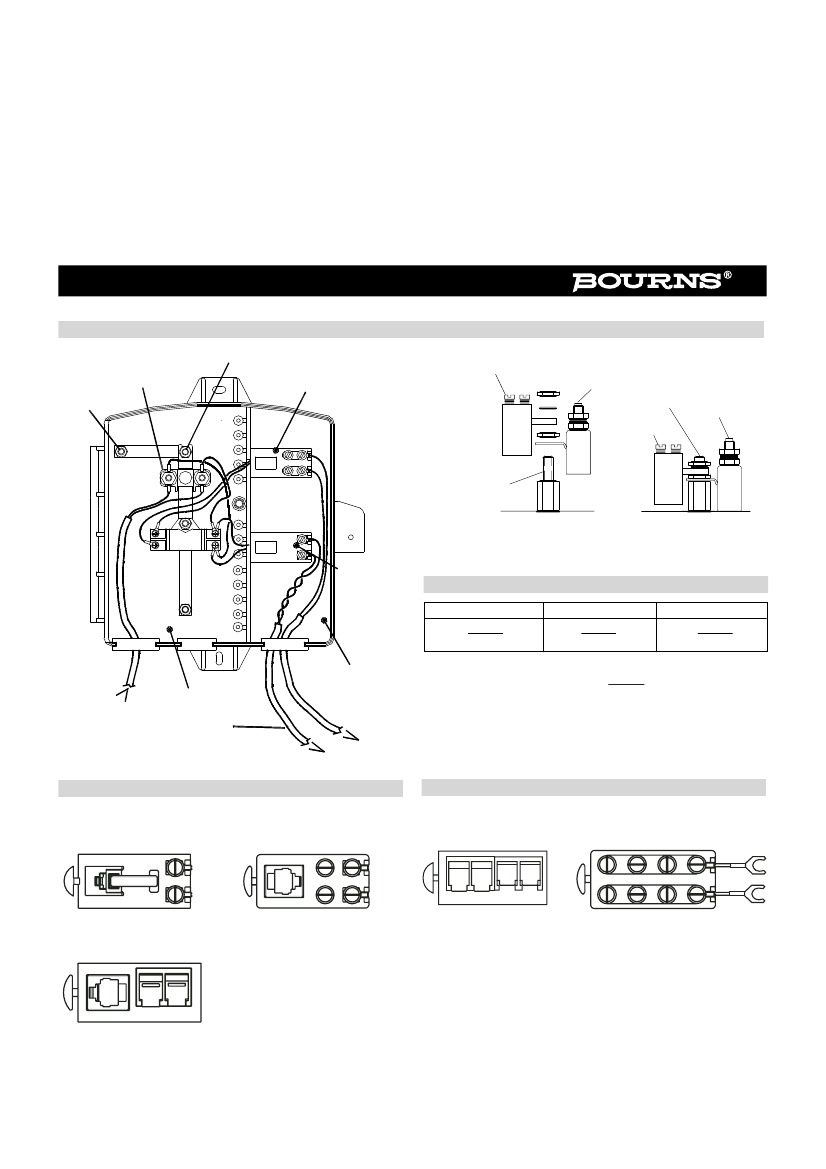

7090 Series – Network Interface Device

POTS Splitter Installation

MOUNTING POST

STATION

PROTECTOR

GROUND

TERMINAL

85122-T4

POTS MODULE

POTS SPLITTER

(ON TOP)

PROTECTOR

(ON BOTTOM)

MOUNTING

POST

PROTECTOR

POTS

SPLITTER

MOUNTING

POST

BEFORE

DATA

FINISHED

COMMON POST

ATTACHMENT

(7090 / 91)

IN1/2

OUT

85122-T (SUPPLIED)

DATA MODULE

Product Dimensions

High

229

(9.0)

CUSTOMER SIDE

Wide

216

(8.5)

(INCHES)

Deep

(2.7)

DIMENSIONS:

LOCKED TELCO SIDE

FROM C.O.

CAT 5

TO PHONE

TO DSL MODEM

RJ11 Subscriber Bridges

Expansion Bridges

85122

Standard Loop

85122-T4*

Internal Switch - 4 Lugs

85122-IDC

Insulation Displacement

Connectors

85122-B

Binding Post

85122-T-IDC*

Sealed Switch Jack w/IDC

*Includes environmental sealant and closed-cell foam gasket.

REV. K 06/06

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
