5022312400 datasheet, PDF - EEWORLD Datasheet

5022312400: DescriptionCONN FFC VERT 24POS 0.50MM SMD; CategoryThe connector; File Size370KB，5 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

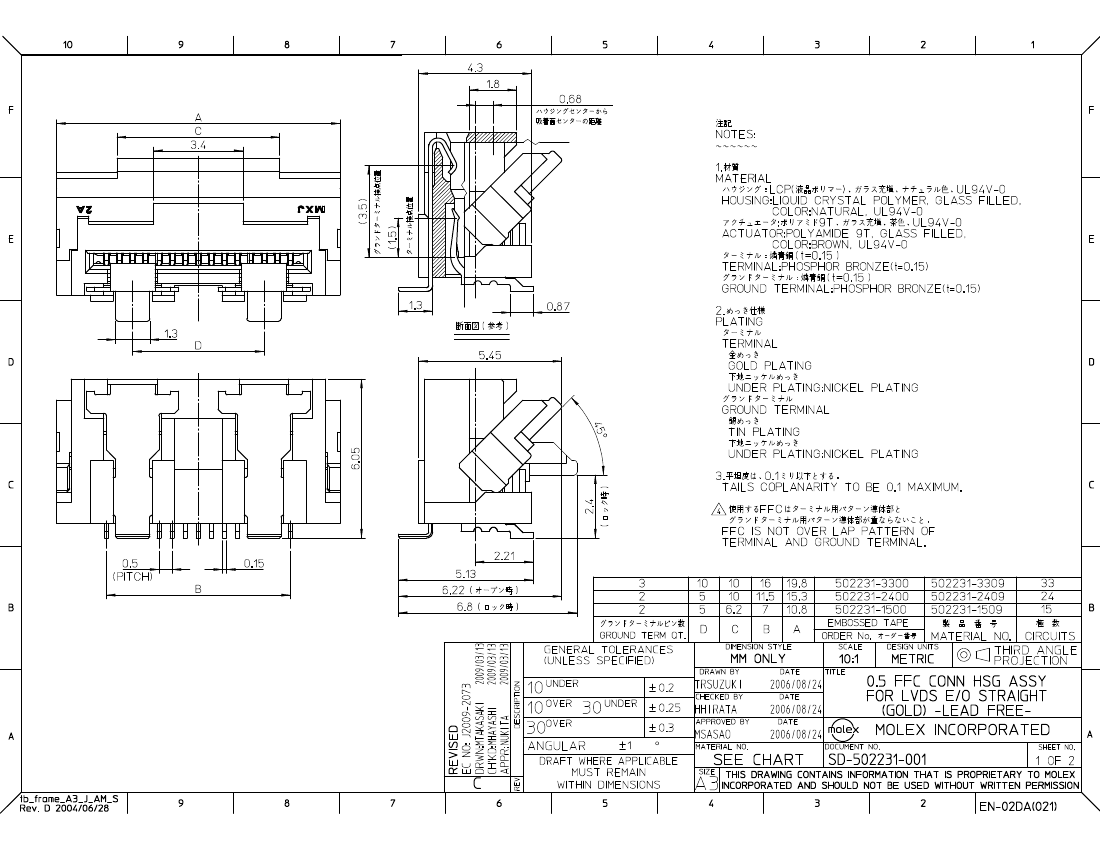

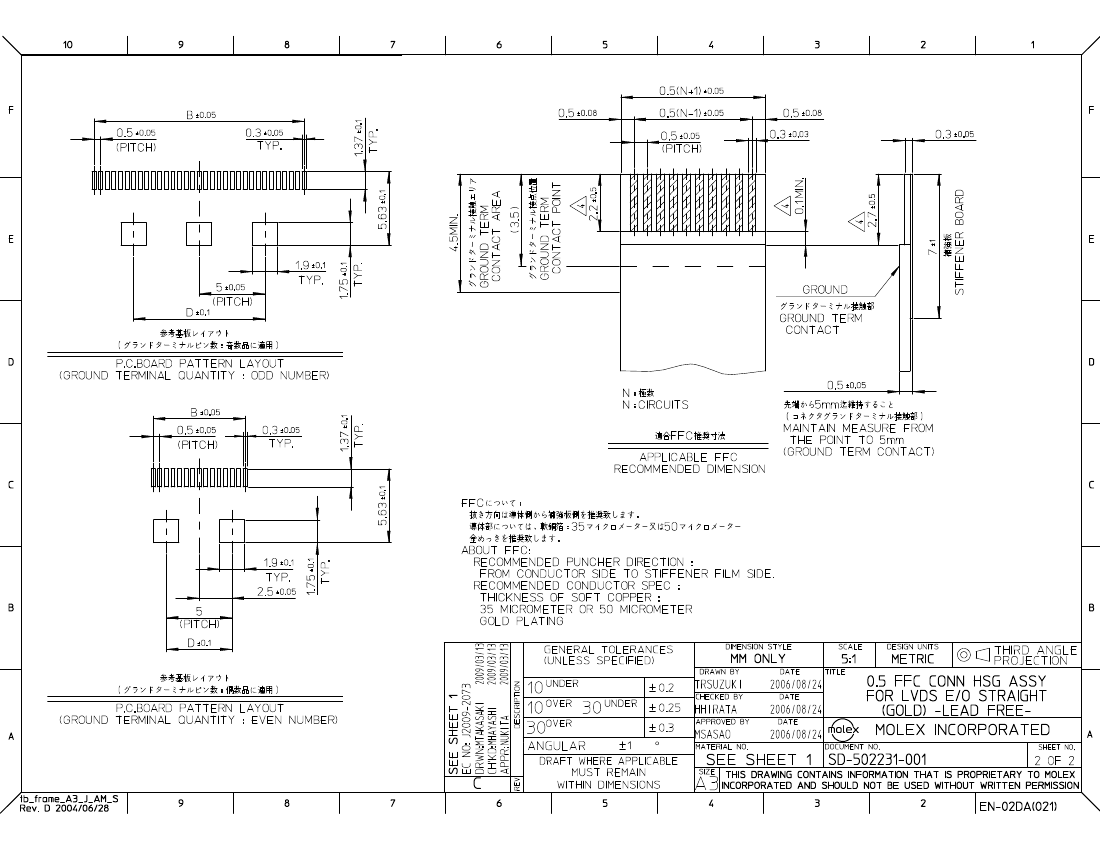

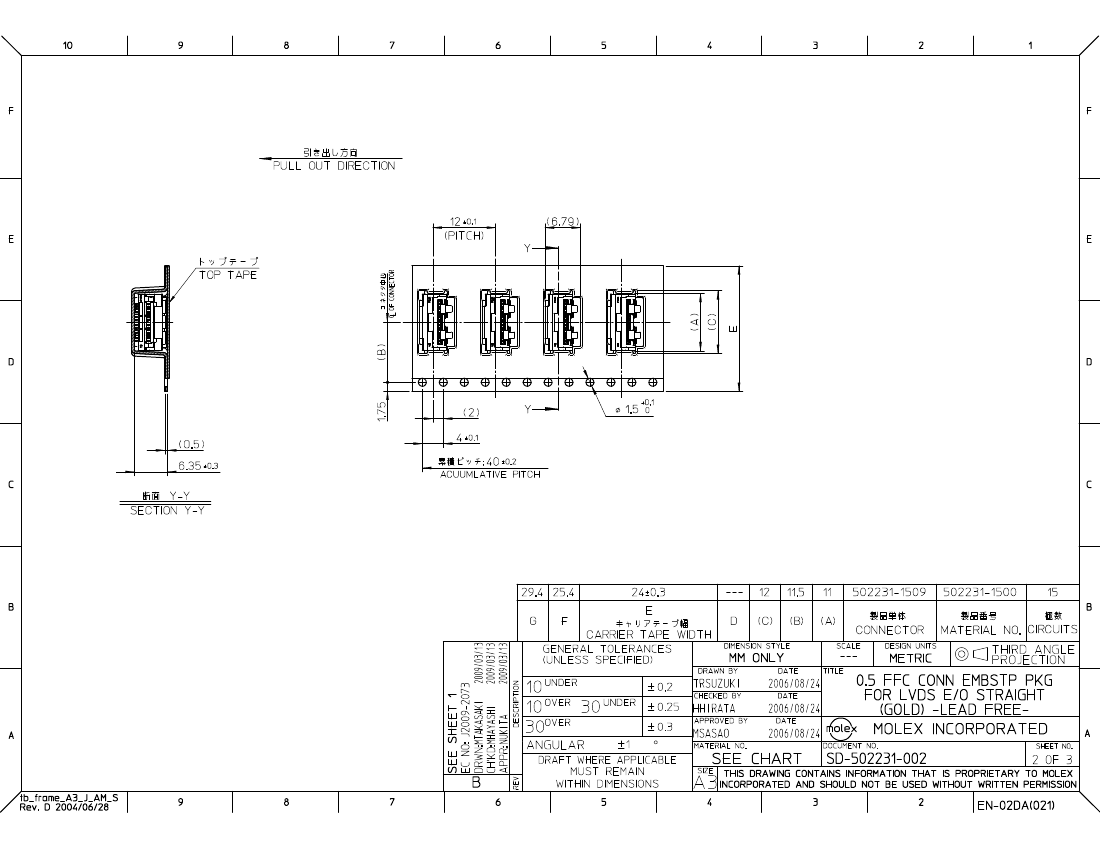

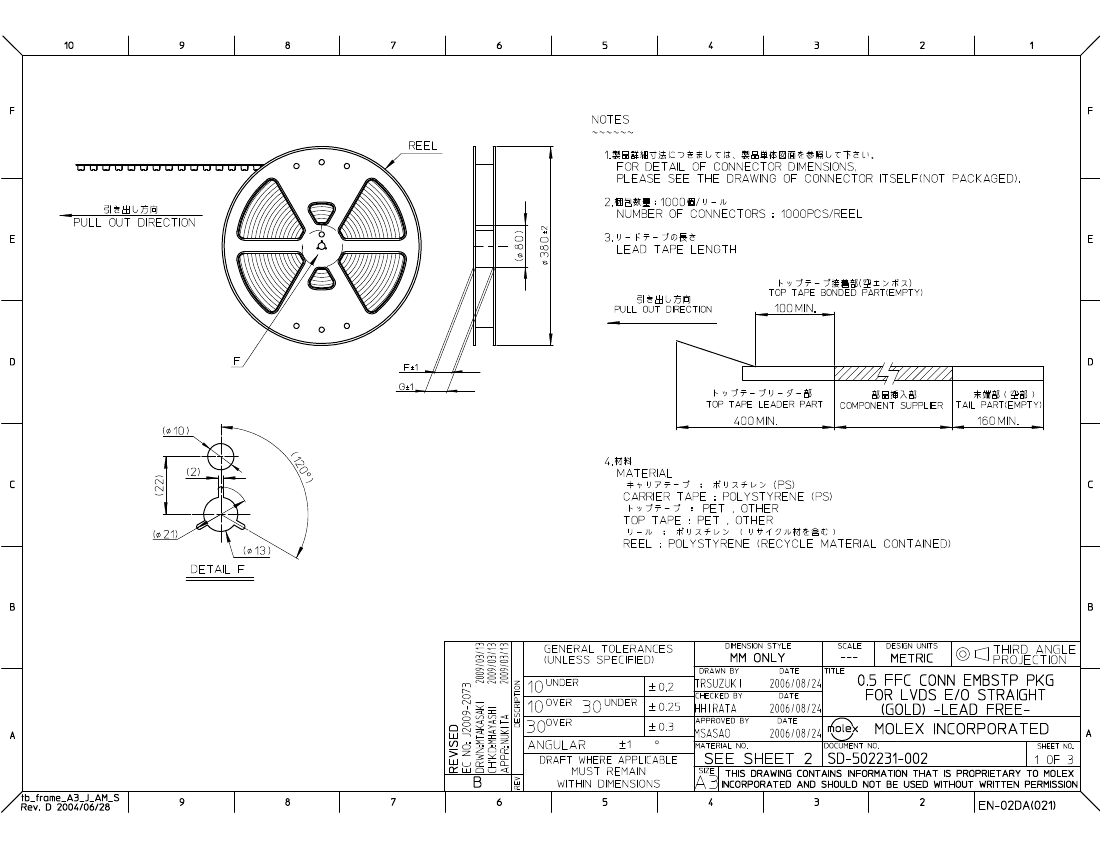

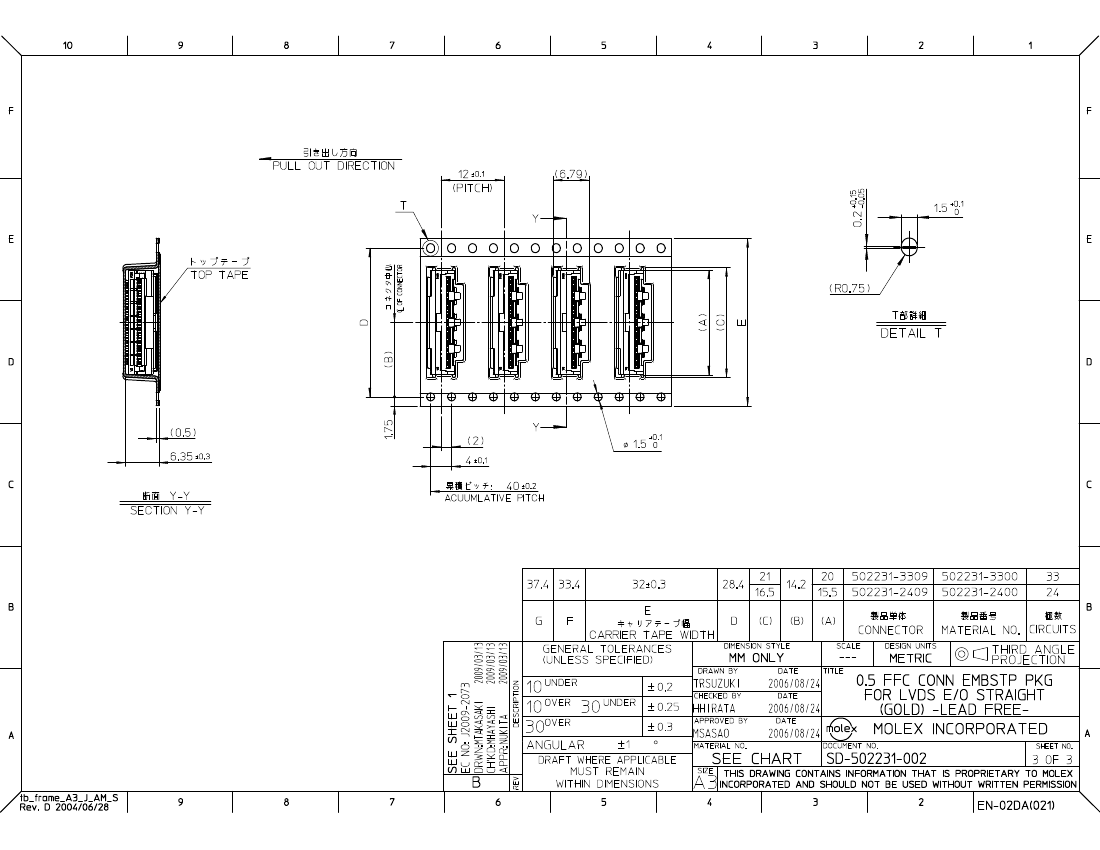

5022312400 Overview

CONN FFC VERT 24POS 0.50MM SMD

Parameter Name	Attribute value
Flat flexible type	FFC
Installation type	surface mount
Connector/contact type	Contact, vertical, 1 side
Number of pins	24
spacing	0.020"（0.50mm）
Termination	welding
FFC, FCB thickness	0.30mm
board height	0.238"（6.05mm）
Lock function	trigger lock
Cable end type	Straight
Contact material	Phosphor bronze
Contact plating	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA9T), nylon 9T, glass fiber reinforced
characteristic	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-25°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.4A
Contact plating thickness	-
Shell color	natural
Actuator color	brown
Number of patches	20

	5022312400	5022313300	5022311500
Description	CONN FFC VERT 24POS 0.50MM SMD	CONN FFC VERT 33POS 0.50MM SMD	CONN FFC VERT 15POS 0.50MM SMD
Flat flexible type	FFC	FFC	FFC
Installation type	surface mount	surface mount	surface mount
Connector/contact type	Contact, vertical, 1 side	Contact, vertical, 1 side	Contact, vertical, 1 side
Number of pins	24	33	15
spacing	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）
Termination	welding	welding	welding
FFC, FCB thickness	0.30mm	0.30mm	0.30mm
board height	0.238"（6.05mm）	0.238"（6.05mm）	0.238"（6.05mm）
Lock function	trigger lock	trigger lock	trigger lock
Cable end type	Straight	Straight	Straight
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	gold	gold	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA9T), nylon 9T, glass fiber reinforced	Polyamide (PA9T), nylon 9T, glass fiber reinforced	Polyamide (PA9T), nylon 9T, glass fiber reinforced
characteristic	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V	50V	50V
Operating temperature	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.4A	0.4A	0.4A
Shell color	natural	natural	natural
Actuator color	brown	brown	brown
Number of patches	20	20	20
