5025841060 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5025841060

5025841060: DescriptionCONN RCPT 10CKT VERT BEIGE; CategoryThe connector; File Size610KB，5 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

5025841060 Overview

CONN RCPT 10CKT VERT BEIGE

5025841060 Parametric

Parameter Name	Attribute value
Connector type	socket
Contact type	Forked
style	Board to cable/wire
Number of pins	10
Number of pins loaded	all
Spacing - Mating	0.059"（1.50mm）
Number of rows	1
Line spacing - patching	-
Installation type	surface mount
Termination	welding
Fastening type	latch holder
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）
Insulation color	beige
Insulation height	0.285"（7.25mm）
Contact length - terminal	-
Operating temperature	-40°C ~ 105°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	tin
Joint stack height	-
Intrusion protection	-
characteristic	Pick and place, weld hold
Rated current	-
Rated voltage	-
application	Automotive, general, industrial, lighting, medical
Insulation Materials	Resin
Contact shape	-
Contact material	copper alloy
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）

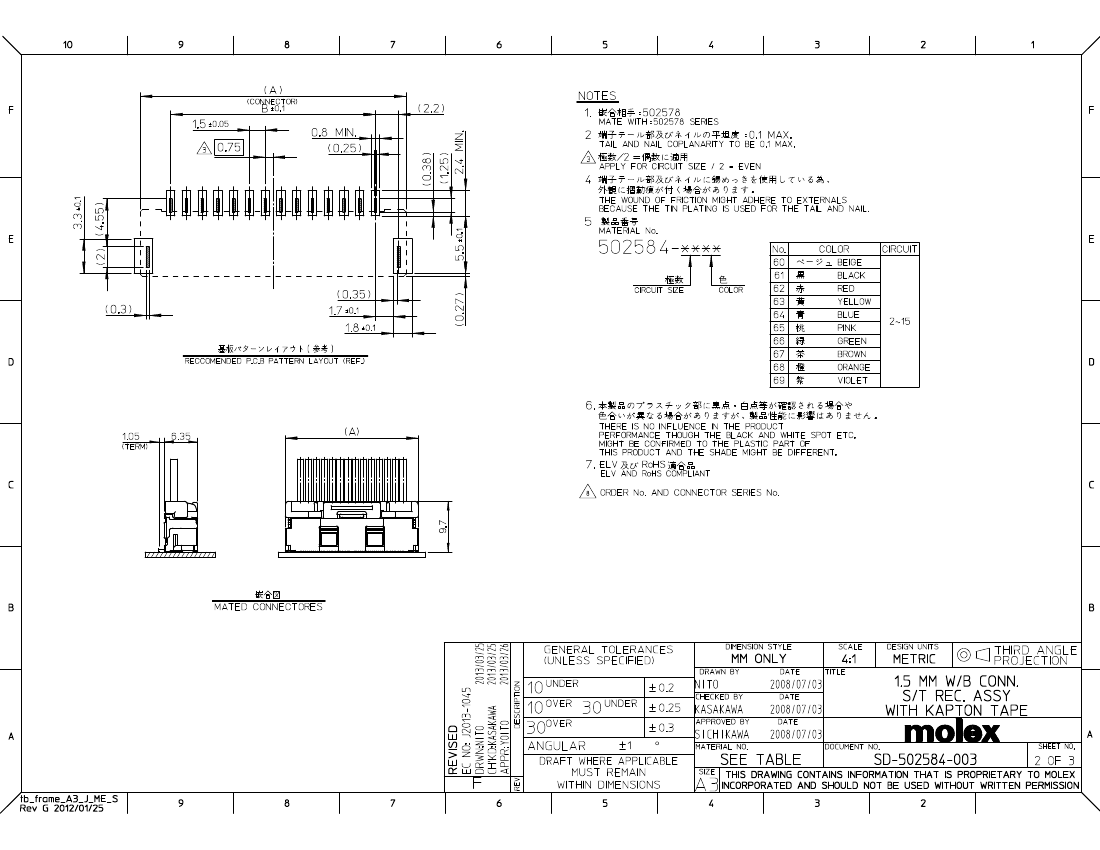

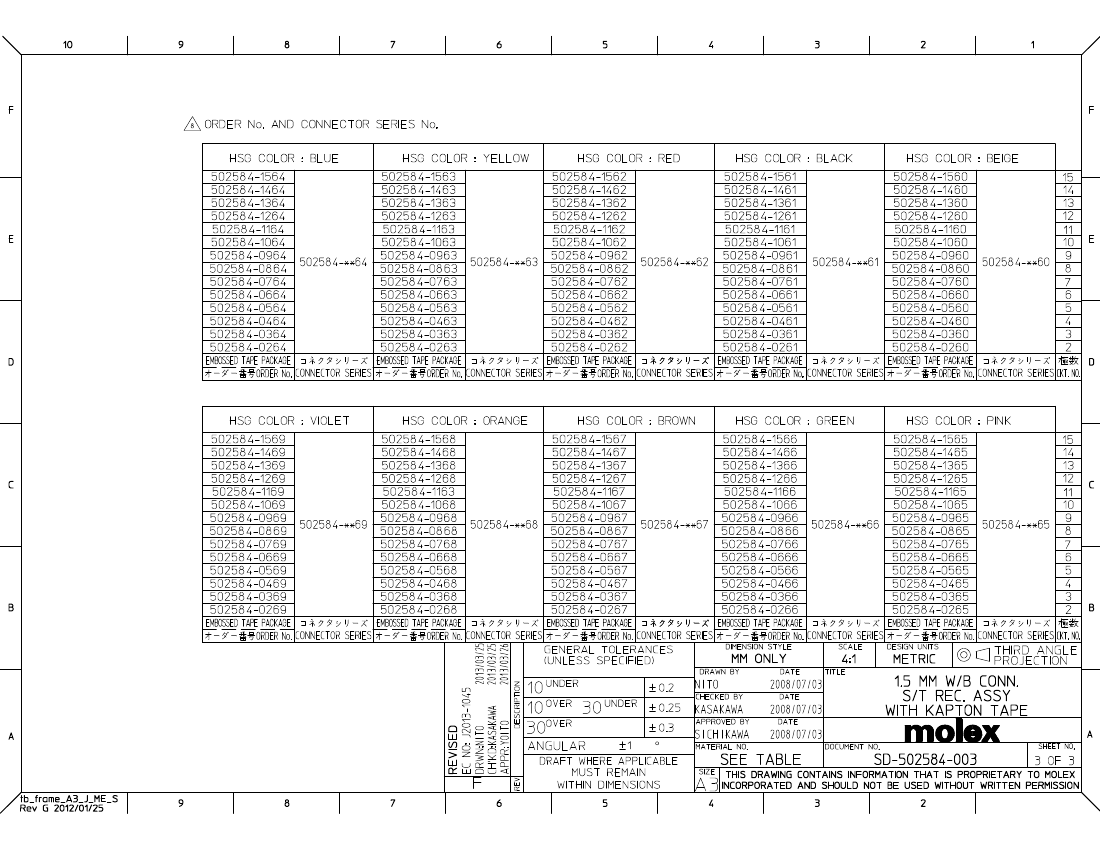

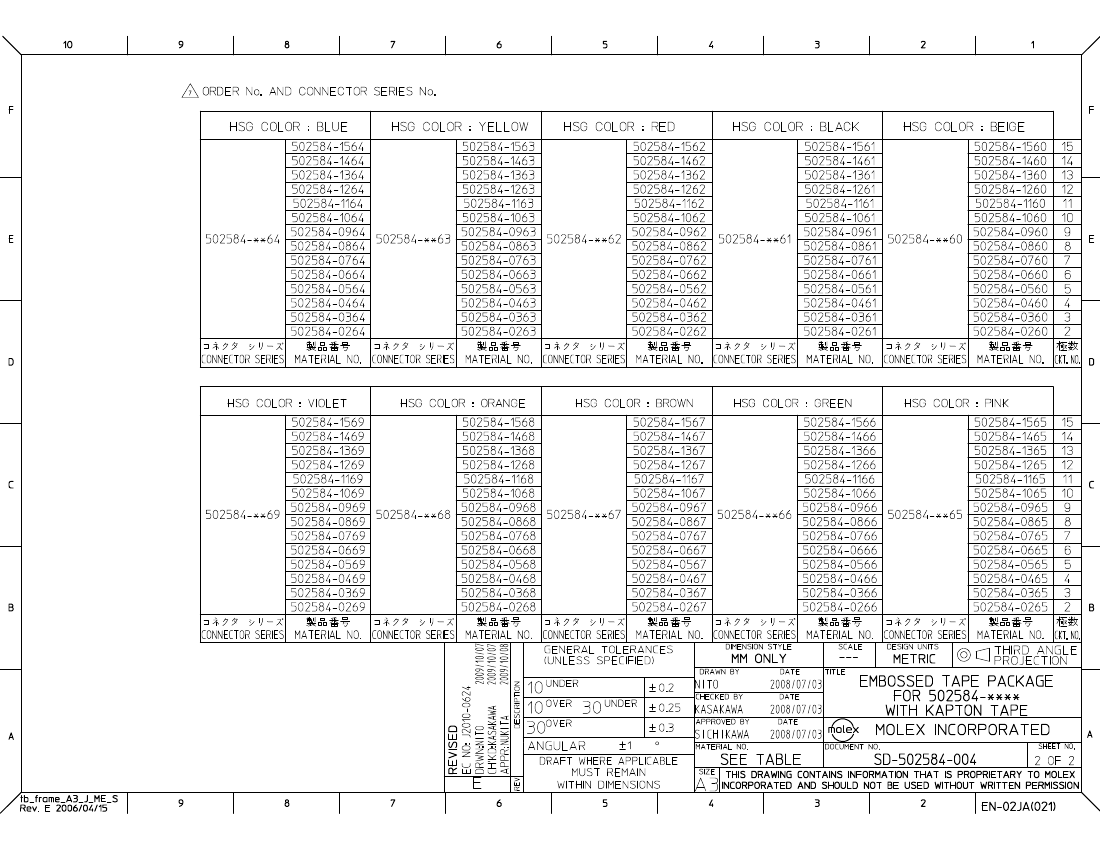

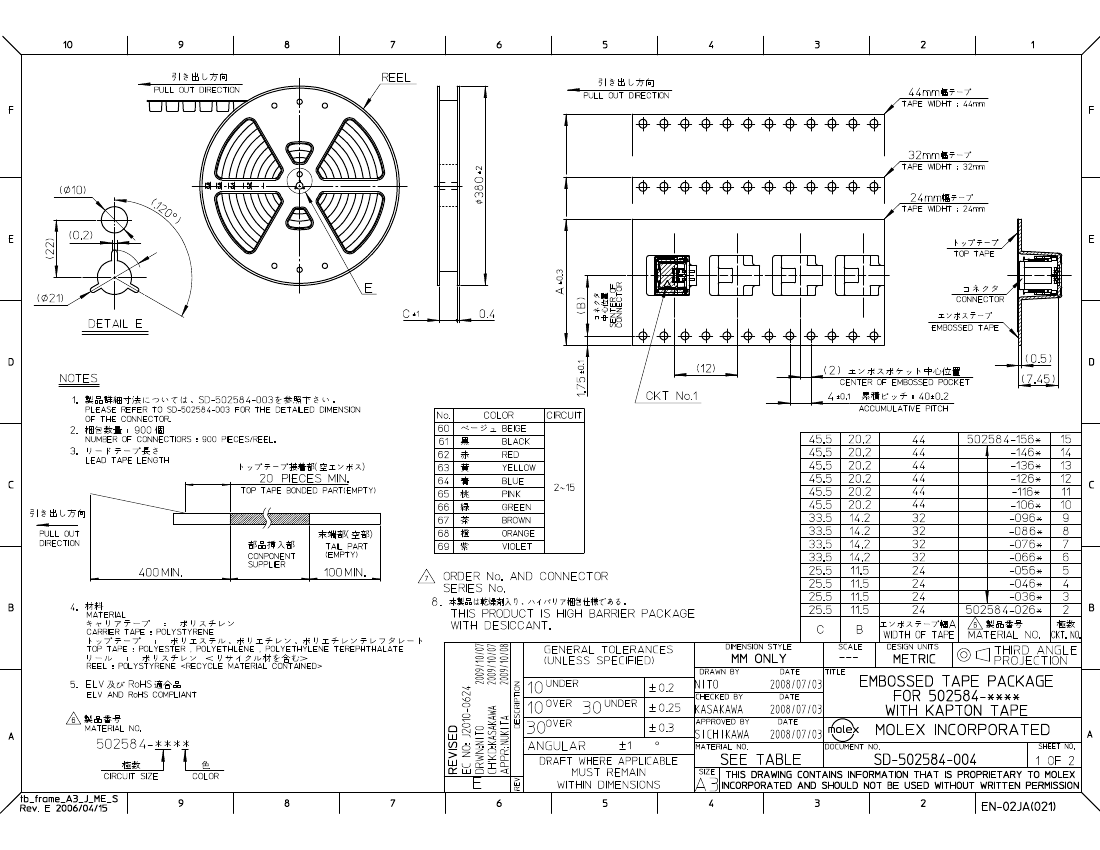

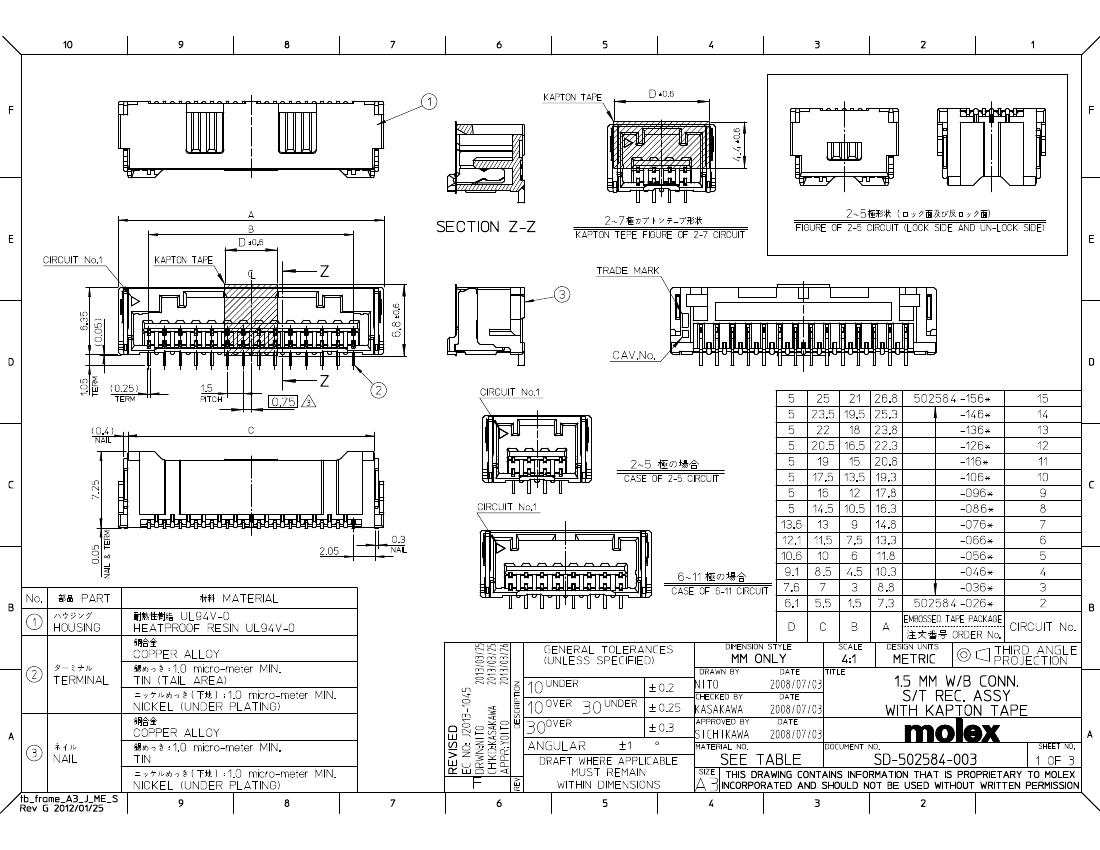

Preview

Download Datasheet

View All

5025841060 Related Products

	5025841060	5025840760	5025840860	5025840360	5025840560	5025840660	5025840460	5025840260	5025840960
Description	CONN RCPT 10CKT VERT BEIGE	CONN RCPT 7CKT VERT BEIGE	CONN RCPT 8CKT VERT BEIGE	CONN RCPT 3CKT VERT BEIGE	CONN RCPT 5CKT VERT BEIGE	CONN RCPT 6CKT VERT BEIGE	CONN RCPT 4CKT VERT BEIGE	CONN RCPT 2CKT VERT BEIGE	CONN RCPT 9CKT VERT BEIGE
Connector type	socket	socket	socket	socket	socket	socket	socket	socket	socket
Contact type	Forked	Forked	Forked	Forked	Forked	Forked	Forked	Forked	Forked
style	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire
Number of pins	10	7	8	3	5	6	4	2	9
Number of pins loaded	all	all	all	all	all	all	all	all	all
Spacing - Mating	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）
Number of rows	1	1	1	1	1	1	1	1	1
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Termination	welding	welding	welding	welding	welding	welding	welding	welding	welding
Fastening type	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder
Contact surface treatment - mating	tin	tin	tin	tin	tin	tin	tin	tin	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
Insulation color	beige	beige	beige	beige	beige	beige	beige	beige	beige
Insulation height	0.285"（7.25mm）	0.285"（7.25mm）	0.285"（7.25mm）	0.285"（7.25mm）	0.285"（7.25mm）	0.285"（7.25mm）	0.285"（7.25mm）	0.285"（7.25mm）	0.285"（7.25mm）
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact Surface Preparation - Column	tin	tin	tin	tin	tin	tin	tin	tin	tin
characteristic	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold
application	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical
Insulation Materials	Resin	Resin	Resin	Resin	Resin	Resin	Resin	Resin	Resin
Contact material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
