51730-203LF datasheet, PDF - EEWORLD Datasheet

51730-203LF: DescriptionPWRBLADE R/A LF HDR; CategoryThe connector The connector; File Size220KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51730-203LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51730-203LF	-	-	View	Buy Now

PWRBLADE R/A LF HDR

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
body width	0.574 inch
subject depth	0.93 inch
body length	2.25 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P4
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51730-203
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	SOLDER
Total number of contacts	28
Evacuation force-minimum value	.1668 N

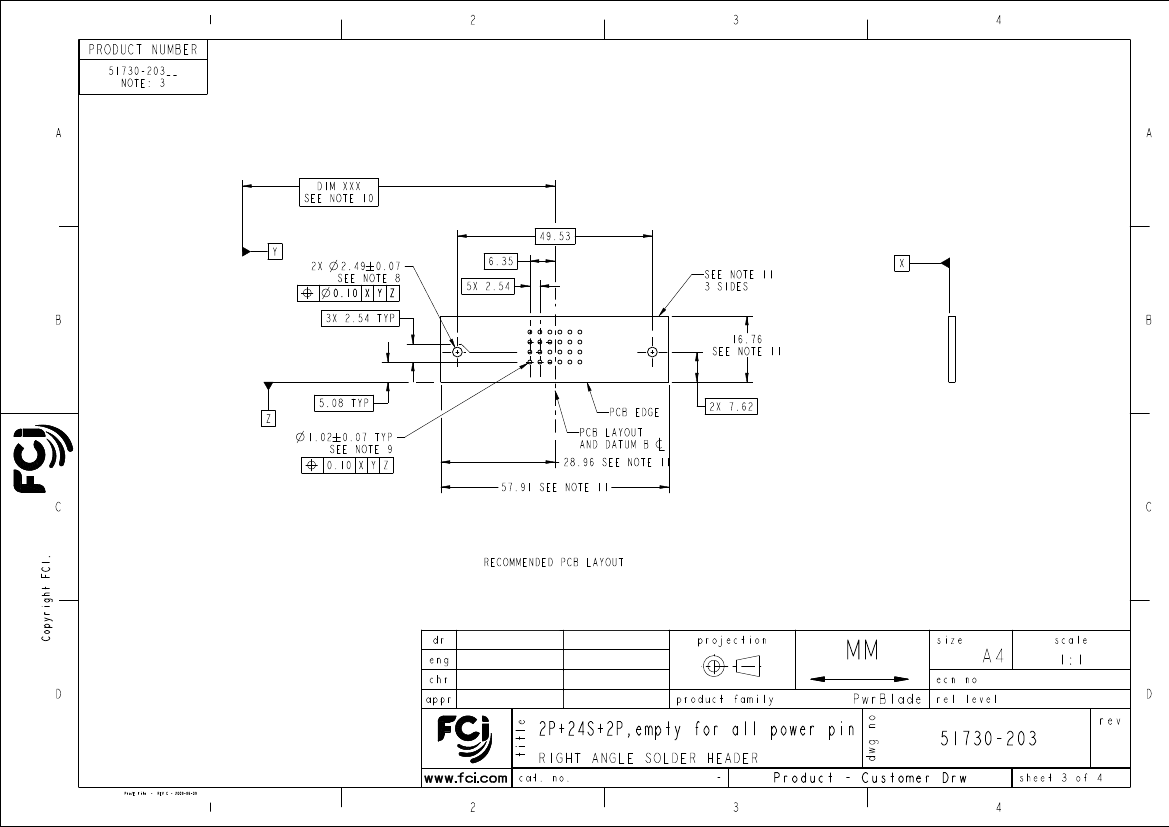

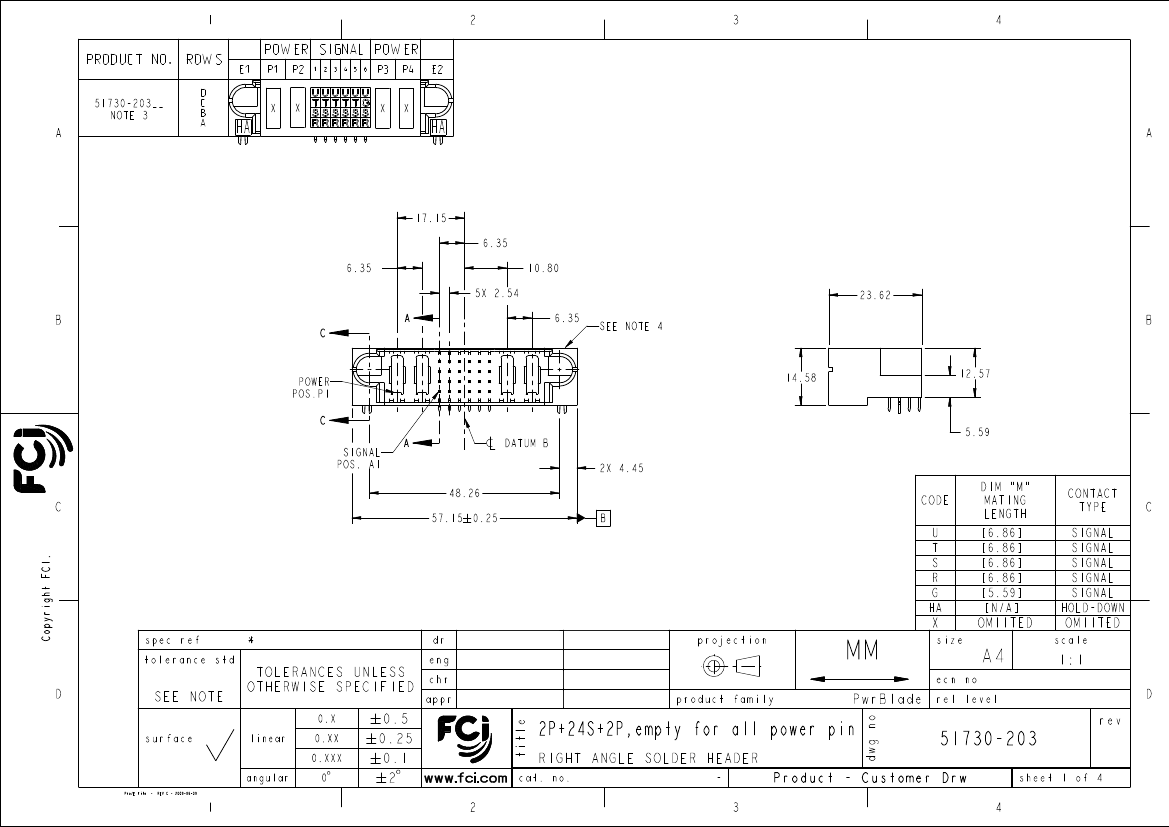

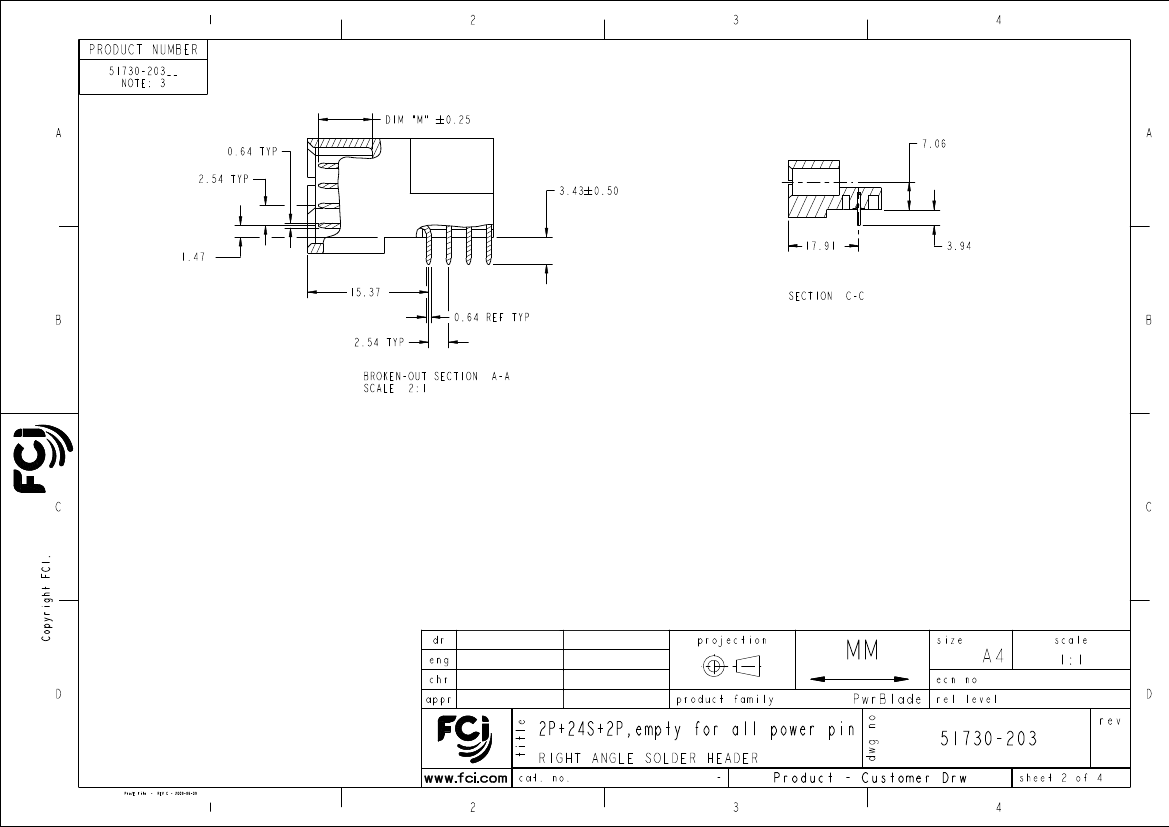

Luo Weller

-

Pei-Ming Zheng

2012/07/03

2012/07/11

-

2012/07/12

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Jul 12, 2012

	51730-203LF	51730-203
Description	PWRBLADE R/A LF HDR	Board Connector, 28 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	incompatible
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compli
body width	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch
body length	2.25 inch	2.25 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P4	S24P4
Contact completed and terminated	TIN OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51730-203	51730-203
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Termination type	SOLDER	SOLDER
Total number of contacts	28	28
Evacuation force-minimum value	.1668 N	.1668 N
