Bridgelux
EB Series Modules
®
TM
Product Data Sheet DS130
BXEB-LXXXXZ-30xx000
|
35xx000
|
40xx000
|
50xx000
|
57xx000
Introduction
EB Series linear modules are designed for linear troffers, pendants and other luminaires in indoor commercial and
industrial applications. Available in 280 mm, 560 mm, and 1120 mm lengths, the modules can be connected end-to-end
thereby providing flexibility in designing luminaires. The Zhaga compatible modules further simplify design by providing
easy mounting options, reusable poke-in connectors and by being compatible with a variety of off-the-shelf optics.
The modules have long lifetimes of greater than 50,000 hours and are backed by a 5-year warranty.
Features
Benefits
•
•
•
•
•
•
•
High efficacy, up to 159 lm/W and wide lumen
range with 2x overdrive capability
Lumen output of up to 2270 lm, 4450 lm, and 8900
lm for 280 mm, 560 mm and 1120 mm modules.
Designed following Zhaga Book 7 standards
L28W2 and L56W2
Easy, automated wiring enabled by poke-in con-
nectors
5 year limited warranty
Available in a variety of color temperatures
(3000K-5700K)
Energy Star / ANSI compliant 3 SDCM color bin-
ning structure
•
•
•
•
•
No separate heat sinking required
Reliable use at elevated currents enables greater
design flexibility
Easy installation using mounting holes and connec-
tors
Long lifetime of > 50000 hours
High quality, true color reproduction
EB Series
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Performance at Commonly Used Drive Currents
Electrical Characteristics
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Typical Color Spectrum
Mechanical Dimensions
Color Binning Information
Packaging and Labeling
Design Resources
Precautions
Disclaimers
About Bridgelux
4
4
5
6
9
10
11
14
15
16
18
19
20
20
20
21
3

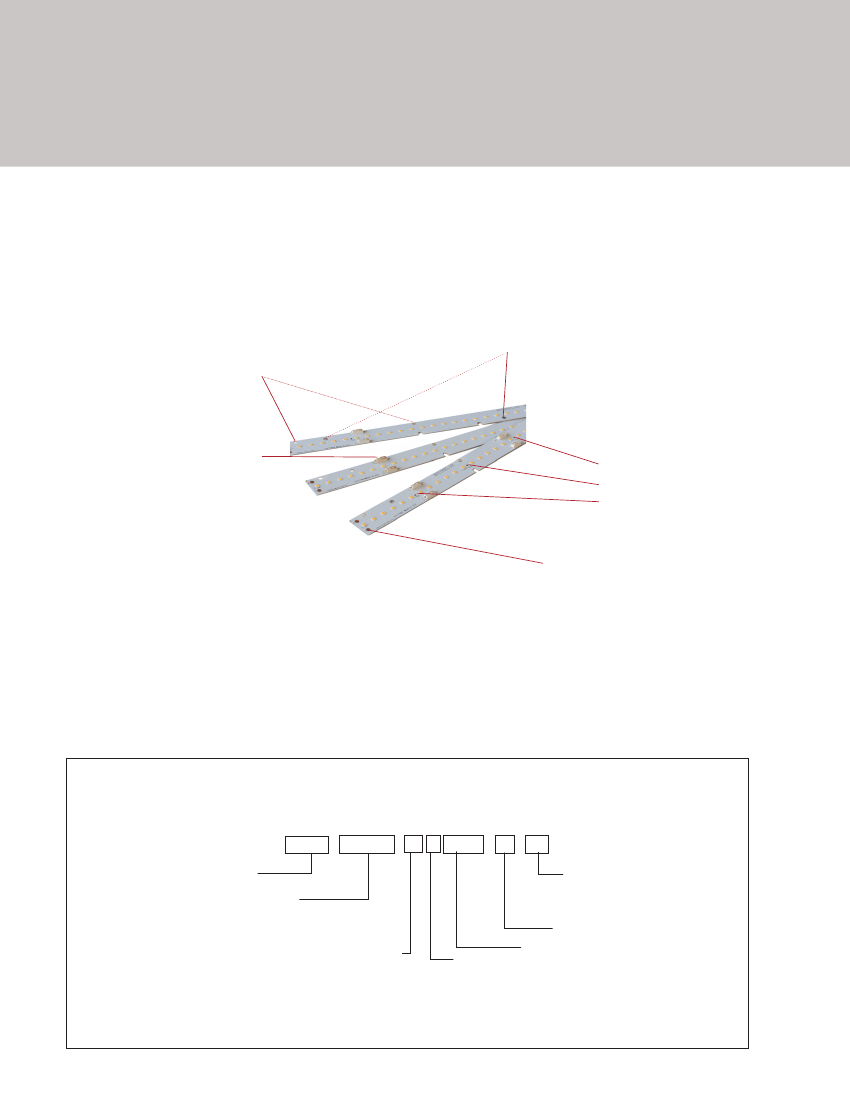

Product Feature Map
EB Series modules are engineered to enable exception-
al design flexibility and added value for an assortment
of commercial and industrial applications. The modules
incorporate several features such as reusable connectors,
optic mounting holes and solder pads to simplify design and
assembly, and to ensure superior reliability.
Optic mounting holes
Zhaga compatible mounting holes
Re-usable connector
T
c3
T
c2
T
c1
Case Temperature Measurement Points
Designed to comply with global
safety standards for creepage
and clearance distances
Solder Pad
Note: Label containing part number and lot codes is attached on the
front of the module.
Product Nomenclature
Part number designation for Bridgelux EB Series modules is explained as follows:
1 2 3 4 - 5 6 7 8 9 10 - 11 12 13 14 15 16 - 17 – 18
BXEB – L0280Z – 30 E 1000 – C – A3
Product Family
Nominal Dimensions
L
=
Length
0280
=
280 mm
0560
=
560 mm
1120
=
1120 mm
Z
=
Zhaga compatible width (24 mm)
CCT Bin Options
A
=
Version
3
=
3 SDCM
Module Configuration
Nominal CCT
30
=
3000 K
35
=
3500 K
40
=
4000 K
50
=
5000 K
57
=
5700 K
Minimum
CRI
E
=
80
Nominal Flux
1000
=
1000 lm
2000
=
2000 lm
4000
=
4000 lm
4
Product Selection Guide
The following product configurations are available:
Table 1a:
Selection Guide, Pulsed Measurement Data for 280 mm, L0280 modules ( T
c2
=
50 °C)
Part Number
Nominal CCT
1
(K)
3000
3500
4000
5000
5700
CRI
2
Nominal Drive
Current
(mA)
350
350
350
350
350
Typical Flux
3,4
T
c2
Minimum Flux
4,5
T
c2
=
50º C
(lm)
1205
1205
1230
1230
1230
=
50º C
(lm)
1085
1085
1107
1107
1107
Typical V
f
(V)
22.1
22.1
22.1
22.1
22.1
Typical
Power
(W)
7.7
7.7
7.7
7.7
7.7
Typical
Efficacy
(lm/W)
156
156
159
159
159
BXEB-L0280Z-30E1000-C-A3
BXEB-L0280Z-35E1000-C-A3
BXEB-L0280Z-40E1000-C-A3
BXEB-L0280Z-50E1000-C-A3
BXEB-L0280Z-57E1000-C-A3
80
80
80
80
80
Table 1b:
Selection Guide, Pulsed Measurement Data for 560 mm, L0560 modules ( T
c2
=
50 °C)
Part Number
Nominal CCT
1
(K)
3000
3500
4000
5000
5700
CRI
2
Nominal Drive
Current
(mA)
700
700
700
700
700
Typical Flux
3,4
T
c2
(lm)
Minimum Flux
4,5
T
c2
(lm)
=
50º C
=
50º C
Typical V
f
(V)
22.1
22.1
22.1
22.1
22.1
Typical
Power
(W)
15.5
15.5
15.5
15.5
15.5
Typical
Efficacy
(lm/W)
156
156
159
159
159
BXEB-L0560Z-30E2000-C-A3
BXEB-L0560Z-35E2000-C-A3
BXEB-L0560Z-40E2000-C-A3
BXEB-L0560Z-50E2000-C-A3
BXEB-L0560Z-57E2000-C-A3
80
80
80
80
80
2410
2410
2460
2460
2460
2169
2169
2214
2214
2214
Table 1c:
Selection Guide, Pulsed Measurement Data for 1120 mm, L1120 modules ( Tc2
=
50 °C)
Part Number
Nominal CCT
1
(K)
3000
3500
4000
5000
5700
CRI
2
Nominal Drive
Current
(mA)
700
700
700
700
700
Typical Flux
3,4
T
c2
= 50º C
(lm)
4820
4820
4920
4920
4920
Minimum Flux
4,5
T
c2
= 50º C
(lm)
4338
4338
4428
4428
4428
Typical V
f
(V)
44.2
44.2
44.2
44.2
44.2
Typical
Power
(W)
31.0
31.0
31.0
31.0
31.0
Typical
Efficacy
(lm/W)
156
156
159
159
159
BXEB-L1120Z-30E4000-C-A3
BXEB-L1120Z-35E4000-C-A3
BXEB-L1120Z-40E4000-C-A3
BXEB-L1120Z-50E4000-C-A3
BXEB-L1120Z-57E4000-C-A3
80
80
80
80
80
Notes for Tables 1a, 1b and 1c:
1. Nominal CCT as defined by ANSI C78.377-2011.
2. CRI Values are minimums.
3. Products tested at nominal test current where temperature of center case temperature point T
c2
=
50° C. Two other measurement points T
c1
and T
c3
are
provided for reference only. Values may vary depending on the thermal design of the luminaire and/or the exposed environment to which the product
is subjected.
4. Bridgelux maintains a ± 7% tolerance on flux measurements.
5. Minimum performance values are provided as reference only and are not a guarantee of performance.
5
