1. Introduction
1.1 Product Overview

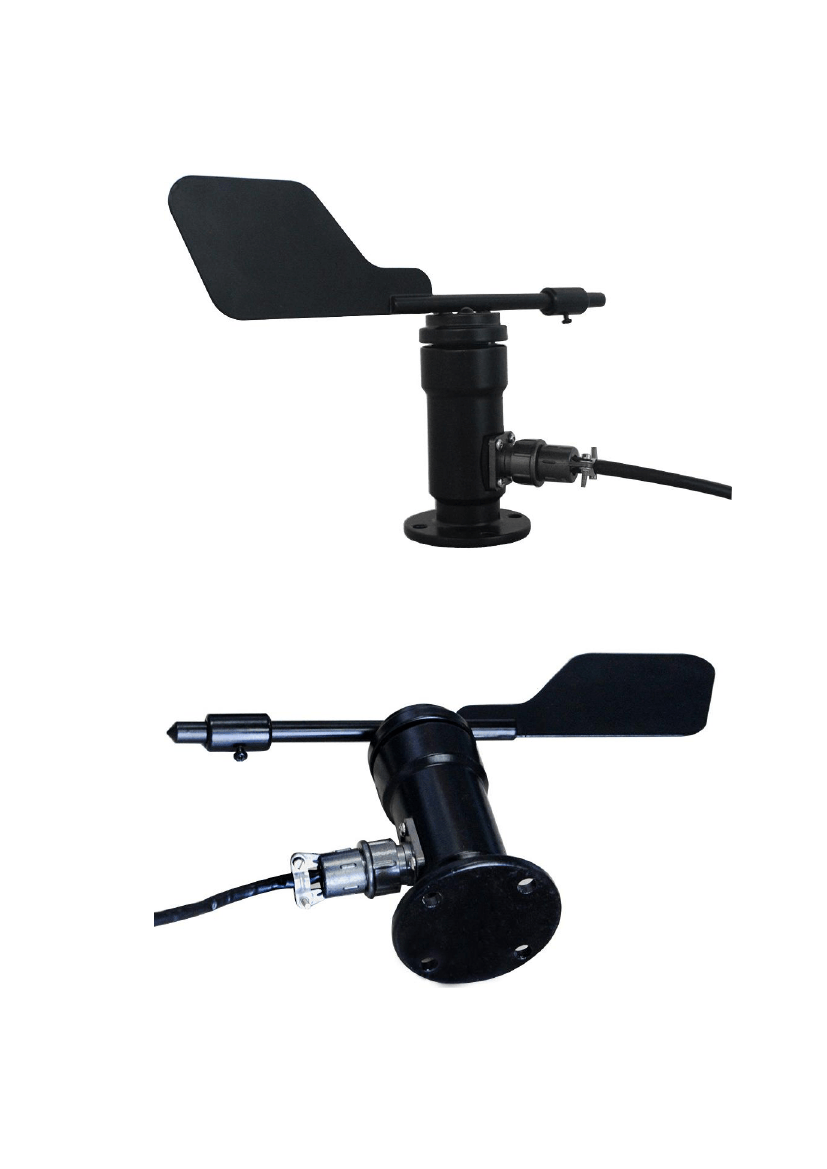

RS-FX-N01 wind transmitter, compact and lightweight, easy to carry and assembly, a new
design concept can effectively obtain information on wind direction, high-quality aluminum alloy
housing, external spray plating process, has good anti-corrosion, anti- Erosion and other
characteristics, to ensure long-term use of the transmitter without rust phenomenon, colleagues
with the internal smooth bearing system to ensure the accuracy of information collection. Is
widely used in greenhouse, environmental protection, weather stations, ships, docks, breeding and
other environmental wind direction measurement.
1.2 Features
Range: 8 indicating a direction
Anti - electromagnetic interference treatment
Using high-performance imported bearings, rotating resistance is small, accurate
measurement
Aluminum case, mechanical strength, high hardness, corrosion resistance,
long-term use in outdoor rust
Equipment structure and weight have been carefully designed and distributed, the
inertia is small, responsive
ModBus-RTU standard communication protocol, easy access,
1.3 Main Specifications
DC power supply (default)
Transmitter circuit operating
temperature
10 ~ 30V DC
-20
℃
~ + 60
℃,
0
% RH ~ 80% RH
485 (modbus) protocol
Baud Rate: 2400, 4800 (default), 9600
Data bit length: 8
Communication Interface
Parity: none
Stop bit length: 1
The default ModBus Address: 1
Support Function code: 03
Shandong RenKe Control Technology Co.,Ltd.
4
www.temperaturehumiditysensor.com
Manual wind transmitter (485 type)
parameter settings
Measuring range
Dynamic response speed
Be configured with software provided by the
configuration 485
8 indicate the direction of
≤ 0.5s
2. Installation instructions
2.1 Equipment installation check
Equipment List:
■ transmitter equipment 1
■ four mounting screws
■ certificate, warranty card, service card, etc.
■ 12V / 2A 1 water supply station (optional)
■ USB to 485 (optional)
■ 485 terminating resistor (optional)
2.2 Interface Description
Wide voltage power input 10 ~ 30 V can. Note that the signal line 485 when the terminal A
\ B two lines can not be reversed, the address bus between multiple devices must not conflict.
2 .3 electrical wiring
Line color
Electricity
source
through
letter
brown
black
yellow
blue
Description
A positive power supply (10 ~ 30 V DC)
Negative power supply
485 -A
485 -B
2.4 Description field wiring
When a plurality of types of devices 485 connected to the same bus, the field wiring have
certain requirements, refer to the specific data packet "485 field wiring device manual."
