Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-3SURSYGW/S530-A3
█
Features :
●
Two chips are matched for uniform
light output, wide viewing angle
●
●
●
●
Long life-solid state reliability
I.C. compatible/Low power consumption
Pb free
The product itself will remain within RoHS compliant version
█
Descriptions :
●
The 339-3 LED lamps contain two integral
chips and is available as both bicolor
and bipolar types.
●
Hyper Red and Super Yellow Green
light is emitted by diodes of
AlGaInP
and AlGaInP
●
Type of bicolar lamps are both white
diffused and color diffused while the
bicolor are water clear.
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
PART NO.
339-3SURSYGW/S530-A3
Chip
Material
AlGaInP
AlGaInP
Emitted Color
Hyper Red
Super Yellow Green
Lens Color
White Diffused
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1040
http : //www.everlight.com
Prepared date:
2002/8/13
Rev.:
1
Page:
1 of 7
Prepared by:
Zhenxia Qu
R0208045.A0208011
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-3SURSYGW/S530-A3
Package Dimensions
SYG
SUR
Notes:
1.All dimensions are in millimetres
2. An epoxy meniscus may extend about 1.5mm(0.059'') down to the lead.
3. Tolerances unless Dimension ±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
ESD
Pd
V
R
SUR
SYG
SUR
SYG
5
SUR
SYG
Rating
50
25
-40 to +85
-40 to +100
260 ± 5
／
／
120
60
Unit
mA
℃
℃
℃
V
mW
V
Note: *1:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1040
http : //www.everlight.com
Prepared date: 2002/8/13
Rev.:
Prepared by:
1
Page:
2 of 7
Zhenxia Qu
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-3SURSYGW/S530-A3
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Symbol
SUR
SYG
SUR
SYG
SUR
Luminous Intensity
SYG
Viewing
Peak Wavelength
Angle
SUR
SYG
SUR
SYG
Spectrum Radiation
Bandwidth
SUR
SYG
△λ
I
F
=
20
mA
2θ1/2
λp
IF=
I
F
=
20
20
mA
mA
V
F
I
R
Condition
I
F
=
V
R
=
20
mA
Min.
／
／
／
／
40
25
／
／
／
／
／
／
／
Typ.
2.0
2.0
／
／
80
60
80
632
575
624
573
20
20
Max.
2.4
2.4
50
10
／
／
／
／
／
／
／
／
／
nm
deg
nm
Unit
V
Reverse Current
5
V
μA
Iv
I
F
=
20
mA
mcd
Dominant Wavelength
λd
I
F
=
20
mA
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-033-1040
http : //www.everlight.com
Prepared date:
2002/8/13
REV.:
Prepared by:
1
Page: 3of 7
Zhenxia Qu
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-3SURSYGW/S530-A3
█

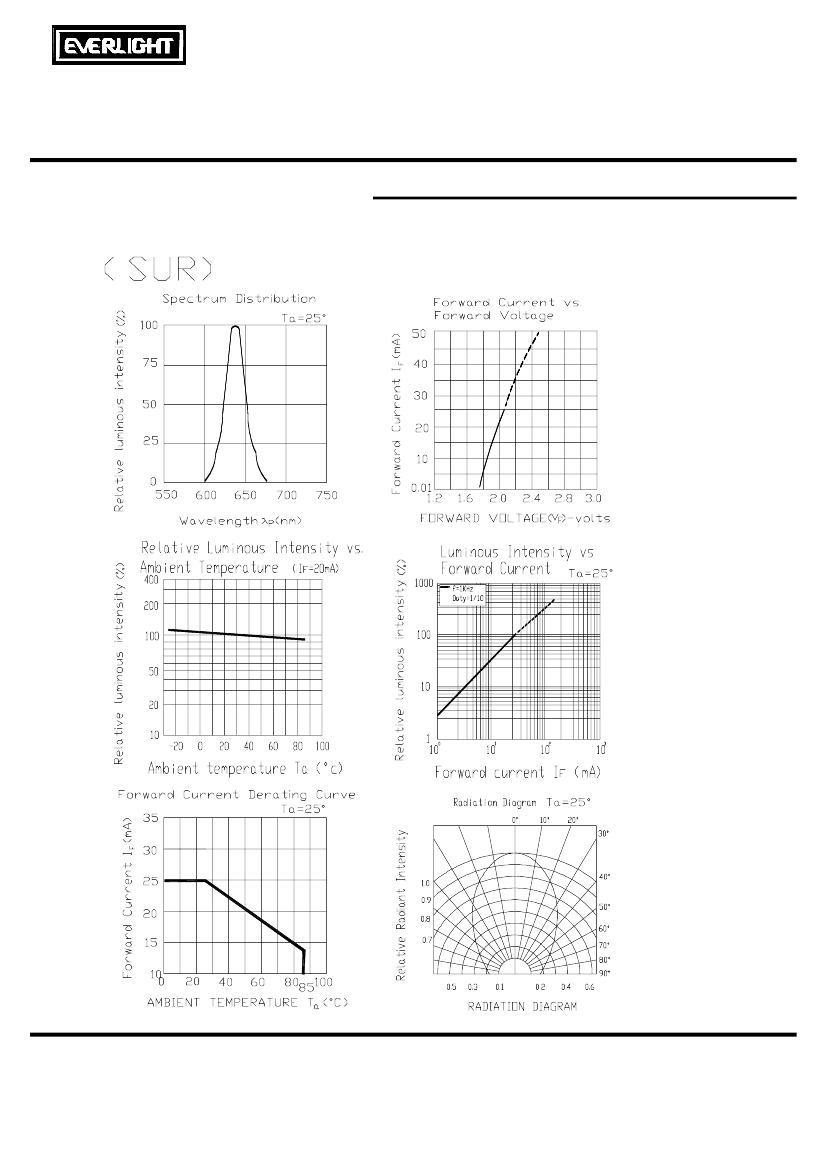

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1040
http : //www.everlight.com
Prepared date: 2002/8/13
Rev.:
1
Page:
4 of 7
Prepared by:
Zhenxia Qu
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-3SURSYGW/S530-A3
█

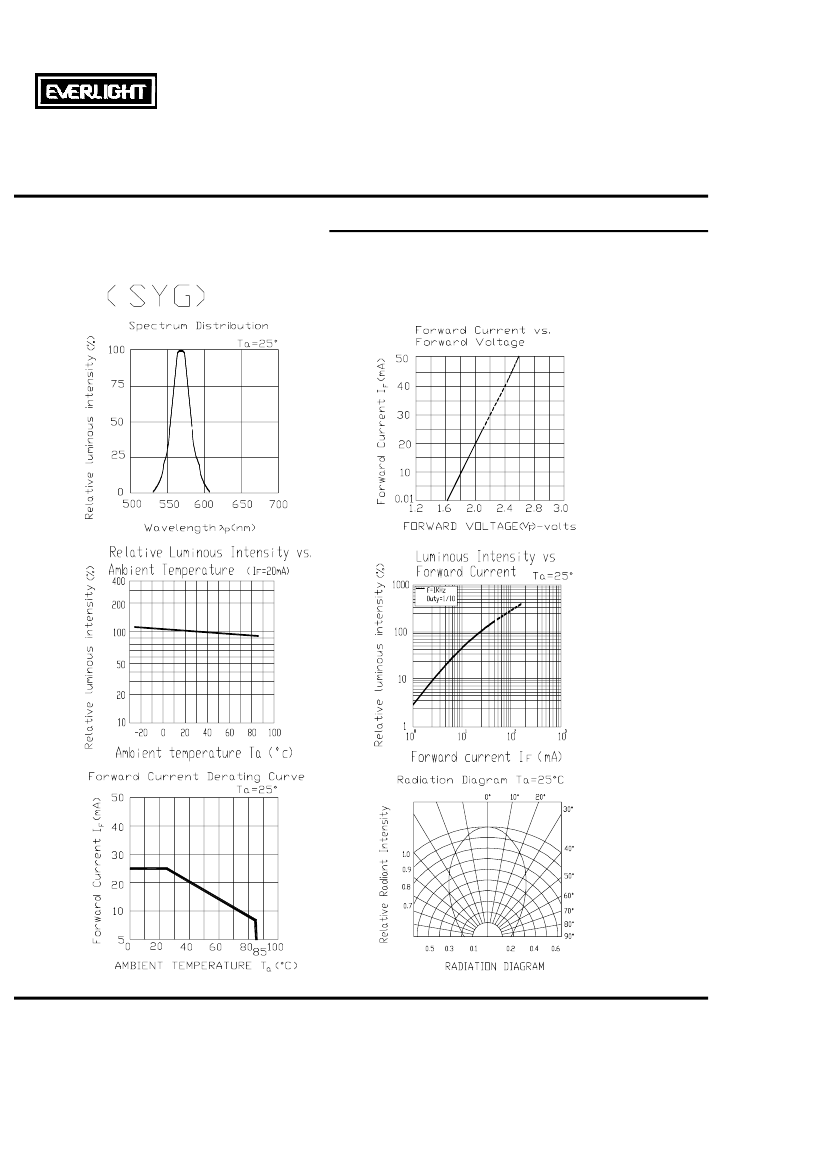

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1040
http : //www.everlight.com
Prepared date: 2002/8/13
Rev.:
1
Page:
5 of 7
Prepared by:
Zhenxia Qu
