N EW
Next-Generation Production Environment Sensors
TM
Series

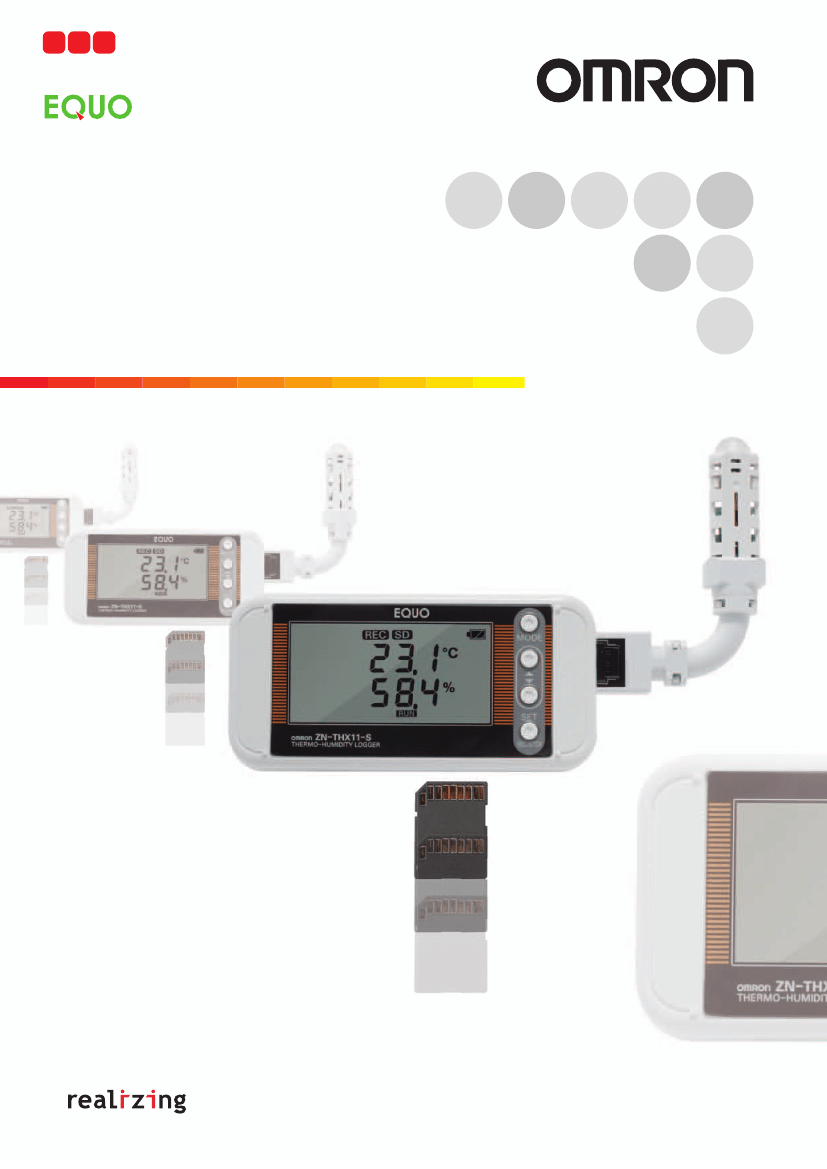

Precision Thermo-Humidity Logger
ZN-THS-S (Sensor head)
ZN-THX11-SA (Logger)
Easy temperature and humidity
control with an SD Card
Sensor head
Logger
Meeting the need for “easier management of temper
Omron Precision Thermo-Humidity Loggers use sensors with the highest precision in their class and the first SD Card
This enables precise control of temperature and humidity at multiple points along the manufacturing line and more
The logger has alarm output providing immediate alerts when trouble occurs, helping meet strict quality control
in
irst
F
las
its c
s!
SD Card system makes data
collection more efficient
Data can be collected only when needed by simply inserting an SD Card
Thermo-Humidity Logger memory can store up to approx. 8,500 pieces of data
Measured data is transferred to CSV format and stored in an SD Card
Data continues to be recorded in built-in memory even while data is being
collected onto SD Card
Store data up to maximum memory capacity by keeping SD Card continually inserted
(approx. 17 million pieces of data per 1GB. Store up to five years of data when measurements are made every 10 seconds)
b
b
b
b
b

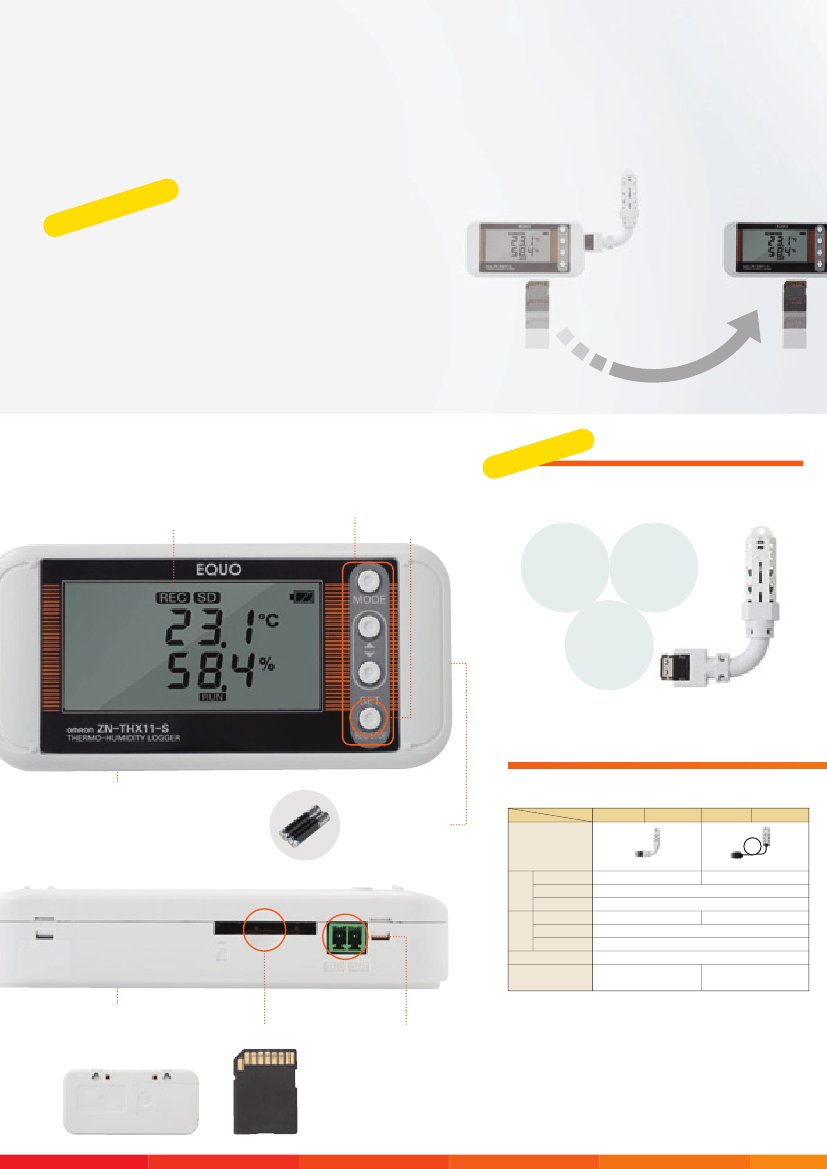

Compact body with useful features!
∗
Photo shows actual size
Top
cl
in its
ass
Large, easy to read
characters!
Large, easily legible LCD display has two rows
of five characters.
Easy operation similar to
portable gaming device
Start recording with the
touch of a single button!
Remarkably high measurement
accuracy
Temperature
measurement
accuracy
Humidity
measurement
accuracy
±
0.3
°C
(at 25°C)
±
2.5
%
(at 25°C,
10 to 85%)
Temperature
resolution
0.1
°C
Precision measurement ensures a temperature resolution of
0.1°C and humidity accuracy of plus/minus 2.5%.
This enables more precise control of temperature and
humidity, which contributes to improvement in product quality.
Runs for approx. 1 year on two
commercial AAA batteries
With built-in backup feature, stored data
won’t be lost even if batteries run out
∗
In sleep mode. Battery life may vary depending on
production environment and battery type / battery
performance.
∗
Manganese batteries cannot be used.
Specifications
Sensor head
Can also be used
with DC voltage input
or AC adaptor
Item
Model ZN-THS17-S ZN-THS17C-S
∗
ZN-THS11-S ZN-THS11C-S
∗
Appearance
Sensor head: Anchored type
Measurement range
Temper-
Measurement precision
ature
Resolution
Measurement range
Relative
humidity Measurement precision
Resolution
Sensor head: 1.5 m type
–25 to 60°C
0 to 60°C
±0.3°C (at 25°C)
0.1°C
20 to 85%
0.1%
0 to 99%
±2.5% (at 25°C, 10 to 85%)
Approx. 300 g
Mounting screw (M3 x 8) x 1
Caps to secure cable
Mounting screw (M3 x 8) x 1
(one for each, front and rear)
Weight (packaged)
Accessories
∗
Please choose this form when you buy it with the calibration certificate.
Easy to hang on wall
as well
Back side features two types of holes,
for wall-hanging and for anchoring
SD Card slot
Alarm output terminal
• As performance may deteriorate through the adhesion of impurities or contaminants in the
environment on the sensor surface, calibration is recommended once a year.
• When ZN-THS1-S is exposed over a long period of time at a high humidity of 80% or
higher, the humidity measurement value may be offset.
In that case, expose the product at room temperature and humidity for 24 hours prior to use.
• When ZN-THS1-S is transferred rapidly between places where temperature difference is
large, condensation may occur on the sensor surface.
In that case, the ZN-THS1-S may not work properly.
When the product becomes wet due to condensation, allow the product to dry in a dry, room
temperature environment before use.
• When using the ZN-THS1-S under conditions with temperatures of –20°C or less or with
humidity of 90% or more, acceleration of sensor deterioration may occur.
• To avoid deterioration of sensor, avoid storing the product under high temperature and high
humidity for a long period of time.
• Please don’t use the product in an environment into which organic chemistry material
disperses.
ature and humidity data”
data collection system.
efficient data collection.
standards.
io
collect
ata
easy d D Card!
and
eS
Quick
a singl
with
ple!
.
n
gly sim
nit itself
ipment.
Stunnin
ch the u
tion equ
deta
to
ollec
No need r PC or other c
fo
No need
ts c
t in i
Firs
!
lass
ware
Soft
PC

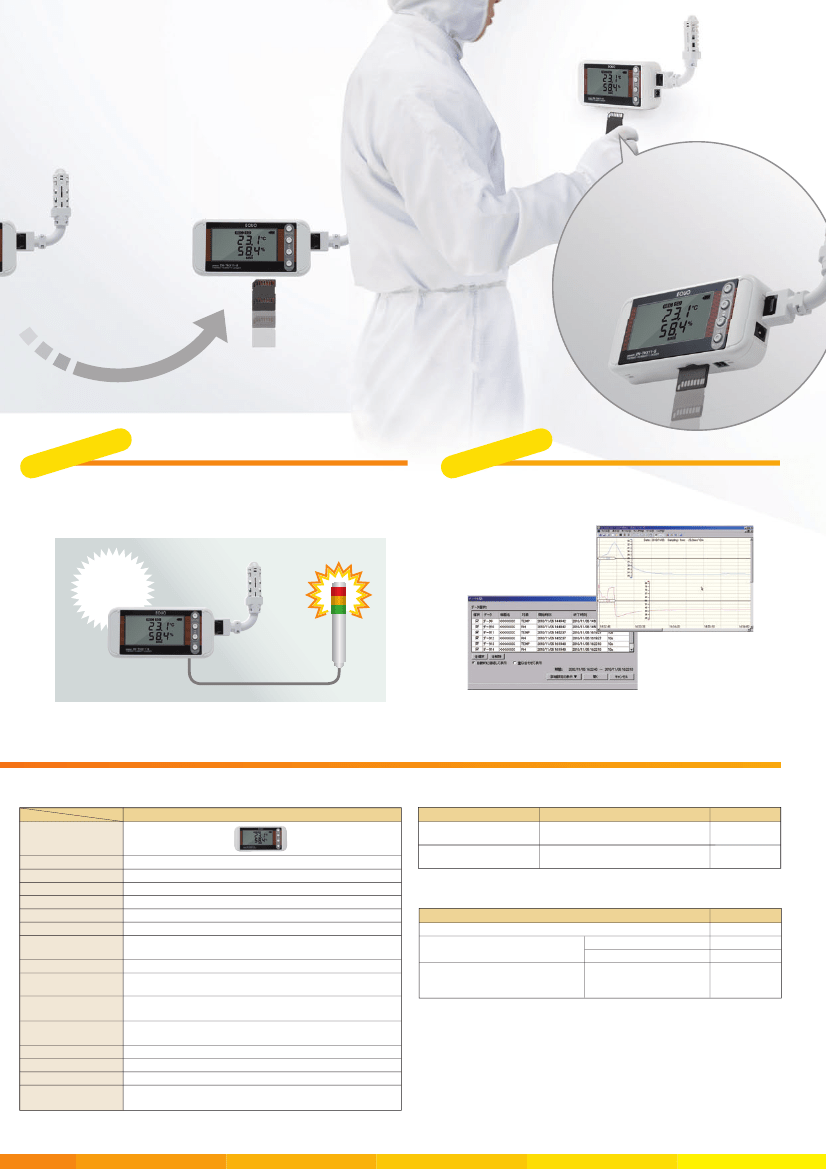

Alarm output for immediate response
when trouble occurs
Example: When temperature exceeds threshold value, an error indicator lights up
Create graphs easily by simply
designating the SD Card drive!
and
ture
era
y
emp umidit rt!
T H
Ale
rror
E
Indicator
Data selection screen
Graph display screen
The logger has an alarm output. Unusual temperature and humidity
are made visible, enabling you to make a quick response and to
make it easy to systemize manufacturing lines.
Insert the SD card containing collected data into a PC, and
simply designate the drive in order to manage and graph the
recorded data. Measurement data is stored in CSV format,
allowing for easy temperature and humidity data management.
Note: Download the PC Software Station Utility from the following OMRON website (http://www.fa.omron.co.jp/station-u-e).
Logger
Item
Appearance
Sensor that can be connected Thermo-Humidity Sensor Head (ZN-THS1-S)
Display
Measurement interval
Calculation function
Operating mode
Recording mode
Alarm signal output
∗
4
LCD 7-segment 5-digit 2-step display, auxiliary information indicator display
10 s, 20 s, 30 s, 1 min, 2 min, 5 min, 10 min, 20 min, 30 min, 1 h
Instantaneous value, maximum value, minimum value, average value
Normal mode, sleep mode
∗
1
Continue
∗
2
, ring
∗
3
Output to photocoupler (External power supply: 12 to 24 VDC,
Load current: Max. 45 mA) Alarm hold setting is possible.
∗
5
Internal memory: Approx. 8,500 data items
SD card (to save measured values and to save/read set values),
Recommended SD card: HMC-SD291 (manufactured by OMRON)
∗
8
DC input: 24 VDC±10%
Battery: 2 AAA batteries
∗
5
Approx. 1 year
∗
6
(sleep mode, measurement interval of 10 minutes with
2 AAA nickel metal hydride batteries, with SD card not inserted)
20 to 85% (no condensation)
Approx. 500 g
Instruction Sheet, Startup1
Guide,
Alarm output connector
∗
7
,
DC cable (straight type)
Calibration service
Model
ZN-THX11-SA
Subject to calibration
Sensor head
Anchored type
Sensor head
1.5 m type
Content
Certificate of Calibration, Test Transcript
Traceability chart
Certificate of Calibration, Test Transcript
Traceability chart
Model
ZN-THS17-CAL
ZN-THS11-CAL
• As the sensor head and station are digitally connected, this calibration service is available only for the sensor head.
• It is necessary to ship the product back to OMRON in Japan.
Accessaories (Order separately)
Item
Mounting Magnet
∗
DC cable (ZN9-ED01-S comes with
ZN-THX11-SA)
AC Adaptor for ZN-X-S
100 to 240 VAC/50 to 60 Hz
Operating temperature range: 0 to 40°C
Straight type
Right angle type
PSE, CE, UL STD/A-type plug
Model
ZN9-EM01-S
ZN9-ED01-S
ZN9-ED02-S
ZN9-ACP01-S
Internal storage device
External storage device
Power supply voltage
Battery life
∗
5
∗
When the magnet is used, the vibration resistance becomes 55 Hz or less. (Two logger installation screws are attached.)
∗1
Power saving mode. The indicator is always OFF in default setting. (Turns ON with button operation.)
∗2
Automatically writes data to the SD card when reaching the upper limit of the internal memory and keeps recording
until the capacity limit of the SD card. If the SD card is not inserted when the internal memory reaches the upper
limit, recording stops. (Data can be output to the SD card by pressing the button after inserting the SD card.)
∗3
This mode always records the latest measured values for the upper limit of the internal memory. (When the
measured values exceed the upper limit of the internal memory, the data items will be deleted beginning with the
oldest data item.)
∗4
An alarm is shown when exceeding the upper limit value or lower limit value that has been set in threshold setting mode.
∗5
Nickel hydride battery and alkaline battery can be used. Manganese batteries cannot be used.
∗6
Battery life differs depending on measurement environment, sampling, operating mode, battery type, or
performance.
∗7
The connector is type XW4B-02B1-H1, made by OMRON.
∗8
If you use an SD card from another manufacturer, use an SDHC Class 4 or higher card. (You must confirm the
operation of the SD card yourself.)
Operating temperature range 0 to 60°C
Operating humidity range
Weight (packaged)
Accessories

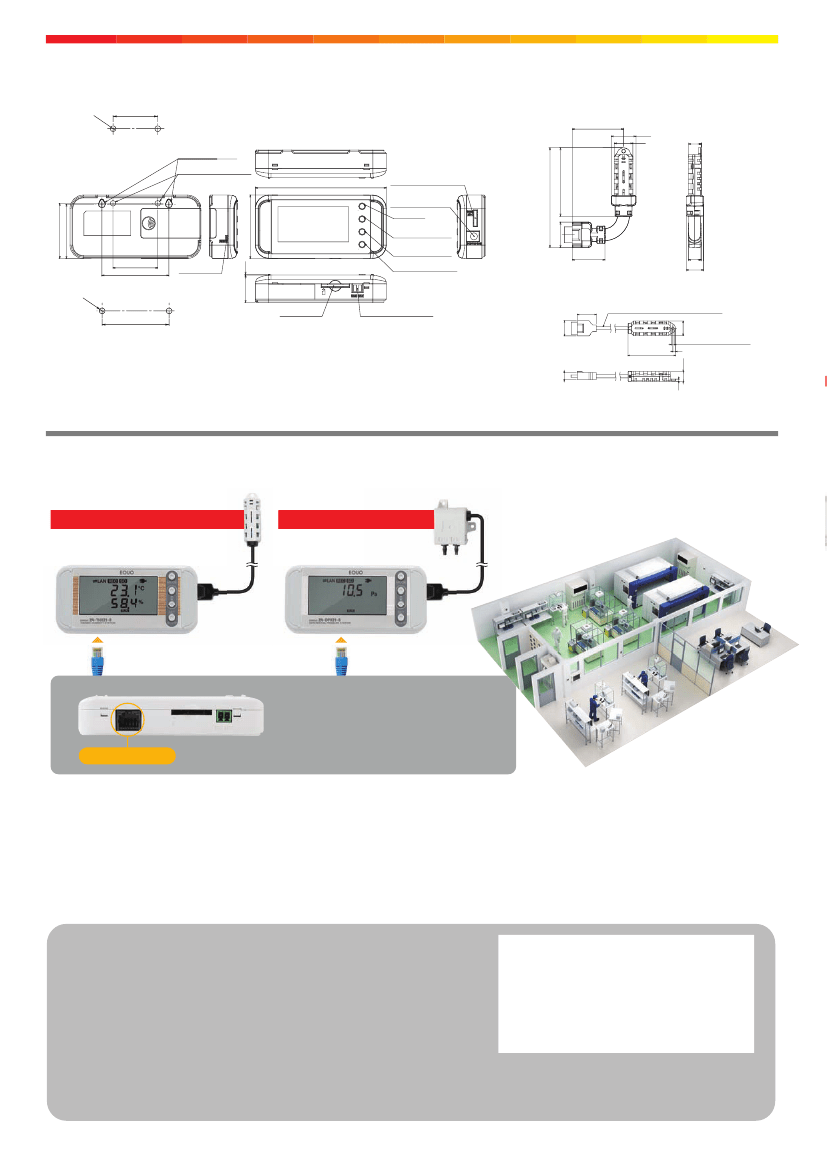

Dimensions
(unit: mm)
[Logger]
4d
ZN-THX11-SA
40
ia.
[Sensor Head]
ZN-THS17-S
44.3
21.3
16
11
Mounting hole process dimensions
Screw Hook Holes
Mounting Screw Holes
Hole depth 4
117.2
Sensor Head Connector
AC Adaptor or DC
Cable Terminal
Mode Key
85.9
56.8
49.4
48.6
Item Selection Key
(Down)
40
60
2-
0.7
21.8
Item Selection Key
(Up)
59
28.2
Reset Switch
REC/STOP∙SET Key
11
15
24.6
M
3
ZN-THS11-S
SD Card Slot
Alarm Output Terminal
16.7
21
Vinyl Insulated Round Cable 3.4 Dia.
Standard Length 1.5 m
16
52.7
3.5 Dia. Mounting Hole
3
10.8
2.4
60±0.2
Dimensions of screw hook holes
In addition to Thermo-Humidity Logger…
LAN Connection models also available
Thermo-Humidity Station
Integrated networked monitoring of
temperature and humidity data
Differential Pressure Station
Use to control positive
pressure in clean booths!
Continuous monitoring of production
environments is easy with LAN-connection
models.
LAN connection models are ideal for a wide
variety of continuous-monitoring needs.
LAN connection models feature a built-in LAN
port. Data can be retrieved via a network,
allowing for efficient, integrated control of
equipment and production environment.
Built-in LAN port
Clearly visualize your entire production
environment including temperature,
humidity, airborne particles, dust fallout,
and differential pressure!
∗
