336ULG025MFF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 336ULG025MFF

336ULG025MFF: DescriptionCAP ALUM POLY 33UF 20% 25V T/H; CategoryPassive components; File Size294KB，2 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336ULG025MFF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336ULG025MFF	-	-	View	Buy Now

336ULG025MFF Overview

CAP ALUM POLY 33UF 20% 25V T/H

336ULG025MFF Parametric

Parameter Name	Attribute value
type	polymer
capacitance	33µF
Tolerance	±20%
Voltage - Rated	25V
ESR (equivalent series resistance)	6.03 ohms
Service life at different temperatures	2000 hours at 105°C
Operating temperature	-55°C ~ 105°C
grade	-
application	decoupling
Ripple current @ low frequency	93.5mA @ 120Hz
Ripple current @ high frequency	1.87A @ 100kHz
lead spacing	0.138"（3.50mm）
size/dimensions	0.315" diameter (8.00mm)
Height - Installation (maximum)	0.354"（9.00mm）
Surface mount pad dimensions	-
Installation type	Through hole
Package/casing	Radial, Can

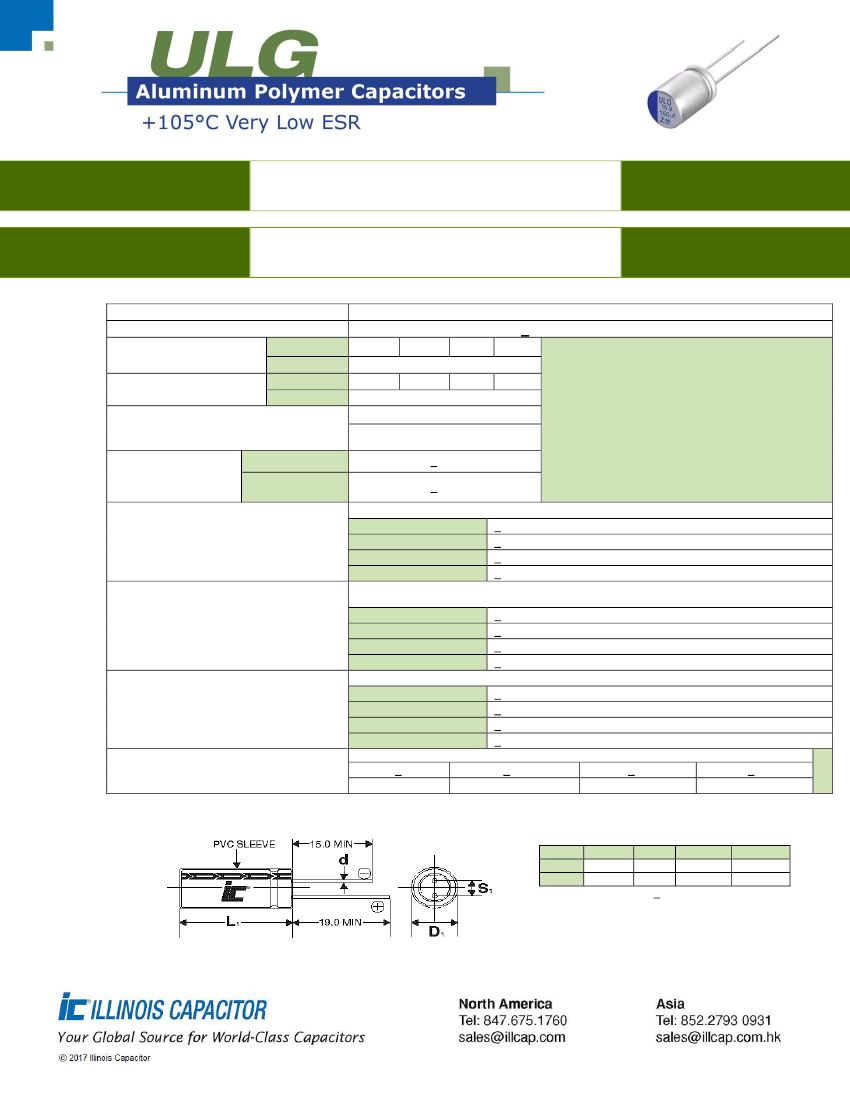

Preview

Download Datasheet

View All

FEATURES

APPLICATIONS

Small Size

High Ripple Current

–

Super Low ESR

DC-DC Converters

–

Voltage Regulators

–

Motherboards

–

De-Coupling

Operating Temperature Range

Capacitance Tolerance

WVDC

Surge Voltage

SVDC

WVDC

Dissipation Factor

Tan δ

-55°C to +105°C

+20% at 120 Hz, 20°C

1.15*WVDC

.12 MAX @120 Hz, 20°C

2 Minutes

0.2CV or 280uA,

Whichever is greater

<1.25

2000 hours at 105°C with rated WVDC and ripple current applied

Capacitance Change

<20% of initial measured value

Dissipation Factor

<150% of maximum specified value

ESR

<150% of maximum specified value

Leakage Current

<100% of maximum specified value

1000 cycles at 20°C with rated surge voltage applied for 30 seconds through a 1kΩ

resistor and discharged for 5 minutes and 30 seconds

Capacitance Change

<20% initial measured value

Dissipation Factor

<150% of maximum specified value

ESR

<150% of maximum specified value

Leakage Current

<100% of maximum specified value

1000 hours at 60°C and 90 to 95% RH with no voltage applied

Capacitance Change

<20% initial measured value

Dissipation Factor

<150% of maximum specified value

ESR

<150% of maximum specified value

Leakage Current

<100% of maximum specified value

Frequency (Hz)

120 Hz<f<1kHz

1 kHz<f<10 kHz

10 kHz<f<100kHz

100 kHz<f<500kHz

0.05

0.3

0.7

1.0

Leakage Current

Low Temperature

Stability

Impedance Ratio

(100 kHz)

-55°C/ +20°C

+105°C/ +20°C

Load Life

Surge Voltage Life

Damp Heat Test

Ripple Current Multipliers

DxL

6.3x8

2.5

0.6

=L+1.0 mm Max.

=L+1.5 mm Max.

=D+0.5mm Max.

=S+0.5 mm

8x8

8x11.5

3.5

0.6

(D<8mm)

(D>8mm)

10x12.5

3.0

0.6

Feb-17

336ULG025MFF Related Products

	336ULG025MFF	107ULG020MFH
Description	CAP ALUM POLY 33UF 20% 25V T/H	CAP ALUM POLY 100UF 20% 20V T/H
type	polymer	polymer
capacitance	33µF	100µF
Tolerance	±20%	±20%
Voltage - Rated	25V	20V
ESR (equivalent series resistance)	6.03 ohms	1.99 ohms
Service life at different temperatures	2000 hours at 105°C	2000 hours at 105°C
Operating temperature	-55°C ~ 105°C	-55°C ~ 105°C
application	decoupling	decoupling
Ripple current @ low frequency	93.5mA @ 120Hz	125mA @ 120Hz
Ripple current @ high frequency	1.87A @ 100kHz	2.5A @ 100kHz
lead spacing	0.138"（3.50mm）	0.138"（3.50mm）
size/dimensions	0.315" diameter (8.00mm)	0.315" diameter (8.00mm)
Height - Installation (maximum)	0.354"（9.00mm）	0.512"（13.00mm）
Installation type	Through hole	Through hole
Package/casing	Radial, Can	Radial, Can
