0878580004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0878580004

0878580004: Description2MM SR 4P HDR HOR SMT W PEG; CategoryThe connector; File Size244KB，3 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0878580004 Overview

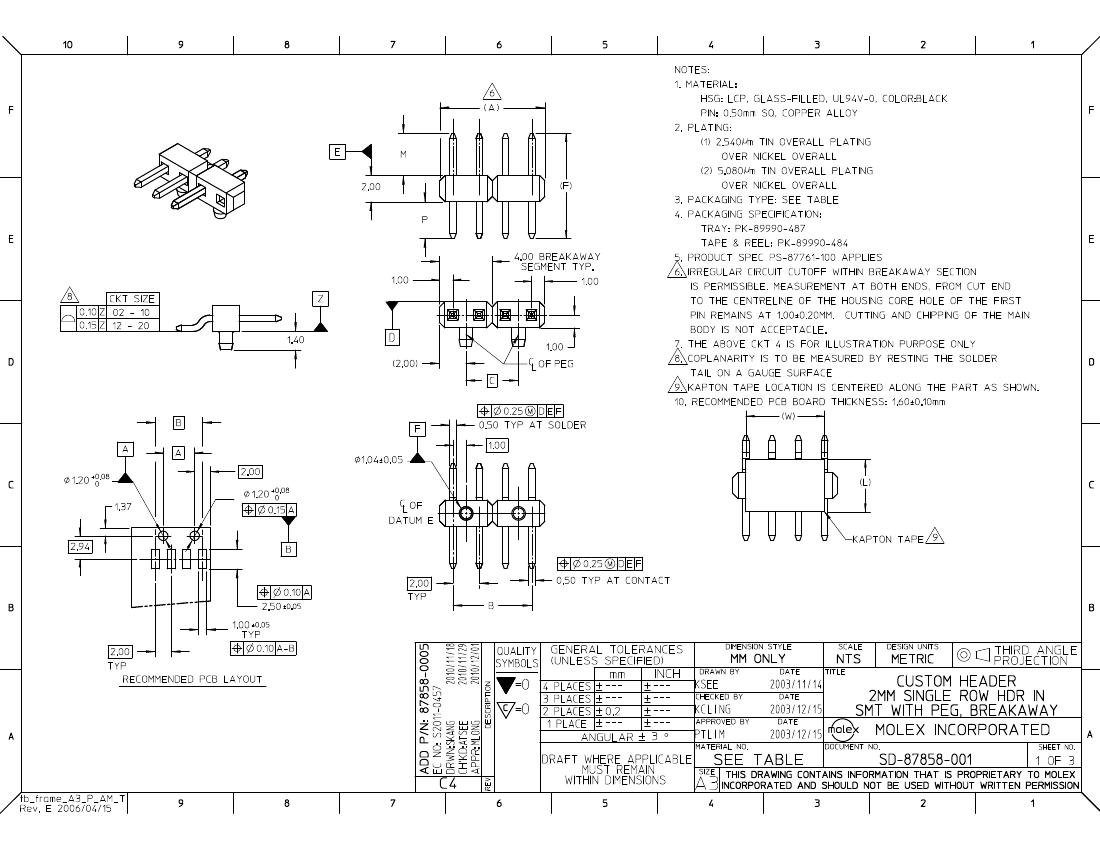

2MM SR 4P HDR HOR SMT W PEG

0878580004 Parametric

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.079"（2.00mm）
Number of pins	4
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Surface mount, right angle
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.126"（3.20mm）
Contact length - terminal	-
Overall contact length	-
Insulation height	0.079"（2.00mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	100.0µin（2.54µm）
Contact Surface Preparation - Column	tin
Contact material	copper alloy
Insulation Materials	Liquid crystal polymer (LCP), glass fiber reinforced
characteristic	board guide
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）
application	automotive, general, telecommunications

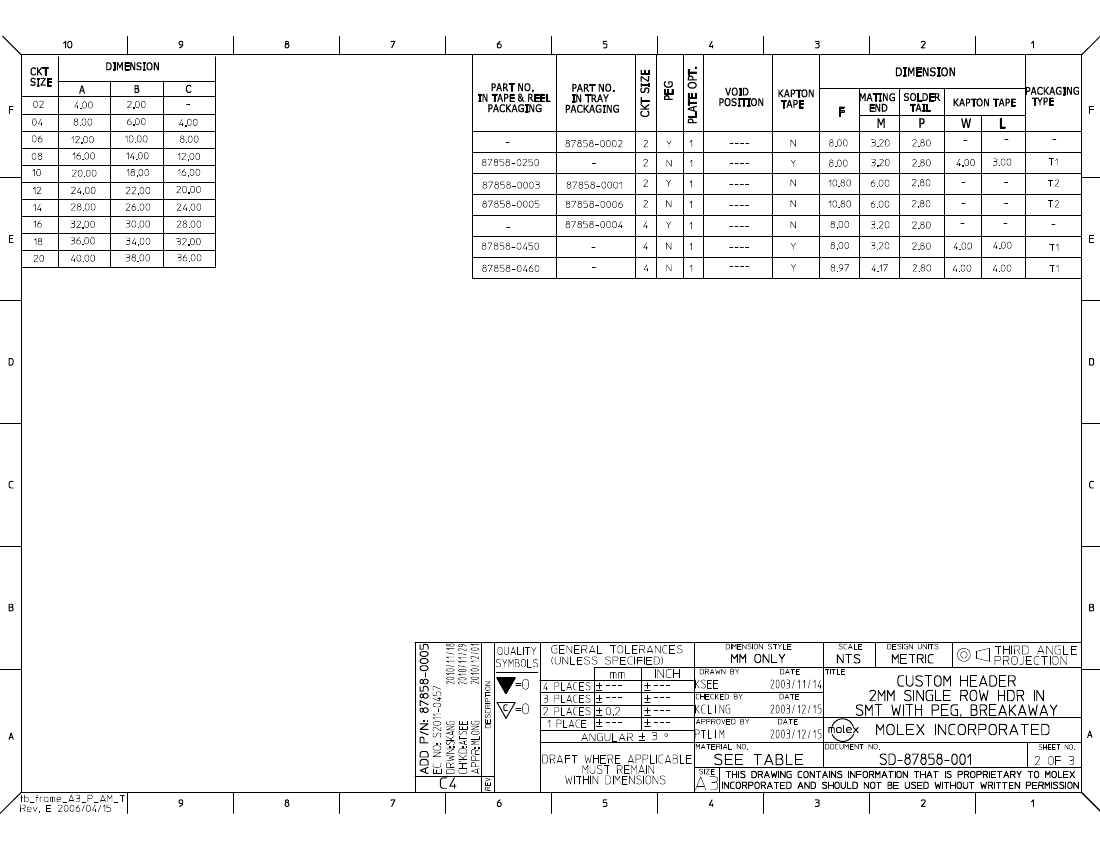

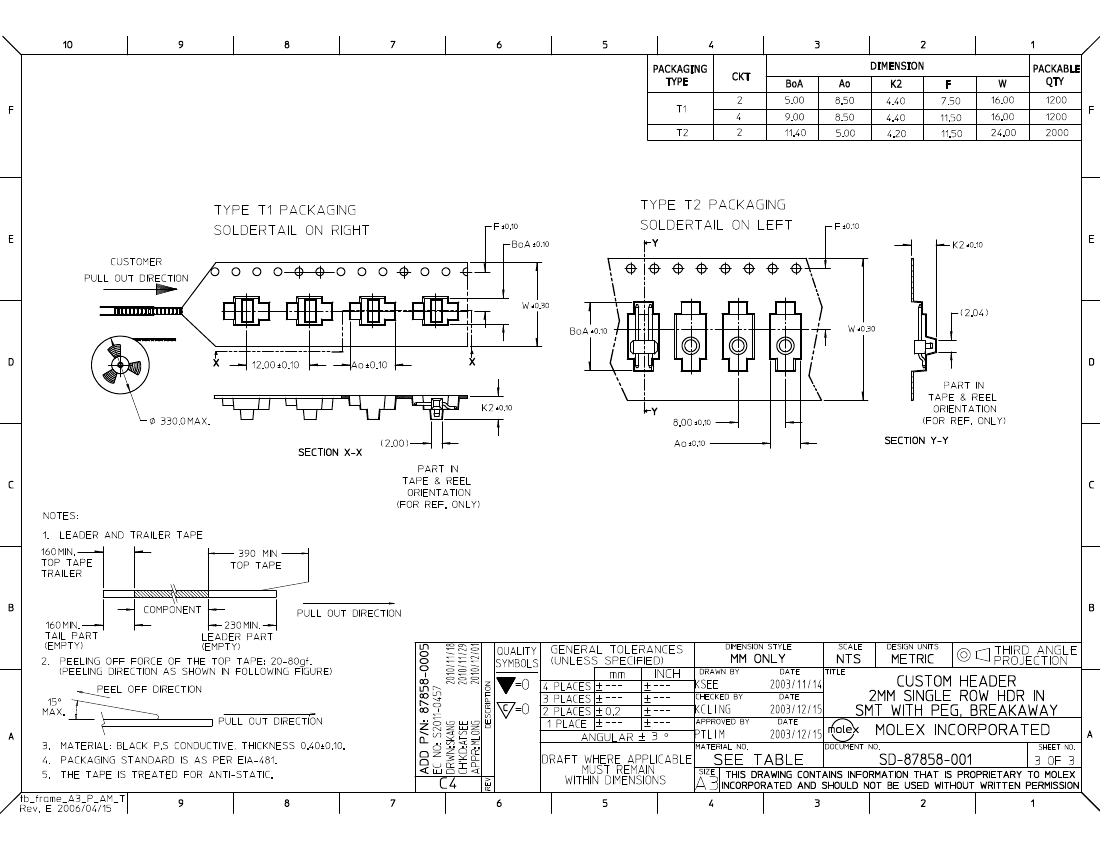

Preview

Download Datasheet

View All

0878580004 Related Products

	0878580004	0878580450	0878580002	0878580003
Description	2MM SR 4P HDR HOR SMT W PEG	2MM SRSW HDR /HOR SMT W/PEG	2MM SR 2P HDR IN HOR SMT /PEG	2MM SR 2P HDR SMT /PEG BREAKAWAY
Connector type	Needle hub, separate	Needle hub, separate	Needle hub, separate	Needle hub, separate
Contact type	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）
Number of pins	4	4	2	2
Number of rows	1	1	1	1
Number of pins loaded	all	all	all	all
style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
shield	Uncovered	Uncovered	Uncovered	Uncovered
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Termination	welding	welding	welding	welding
Fastening type	push-pull	push-pull	push-pull	push-pull
Contact Length - Mating	0.126"（3.20mm）	0.164"（4.15mm）	0.126"（3.20mm）	0.236"（6.00mm）
Insulation height	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）
Contact shape	Square	Square	Square	Square
Contact surface treatment - mating	tin	tin	tin	tin
Contact Surface Treatment Thickness - Mating	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）
Contact Surface Preparation - Column	tin	tin	tin	tin
Contact material	copper alloy	copper alloy	copper alloy	copper alloy
Insulation Materials	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced
characteristic	board guide	Pick and place	board guide	board guide
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	black	black	black	black
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）
application	automotive, general, telecommunications	automotive, general, telecommunications	automotive, general, telecommunications	automotive, general, telecommunications
