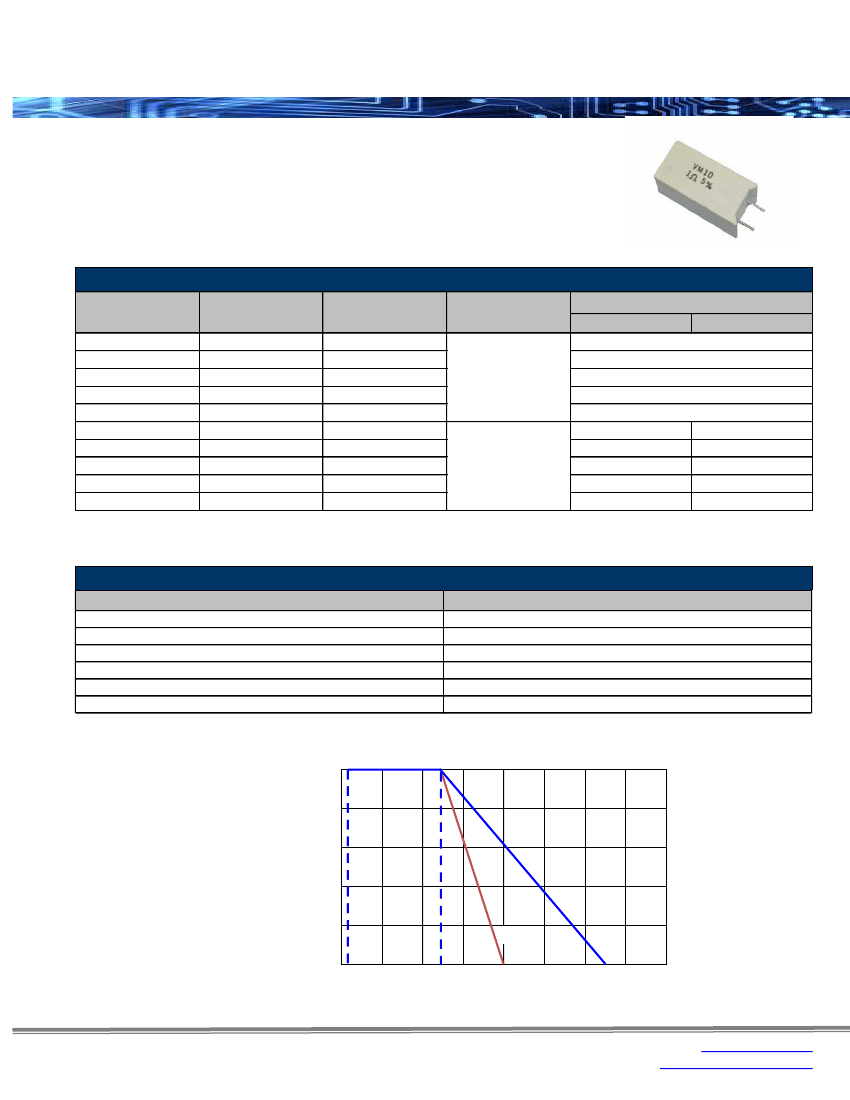

VM/MVM Series
Ceramic Housed Vertical Mount Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
•
Flameproof inorganic construction
High temperature potting compound
VM – Wirewound element
MVM – Metal oxide element for higher values
RoHS compliant / lead-free
Electrical Specifications
Type / Code
VM2
VM3
VM5
VM7
VM10
MVM2
MVM3
MVM5
MVM7
MVM10
Power Rating (Watts)
@ 70ºC
2W
3W
5W
7W
10W
2W
3W
5W
7W
10W
Voltage Rating (Volts)
250V
300V
350V
500V
700V
250V
300V
350V
500V
700V
±200ppm
0.1 - 51K
0.1 - 51K
0.1 - 51K
510 - 51K
750 - 51K
<1Ω=±800ppm
>1Ω=±300ppm
TCR (ppm/°C)
Ohmic Range (Ω) and Tolerance
5%
0.056 - 100
0.1 - 100
0.1 - 100
0.39 - 470
0.56 - 680
-
-
-
-
-
10%
Maximum Working Voltage is limited by √PR unless specified otherwise.
Performance Characteristics
Test
Moisture Resistance
Thermal Shock
Load Life @ 70°C - 1,000 hrs.
Resistance to Soldering Heat
Short Time Overload - 5xPn for 5sec
Dielectric Withstanding Voltage
Test Results
± 5%
± 2%
± 5%
± 2%
± 2%
± 2%
Power Derating Curve:
100
Percent Rated Power (%)
-55ºC
70ºC
80
60
40
20
0
-60
MVM
VM
0
50
100
150
200
250
300
350
Ambient Temperature (ºC)
Rev Date: 05/18/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
VM/MVM Series
Ceramic Housed Vertical Mount Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

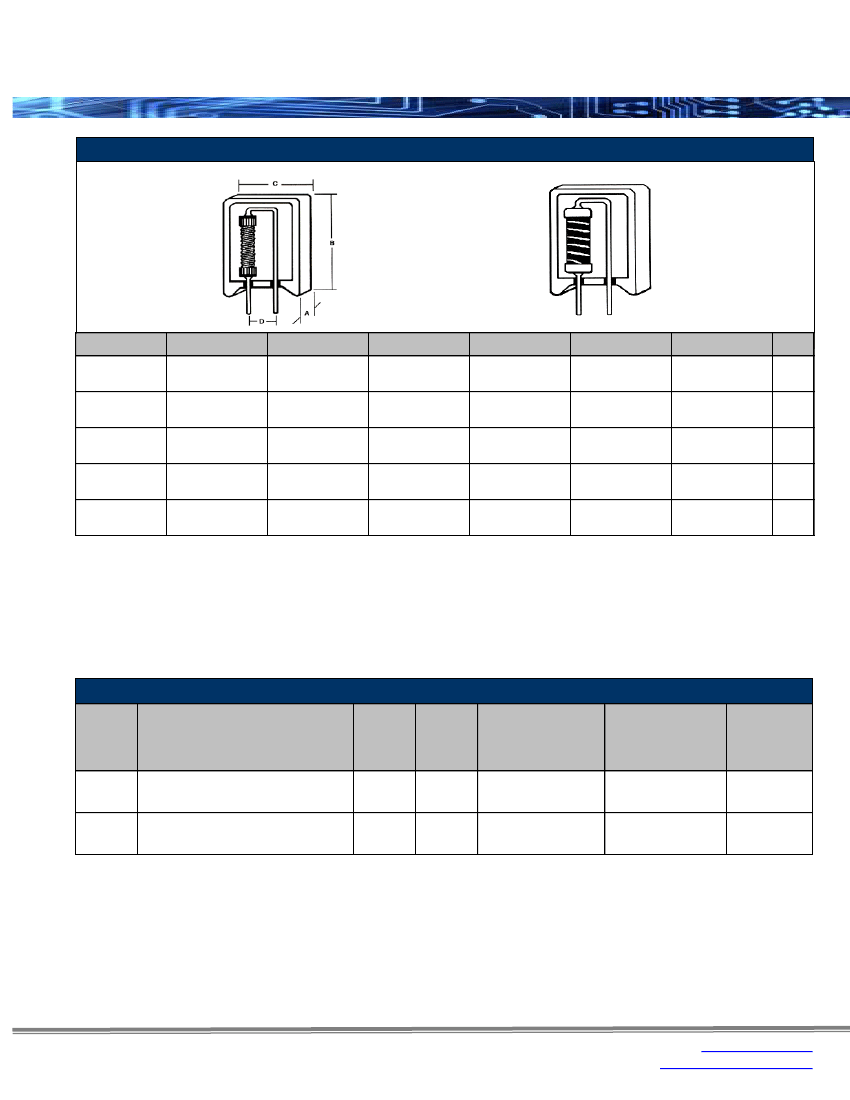

Mechanical Specifications
VM:
MVM:
Type / Code
VM2/MVM2
VM3/MVM3
VM5/MVM5
VM7/MVM7
VM10/MVM10
A
0.276 ± 0.039
7.00 ± 1.00
0.335 ± 0.039
8.50 ± 1.00
0.374 ± 0.039
9.50 ± 1.00
0.374 ± 0.039
9.50 ± 1.00
0.472 ± 0.039
12.00 ± 1.00
B
0.807 ± 0.039
20.50 ± 1.00
0.984 ± 0.039
25.00 ± 1.00
0.984 ± 0.039
25.00 ± 1.00
1.535 ± 0.059
39.00 ± 1.50
1.378 ± 0.039
35.00 ± 1.00
C
0.433 ± 0.039
11.00 ± 1.00
0.492 ± 0.039
12.50 ± 1.00
0.512 ± 0.039
13.00 ± 1.00
0.512 ± 0.039
13.00 ± 1.00
0.630 ± 0.039
16.00 ± 1.00
D
0.197 ± 0.039
5.00 ± 1.00
0.197 ± 0.039
5.00 ± 1.00
0.197 ± 0.039
5.00 ± 1.00
0.197 ± 0.039
5.00 ± 1.00
0.295 ± 0.039
7.50 ± 1.00
Lead Diameter
0.031 ± 0.002
0.80 ± 0.05
0.031 ± 0.002
0.80 ± 0.05
0.031 ± 0.002
0.80 ± 0.05
0.031 ± 0.002
0.80 ± 0.05
0.031 ± 0.002
0.80 ± 0.05
Lead Length
0.138 ± 0.020
3.50 ± 0.50
0.138 ± 0.020
3.50 ± 0.50
0.138 ± 0.020
3.50 ± 0.50
0.138 ± 0.020
3.50 ± 0.50
0.138 ± 0.020
3.50 ± 0.50
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
RoHS Compliance
Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to
meet the various regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions
on Hazardous Substances” (RoHS 2). As part of this ongoing program, we periodically update this document with the
status regarding the availability of our compliant components. All our standard part numbers are compliant to EU
Directive 2011/65/EU of the European Parliament.
RoHS Compliance Status
Standard
Product
Series
Description
Package /
Termination
Type
Standard
Series
RoHS
Compliant
YES
Lead-Free Termination
Composition
Lead-Free
Mfg. Effective Date
(Std Product Series)
Lead-Free
Effective Date
Code
(YY/WW)
06/01
VM
MVM
Ceramic Housed Vertical Mount
Wirewound Resistor
(Standard WW)
Ceramic Housed
Vertical Mount Wirewound Resistor
(Metal Oxide)
Radial
100% Matte Sn
Jan-06
Radial
YES
100% Matte Sn
Jan-06
06/01
“Conflict Metals” Commitment
We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region”
of the Eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals
used in the electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible
that the materials and products we supply do not contain metals sourced from this conflict region. As such, we are in
compliance with the requirements of Dodd-Frank Act regarding Conflict Minerals.
Rev Date: 05/18/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
VM/MVM Series
Ceramic Housed Vertical Mount Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Compliance to “REACH”
We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High
Concern) free and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation,
Authorization and Restriction of Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH
Substance Candidate List.
Environmental Policy
It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We
continually strive to improve our effect on the environment. We observe all applicable laws and regulations regarding
the protection of our environment and all requests related to the environment to which we have agreed. We are
committed to the prevention of all forms of pollution.
How to Order
1
2
3
4
5
6
7
8
9
V
M
3
J
B
2
R
2
0
VM
MVM
Product Series
Standard WW
Metal Oxide
Size
2
3
5
7
10
Power
2W
3W
5W
7W
10W
Tolerance
Code
Tol
J
5%
K
10%
Code
Description
B
Bulk
Packaging
Size
VM2, MVM2
VM3, MVM3
VM5, MVM5
VM7, MVM7
VM10, MVM10
Quantity
1,800
1,500
1,500
800
600
Resistance Value
Four characters with the multiplier
used as the decimal holder.
-3
"L" used as multiplier of 10
for any value under 0.1 ohm.
0.056 ohm = 56L0
0.1 ohm = R100
680 ohm = 680R
51 Kohm = 51K0
Rev Date: 05/18/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
