53K107-108N5

Description
CONN N TYPE JACK STR 50OHM CRIMP
CategoryThe connector    The connector
File Size39KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

53K107-108N5 Online Shopping

Suppliers Part Number Price MOQ In stock
53K107-108N5 - - View Buy Now

53K107-108N5 Overview

CONN N TYPE JACK STR 50OHM CRIMP

53K107-108N5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerRosenberger
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresAPPLICABLE CABLES: RG 142B/U; RG 223/U; RG 400/U, INSERTION LOSS AND VSWR MAX AT: 6 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF N CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.05 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency11 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.22

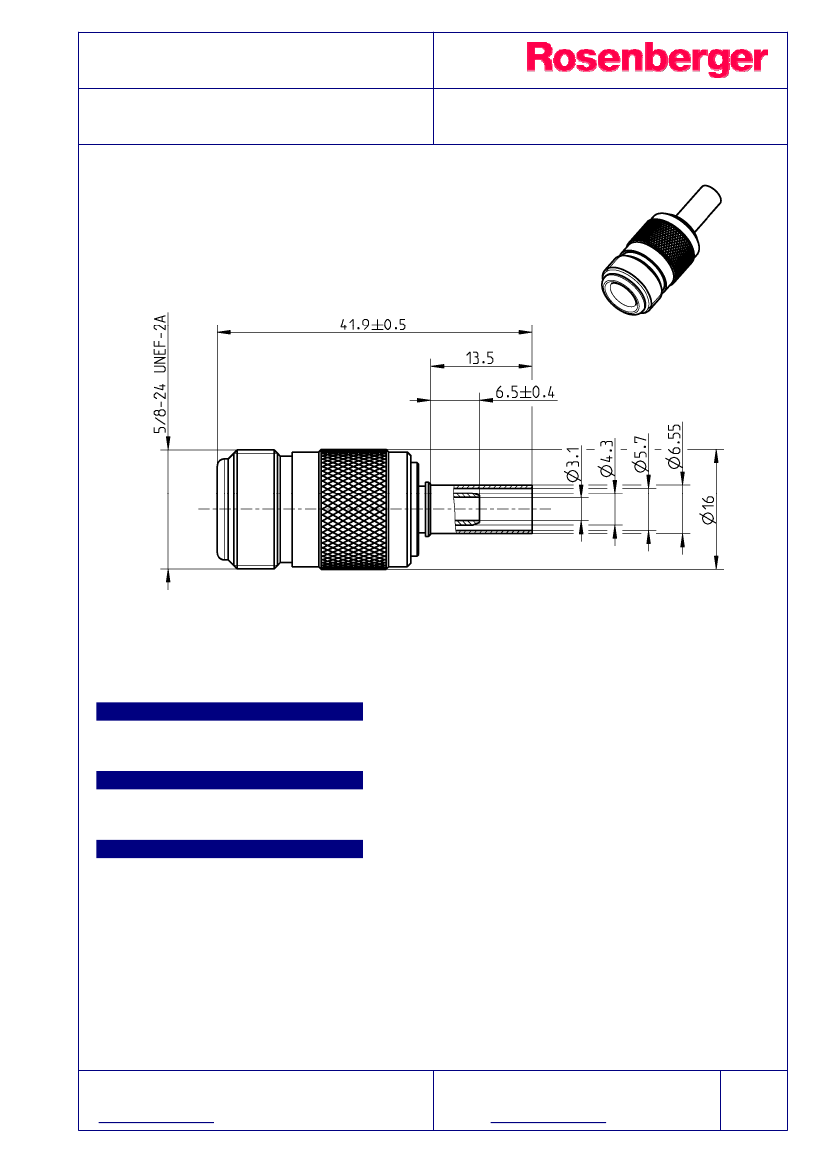

TECHNICAL DATA SHEET
N 50
STRAIGHT JACK
53K107-108N5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
Assembly instruction
53 P
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Crimping ferrule
Material
Beryllium copper
Brass
Brass
PTFE
Copper
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
