3601368F27032(R) datasheet, PDF

Datasheet> All Categories > Wire/cable> 3601368F27032(R)

3601368F27032(R): DescriptionNACRST;NEMA6-20P+SJT;12/3;60C;BL; CategoryWire/cable; File Size104KB，1 Pages; ManufacturerMEDER electronic ( Standex ); Websitehttps://standexelectronics.com; Environmental Compliance

Download Datasheet Parametric View All

3601368F27032(R) Overview

NACRST;NEMA6-20P+SJT;12/3;60C;BL

3601368F27032(R) Parametric

Parameter Name	Attribute value
style	Male pin (blade) to receptacle (slot)
first connector	NEMA 6-20P
Second connector	IEC 320-C19
Number of conductors	3
Wire type	SJT
Wire gauge	12 AWG
shield	No shielding
length	8.25'（2.52m）
Certification mark	CSA，UL
Certification country/region	Canada, United States
color	black
Rated voltage	250V
Rated current	20A
Operating temperature	60°C
characteristic	-

Preview

Download Datasheet

View All

PROPRIETARY INFORMATION:

PROPRIETARY OF GLOBTEK, INC. ANY REPRODUCTION, DISCLOSURE OR

USE OF THIS DRAWING, IN WHOLE OR IN PART, IS HEREBY

PROHIBITED EXCEPT AS SPECIFIED IN WRITING BY GLOBTEK,INC.

REVISION

REV

DESCRIPTION

INITIAL RELEASE, RFS.2005, EM

DATE

08/01/03

APPROVED

GENERAL SPECIFICATIONS:

RATING:

CABLE TYPE / SIZE:

TEMPERATURE RATING:

CONDUCTOR COLORS:

CABLE JACKET COLOR:

OVERALL LENGTH (L):

CABLE OUTER DIAMETER:

END ‘A’ PLUG;

END ‘B’

APPROVALS PLUG:

APPROVALS CABLE:

20A / 250V AC

SJT, # 12 AWG, 3 CONDUCTOR

60° C

BLACK / WHITE / GREEN

BLACK

2515 ± 50 mm ( 8 FT, 2 INCH )

11.5 + 0.1 MM

NEMA 6-20P STRAIGHT

IEC 320-C19

UL, CSA

PACKING:

BULK PACKED, BUNDLES OF 25.

MAXIMUM SHIPPING CARTON WEIGHT IS 30 KG.

NOTES:

1. CORD AND PLUG MUST BE MARKED WITH APPROVAL

SYMBOLS AND/ OR FILE NUMBERS.

DASH

NO.

PART NO

REV.

DESCRIPTION

NOTES

TABULATION BLOCK

REV.

SHEET

DECIMALS

.xx +/- 0.1

.xxx +/- .005

TOLERANCES:

ANGULAR

+/- 1

ANGULAR

+/- 1

www.globtek.com

186 Veterans Dr. Northvale, NJ 07647

Tel. 201-784-1000 Fax 201.784.0111

INIT.BY: EM

DRAWN: NF

APRVD: BS

DATE:

08/01/03

DATE:

08/01/03

DATE:

08/01/03

MILLIMETERS

.xx +/- 0.3

.xxx +/- .013

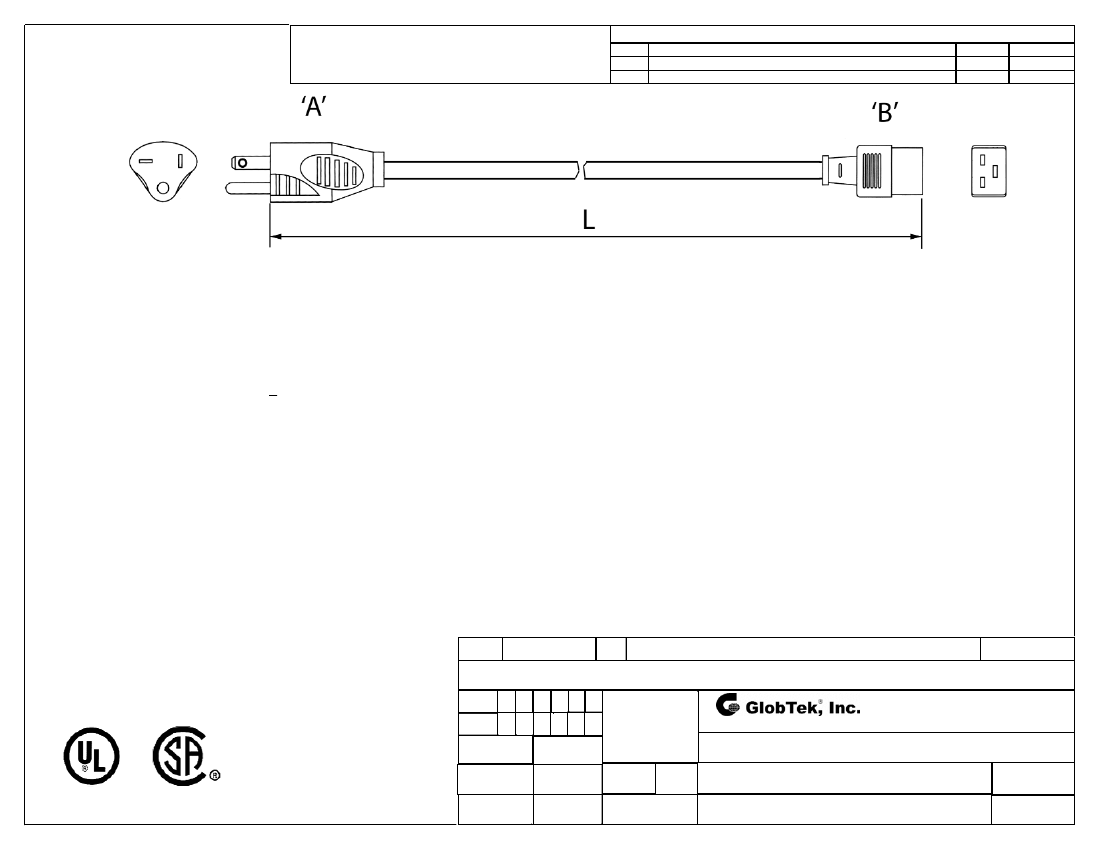

DWG TITLE: NORTH AMERICAN DETACHABLE CORDSET

REV.

FSCN No.:

G, CC

SI Z E

PART NO:

SCALE: NONE

3601368F27032

SHEET 1/1
