DRAWING REVISIONS
(RELEASE DATE ON FILE)

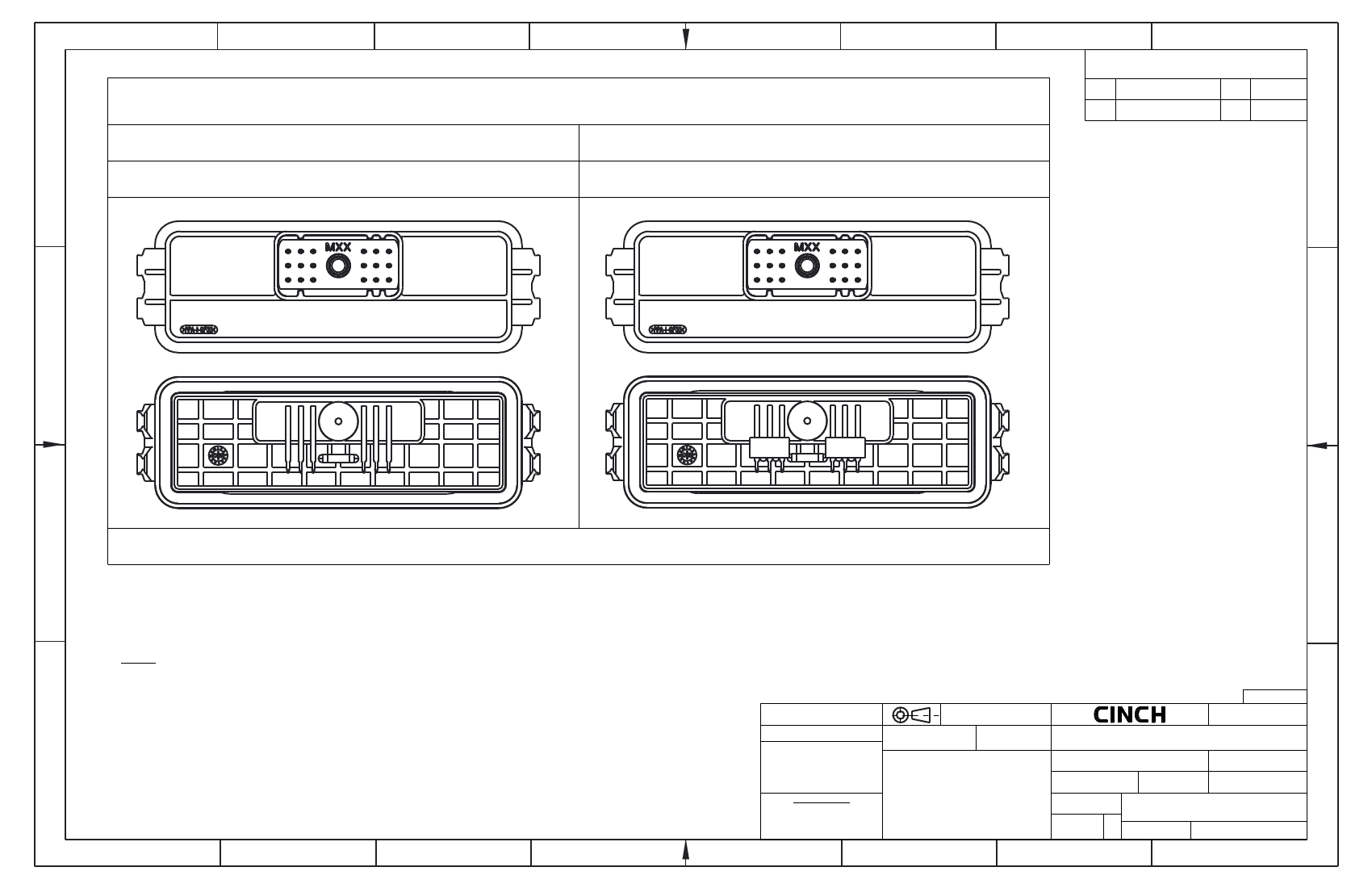

CINCH PART NUMBER MATRIX
D
REV
C
DOCUMENT
CO 3274
APP
KR
APPROVAL
DATE
7/18/16
D
P/N: 5810118038
18-WAY HEADER ASSEMBLY WITHOUT FERRITE FILTERS
P/N: 5810118039
18-WAY HEADER ASSEMBLY WITH FERRITE FILTERS
C
C
B
MATES WITH CINCH HARNESS CONNECTOR
P/N: 5810118023
B
NOTES:
1. ALL DIMENSIONS ARE IN INCHES; DIMENSIONS INSIDE [.XX] ARE IN mm, AS REFERENCE ONLY
2. MATERIALS:
INTERFACE SEAL: SILICONE RUBBER, COLOR BLUE
INSULATOR: 30% GLASS FILLED POLYMER, COLOR BLACK
BUSHING: BRASS ALLOY, UNPLATED 10-24 UNC THREAD
TERMINAL BLADES: 1.5 mm BRASS WITH TIN OVER NICKEL PLATING
FILTERS: FERRITE BLOCKS
3. ALL HEADERS ARE REFLOW OR WAVE SOLDERING PROCESS, ROHS COMPLIANT
4. SUGGESTED PCB THICKNESS: .062 [1.57]
5. IF USING FERRITE FILTER VERSION, TRACES SHOULD BE AVOIDED UNDER THE FERRITE
SPACER FEET. SEE "PCB TOP SIDE PIN AREA WITH FERRITES DETAIL" - PAGE 3.
6. MATES WITH CINCH SHS PUSH-TO-SEAT HARNESS CONNECTORS (SEE TABLE ABOVE)
7. TORQUE MATING CONNECTOR SCREW TO 15 - 20 IN*LBS [1.70 - 2.26 N*m]
MODELED BY:
A. ECKHART
UNITS
ENGLISH
INCHES
DESIGN ENGINEER
PRO/E
DATE
TITLE
1700 FINLEY RD
LOMBARD, IL. 60148
DO NOT SCALE DRAWING
A. ECKHART
4/1/09
MATERIAL
A
18-WAY HEADERS
MODICE ME
CONTROL SPEC NUMBER
SEE NOTES
CONFIDENTIAL
A
THIS DOCUMENT IS THE PROPERTY OF CINCH.
NEITHER THIS DOCUMENT NOR ANY OF
THE INFORMATION CONTAINED IN IT MAY
BE DUPLICATED OR DISCLOSED WITHOUT
PRIOR WRITTEN CONSENT OF CINCH.
©COPYRIGHT 2009 CINCH
APPROVALS
ON FILE
MATERIAL SPEC NUMBER
FINISH
PROJECT NUMBER
A14926
CAD FILE NUMBER
DRAWING NUMBER
5810118038S
CAGE IDENT NO.
SIZE
71785
3
2
B
SCALE
5810118038S
SHEET 1 OF 3
1
1:1
8
7
6
5
4
8
7
6
5
4
3
2
1

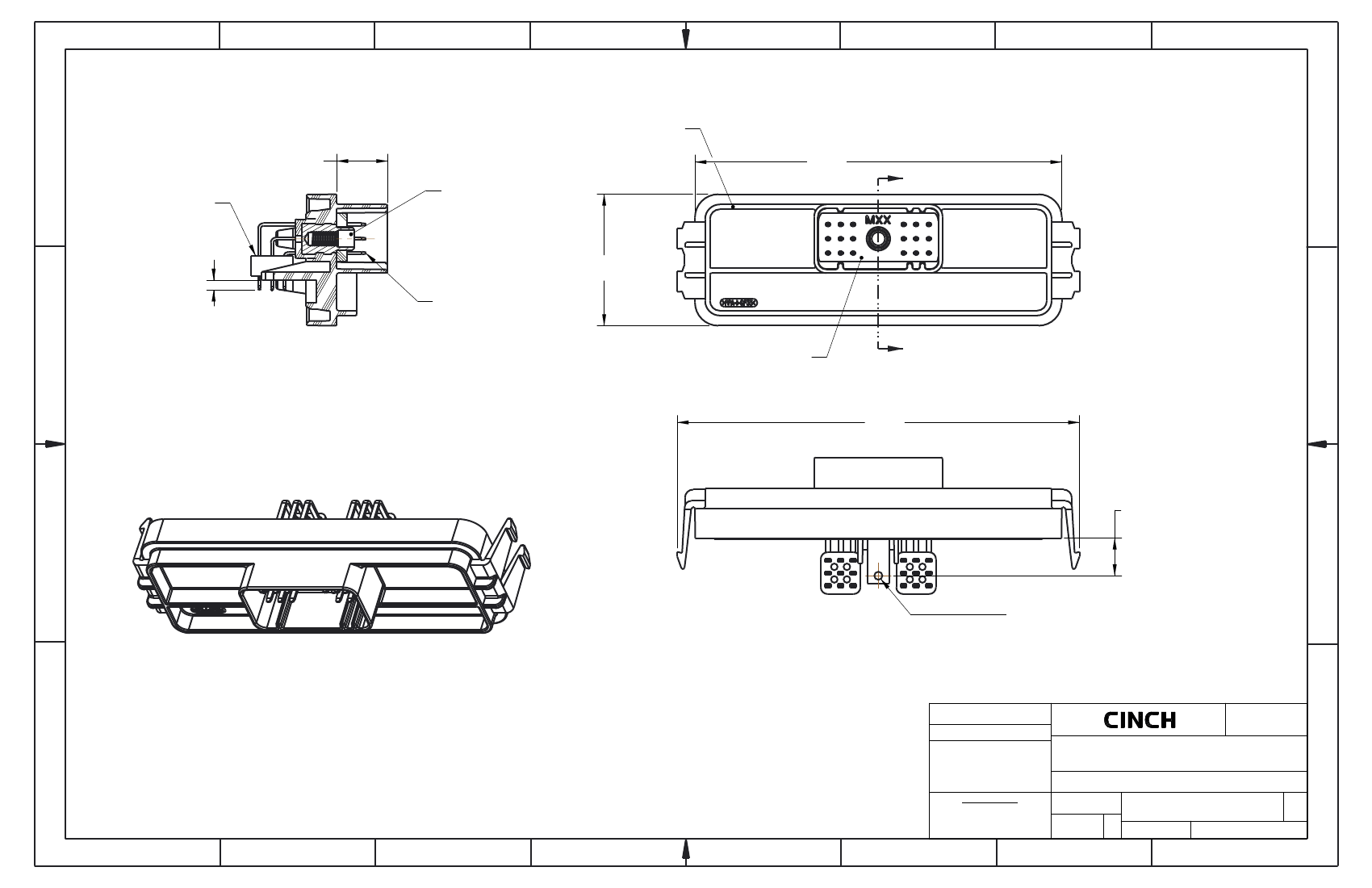

D
.63
[16.0]
FERRITE
FILTERS
BRASS BUSHING
PLASTIC INSULATOR
4.54
[115.3]
D
A
1.61
[40.9]
TERMINALS
(3 ROWS)
.13
[3.2]
C
SECTION A-A
INTERFACE SEAL
A
C
4.93
[125.2]
.47
[11.8]
B
B
CINCH P/N: 5810118039 SHOWN
(HEADER WITH FILTERS)
FOR PCB MOUNTING, #4 THREAD CUTTING
SCREW (TYPE 23 OR SIMILAR) IS RECOMMENDED;
TORQUE TO 2-3 IN*LBS [0.23-0.34Nm]
UNITS
ENGLISH
INCHES
TITLE
1700 FINLEY RD
LOMBARD, IL. 60148
DO NOT SCALE DRAWING
A
18-WAY HEADERS
MODICE ME
PRO/E DRAWING
THIS DOCUMENT IS THE PROPERTY OF CINCH.
NEITHER THIS DOCUMENT NOR ANY OF
THE INFORMATION CONTAINED IN IT MAY
BE DUPLICATED OR DISCLOSED WITHOUT
PRIOR WRITTEN CONSENT OF CINCH.
©COPYRIGHT 2009 CINCH
CONFIDENTIAL
CAD FILE NUMBER
DRAWING NUMBER
5810118038S
CAGE IDENT NO.
SIZE
5810118038S
SHEET 2 OF 3
1
71785
2
B
SCALE
C
REV
1:1
8
7
6
5
4
3
8
7
6
5
4
3
2
1
D

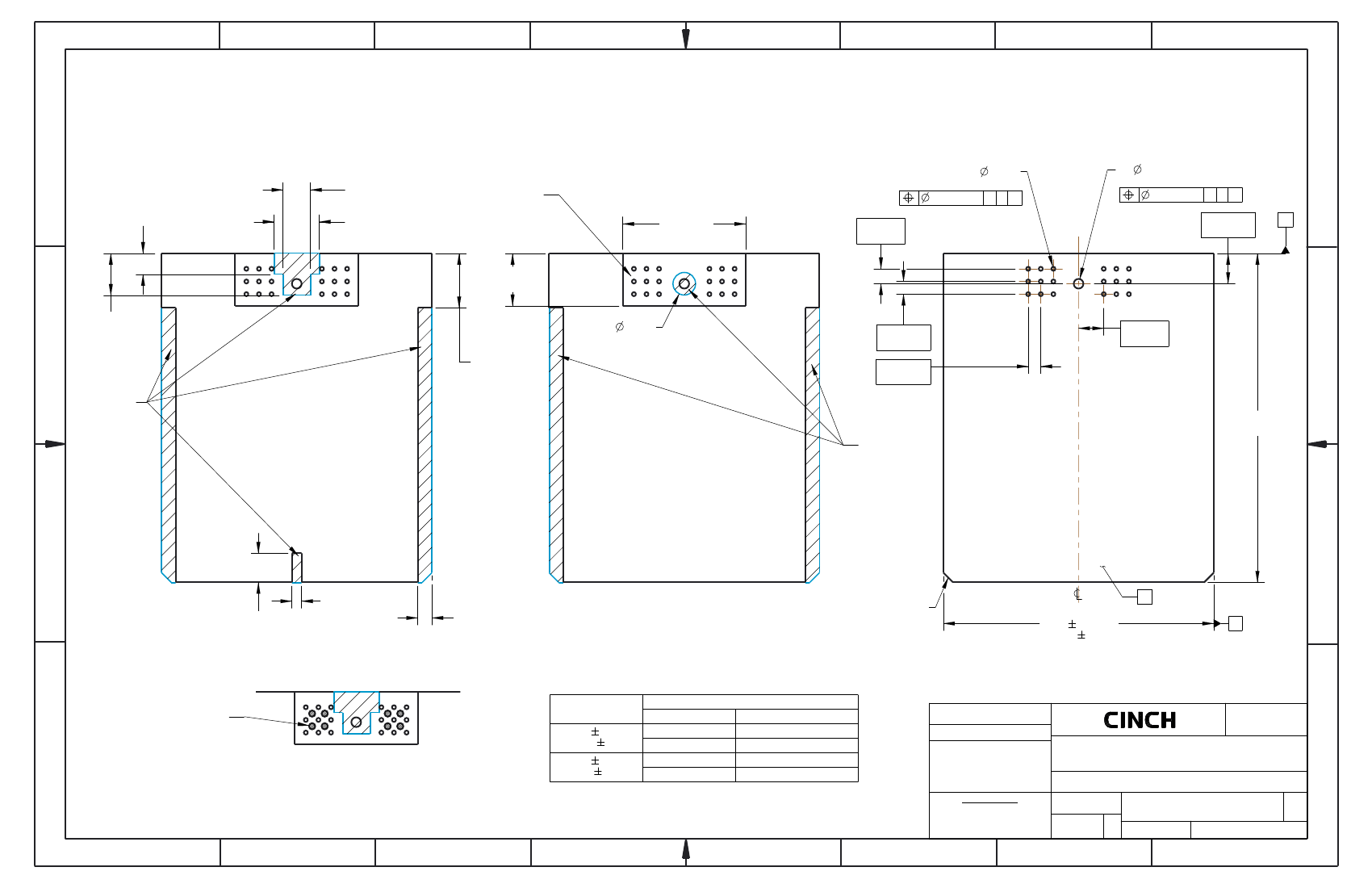

PCB TOP SIDE GENERAL
ZONING AND KEEP-OUT AREAS
PCB BOTTOM SIDE GENERAL
ZONING AND KEEP-OUT AREAS
18X
PCB OVERALL DIMENSIONS
AND HOLE LOCATIONS
.050
[1.27]
.010 [0.25] A B C
2X
.120
[3.048]
.020 [0.50] A B C
2X .375
[9.525]
C
D
.260
[6.60]
.340
[8.64]
.560
[14.22]
COMPONENT KEEP
OUT AREA AROUND
CONNECTOR PINS;
TOP & BOTTOM SIDES
2X 1.526
[38.76]
6X .185
[4.70]
2X .650
[16.51]
.520
[13.21]
4X .675
[17.15]
COMPONENT
AND TRACE
KEEP OUT
AREAS
C
.280
[7.11]
12X .157
[3.99]
12X .156
[3.96]
6X .312
[7.92]
C
TOP SIDE MAXIMUM COMPONENT
HEIGHT: .827 [21.00]
BOTTOM SIDE MAXIMUM COMPONENT
HEIGHT: .236 [6.00]
DIM. "A"
SEE CHART
COMPONENT
AND TRACE
KEEP OUT
AREAS
B
B
.360
[9.14]
.120
[3.05]
4X .175
[4.45]
2X 45° X.12
[3.048]
A DATUM
THIS SURFACE
3.350 .010
[85.090 0.254]
B
RECOMMENDED PCB LENGTH
FERRITE SPACER FEET
TRACE KEEP OUT
AREAS (8 PLACES)
SEE NOTE 5
DIM. "A"
(SEE DRAWING)
4.075 0.015
[103.53 0.38]
2.375 0.015
[60.33 0.38]
USE WITH ENCLOSURE
PART NUMBER
DESCRIPTION
581 01 30 065
ME
581 01 30 075
ME WITH BREATHER
581 01 30 090
MINI ME
581 01 30 095
MINI ME WITH BREATHER
UNITS
ENGLISH
INCHES
TITLE
1700 FINLEY RD
LOMBARD, IL. 60148
DO NOT SCALE DRAWING
A
18-WAY HEADERS
MODICE ME
PCB TOP SIDE PIN AREA WITH FERRITES DETAIL
PRO/E DRAWING
THIS DOCUMENT IS THE PROPERTY OF CINCH.
NEITHER THIS DOCUMENT NOR ANY OF
THE INFORMATION CONTAINED IN IT MAY
BE DUPLICATED OR DISCLOSED WITHOUT
PRIOR WRITTEN CONSENT OF CINCH.
©COPYRIGHT 2009 CINCH
CONFIDENTIAL
CAD FILE NUMBER
DRAWING NUMBER
5810118038S
CAGE IDENT NO.
SIZE
5810118038S
SHEET 3 OF 3
1
71785
2
B
SCALE
C
REV
1:1
8
7
6
5
4
3
