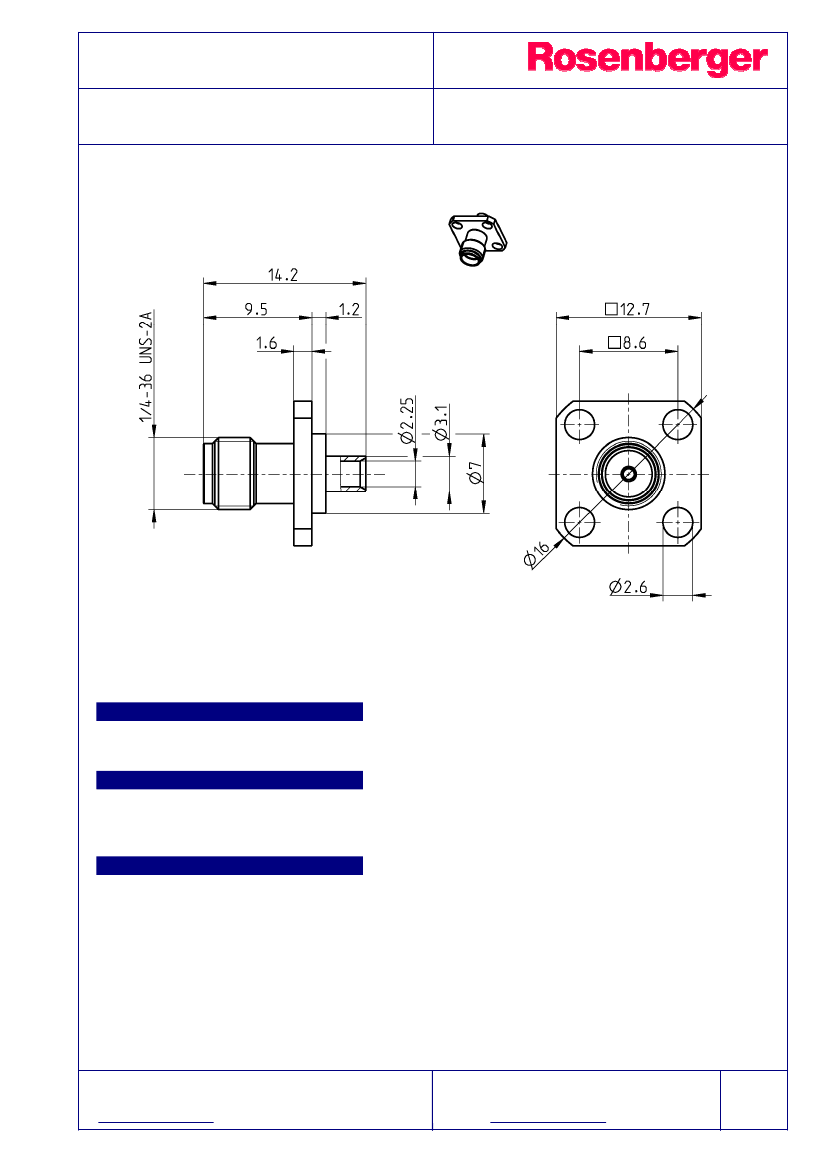

TECHNICAL DATA SHEET
SMA
PANEL JACK
32K401-271L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348
Documents
Assembly instruction
Panel piercing
32 A4 or 32 A21
B 55
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
Beryllium copper or equivalent
Beryllium copper
PTFE
Plating
AuroDur, gold plated
AuroDur, gold plated
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SMA
PANEL JACK
32K401-271L5
50
Ω
DC to 18 GHz
≥
30 dB @ DC to 8 GHz
≥
25 dB @ 8 to 12 GHz
≥
19 dB @ 12 to 18 GHz
≤
0.03 x
f(GHz)
dB
≥
5 x10
3
MΩ
≤
3 mΩ
≤
2 mΩ
1000 V rms
480 V rms
≤
200 W @ 2 GHz
≥
100 dB up to 1 GHz
Electrical data
Impedance
Frequency
VSWR
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Coupling test torque
Recommended torque
min. 500
max. 1.7 Nm
0.8 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-65°C to +165°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
D
I
Tooling
N/A
Suitable cables
UT 85, RG 405
Weight
Weight
2.91 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Rong Fang
Date
10.03.04
Approved
J_Krautenbacher
Date
21.07.16
Rev.
e00
Engineering change number
15-1629
Name
I_Wallner
Date
21.07.16
