TECHNICAL DATA SHEET
N 50
BULKHEAD JACK
53K517-271N5

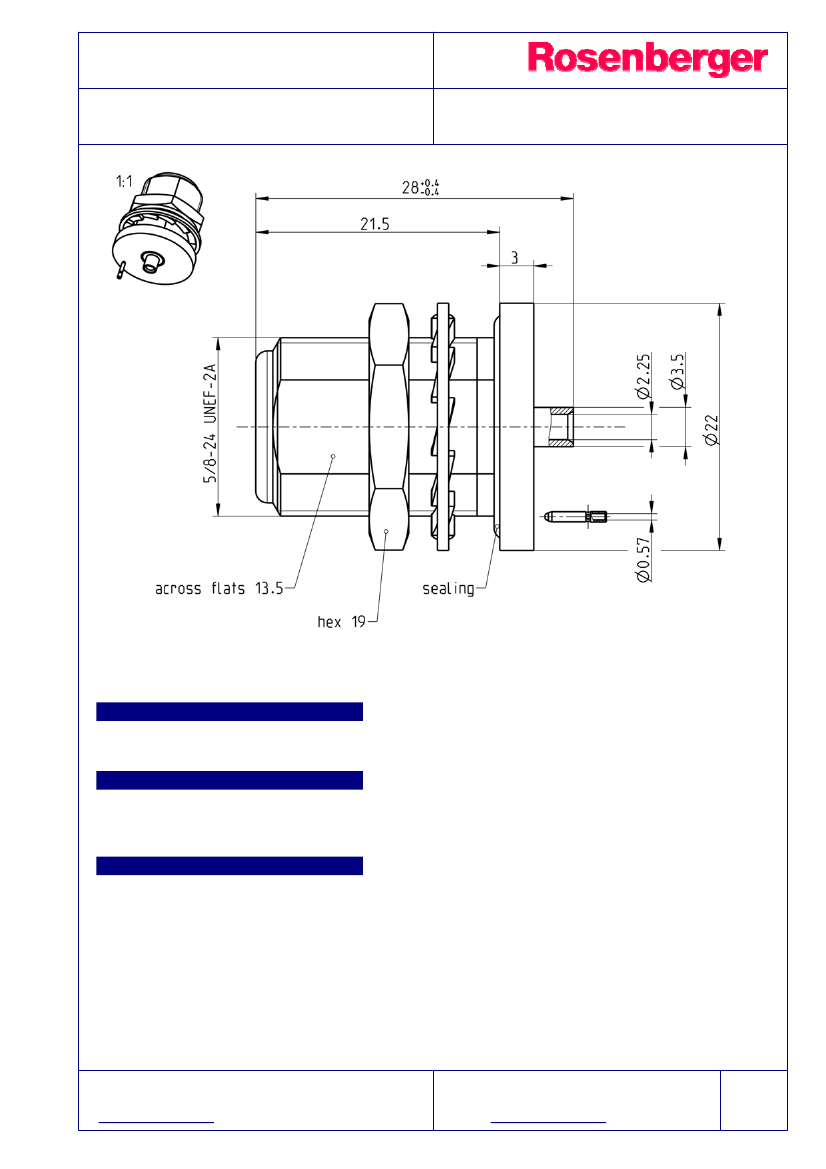

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
Assembly instruction
Panel piercing
53 T26
B 13
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Gasket
Material
Spring bronze
Brass
PTFE
NBR
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
N 50
Electrical data
Impedance
Frequency
Return loss
BULKHEAD JACK
50
DC to 11 GHz
30 dB, DC to 2.5 GHz
25 dB, 2.5 to 4 GHz
20 dB, 4 to 8 GHz
0.05 dB, DC to 8 GHz
5 x10
3
M
1 m
0.25 m
500 V rms
1000 W @ 1 GHz
700 W @ 2 GHz
128 dB up to 1 GHz
-117 dBm @ 2 x 20 W
53K517-271N5
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
Intermodulation
(3
rd
order)
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Center contact captivation: axial
radial
Coupling test torque
Recommended torque
min. 500
28 N
3 Ncm
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
Degree of protection (mated pair)
RoHS
-25°C to +110°C
MIL-STD-202, Meth. 107, Cond. B
MIL-STD-202, Meth. 101, Cond. B
MIL-STD-202, Meth. 204, Cond. B
MIL-STD-202, Meth. 213, Cond. I
MIL-STD-202, Meth. 106
IEC 60529, IP67 (assembled in housing)
compliant
Tooling
N/A
Suitable cables
UT 85, RG 405
Weight
Weight
36 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
M. Schmid
Date
24/07/08
Approved
J_Gramsamer
Date
17.04.15
Rev.
d00
Engineering change number
15-0397
Name
J_Krautenb.
Date
17.04.15
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
2/2
