3201776F6000(R)

Description
NA CRDST;NEMA 5-20P20A/125V; S0;
CategoryWire/cable
File Size20KB,1 Pages
ManufacturerMEDER electronic ( Standex )
Websitehttps://standexelectronics.com
Environmental Compliance
Download Datasheet Parametric View All

3201776F6000(R) Overview

NA CRDST;NEMA 5-20P20A/125V; S0;

3201776F6000(R) Parametric

Parameter NameAttribute value
styleMale pin (blade) to lead
first connectorNEMA 5-20P
Second connectorCable
Number of conductors3
Wire typeSO
Wire gauge12 AWG
shieldNo shielding
length6.56'(2.00m)
Certification markCSA,UL
Certification country/regionCanada, United States
colorblack
Rated voltage120V
Rated current20A
Operating temperature60°C
characteristic-
GlobTek
Summary:

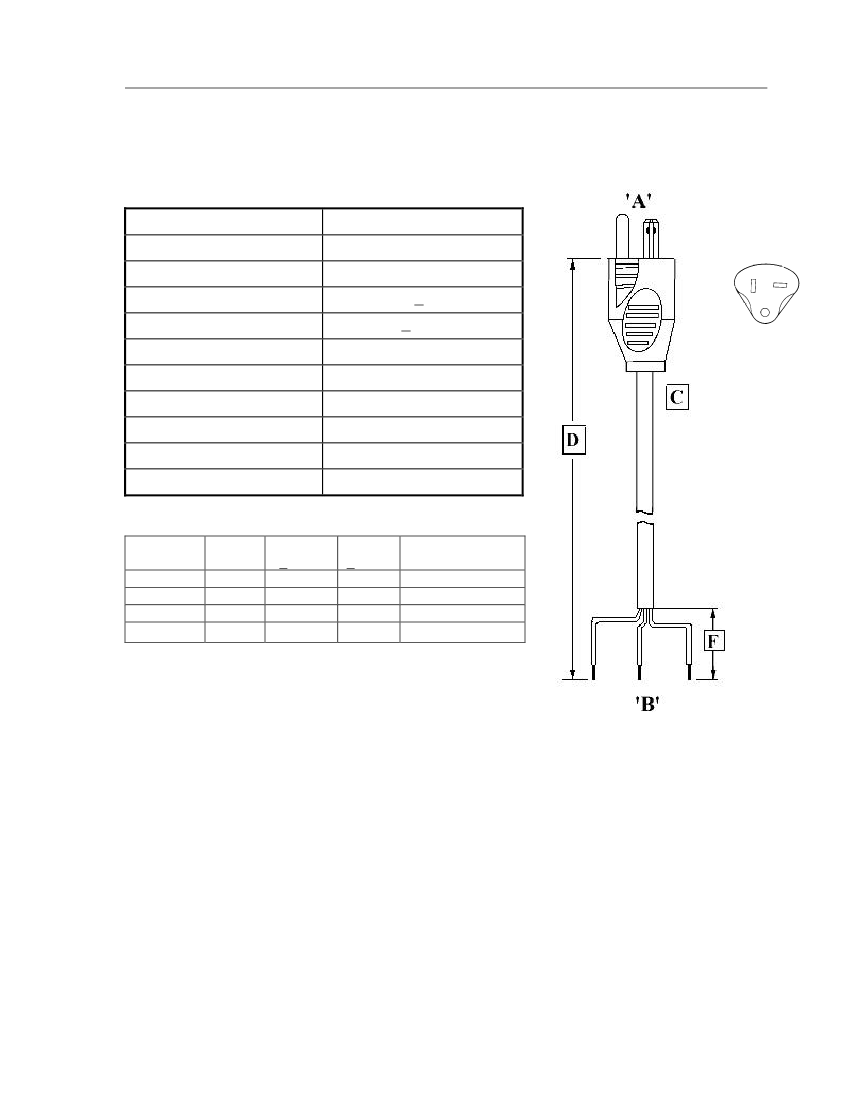

P/N: 3201776F6000
_______
Rating: 20A /120 V
Description: NORTH AMERICAN NON-DETACHABLE CORDSET
______________________________________________________________________________
Rev ‘A’ Dt. 11/29/01
General Specifications:
Cable Size / Type (C):
Temperature Rating:
Overall Length
Cable OD
End ‘A’ Termination:
Approvals:
Cable Jacket Color (C)
(D)
3C / 12AWG / SO
60° C
200 + 5 cm
11 + 0.5 mm
Nema 5-20P
UL, CSA
Black
Conductors Specifications:
Color
ROJ (F)
Wire
Line
Neutral
Ground
Blk
Wht
Grn
+ 5 mm
150mm
150mm
150mm
RIJ
+ 1 mm
6 mm
6 mm
6 mm
Terminal
Strip
Strip
Strip
Packing: Bulk
Customer
Approval:______________________
Notes:
GlobTek Inc.
186 Veterans Drive Northvale, N.J 07647. U.S.A. Ph. 201-784-1000
Fx. 201-784-0111
