RAFIX 22 FS
+
- Pushbutton FLEXLAB, illuminated, square
collar, plastic front ring, latching
1.30.270.961/2207
The RAFIX 22 FS+ FLEXLAB pushbutton allows individual control component labeling. A DIN A4
label sheet with pre-cut labels which fits in all customary office printers is available for this option.
After the legend inserts are printed, the labels can be detached from the sheet and inserted into
the colored lens using the fine stop tabs.
General information
Form of lens
Color of front ring
Form of collar
Dimensions
Dimensions of collar
Overall height
Mounting depth
Mounting hole
Key grid
Mechanical design
Mounting
Contact function
Illuminability
Torque for nut ring
Mechanical characteristics
Operating travel
Robustness max.
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Storage temperature min.
Storage temperature max.
Operating life
B10
Degree of protection from front side
Environmental restistance
Salt spray
ROHS compliant
REACH compliant
flat lens
slate-grey
square
29.8 x 29.8 mm
9.85 mm
PCB 9.2 mm, QC 27 mm
22.3 mm
30 x 30 mm
ring nut
latching
yes
1.2 Nm
4 mm
100 N
-25 °C
+70 °C
-40 °C
+80 °C
1,000,000 momentary / 500,000 latching cycle
1,300,000 momentary / 650,000 latching cycle
IP65 (DIN EN 60529)
acc. to IEC 60068-2-14, -30, -33 and -78
IEC 600 68-2-11
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
13.10.2016

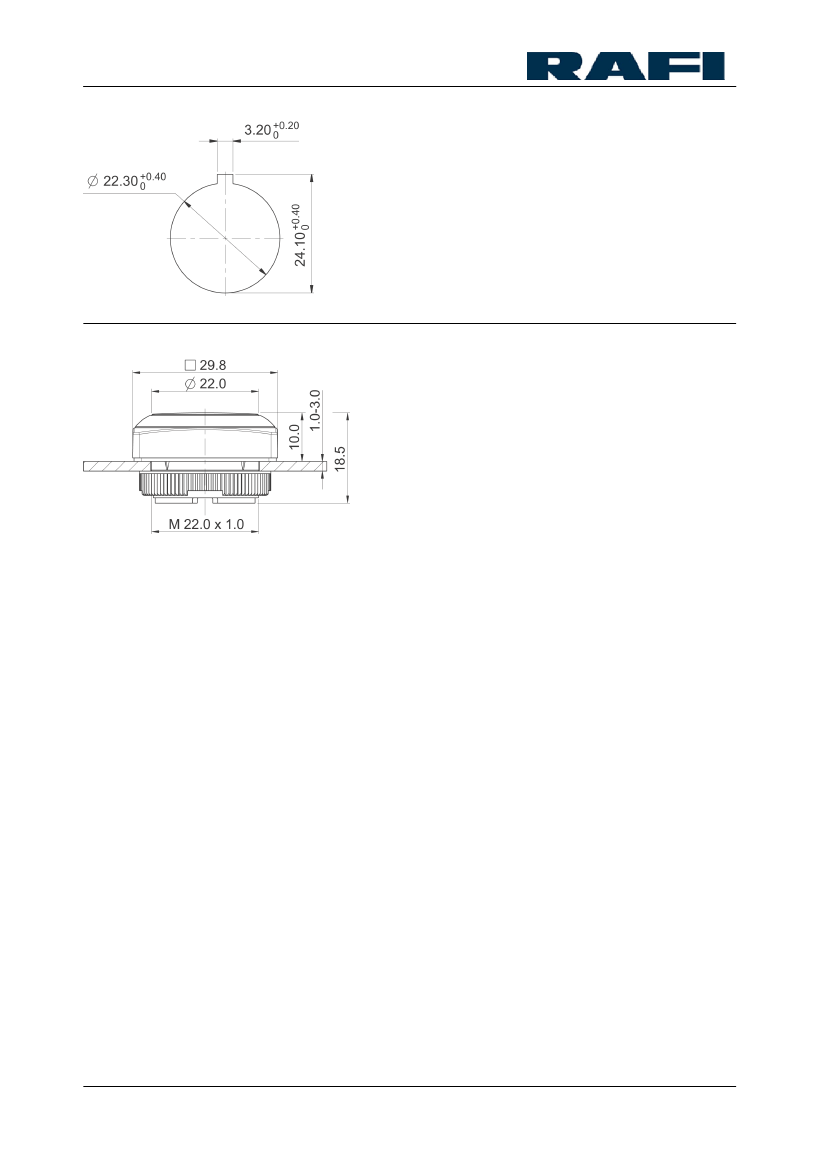

Panel cut-out to IEC 60947-5-1
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
