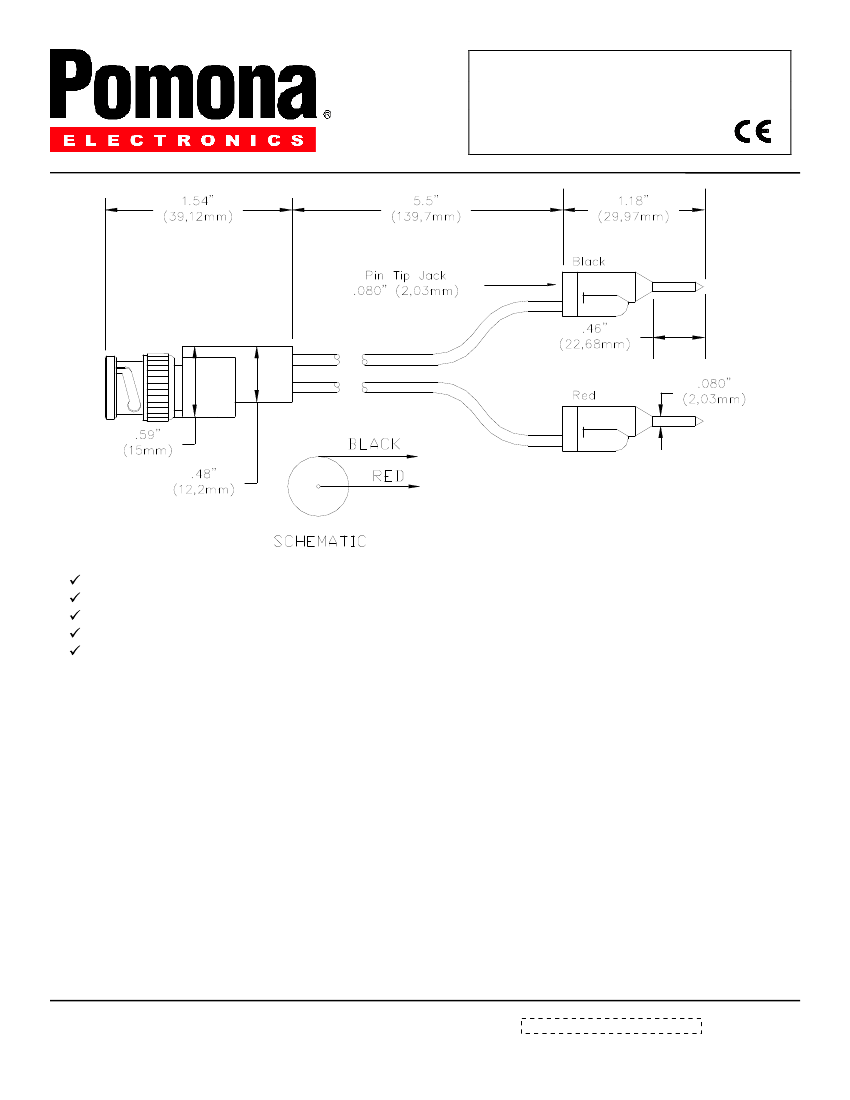

Model 3901
BNC (Male) To Stackable
Pin Tip Plugs
FEATURES:
Converts BNC (female) cables / connectors to stackable pin tip for test versatility.
Miniature banana plug springs are gold plated Beryllium Copper for excellent electrical connection.
BNC connector is molded directly to the wire for pull strength durability and dust and moisture resistance.
Black wire is connected to BNC shell, red wire to BNC center contact.
Pin tip plugs are stackable.
MATERIALS:
BNC:
Nickel Plated Brass, Center Contact: Gold Plated Brass
Dielectric:
PTFE
Wire:
20 AWG, PVC Insulated
Pin Tip:
Brass Gold Plated, Spring: Beryllium Copper, Gold Plated
Insulation:
Polypropylene, color matches color of wire.
RATINGS:
Hands free testing in controlled voltage environments: 500 Vrms Max.
For CE compliance:
not intended for
hand-held use at voltages above 33 Vrms/70 Vdc.
Operating Temperature: +131°F (+55°C) Max.
ORDERING INFORMATION:
Model 3901*
* Custom lengths are available, contact Pomona Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Voltage:
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1094126
Page 1 of 1
