applications that require tight frequency control.
ORDERING INFORMATION
636
SUPPLY VOLTAGE
M = +1.8V
N = +2.5Vdc
L = +3.3Vdc
S = +5.0Vdc
M
FREQUENCY IN MHz
M - indicates MHz and decimal point.
Frequency is recorded with minimum 5
significant digits to the right of the "M".
OPERATING TEMPERATURE RANGE
FREQUENCY STABILITY
6
5
3
2
=
=
=
=
±
±
±
±
20 ppm
(-20°C to +70°C only)
25 ppm
50 ppm (standard)
100 ppm
(-40°C to +85°C only)
C = -20°C to +70°C (standard)
I = -40°C to +85°C
Example Part Number: 636L3C032M76800
Document No. 008-0250-0
Page 1 - 4
Rev. C
٠ ٠ ٠
CTS Communications Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠ ٠ ٠
٠ ٠ ٠
Phone 630-924-3500
٠
www.ctscorp.com
٠
Toll Free 800-757-6686
٠ ٠ ٠

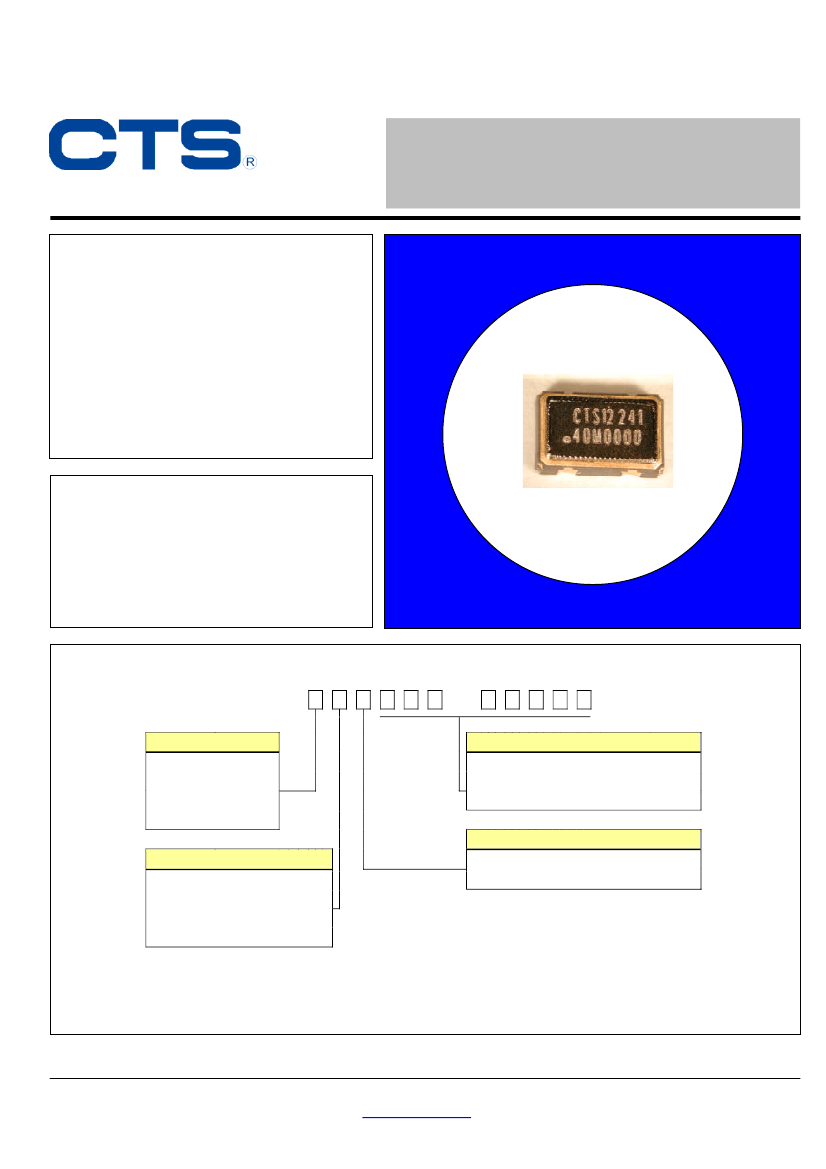

5x3.2mm Low Cost
CMOS/TTL Clock Oscillator
Model 636
ELECTRICAL CHARACTERISTICS
PARAMETER
Absolute Maximums
Maximum Supply Voltage
Storage Temperature
Frequency Range
(See Note 1 and Ordering Information)
SYMBOL
V
CC
T
STG
f
O
∆f/f
O
T
A
± 10 %
V
CC
CONDITIONS
-
-
-
-
-
MIN
-0.5
-55
1.0
-
-20
-40
1.62
2.25
2.97
4.50
TYP
-
-
-
-
MAX
7.0
125
125
20,25,50
or 100
70
85
1.98
2.75
3.63
5.50
5
15
20
7
15
20
10
30
40
15
30
15
50
30
15
-
10%V
CC
-0, -4,
-8, -16
+2, +4,
+8, +16
55
10
6
3
8
5
2
10
UNIT
V
°C
MHz
± ppm
°C
Frequency Stability
Operating Temperature
Commercial
Industrial
Supply Voltage
Model 636M
Model 636N
Model 636L
Model 636S
Supply Current
Model 636M
25
1.8
2.5
3.3
5.0
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
8
4
2.5
6
3
1.5
-
V
Model 636N & 636L
I
CC
Model 636S
1.0 MHz to 20 MHz
20.1 MHz to 50 MHz
50.1 MHz to 125 MHz
1.0 MHz to 20 MHz
20.1 MHz to 50 MHz
50.1 MHz to 125 MHz
1.0 MHz to 20 MHz
20.1 MHz to 50 MHz
50.1 MHz to 125 MHz
1.0 MHz to 125 MHz
C
L
=15pF
C
L
=15pF
C
L
=15pF
C
L
=15pF
C
L
=15pF
C
L
=15pF
C
L
=15pF
C
L
=15pF
C
L
=15pF
-
-
-
-
-
-
-
-
-
-
-
-
-
-
90%V
CC
-
-
-
45
mA
Output Load
Model 636M
Model 636N & 636L
Electrical and Waveform Parameters
Model 636S
C
L
1.0 MHz to 50 MHz
50.1 MHz to 125 MHz
1.0 MHz to 50 MHz
50.1 MHz to 80 MHz
80.1 MHz to 125 MHz
pF
Output Voltage Levels
Logic '1' Level
Logic '0' Level
Output Current
Logic '1' Level (M,N,L,S)
Logic '0' Level (M,N,L,S)
Output Duty Cycle
Rise and Fall Time
Model 636M, 636N & 636L
V
OH
V
OL
I
OH
I
OL
SYM
CMOS Load
CMOS Load
V
OH
= 90%V
CC
V
OL
= 10%V
CC
@ 50% Level
@ 10% - 90% Levels
1.0 MHz to 20 MHz
20.1 MHz to 50 MHz
50.1 MHz to 125 MHz
1.0 MHz to 20 MHz
20.1 MHz to 50 MHz
50.1 MHz to 125 MHz
V
mA
%
T
R
, T
F
Model 636S
C
L
=15pF
C
L
=15pF
C
L
=15pF
C
L
=15pF
C
L
=15pF
C
L
=15pF
-
-
-
-
-
-
-
ns
Start Up Time
Enable Function
Enable Input Voltage
Model 636M
Model 636N
Model 636L
Model 636S
Disable Input Voltage
Model 636M,N,L
Model 636S
Enable Time (M,N,L,S)
Phase Jitter
T
S
Application of V
CC
ms
V
IH
Pin
Pin
Pin
Pin
1
1
1
1
Logic
Logic
Logic
Logic
'1',
'1',
'1',
'1',
Output
Output
Output
Output
Enabled
Enabled
Enabled
Enabled
1.26
1.75
2.0
4.0
-
-
-
-
-
-
-
-
-
<1
-
-
-
-
0.5
0.8
10
-
V
V
IL
T
PLZ
tjms
Pin 1 Logic '0', Output Disabled
Pin 1 Logic '0', Output Disabled
Pin 1 Logic '1'
Bandwidth 12 KHz - 20 MHz
ms
ps RMS
Notes:
1. Inclusive of initial tolerance at time of shipment, changes in supply voltage, load, temperature and first year aging at an average operating temperature
of +40 °C.
Document No. 008-0250-0
Page 2 - 4
Rev. C
٠ ٠ ٠
CTS Communications Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠
630-924-3500
٠٠٠
5x3.2mm Low Cost
CMOS/TTL Clock Oscillator
CMOS/TTL OUTPUT WAVEFORM
Tr
Tf
Model 636
TEST CIRCUIT, CMOS LOAD
V
OH
90%, 80%, 2.4V
+
mA
-
4
3
D.U.T.
C
L
2
Including probe
capacitance.
50%, 1.5V
+
POWER
SUPPLY
+
VM
-
.01uF
-
10%, 20%, 0.5V
UPTIME (t)
PERIOD (T)
1
V
OL
Enable Input
DUTY CYCLE = t/T x 100 (%)
D.U.T. PIN ASSIGNMENTS
ENABLE TRUTH TABLE
PIN 1
Logic ‘1’
Open
Logic ‘0’
PIN 3
Output
Output
High Imp.
PIN
1
2
3
4
SYMBOL
EOH
GND
Output
V
CC
DESCRIPTION
Enable Input
Circuit & Package Ground
RF Output
Supply Voltage
MECHANICAL SPECIFICATIONS
PACKAGE DRAWING
(5.0 ±0.2)
0.197 ±0.008
PIN 1 IDENTIFIER
(1.2)
0.047
(1.0)
0.039
(3.2 ±0.2)
0.126 ±0.008
(2.2)
0.087
3
4
MARKING INFORMATION
1. ** - Manufacturing Site Code.
2. YWW – Date code, Y – year, WW – week.
3. XXMXXXX - Frequency marked with 4 significant
digits after the ‘M’.
CTS ** YWW
●
32M7680
2
1
(2.54)
0.100
(1.2)
MAX
0.047
Key:
(mm)
Inch
SUGGESTED SOLDER PAD GEOMETRY
.055 [1.40]
300
SUGGESTED REFLOW PROFILE
Maximum 260°C, 10 seconds
C
BYPASS
4
.047 [1.20]
3
.087 [2.20]
Temp.
(°C)
100
200
Typical 245°C
130°C
1
.100 [2.54]
2
Key:
[mm]
Inch
0
0
30
60
90
120
150
180
210
240
270
300
Time (Seconds)
C
BYPASS
should be
≥
0.01 uF.
Document No. 008-0250-0
Page 3 - 4
Rev. C
٠ ٠ ٠
CTS Communications Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠
630-924-3500
٠٠٠
5x3.2mm Low Cost
CMOS/TTL Clock Oscillator
Model 636
TAPE AND REEL INFORMATION
DIMENSIONS IN MILLIMETERS
17.5
Ø13
4.0
8.0
Ø1.50
1.75
1.50
1.30
2.0
120°
5.60
5.20
16.0
Ø60
Ø180
3.70
3.50
DIRECTION OF FEED
Ø23
Device quantity is 1,000 pieces per 180mm reel.
ENVIRONMENTAL SPECIFICATIONS
Temperature Cycle:
Mechanical Shock:
Sinusoidal Vibration:
Gross Leak:
Fine Leak:
Resistance to Solder Heat:
High Temperature Operating Bias:
Frequency Aging:
400 cycles from –55°C to +125°C, 10 minute dwell at each temperature, 1
minute transfer time between temperatures.
1,500g’s, 0.5mS duration, ½ sinewave, 3 shocks each direction along 3
mutually perpendicular planes (18 total shocks).
0.06 inches double amplitude, 10 to 55 Hz and 20g’s, 55 to 2,000 Hz, 3 cycles
each in 3 mutually perpendicular planes (9 times total).
No leak shall appear while immersed in an FC40 or equivalent liquid at
+125°C for 20 seconds.
Mass spectrometer leak rates less than 2x10
-8
ATM cc/sec air equivalent.
Product must survive 3 reflows of +260°C peak, 10 seconds maximum.
2,000 hours at +125°C, maximum bias, disregarding frequency shift.
1,000 hours at +85°C, full bias, less than ±5 ppm shift.
QUALITY AND RELIABILITY
Quality systems meet or exceed the requirements of ISO 9000:2000 standards. Reliability audits are performed on
this or similar products with results available upon request.
