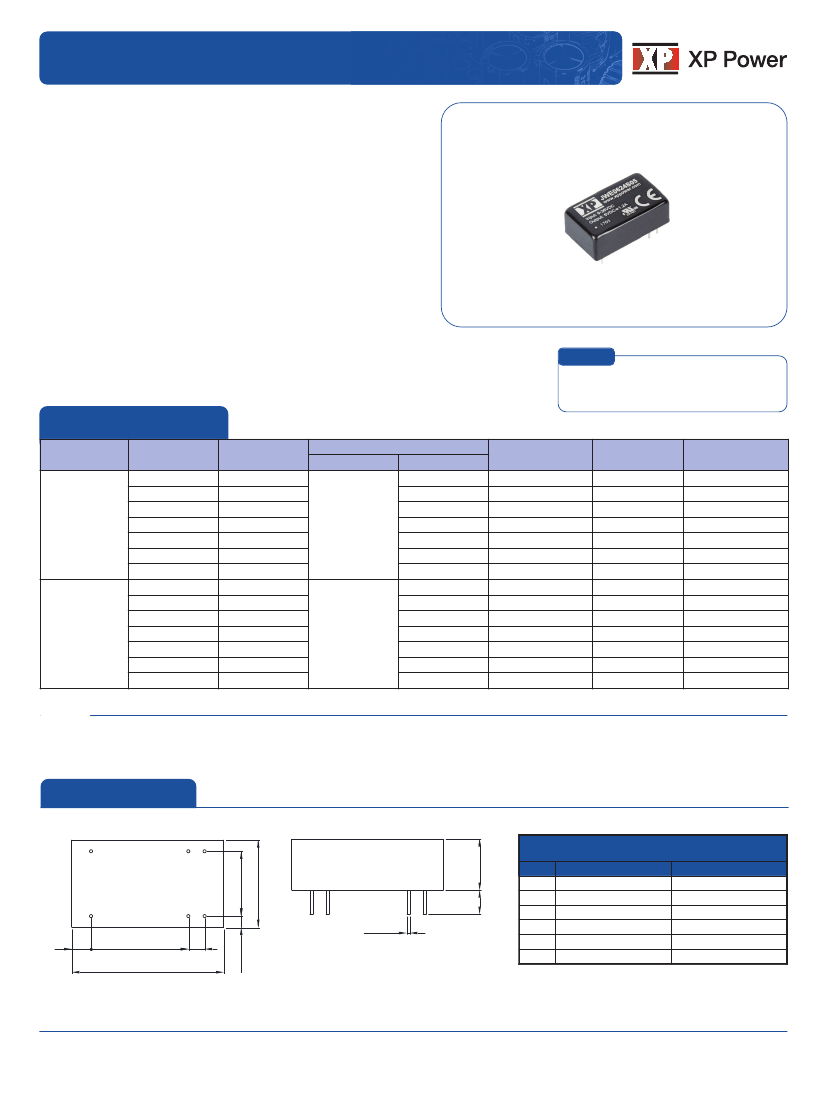

JWE06 Series
6 Watts
• Regulated Single & Dual Output
• Ultra Wide 4:1 Input Range
• DIP16 Package
• 1500 VDC Isolation
• Operating Temperature -40 °C to +105 °C
• Full Power to +75 °C
• ITE Safety Approvals
• High Power Density
• Metal Case
• 3 Year Warranty
DC-DC Converter
xxx Series
Dimensions:
JWE06:
0.94 x 0.54 x 0.31” (23.8 x 13.7 x 8.0 mm)
Models & Ratings
Input voltage
Output voltage
3.3 V
5.0 V
12.0 V
9-36V
15.0 V
24.0 V
±12.0 V
±15.0 V
3.3 V
5.0 V
12.0 V
18-75V
15.0 V
24.0 V
±12.0 V
±15.0 V
Output current
1500 mA
1200 mA
500 mA
400 mA
250 mA
±250 mA
±200 mA
1500 mA
1200 mA
500 mA
400 mA
250 mA
±250 mA
±200 mA
6 mA
8 mA
Input current
(1)
No load
Full load
265 mA
305 mA
295 mA
295 mA
290 mA
295 mA
290 mA
130 mA
155 mA
145 mA
145 mA
145 mA
145 mA
145 mA
Max. capacitive load
(2)
680 µF
680 µF
330 µF
330 µF
150 µF
±50 µF
±150 µF
680 µF
680 µF
330 µF
330 µF
150 µF
±150 µF
±150 µF
Efficiency
78%
82%
86%
86%
87%
86%
87%
78%
82%
86%
86%
87%
87%
87%
Model number
JWE0624S3V3
JWE0624S05
JWE0624S12
JWE0624S15
JWE0624S24
JWE0624D12
JWE0624D15
JWE0648S3V3
JWE0648S05
JWE0648S12
JWE0648S15
JWE0648S24
JWE0648D12
JWE0648D15
Notes
1. Input currents measured at nominal input voltage.
2. Maximum capacitive load is per output.
Mechanical Details
1
7
8
0.31
(8.0)
Pin Connections
Pin
1
7
8
9
10
16
Single
-Vin
No Connection
No Connection
+Vout
-Vout
+Vin
Dual
-Vin
No Connection
Common
+Vout
-Vout
+Vin
0.40
(10.16)
Bottom View
16
10
9
0.54
(13.7)
0.15
(3.8)
ø0.02
(0.5)
0.12
(3.0)
0.94
(23.8)
0.10
(2.54)
1.77 [0.07]
0.60
(15.24)
1
www.xppower.com
JWE06 Series
Input
Characteristic
Input Voltage Range
Input Filter
Undervoltage Lockout
Minimum
9.0
18.0
Internal Pi type
ON at ≥9 V, OFF at <8 V
ON at ≥18 V, OFF at <16 V
25
Input Surge
50
100
Typical
Maximum
36
75
DC-DC Converter
Units
VDC
VDC
Notes & Conditions
24 V nominal
48 V nominal
24 V models
48 V models
12 V models
VDC for 1 s
24 V models
48 V models
Output
Characteristic
Output Voltage
Initial Set Accuracy
Output Voltage Balance
Minimum Load
Line Regulation
Load Regulation
Cross Regulation
Transient Response
Ripple & Noise
Overload Protection
Short Circuit Protection
Maximum Capacitive Load
Temperature Coefficient
0.02
%/ ˚C
3
±0.2
±0.5
±0.8
±1.0
±5.0
5
55
150
±1.0
Minimum
3.3
Typical
Maximum
30
±2.0
±2.0
Units
VDC
%
%
A
%
%
%
% deviation
mV pk-pk
%
Continuous Trip & Restart (Hiccup mode), with auto recovery
See Models and Ratings table
Notes & Conditions
See Models and Ratings table
At full load
For dual output with balanced laods
No minimum load required
From minimum to maximum input at full load
From 0 to full load
On dual output models when one load is varied between
25% and 100% and other is fixed at 100%
Recovery within 1% in less than 250 µs for a 25% load
change.
20 MHz bandwidth. Measured using 0.47 µF ceramic
capacitor.
General
Characteristic
Efficiency
Isolation: Input to Output
Isolation Resistance
Isolation Capacitance
Switching Frequency
Power Density
Mean Time Between Failure
Weight
0.013 (6.1)
1500/1800
10
9
Minimum
Typical
88
Maximum
Units
%
VDC
pF
kHz
Ω
Notes & Conditions
See Models and Ratings table
60 s/1 s
At 500 VDC
500
370
38.0
W/in
3
MHrs
lb (g)
MIL-HDBK-217F, +25 °C GB
Environmental
Characteristic
Operating Temperature
Storage Temperature
Case Temperature
Humidity
Cooling
Case Flammability
UL 94V-0 Rated
Minimum
-40
-50
Typical
Maximum
+105
+125
+105
95
Units
°C
°C
°C
%RH
Non-condensing
Natural convection
Notes & Conditions
See Derating Curve.
EMC: Emissions
Phenomenon
Conducted
Standard
EN55032
Test Level
Class A
Notes & Conditions
No filter required
www.xppower.com
2
JWE06 Series
EMC: Immunity
Phenomenon
ESD
Radiated
EFT/Burst
Surge
Conducted
Magnetic Fields
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
Test Level
±8 kV air discharge, ±6 kV contact
10 V/m
±2 kV
±1 kV
10 V rms
100 A/m
DC-DC Converter
Criteria
A
A
A
A
A
A
Notes & Conditions
With external capacitor,
suggested part is CHEMI-CON KY 330µF/100V
With external capacitor,
suggested part is CHEMI-CON KY 330µF/100V
Safety Approvals
Safety Agency
CB Report
UL
Safety Standard
IEC60950-1
UL/cUL60950-1
Notes & Conditions
Information Technology
Information Technology

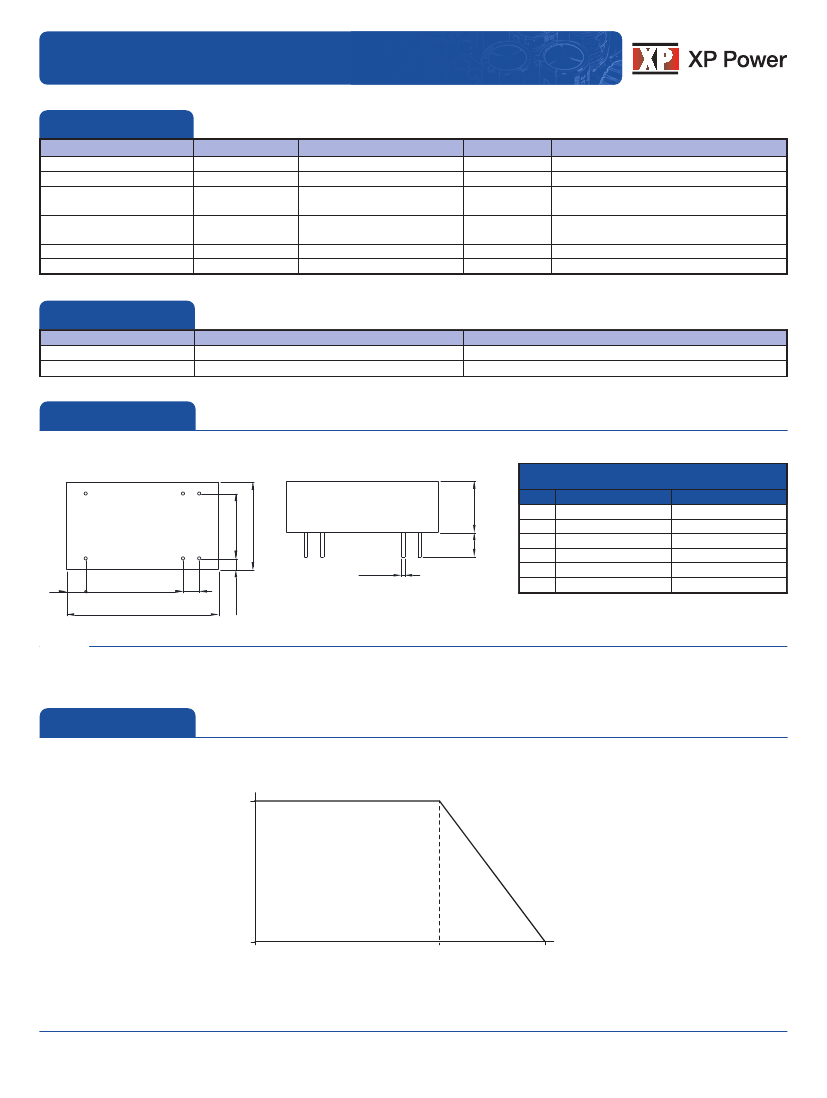

Mechanical Details
Pin Connections
1
7
8
Bottom View
16
10
9
0.15
(3.8)
ø0.02
(0.5)
0.12
(3.0)
0.94
(23.8)
0.10
(2.54)
Notes
1. All dimensions are in inches (mm)
2. Weight: 0.013 lbs (6.1 g) approx.
3. Tolerance: X.XX±0.01 (X.X±0.25)
X.XXX±0.005 (X.XX±0.13)
4. Pin Tolerance: ±0.002 (±0.05)
Application Notes
Derating Curve
Output Power (%)
1.77 [0.07]
0.60
(15.24)
Pin
1
7
8
9
10
16
Single
-Vin
No Connection
No Connection
+Vout
-Vout
+Vin
Dual
-Vin
No Connection
Common
+Vout
-Vout
+Vin
0.40
(10.16)
100
0
-40
0.54
(13.7)
75
0.31
(8.0)
105
Ambient Temperature (°C)
3
www.xppower.com
