Customer Specification
PART NO: 222 Series
Mini 7/8" Male Internal Threads 3 Pin Field Attachable

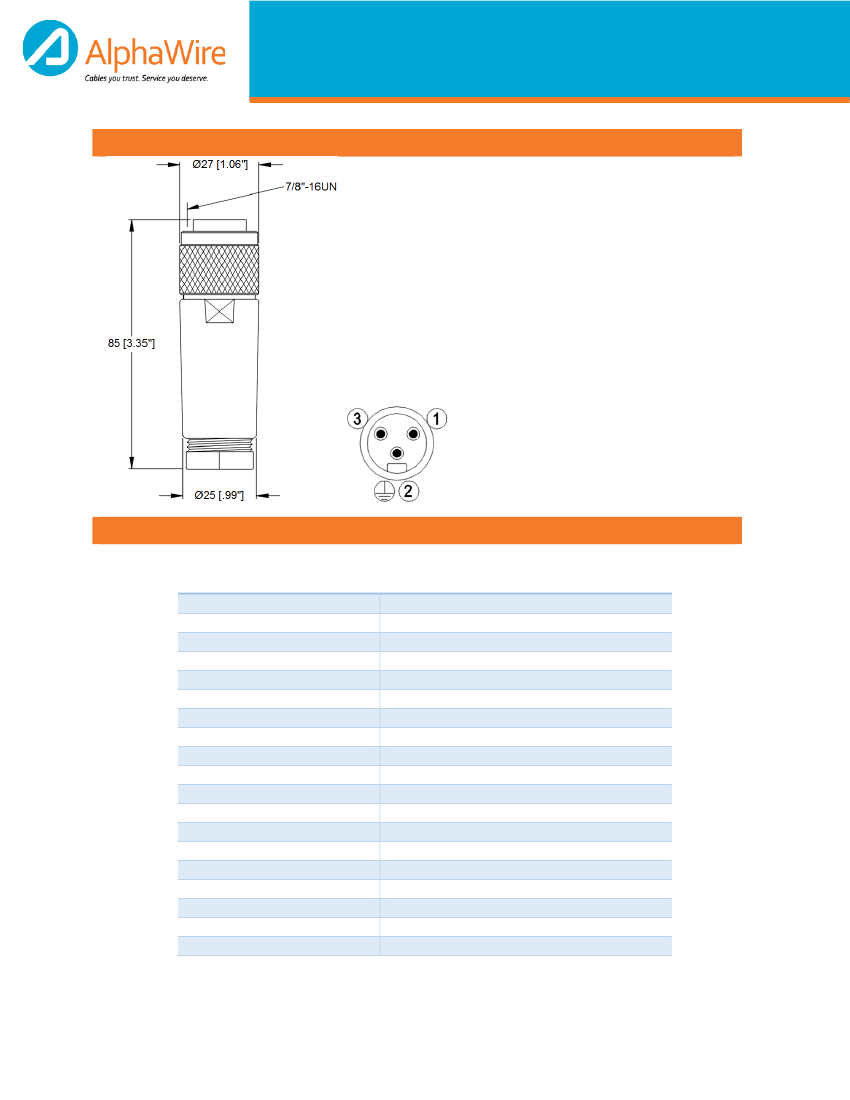

Drawing
Issue: 1 Issue Date: 4/18/2016 Effective Date: 5/18/2016
Technical Data
Part Number
222PR13
222PR16
222PR9
Mechanical
Housing
Insert
Contact
Coupling Nut
Connection
Max AWG
Electrical
Contact Resistance
Nom. Current @ 40°C
Nominal Voltage
Insulation Resistance
UL File
Environmental
Degree of Protection
Operating Temperature
Cable Diameter Range
0.394" – 0.472" (10.0 – 12.0 mm)
0.472" – 0.551" (12.0 – 14.0 mm)
0.236" – 0.315" (6.0 – 8.0 mm)
Glass Filled Nylon
Nylon black
Copper Alloy, Gold Plated
Aluminum, anodized black
Screw Terminal (Internal Threads)
16 (1.5mm
2
)
≤ 5 mΩ
12 A
600 V
> 10
9
Ω
E485156 (Except 222PR9)
IP 67/ NEMA 6P
-40C (-40F)/ +90C (+194F)
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
1
Customer Specification
PART NO: 222 Series
Mini 7/8" Male Internal Threads 3 Pin Field Attachable
Range
CE
All materials used in the manufacture of
this part meet the requirements of
European Directive 2011/65/EU regarding
the restriction of use of certain hazardous
substances in electrical and electronic
equipment. Exemption used; 6a.
This product does not contain Substances
of Very High Concern (SVHC) listed on the
European Union’s REACH candidate list in
excess of 0.1% mass of the item.
Each
Each
Each
REACH Regulation (EC
1907/2006)
Ordering Information
222PR13 NC032
222PR16 NC032
222PR9 NC032
Issue: 1 issue Date: 8/4/2016 Effective Date: 8/4/2016
Although Alpha Wire (“Alpha”) makes every reasonable effort to ensure their accuracy
at the time of this publication, information and specifications described herein are
subject to error or omission and to change without notice, and the listing of such
information and specifications does not ensure product availability. Alpha provides the
information and specification herein on an “AS IS” basis, with no representations or
warranties, whether express, statutory or implied. In no event will Alpha be liable any
damages (including consequential, indirect, incidental, special, punitive, or exemplary
damages) whatsoever, even if Alpha has been advised of the possibility of such damages,
whether in an action under contact, negligence or any other theory, arising out of or in
connection with the use, or inability to use, the information or specification described
herein.
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
2
