Z63000Z2910Z001Z28 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Z63000Z2910Z001Z28

Preview

Z63000Z2910Z001Z28: DescriptionCAP CER 2UF 500V 4SMD; CategoryPassive components; File Size98KB，1 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

Z63000Z2910Z001Z28 Overview

CAP CER 2UF 500V 4SMD

Z63000Z2910Z001Z28 Parametric

Parameter Name	Attribute value
capacitance	2µF
Tolerance	±20%
Voltage - Rated	500V
Temperature Coefficient	-
Operating temperature	-40°C ~ 150°C
characteristic	Low ESL (stacked), high temperature
grade	AEC-Q200
application	Automotive, SMPS filtering
failure rate	-
Installation type	Surface mount, MLCC
Package/casing	Stacked SMD, 4 J-leads
size/dimensions	0.228" long x 0.289" wide (5.80mm x 7.34mm)
Height - Installation (maximum)	-
Thickness (maximum)	0.378"（9.60mm）
lead spacing	-
Lead form	J-lead
notify	There is currently market demand for these product types, so lead times will change and extend. Lead times may vary.

Preview

Download Datasheet

View All

Copying of this document, and giving it to others and the

use or communication of the contents thereof, are forbidden

without express authority. Offenders are liable to the pay-

ment of damages. All rights are reserved in the event of the

grant of a patent or the registration of a utility model or design.

Weitergabe sowie Vervielfältigung dieser Unterlage,

Verwertung und Mitteilung ihres Inhalts nicht gestattet,

soweit nicht ausdrücklich zugestanden. Zuwiderhand-

lungen verpflichten zu Schadenersatz. Alle Rechte für den

Fall der Patenterteilung oder GM-Eintragung vorbehalten.

Sin nuestra expresa autorizacion, queda terminantmente prohibi-

da la reproduccion total o parcial de este documento, asi como su

uso indebido y/o su exhibicion o comunication a terceros. De los

infractores se exigira el correspondiente resarcimiento de danos

y perjuicios. Se reserva todos los derechos para el caso de la con-

cesion de patente de invencion o el registro de Modelo Industrial.

5:1

6

2,65 ±0,1

3

--

1,1 ±0,3

Nr./no.

detail A

16:1

Datum/date:

24.05.2017

Name/name:

Gorjup

Bemerkung/

Remarks:

--

Tolerierung/

tolerances

ISO 8015

ISO 2768

mk

Bl./Page:

max. 1,4

7,25

Maßstab / Scale:

Änderung/change

01B-Ind.05

6

1,85

8:1

Typ/Type:

(DIN A3)

Zeichnungsnr./drawingno.

0,25

CIC 20/60/20

Datei/file

6,84 ±0,1

7,34

5,64

7,34

6205_Z3_Ind.05.dft

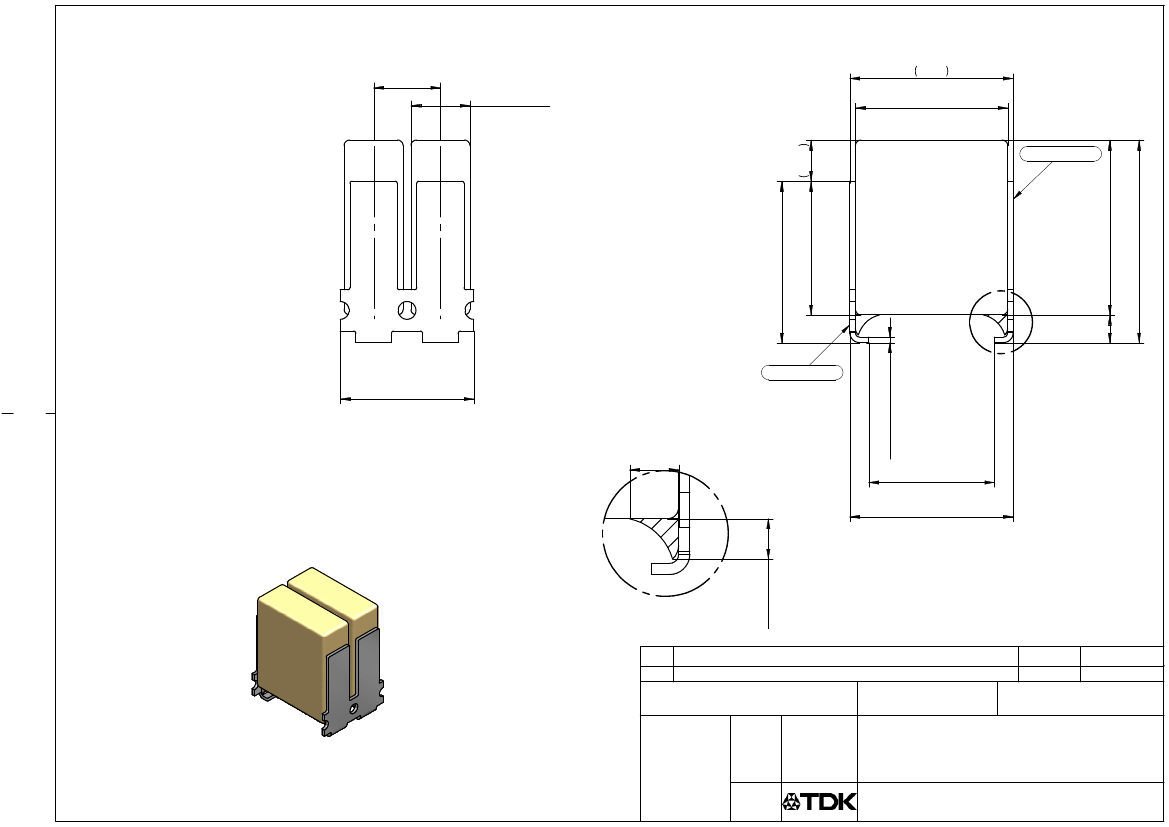

Bauteilzeichnung/Component Drawing

A

01B-Ind.05

--

CeraLink Flex-Assembly

FA2

BVZ-VS-008

6D-BVZ-VS-6205-Z3-Ind.05

1,25

--

7,85 ±0,3

9,1

Dat./date

Name/name

Verzeichnis/direct ry

o

Z63000Z2910Z001Z28 Related Products

	Z63000Z2910Z001Z28	Z63000Z2910Z001Z32
Description	CAP CER 2UF 500V 4SMD	CAP CER 1UF 700V 4SMD
capacitance	2µF	1µF
Tolerance	±20%	±20%
Voltage - Rated	500V	700V
Operating temperature	-40°C ~ 150°C	-40°C ~ 150°C
characteristic	Low ESL (stacked), high temperature	Low ESL (stacked), high temperature
grade	AEC-Q200	AEC-Q200
application	Automotive, SMPS filtering	Automotive, SMPS filtering
Installation type	Surface mount, MLCC	Surface mount, MLCC
Package/casing	Stacked SMD, 4 J-leads	Stacked SMD, 4 J-leads
size/dimensions	0.228" long x 0.289" wide (5.80mm x 7.34mm)	0.228" long x 0.289" wide (5.80mm x 7.34mm)
Thickness (maximum)	0.378"（9.60mm）	0.378"（9.60mm）
Lead form	J-lead	J-lead
notify	There is currently market demand for these product types, so lead times will change and extend. Lead times may vary.	There is currently market demand for these product types, so lead times will change and extend. Lead times may vary.

Recommended Resources

Clever use of TA7641 as a wired intercom circuit diagram

Y-△ starts reactive power local compensation circuit b

Wireless remote control toy tank circuit

High voltage flyback converter circuit diagram using LT1307

Photoelectric control circuit for pen tip slit control

Computer motherboard circuit diagram 815 4_21
