NOTES:
1. MATERIALS AND FINISHES:
SMA STR JACK - BRASS, GOLD PLATING
CABLE - MICRO-COAX UT-047-FORM
2. ELECTRICAL:
A. IMPEDANCE:
50 OHM
THIRD ANGLE PROJ.
REV
REVISIONS
A
RELEASE TO MFG.
DESCRIPTION
26-Apr-17
DATE
3584
ECO
APPR
BMG
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 95-902-462-XXX
AND DATE CODE"
SCALE
2.000
LENGTH 'L' (SEE TABLE)
LENGTH TABLE
PART NUMBER
INTERFACE PER
MIL-STD-348
SERIES: SMA JACK
95-902-462-003
95-902-462-004
95-902-462-005
95-902-462-006
95-902-462-007
95-902-462-008
95-902-462-009
95-902-462-010
95-902-462-011
LENGTH 'L' IN
INCHES [METERS]
3.00 [0.076]
4.00 [0.102]
5.00 [0.127]
6.00 [0.152]
7.00 [0.178]
8.00 [0.203]
10.00 [0.254]
11.00 [0.279]
12.00 [0.305]
9.00 [0.229]
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620
& UP]
TOLERANCE
# 0.25" [0.006]
# 0.50" [0.013]
# 2.5%
# 5.0%
DESIGN REQUIREMENTS:
X
FREQUENCY : DC TO 18 GHz
VSWR ____ : 1 MAX
INS. LOSS :____ dB MAX
X
CONTINUITY
X
HI-POT: 750 VRMS
OTHER
MATERIAL
SEE TABLE
REFERENCE
EAR # 7462
95-902-462-012
CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
DRAWN
ANANDH G
ENGINEER
ANANDH G
APPROVED
K. CAPOZZI
DATE
09-Nov-16
DATE
09-Nov-16
DATE
26-Apr-17
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.

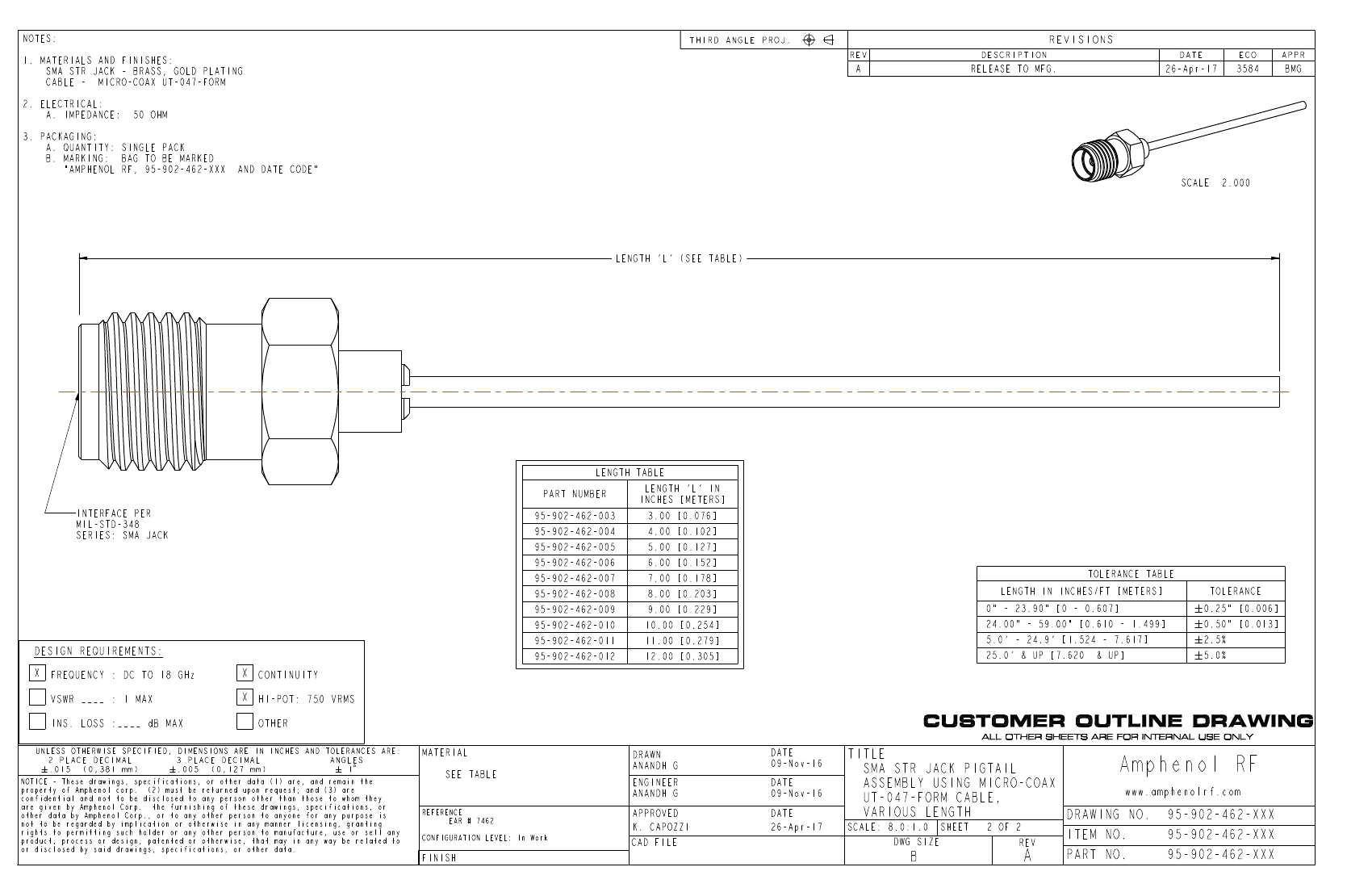

TITLE
SMA STR JACK PIGTAIL
ASSEMBLY USING MICRO-COAX
UT-047-FORM CABLE,
VARIOUS LENGTH
SCALE: 8.0:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO.
ITEM NO.
PART NO.
95-902-462-XXX
CONFIGURATION LEVEL: In Work
FINISH
CAD FILE
B
REV
A
95-902-462-XXX
