Datasheet> All Categories > The power supply circuit> LM4040AIM3-4.1

Preview

LM4040AIM3-4.1: DescriptionTwo Terminal Voltage Reference, 1 Output, 4.096V, BIPolar, PDSO3, SOT-23, 3 PIN; CategoryThe power supply circuit; File Size1004KB，15 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com; Related ProductsFound20parts with similar functions to LM4040AIM3-4.1

Download Datasheet Parametric View All

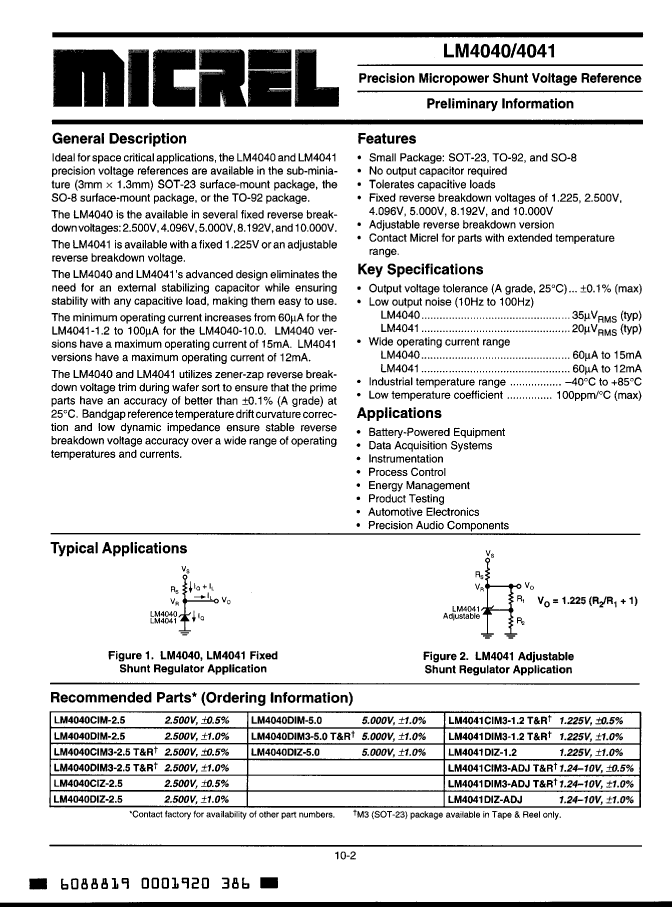

LM4040AIM3-4.1 Overview

Two Terminal Voltage Reference, 1 Output, 4.096V, BIPolar, PDSO3, SOT-23, 3 PIN

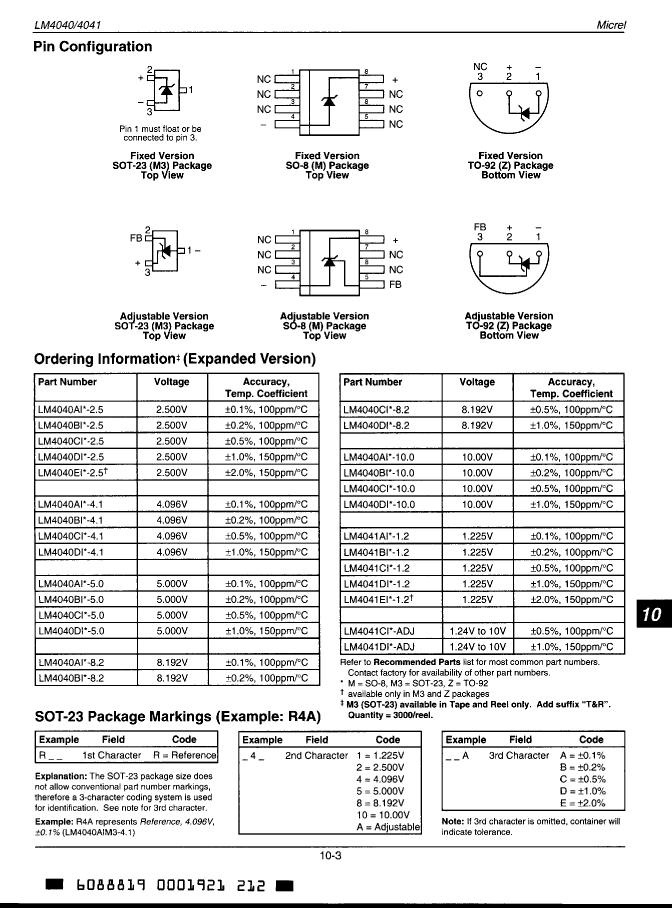

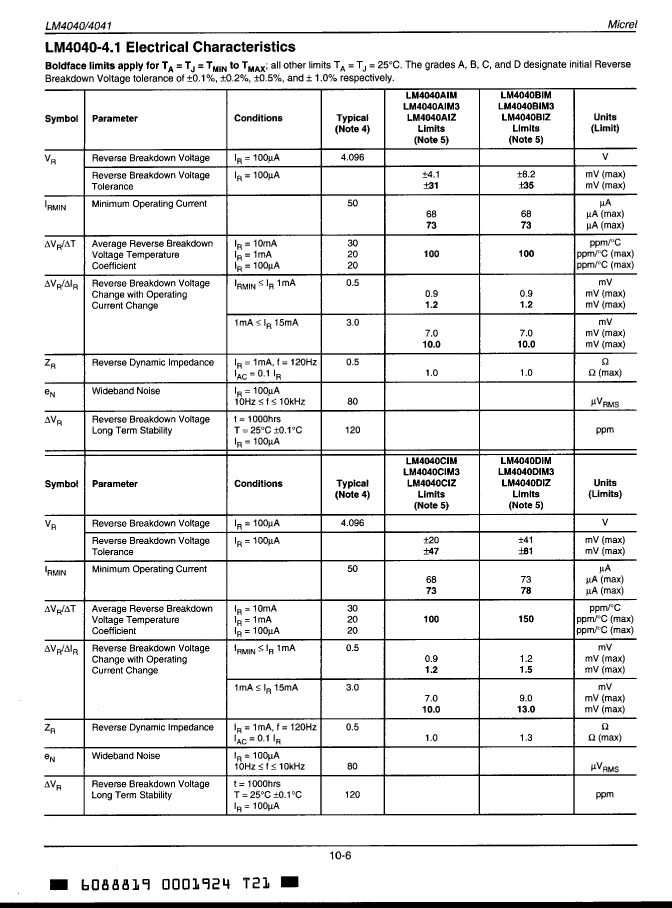

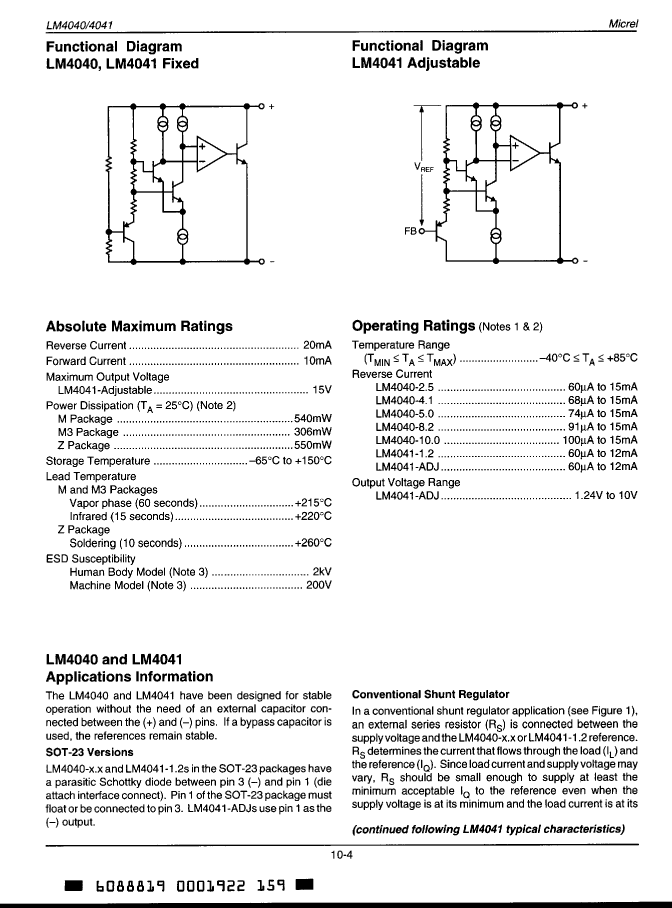

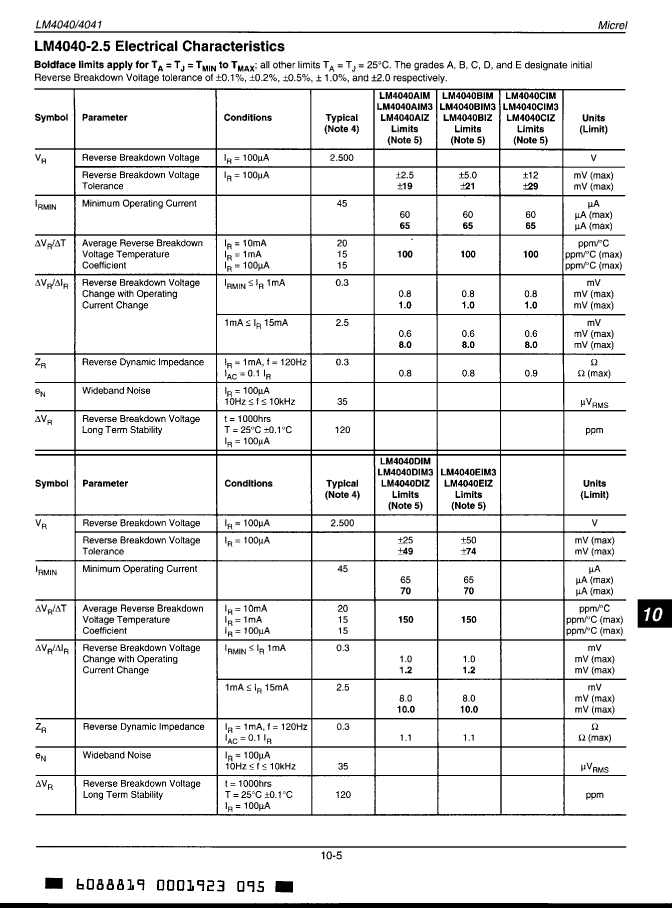

LM4040AIM3-4.1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micrel ( Microchip )
Parts packaging code	SOT-23
package instruction	SOT-23, 3 PIN
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
length	2.86 mm
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	4.127 V
Minimum output voltage	4.065 V
Nominal output voltage	4.096 V
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.15 mm
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	100 ppm/°C
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO
Maximum voltage tolerance	0.1%
width	1.295 mm
Base Number Matches	1
