32K421-200E3

Description
CONN SMA JACK STR 50OHM SOLDER
CategoryThe connector    The connector
File Size219KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

32K421-200E3 Online Shopping

Suppliers Part Number Price MOQ In stock
32K421-200E3 - - View Buy Now

32K421-200E3 Overview

CONN SMA JACK STR 50OHM SOLDER

32K421-200E3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerRosenberger
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresCAPTIVE CENTER CONTACT
subject depth0.311 inch
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance3 mΩ
Contact styleCOAX
Coupling typeTHREADED
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insertion loss0.17 dB
Insulation resistance5000000000 Ω
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating frequency18 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingYES
reliabilityCOMMERCIAL
Terminal length0.201 inch
Termination typeSOLDER
Total number of contacts1
voltage standing wave ratio1.46
Base Number Matches1

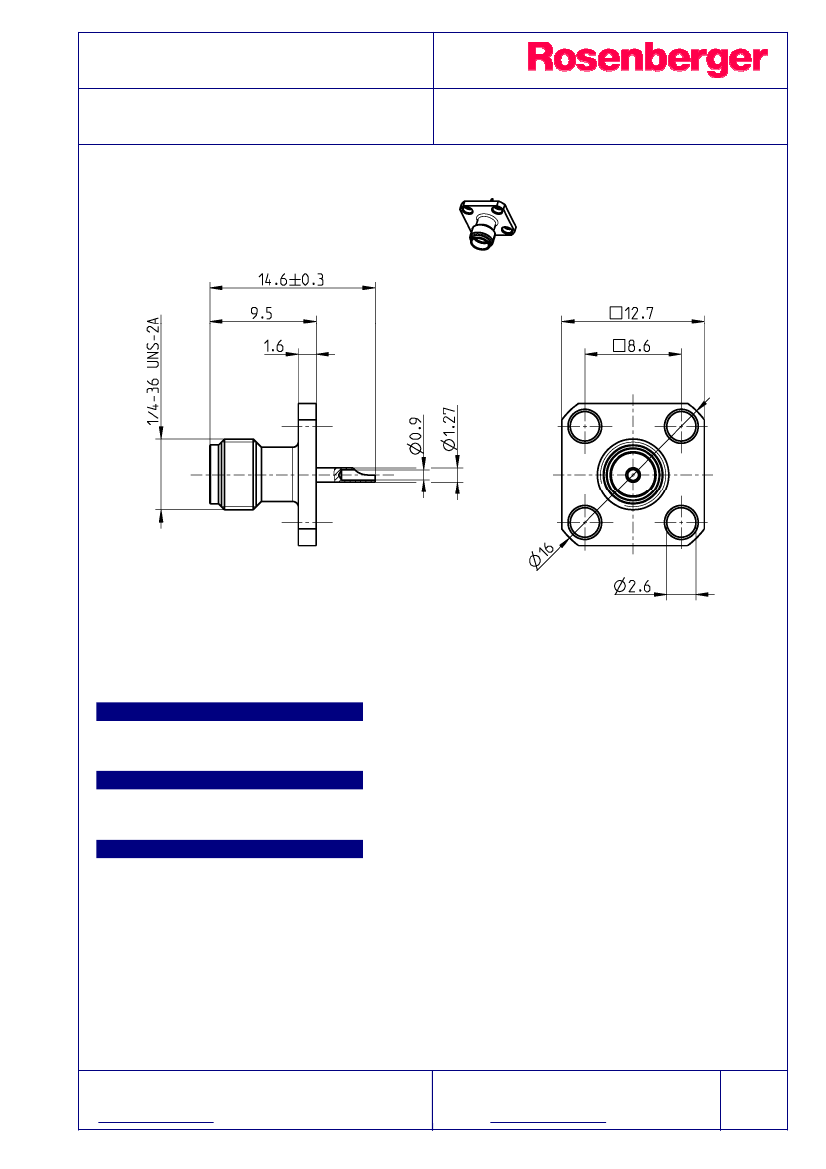

TECHNICAL DATA SHEET
SMA
PANEL JACK
SOLDER END
32K421-200E3
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348
Documents
Panel piercing
B 55a
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
Plating
Beryllium copper Gold, min. 1.27 µm, over chemical nickel
Stainless steel
Gold, min. 0.8 µm, over nickel
PTFE
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
