product has no designed protection against radioactive rays
1/25
TSZ02201-0M1M0FZ15130-1-2
24.Mar.2016 Rev.003

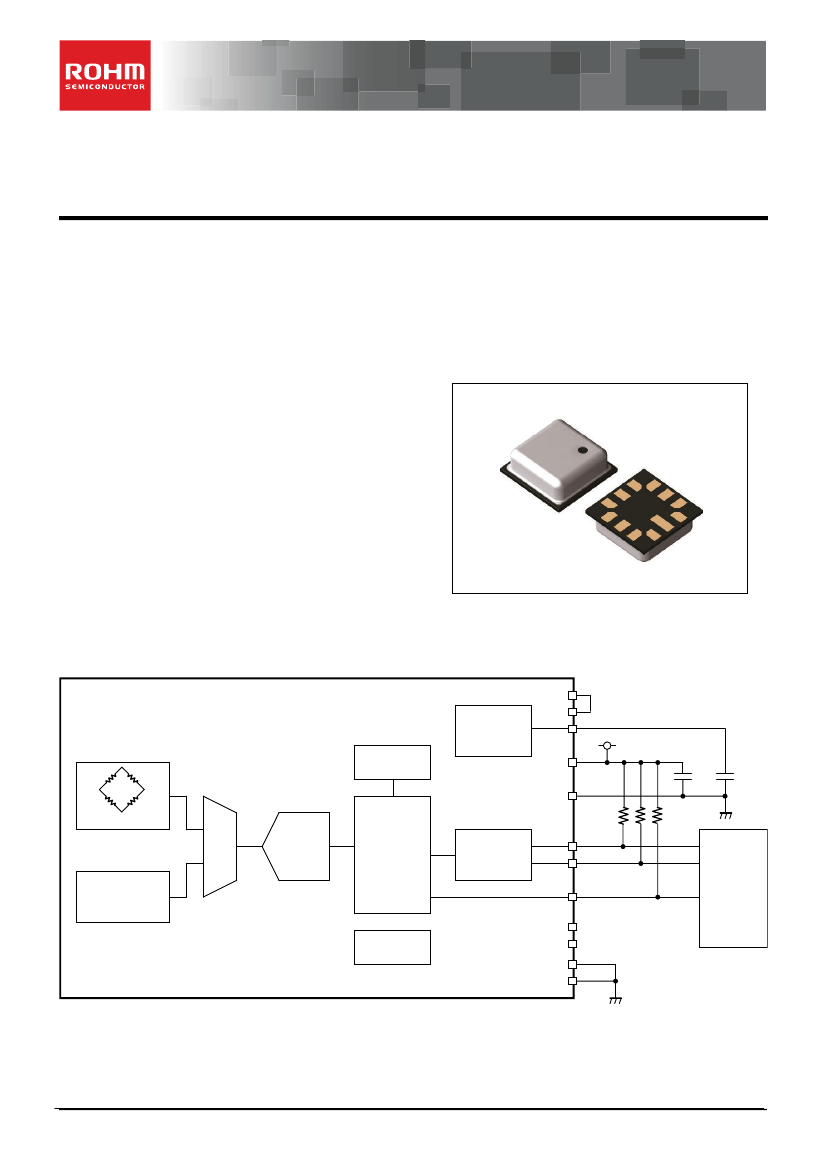

BM1383AGLV
Contents
General Description ........................................................................................................................................................................ 1
Absolute Maximum Ratings ............................................................................................................................................................ 5
I C bus Timing Chart ....................................................................................................................................................................... 7
I C bus communication ................................................................................................................................................................. 13
Interrupt function ........................................................................................................................................................................... 14
Control sequence.......................................................................................................................................................................... 15
Application Example ..................................................................................................................................................................... 19
Ordering Information ..................................................................................................................................................................... 23
Physical Dimension, Tape and Reel Information ........................................................................................................................... 24
Revision History ............................................................................................................................................................................ 25
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over
the absolute maximum ratings.
Thermal Resistance
(Note 1)
Parameter
CLGA12V025M
Junction to Ambient
Junction to Top Characterization Parameter
(Note 2)
Symbol
Thermal Resistance (Typ)
1s
(Note 3)
2s2p
(Note
4)
Unit
θ
JA
Ψ
JT
360.5
153
230.5
144
°C/W
°C/W
(Note 1)Based
on JESD51-2A(Still-Air)
(Note 2)The
thermal characterization parameter to report the difference between junction temperature and the temperature at the top center of the outside
surface of the component package.
(Note 3)Using
a PCB board based on JESD51-3.
Layer Number of
Measurement Board
Single
Top
Copper Pattern
Footprints and Traces
Layer Number of
Measurement Board
4 Layers
Top
Copper Pattern
Footprints and Traces
Material
FR-4
Board Size
114.3mm x 76.2mm x 1.57mmt
Thickness
70μm
(Note 4)Using
a PCB board based on JESD51-7.
Material
FR-4
Board Size
114.3mm x 76.2mm x 1.6mmt
2 Internal Layers
Bottom
Copper Pattern
74.2mm x 74.2mm
Thickness
70μm
35μm
Thickness
70μm
Copper Pattern
74.2mm x 74.2mm
Thickness
Recommended Operating Conditions (Ta= -40°C to +85°C)
