EMC housing - HC-B 16-TMB-100/O1STM40G-EMV - 1604450
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

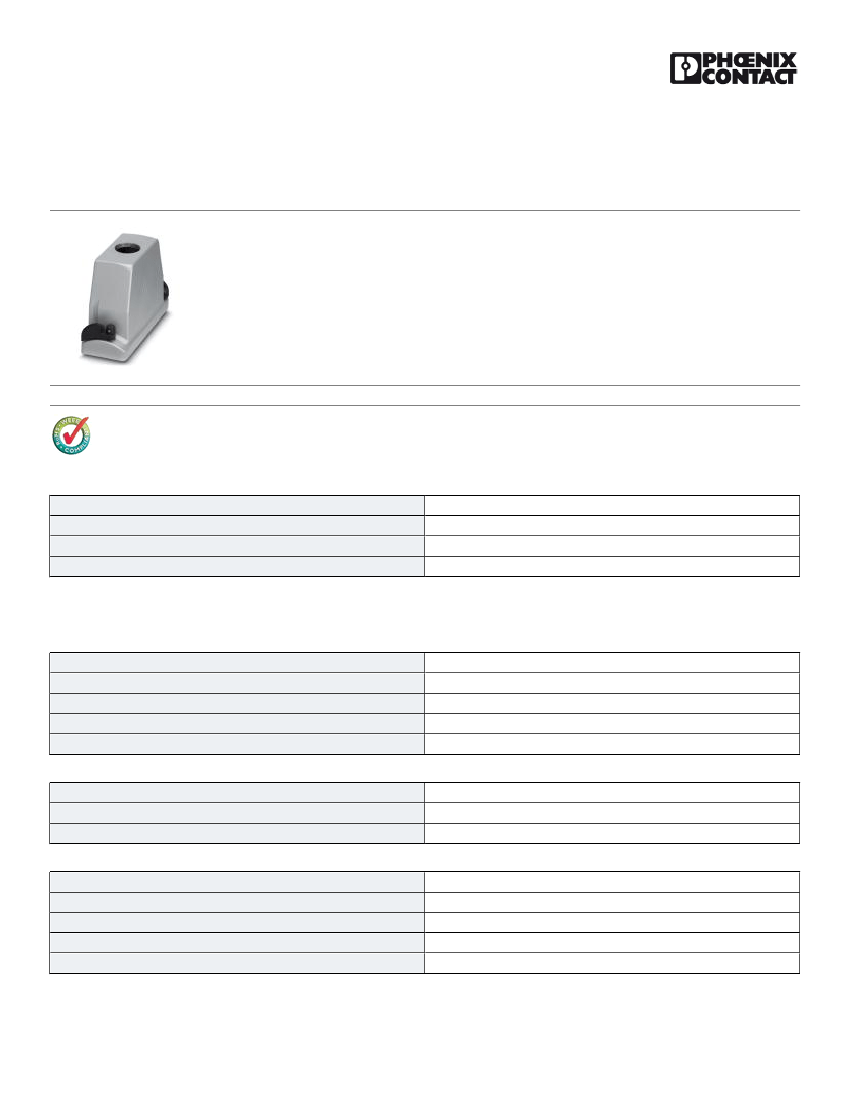

HEAVYCON ADVANCE EMV sleeve housing B16, with bayonet locking, height 100 mm, with 1x M40 thread,
straight cable outlet
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 PCE
387.94 GRM
85389099
Germany
Technical data
Dimensions
Height
Width
Length
Length of the assembly cutout
Width of the assembly cutout
100 mm
57 mm
126 mm
86 mm
35 mm
Ambient conditions
Degree of protection of housing (IP)
Ambient temperature (operation)
IP65
IP67
-40 °C ... 125 °C
General
Note
Design
Housing type
Locking type
Cable exit
For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K
B16
Sleeve housings
Bayonet locking
Straight
12/9/13 Page 1 / 4
https://www.phoenixcontact.com/us/products/1604450
EMC housing - HC-B 16-TMB-100/O1STM40G-EMV - 1604450
Technical data
General
Screw connection
Type of the screw connection
Housing material
Housing surface material
Seal material
Material lock
Material grip body interlock
Assembly instructions
None
1x M40
Aluminum die-cast
EMC coating, silver
NBR, conductive
High-grade steel
PA-GF
In order to guarantee that the ground conductor contact functions even
when plugged in at an angle, the two panel mounting flanges must have
sufficient electrical contact with the metal mounting panel.
If insulating powder coating is present on the control cabinet panel, it
should be removed from the profile gasket area in order to ensure optimum
shielding.
Connection
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27143424
27143424
27371205
27371205
27371205
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000437
EC000437
EC000437
EC000437
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261502
31261502
31261502
31261502
31261502
12/9/13 Page 2 / 4
https://www.phoenixcontact.com/us/products/1604450
EMC housing - HC-B 16-TMB-100/O1STM40G-EMV - 1604450

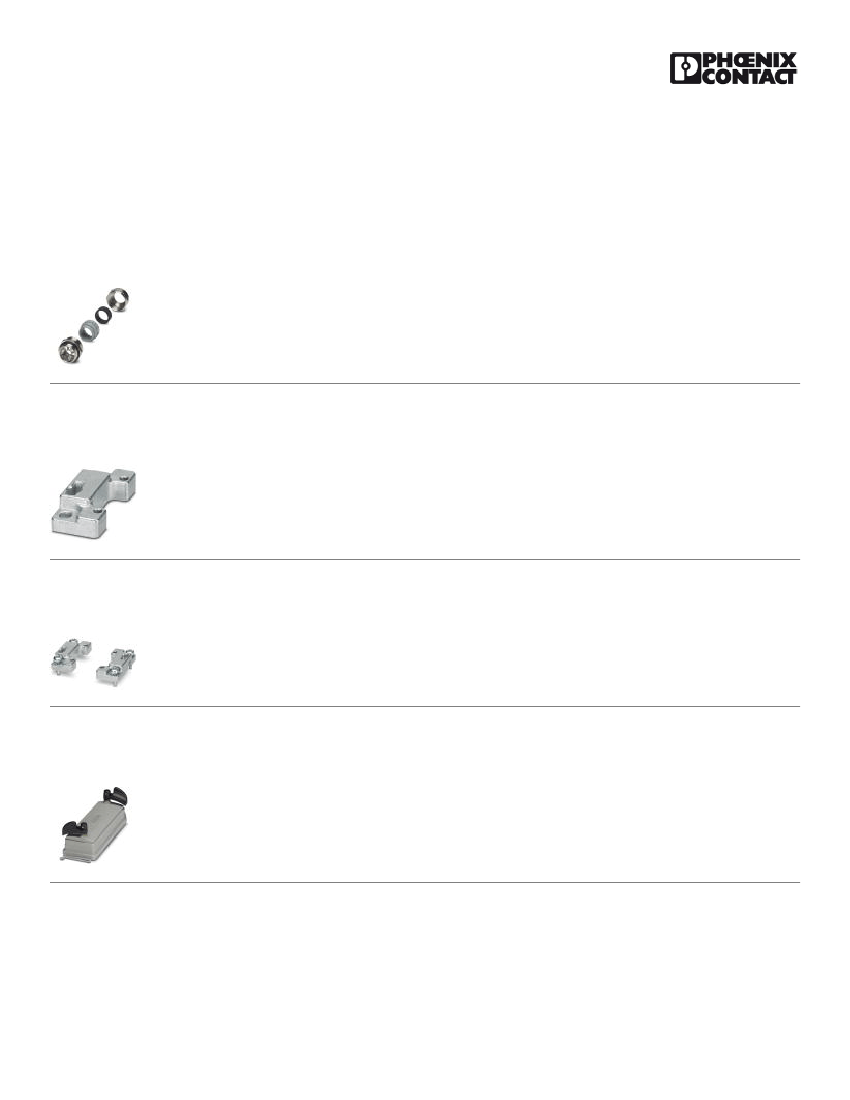

Accessories
Accessories
Full screw connection
Cable gland - HC-EMV-KV-M40(19-28) - 1690545
EMC screw connection up to 5 bar, thread length: 15 mm, cable diameter: 19.0 - 28.0 mm, WAF 45, screw connection:
M40
Panel mounting flange
Mounting flange - HC-B-BF - 1604641
Panel mounting flange for HEAVYCON ADVANCE TMB housing with bayonet locking
Mounting flange - HC-B-BF-SET - 1604654
Bayonet mounting flange set, consisting of 2 mounting flanges with 4 self-tapping Torx® head screws and 4 fan-type
spacers
Protective cover
Protective covers - HC-B 16-TMB-SD-IP65 - 1690956
HEAVYCON ADVANCE IP65 protective cover B16, with bayonet locking, with retaining cord, diameter of retaining cord
eyelet 3 mm
Drawings
12/9/13 Page 3 / 4
https://www.phoenixcontact.com/us/products/1604450
EMC housing - HC-B 16-TMB-100/O1STM40G-EMV - 1604450
Dimensioned drawing
103
86
Dimensioned drawing
126
57
32
35
Ø4,5
1)
2)
Ø3,6
2)
Panel cutout
When self-tapping screws are used (Torx® 20, M4)
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
100
12/9/13 Page 4 / 4
