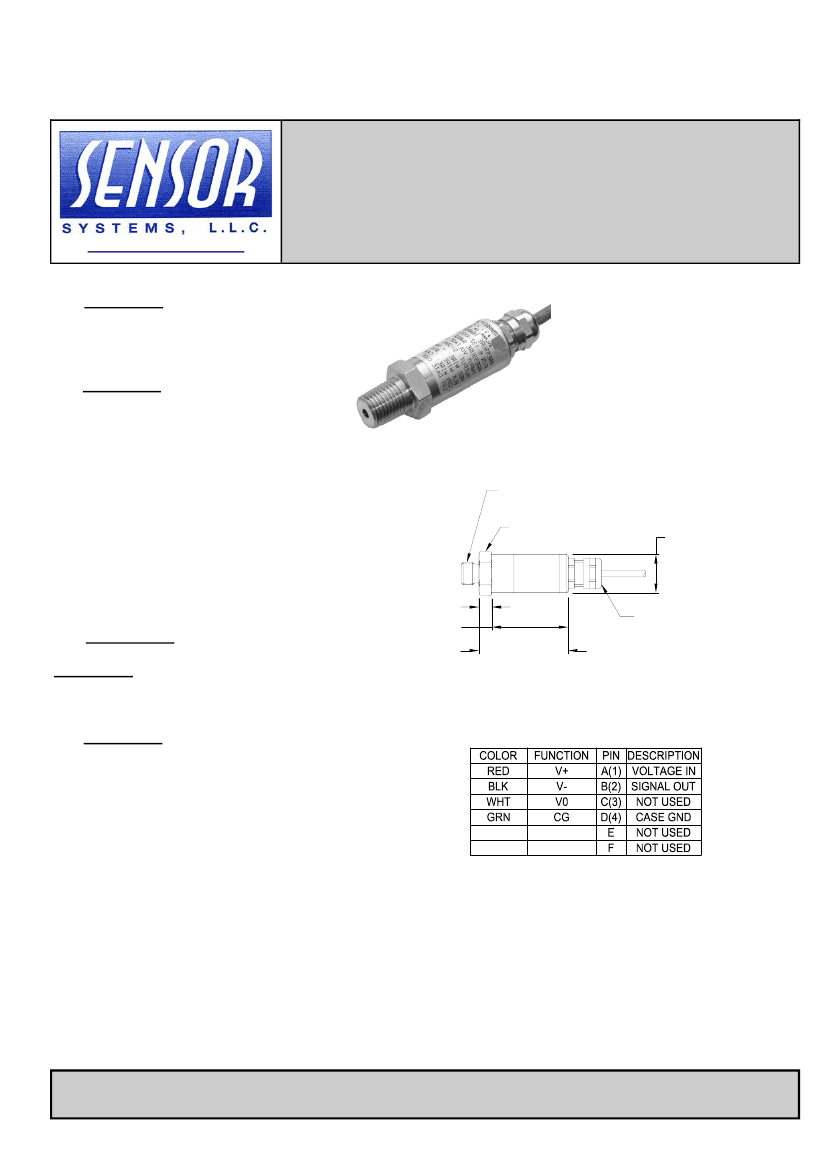

HIGH PERFORMANCE
PRESSURE SENSOR
MODEL 6-13
WWW.VSENSORS.COM
The
Model 6-13
is uniquely designed for
use in a broad variety of applications
where accurate, reliable, high performance
pressure measurement is required.
The
Model 6-13
utilizes a micro-machined
silicon pressure sensor that is isolated for
all media by a 316L stainless steel
diaphragm and high performance digital
temperature compensation ASIC. This
translates into excellent linearity, increased
long-term stability & reliability.
Micro-machined silicon pressure sensors
provide accuracies down to ±0.20% with
effectively no hysterisis and a long-term
drift of less that 0.15% FSO for one (1)
year & proof pressures greater than 3X the
rated pressure.
All
Model 6-13
configurations have
extremely robust EMI/RFI protection. The
Model 6-13
will not shift, drift, or fail in
an EMI/RFI environment of greater than 10
volts/meter up to 1.0GHz.
The
Model 6-13
is hermetically sealed by
welding & conforms to NEMA 4 & 4X
enclosure requirements.
(Except for
vented gage configurations.)
Wide Choice of
Pressure Ranges & Fittings
Highly
Corrosion Resistant
Exceptional
Long-term Stability
FOR ACTUAL DIMENSIONS
SEE OUTLINE DRAWING
.75 [19.05] HEX
ACROSS FLATS
(Ø.75 [19.05])
(.25 [6.35])
(1.49 [37.85])
(1.74 [44.20])
CONNECTOR
TYPICAL OVERALL DIMENSIONS
INCHES [mm]
•
•
•
•
Process Control Systems
Natural Gas Production
Liquid Level Measurement
Gas Compressors
•
•
•
•
Chemical Processing Systems
Wastewater Treatment
Chemical Processing Systems
Pulp & Paper Processing
-- An Electromotive Solutions Company –
2800 A
NVIL
S
TREET
N
ORTH
●
S
T
. P
ETERSBURG
, FL 33710 USA
●
P
HONE
: (727) 347-2181
●
Fax: (727) 347-7520
MODEL 6-13
H
IGH
P
ERFORMANCE
P
RESSURE
T
RANSDUCER
Ordering Information
Product Specifications
Performance
Output Signal
Accuracy L, R & H
Zero Offset
Long-term Stability
Compensated
Temperature
Temperature Effect
Operating
Input Power
Insulation Resistance
Reverse Polarity
Proof Pressure
Burst Pressure
Weight
Environmental
Max Operating
Temperature
EMI/RFI
Wetted Parts
Vibration
Shock
Enclosure
Life
-40°C to 125°C
(-40°F to 257°F)
10volts/meter up to 1.0GHz
316L SST
15 G’s, 10-2000Hz
100 G’s for 11ms, Half-sine
NEMA 4 & 4X
100 MM Full Scale Cycles
8 - 30 VDC (@ 25mA Max)
100 megohms @ 50 VDC
Protected
150% of Rated Range
200% of Rated Range
72g (2.5oz)
4 - 20mADC
±0.35%FSO (BFSL)
±1.0%FSO
±0.50%FSO/Year
0°C to 85°C
(32°F to 185°F)
Zero: ±2.0% FSO
Span: ±2.0% FSO
Instrument Family
6 - 13 X - XX X X - XX
6 = Micro-machined Silicon
Sensor Type
13 = Pressure Transmitter
Reference Pressure
0 = Absolute 1 = Vented Gage 2 = Sealed Gage
Pressure Ranges
**
00 = 3 PSI #
01 = 5 PSI #
02 = 15 PSI #
03 = 20 PSI #
04 = 25 PSI #
05 = 30 PSI #
06 = 50 PSI #
07 = 60 PSI #
08 = 100 PSI #
09 = 150 PSI #
10 = 200 PSI #
11 = 250 PSI #
12 = 300 PSI #
13 = 500 PSI *
14 = 1000 PSI *
15 = 1500 PSI *
* Sealed Gage Only
16 = 2000 PSI *
17 = 3000 PSI *
18 = 5000 PSI *
19 = 6000 PSI *
20 = 7500PSI *
21 = 10, 000 PSI *
# Absolute & Vented Gage
** Calibration in bars available, consult factory for details
Pressure Fittings
0 = MS33656-E4 Male
1 = 7/16-20 Straight, Male
2 = 1/4-18 NPT, Male
3 = 1/8-27 NPT, Male
4 = 1/4-18 NPT, Female
5 = 9/16-18 Straight, Male
Flush Diaphragm
Electrical Connections
0 = PT1H-10-6P
1 = 3-Wire Cable
2 = PT1H-8-4P
3 = 5-Wire Shielded
4 = DIN43650 Form C
5 = Hirschmann ELST 412
Custom Configurations
00 =
No Custom Requirements
An Electromotive Solutions Company
ISO 9001:2000 & AS9100:2004 Certified
2800 A
NVIL
S
TREET
N
ORTH
S
T
. P
ETERSBURG
, FL 33710 USA
Fax: (727) 347-7520 Email: sales@vsensors.com
P
HONE
: (727) 347-2181
WWW.VSENSORS.COM
