M5 SERIES
P8SG-XXXXZH30 3 KV ISOLATED 1.5 W REGULATED DUAL OUTPUT DIP24
Available Inputs:
5, 12 and 24 VDC
Available Outputs:
(+/-) 3.6, 5, 7.2, 12, 15 and 18 VDC
Other specifications please enquire.
Electrical Specifications
(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)
Input Specifications
Voltage range
Filter
Isolation Specifications
Rated voltage
Leakage current
Resistance
Capacitance
Output Specifications
Voltage accuracy
Ripple and noise (at 20 MHz BW)
Short circuit protection
Line voltage regulation
Load voltage regulation
Temperature coefficient
General Specifications
Efficiency
Switching frequency
Environmental Specifications
Operating temperature (ambient)
Storage temperature
Derating
Humidity
Cooling
Physical Characteristics
Dimensions
Weight
Case material
+/- 10 %
Pi Network
3000 Vdc
1 mA
10
9
Ohm
60 pF typ.
+/- 2 %, max.
75 mV p-p, max.
Continuous , restart automatic
+/- 0,5 % max.
+/- 0,5 % max.
+/- 0,02 % / °C
65 % to 85 %
125 KHz, typ.
-25°C to +71°C
- 55 °C to + 125 °C
See graph
Up to 90 %, non condensing
Free air convection
31,75 x 20,32 x 10,16 mm
1,25 x 0,80 x 0,40 inches
12,2 g
Non conductive black plastic
Examples of Partnumbers/Modelcode
PART
NO.
INPUT
VOLTAGE
(VDC)
Nominal
INPUT
CURRENT
NO LOAD
INPUT
CURRENT
FULL
LOAD
OUTPUT
VOLTAGE
(VDC)
OUTPUT
CURRENT
(max. mA)
EFFICIENCY FULL LOAD
(% TYP.)
P8SG-053R6ZH30
P8SG-0505ZH30
P8SG-1205ZH30
P8SG-1212ZH30
P8SG-2405ZH30
P8SG-247R2ZH30
P8SG-2415ZH30
5
5
12
12
24
24
24
78
75
70
67
32
29
26
443
454
184
181
96
91
91
+/- 3,6
+/- 5
+/- 5
+/- 12
+/- 5
+/- 7.2
+/- 15
+/- 200
+/- 150
+/- 150
+/- 63
+/- 150
+/- 100
+/- 50
65
66
68
69
65
66
69
M5 SERIES
P8SG-XXXXZH30 3 KV ISOLATED 1.5 W REGULATED DUAL OUTPUT DIP24

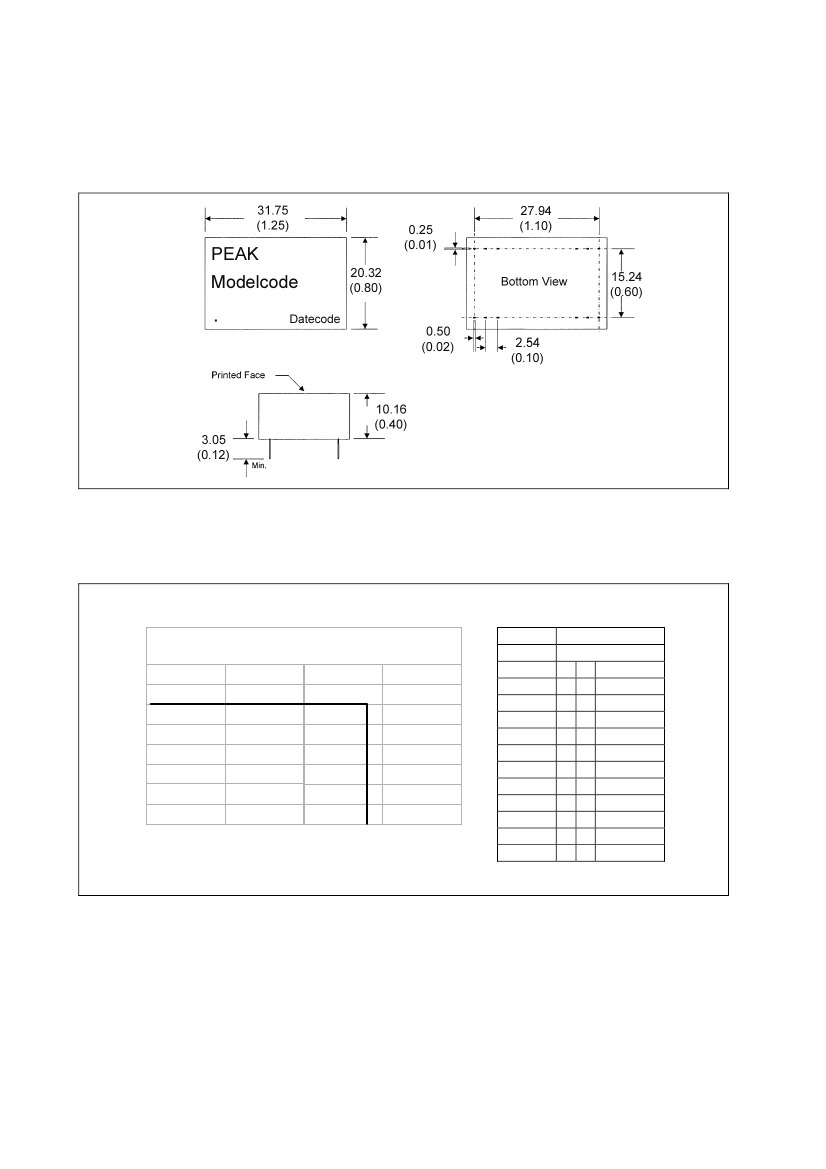

Dimensions
Derating Graph and Pinning
Output
Temperature Derating Graph
Ambient Temperature ° C
71
1.50 W
Safe Operating Area
-25
0
40
80
100
Pin
#
1
2
3
10
11
12
13
14
15
22
23
24
Connection
Dual
+ V Input
+ V Input
Omitted
Common
Common
Omitted
- V Output
Omitted
+ V Output
Omitted
- V Input
- V Input
Specification can be changed without notice.
REV:2 / 09.2001
Copyright PEAK electronics GmbH
