5KP9.0 Overview

5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE

5KP9.0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum breakdown voltage	12.7 V
Minimum breakdown voltage	10 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	5000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	8 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	9 V
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

5 KP 6.5 ... 5 KP 110CA

Unidirectional and bidirectional

Transient Voltage Suppressor Diodes

Unidirektionale und bidirektionale

Spannungs-Begrenzer-Dioden

Peak pulse power dissipation

Impuls-Verlustleistung

Maximum stand-off voltage

Maximale Sperrspannung

Plastic case – Kunststoffgehäuse

Weight approx. – Gewicht ca.

Plastic material has UL classification 94V-0

Gehäusematerial UL94V-0 klassifiziert

Dimensions / Maße in mm

5000 W

6.5...110 V

Ø 8 x 7.5 [mm]

1.5 g

Standard packaging taped in ammo pack

see page 16

Standard Lieferform gegurtet in Ammo-Pack siehe Seite 16

For bidirectional types (suffix “C” or “CA”), electrical characteristics apply in both directions.

Für bidirektionale Dioden (Suffix “C” oder “CA”) gelten die el. Werte in beiden Richtungen.

Maximum ratings and Characteristics

Peak pulse power dissipation (10/1000

s waveform)

Impuls-Verlustleistung (Strom-Impuls 10/1000

Steady state power dissipation

Verlustleistung im Dauerbetrieb

Peak forward surge current, 60 Hz half sine-wave

Stoßstrom für eine 60 Hz Sinus-Halbwelle

Operating junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

Max. instanteous forward voltage

Augenblickswert der Durchlaßspannung

Thermal resistance junction to ambient air

Wärmewiderstand Sperrschicht – umgebende Luft

Thermal resistance junction to lead

Wärmewiderstand Sperrschicht – Anschlußdraht

= 100 A

= 25

Kenn- und Grenzwerte

PPM

M(AV)

FSM

thA

thL

5000 W

)

8 W

)

400 A

)

– 50…+175

< 3.5 V

)

< 18 K/W

)

< 4 K/W

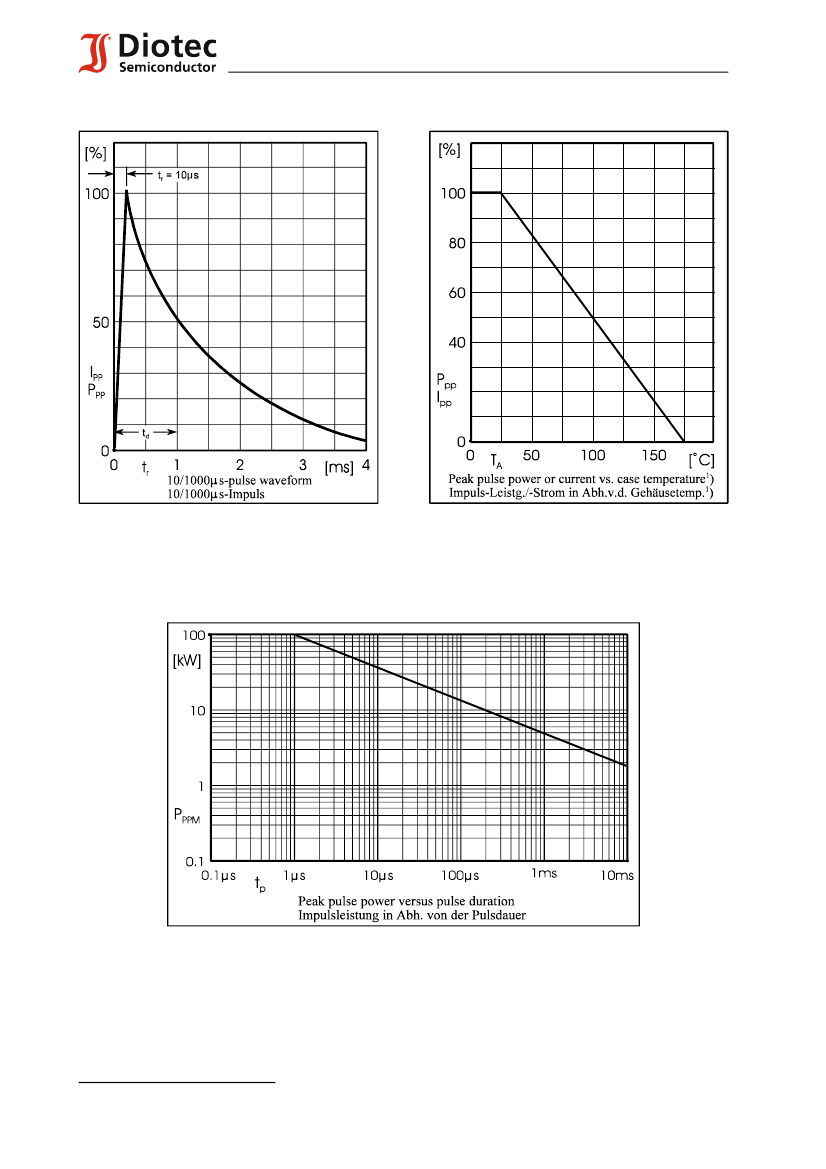

) Non-repetitive current puls see curve I

PPM

= f (t

)

Höchstzulässiger Spitzenwert eines einmaligen Strom-Impulses, siehe Kurve I

PPM

= f (t

)

) Valid, if leads are kept at ambient temperature at a distance of 10 mm from case

Gültig, wenn die Anschlußdrähte in 10 mm Abstand von Gehäuse auf Umgebungstemperatur gehalten werden

) Unidirectional diodes only – Nur für unidirektionale Dioden

07.01.2003
