5444864 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5444864

5444864: DescriptionTERM BLOCK HDR 5POS VERT 3.81MM; CategoryThe connector; File Size97KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

5444864 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5444864	-	-	View	Buy Now

5444864 Overview

TERM BLOCK HDR 5POS VERT 3.81MM

5444864 Parametric

Parameter Name	Attribute value
type	Connector, male pins, shrouded (4 sides)
Number of pins	5
Number of pins per level	5
Number of levels	1
spacing	0.150"（3.81mm）
Needle seat direction	Vertical
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	8A
Voltage - IEC	320V
Current - UL	8A
Voltage - UL	300V
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	green
Operating temperature	-
Contact mating surface treatment	tin
characteristic	mating flange
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	-
Shell material	Polyamide (PA), nylon
Contact tail length	0.138"（3.50mm）
Insulation height	0.362"（9.20mm）

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/5444864

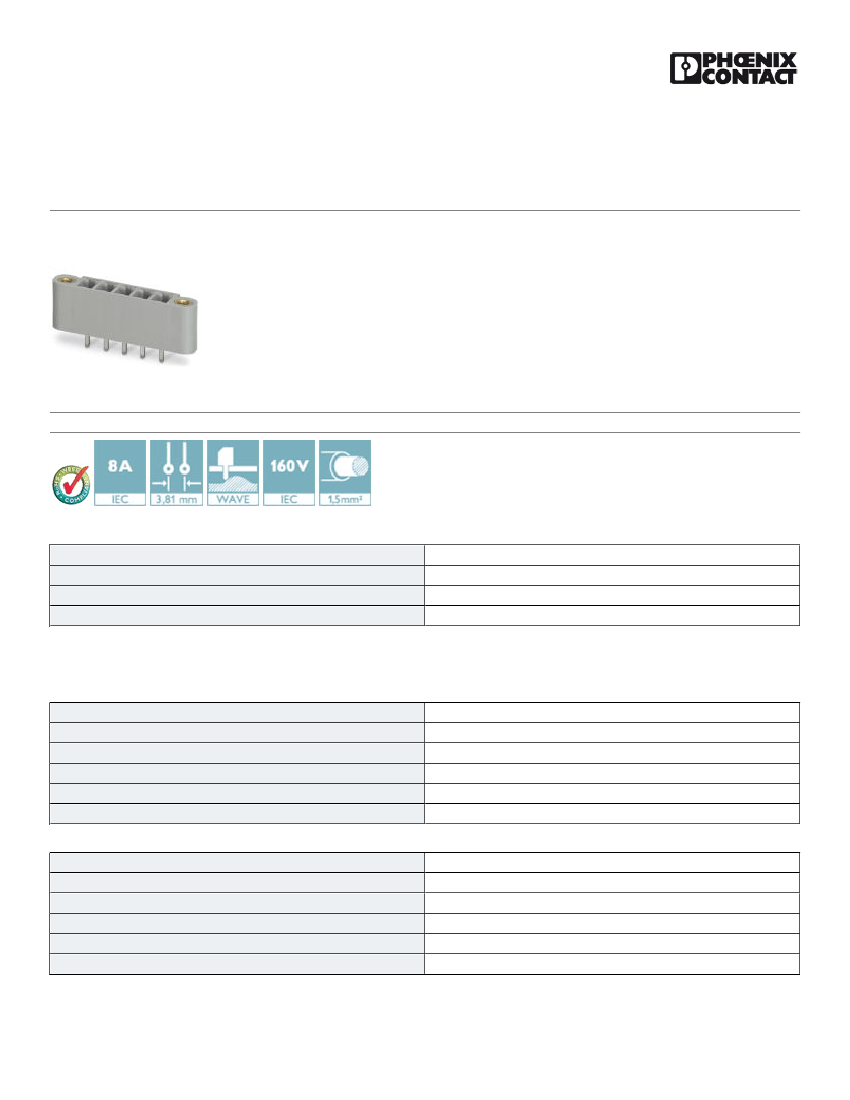

Printed-circuit board connector - BCH-381VF- 5 GN - 5444864

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Color: pastel

green, Contact surface: Tin, Mounting: Wave soldering

The figure shows the 5-pos. version

of the product in gray

Key Commercial Data

Packing unit

Minimum order quantity

Custom tariff number

Country of origin

1 pc

100 pc

85366990

China

Technical data

Dimensions

Length

Pitch

Dimension a

Length of the solder pin

Pin dimensions

Hole diameter

7.4 mm

3.81 mm

15.24 mm

3.4 mm

0,8 x 0,8 mm

1.2 mm

General

Range of articles

Insulating material group

Rated surge voltage (III/3)

Rated surge voltage (III/2)

Rated surge voltage (II/2)

Rated voltage (III/3)

BCH-VF

2.5 kV

160 V

04/28/2016 Page 1 / 4
