VJ0805D111JLAAJ datasheet, PDF

Datasheet> All Categories > Passive components> VJ0805D111JLAAJ

VJ0805D111JLAAJ: DescriptionCAP CER 110PF 50V C0G/NP0 0805; CategoryPassive components; File Size141KB，11 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

VJ0805D111JLAAJ Overview

CAP CER 110PF 50V C0G/NP0 0805

VJ0805D111JLAAJ Parametric

Parameter Name	Attribute value
capacitance	110pF
Tolerance	±5%
Voltage - Rated	50V
Temperature Coefficient	C0G，NP0
Operating temperature	-55°C ~ 125°C
characteristic	High Q value, low loss
grade	-
application	RF, microwave, high frequency
Installation type	Surface mount, MLCC
Package/casing	0805 (2012 Metric)
size/dimensions	0.079" long x 0.049" wide (2.00mm x 1.25mm)
Height - Installation (maximum)	-
Thickness (maximum)	0.057"（1.45mm）
lead spacing	-
Lead form	-

Preview

Download Datasheet

View All

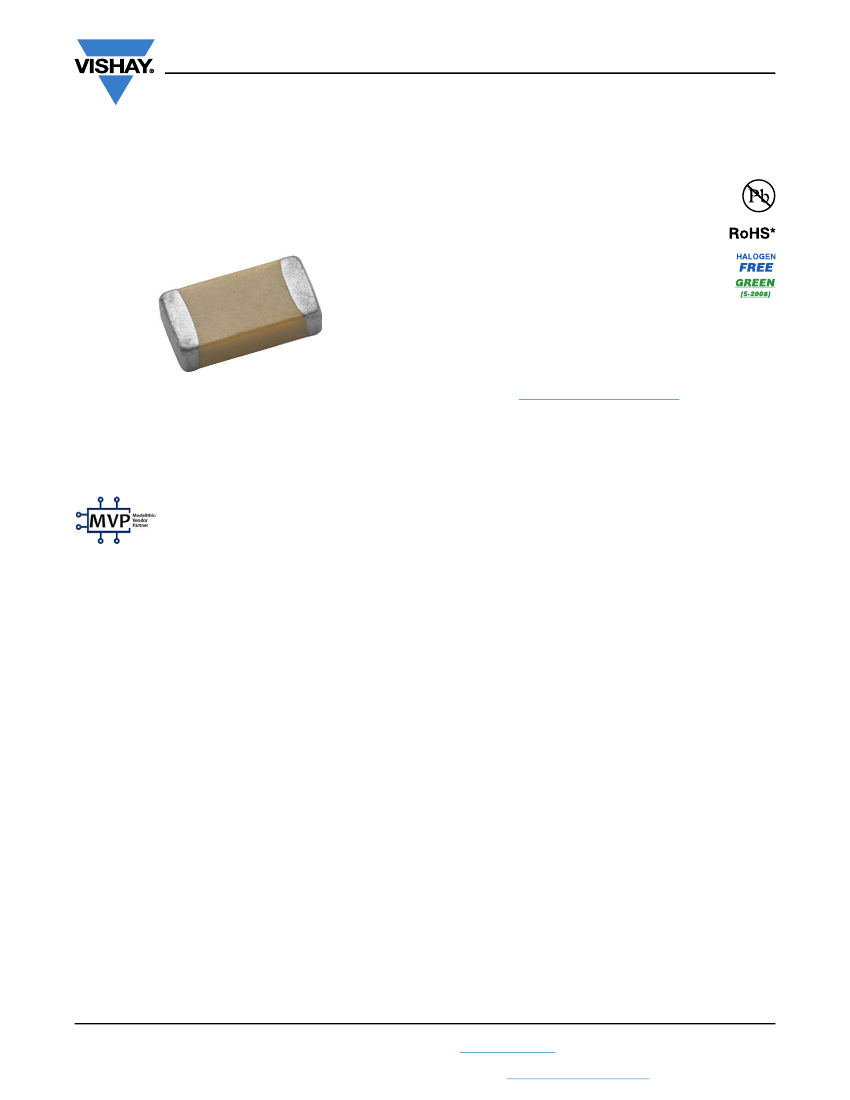

VJ HIFREQ Series

www.vishay.com

Vishay Vitramon

Surface Mount Multilayer

Ceramic Chip Capacitors for High Frequency

FEATURES

Case size 0402, 0603, 0805

Available

High frequency

Ultra-stable dielectric material

Available

Non-magnetic copper termination “C”

Lead (Pb)-free terminations code “X”

Tin / lead termination code “L”

Available

Surface mount, wet build process

Reliable Noble Metal Electrode (NME) system

Made with a combination of design, materials and tight

process control to achieve very high field reliability

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details

•

DESIGN TOOLS

(click logo to get started)

APPLICATIONS

•

RF and microwave

Broadband communication

Satellite communication

Base stations

Medical instrumentation and test

Military devices (radar, communication, etc.)

Wireless devices

ELECTRICAL SPECIFICATIONS

Note

• Electrical characteristics at 25 °C unless otherwise specified

Operating Temperature:

-55 °C to +125 °C

Capacitance Range:

0402: 0.1 pF to 82 pF

0603: 0.1 pF to 470 pF

0805: 0.1 pF to 1.5 nF

Voltage Rating:

25 V

to 250 V

Temperature Coefficient of Capacitance (TCC):

C0G (D): 0 ppm/°C ± 30 ppm/°C from -55 °C to +150 °C with

zero (0) V

applied

Dissipation Factor (DF):

C0G (D): 0.05 % max. at 1.0 V

RMS

and 1 MHz

for values



1000 pF

C0G (D): 0.05 % max. at 1.0 V

RMS

and 1 kHz

for values > 1000 pF

Aging Rate:

0 % maximum per decade

Insulation Resistance (IR):

at +25 °C and rated voltage 100 000 M minimum or

1000

F,

whichever is less

at +125 °C and rated voltage 10 000 M minimum or

100

F,

whichever is less

Dielectric Strength Test:

performed per method 103 of EIA-198-2-E.

Applied test voltages:



200 V

-rated: min. 250 % of rated voltage

> 200 V

-rated: min. 200 % of rated voltage

Revision: 19-Jun-2018

Document Number: 45071

For technical questions, contact:

mlccrf@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

VJ0805D111JLAAJ Related Products

	VJ0805D111JLAAJ	VJ0805D111JLXAJ	VJ0805D111JXAAJ	VJ0805D111JXXAJ	VJ0805D111KLPAJ
Description	CAP CER 110PF 50V C0G/NP0 0805	CAP CER 110PF 25V C0G/NP0 0805	CAP CER 110PF 50V C0G/NP0 0805	CAP CER 110PF 25V C0G/NP0 0805	CAP CER 110PF 250V C0G/NP0 0805
capacitance	110pF	110pF	110pF	110pF	110pF
Tolerance	±5%	±5%	±5%	±5%	±10%
Voltage - Rated	50V	25V	50V	25V	250V
Temperature Coefficient	C0G，NP0	C0G，NP0	C0G，NP0	C0G，NP0	C0G，NP0
Operating temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
characteristic	High Q value, low loss	High Q value, low loss	High Q value, low loss	High Q value, low loss	High Q value, low loss
application	RF, microwave, high frequency	RF, microwave, high frequency	RF, microwave, high frequency	RF, microwave, high frequency	RF, microwave, high frequency
Installation type	Surface mount, MLCC	Surface mount, MLCC	Surface mount, MLCC	Surface mount, MLCC	Surface mount, MLCC
Package/casing	0805 (2012 Metric)	0805 (2012 Metric)	0805 (2012 Metric)	0805 (2012 Metric)	0805 (2012 Metric)
size/dimensions	0.079" long x 0.049" wide (2.00mm x 1.25mm)	0.079" long x 0.049" wide (2.00mm x 1.25mm)	0.079" long x 0.049" wide (2.00mm x 1.25mm)	0.079" long x 0.049" wide (2.00mm x 1.25mm)	0.079" long x 0.049" wide (2.00mm x 1.25mm)
Thickness (maximum)	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）
