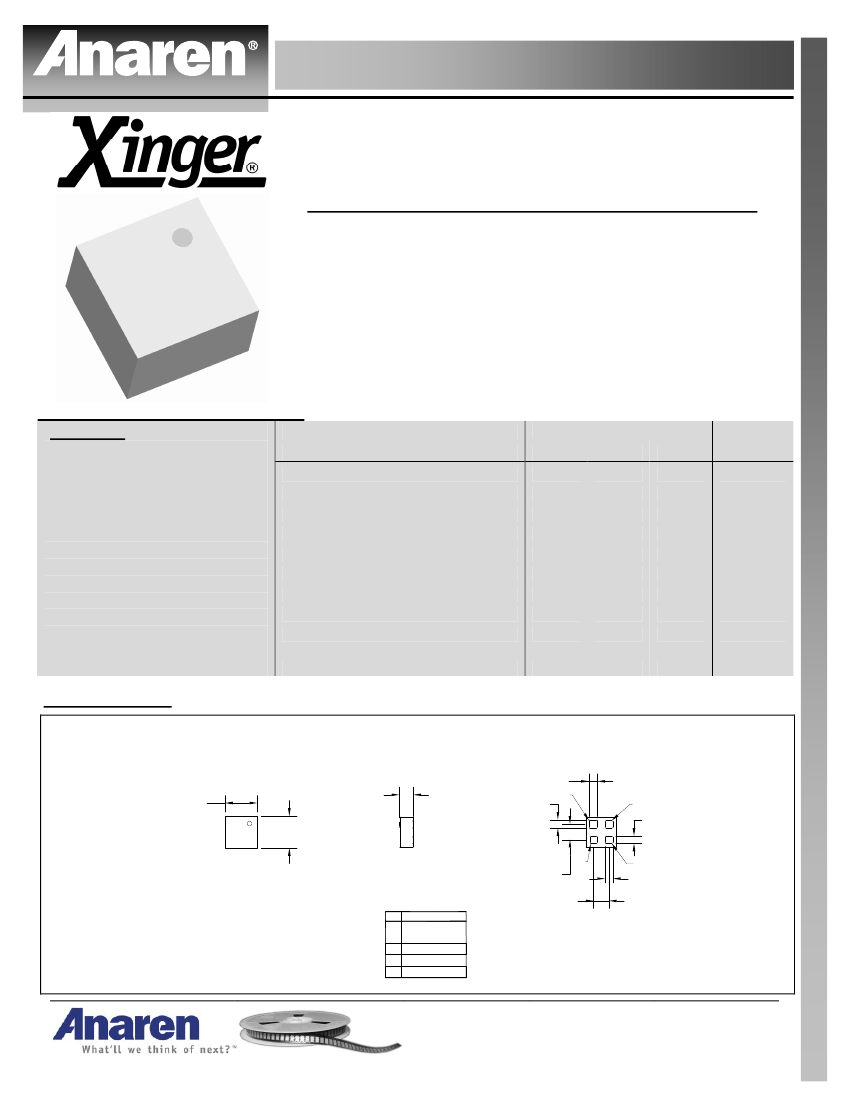

Model BD2425P5075AHF
REVA
Nano Profile 0404 Balun
50 to 75 Balanced
Description
The BD2425P5075AHF is a low cost, nano profile sub-miniature unbalanced
to balanced transformer designed for differential inputs and output locations on
modern chipsets in an easy to use surface mount package. The BD2425P5075AHF
has been developed for placement inside highly integrated, over moldable
packaging solutions where overall module height is of greatest concern. Ideal for
high volume manufacturing and delivers higher performance than traditional ceramic
baluns in a sub 0.5mm height profile. The BD2425P5075AHF has an unbalanced
port impedance of 50Ω and a 75Ω balanced port impedance. This transformation
enables single ended signals to be applied to differential ports on modern integrated
chipsets. The output ports have equal amplitude (-3dB) with 180 degree phase
differential. The BD2425P5075AHF is available on tape and reel for pick and place
high volume manufacturing.
Detailed Electrical Specifications:
Specifications subject to change without notice.
Features:
•
•
•
•
•
•
•
•
•
•
•
•
•
2400 – 2500 MHz
0.45mm Height Profile
50 Ohm to 2 x 37.5 Ohm
Low Insertion Loss
802.11 b+g
MIMO b+g
Bluetooth
Zigbee
Proprietary Ultra Low Power
Radio
Surface Mountable
Tape & Reel
RoHS Compliant
Halogen Free
Parameter
Frequency
Unbalanced Port Impedance
Balanced Port Impedance
Return Loss
Insertion Loss*
Amplitude Balance
Phase Balance
CMRR
Power Handling
Operating Temperature
Min.
2400
ROOM (25°C)
°
Typ.
50
75
15.5
0.80
0.91
4.34
24
Max
2500
Unit
MHz
11
1.15
1.56
7.07
1
dB
dB
dB
Degrees
dB
Watts
ºC
-55
+85
* Insertion Loss stated at room temperature (Insertion Loss is approximately 0.1 dB higher at +85 ºC)
Outline Drawing
Top View (Near-side)
Side View
Bottom View (Far-side)
.041
±.004
[1.05
±0.10
]
.041
±.004
[1.05
±0.10
]
.018
±.001
[0.45
±0.03
]
.012 [0.30]
1
.012 [0.30]
2
3x.010
[0.25]
4
3
3x.010
[0.25]
.020 [0.51]
.020 [0.51]
Pin Designation
GND / DC Feed
1
+ RF GND
Dimensions are in Inches [Millimeters]
Mechanical Outline
2 Unbalanced Port
3 Balanced Port
4 Balanced Port
Tolerances are Non-Cumulative
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392

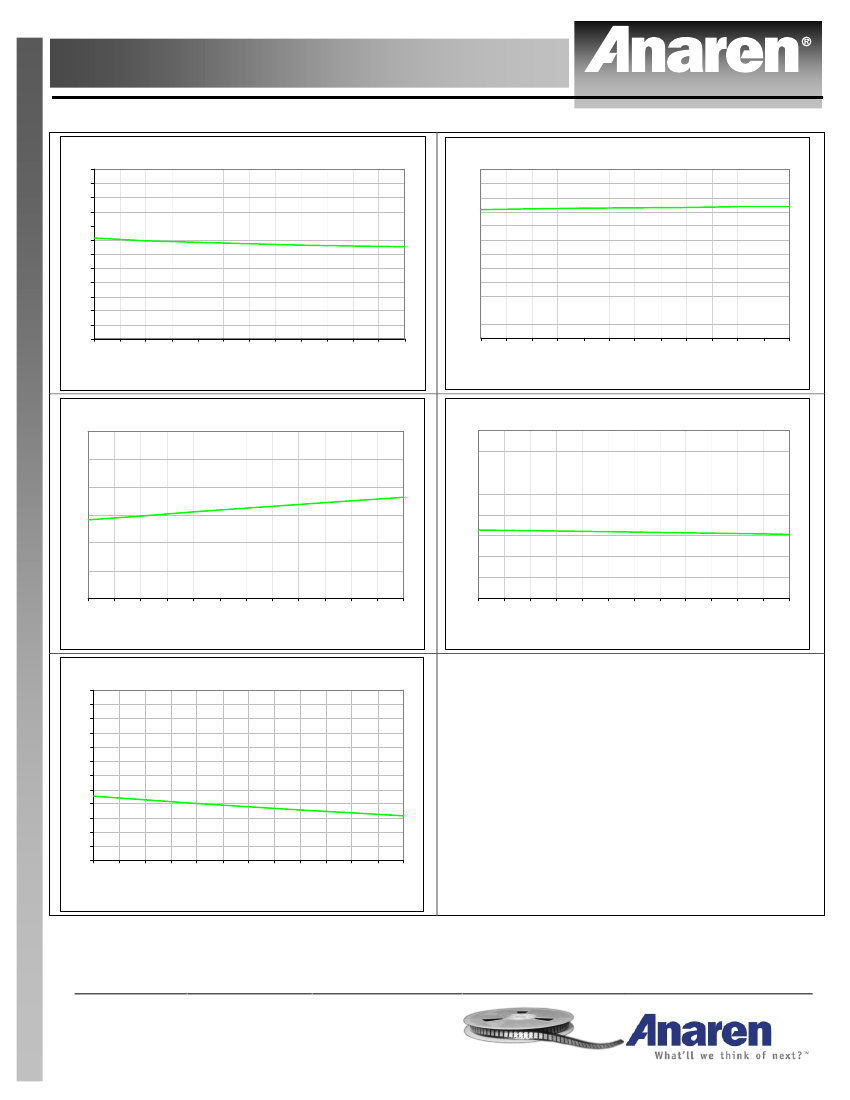

Model BD2425P5075AHF
REV A

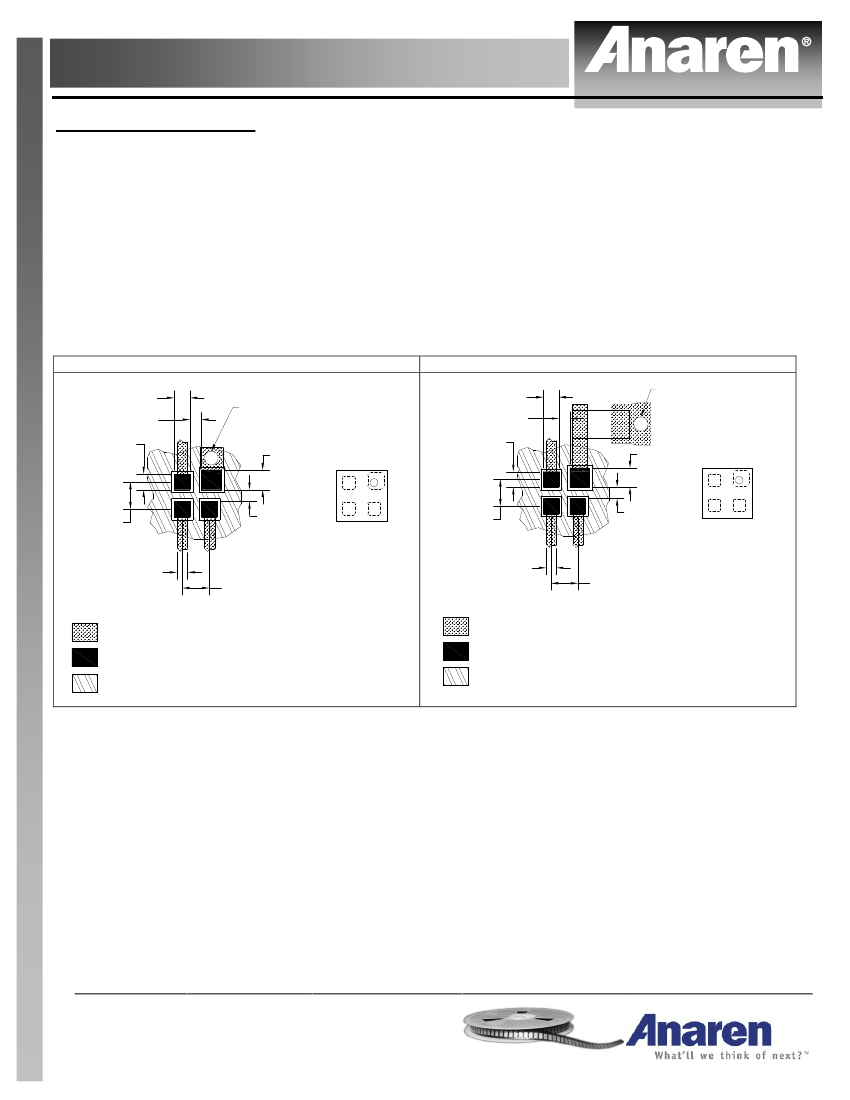

Mounting Configuration:
In order for Xinger surface mount components to work optimally, the proper impedance transmission lines must be
used to connect to the RF ports. If this condition is not satisfied, insertion loss, Isolation and VSWR may not meet
published specifications.
All of the Xinger components are constructed from ceramic filled PTFE composites which possess excellent electrical
o
and mechanical stability having X and Y thermal coefficient of expansion (CTE) of 17 ppm/ C.
An example of the PCB footprint used in the testing of these parts is shown below. An example of a DC-biased
footprint is also shown below. In specific designs, the transmission line widths need to be adjusted to the unique
dielectric coefficients and thicknesses as well as varying pick and place equipment tolerances.
With No DC Bias
3X .011
[0.29]
.008 [0.21]
3X .011
[0.29]
Plated thru
hole to
ground
.013 [0.33]
With DC Bias
3X .011
[0.29]
.008 [0.21]
3X .011
[0.29]
Plated thru
hole to
ground
.013 [0.33]
.020
[0.50]
.008 [0.21]
.020
[0.50]
.008 [0.21]
3X Transmission
Line
.020
[0.50]
3X Transmission
Line
.020
[0.50]
Circuit Pattern
Footprint Pad (s)
Solder Resist
Dimensions are in Inches [Millimeters]
Mounting Footprint
Circuit Pattern
Footprint Pad (s)
Solder Resist
Dimensions are in Inches [Millimeters]
Mounting Footprint
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.

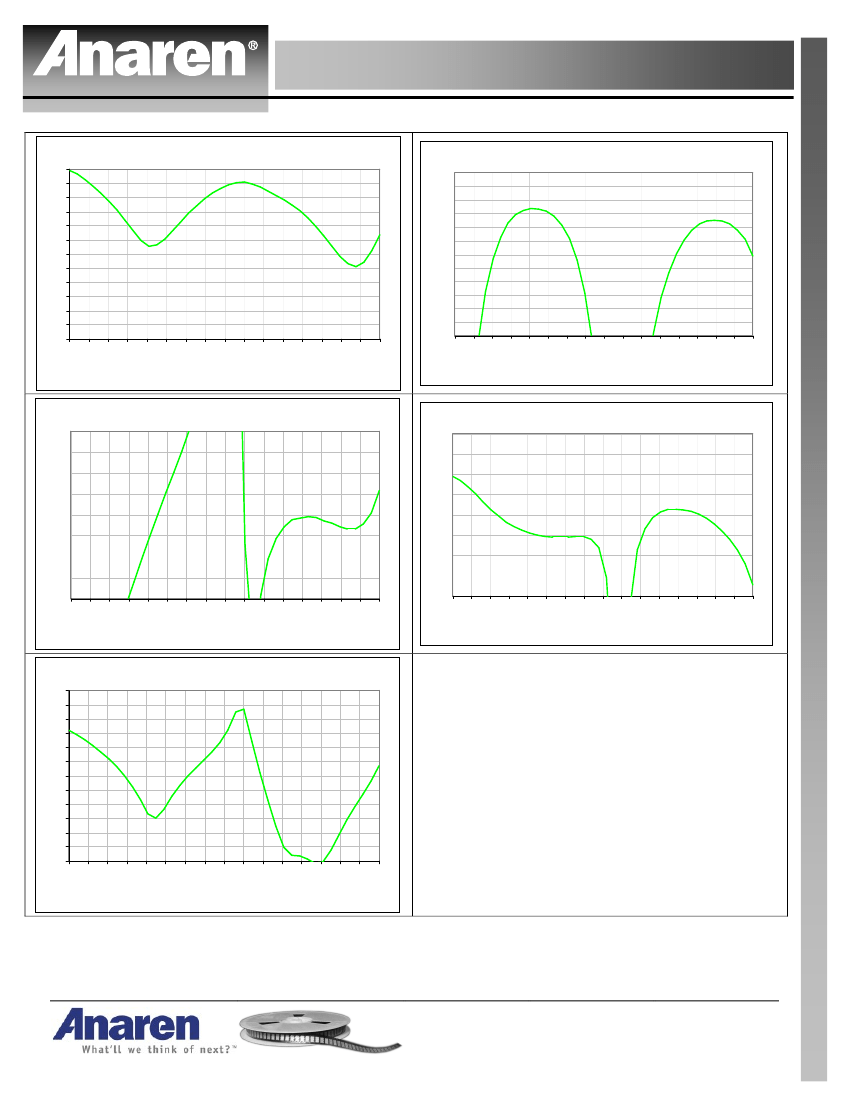

Model BD2425P5075AHF
REVA

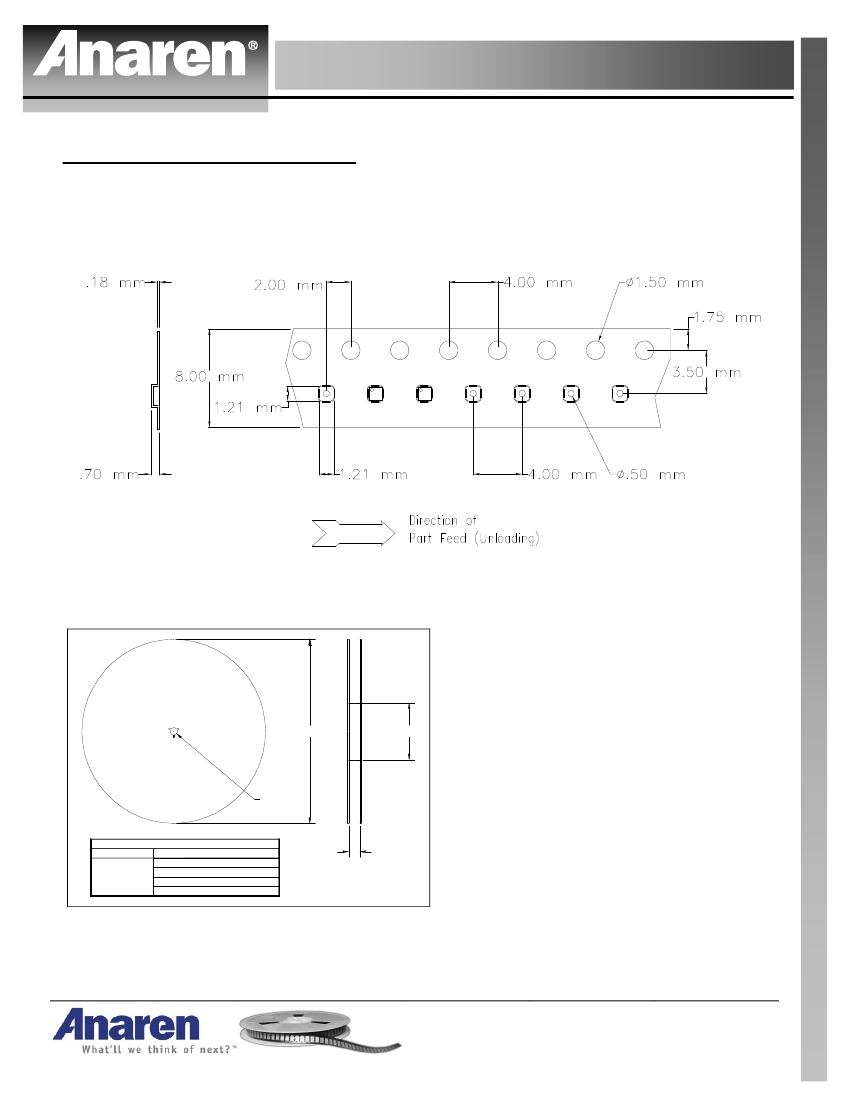

Packaging and Ordering Information
Parts are available in reel and are packaged per EIA 481-2. Parts are oriented in tape and reel as shown below. Minimum order
quantities are 4000 per reel. See Model Numbers below for further ordering information
.
ØA
ØC
ØD
QUANTITY/REEL
4000
TABLE 1
REEL DIMENSIONS (inches [mm])
ØA
7.00 [177.8]
B
0.32 [8.0]
2.0 [50.8]
ØC
ØD
0.512 [13.0]
B
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
ADI Reference Circuit
