XBHAWT-02-0000-000HT20E7 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> XBHAWT-02-0000-000HT20E7

XBHAWT-02-0000-000HT20E7: DescriptionLED XLAMP XB-H WHITE SMD; CategoryLED optoelectronic/LED; File Size1MB，28 Pages; ManufacturerCree; Websitehttp://www.cree.com/; Environmental Compliance

Download Datasheet Parametric View All

XBHAWT-02-0000-000HT20E7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XBHAWT-02-0000-000HT20E7	-	-	View	Buy Now

XBHAWT-02-0000-000HT20E7 Overview

LED XLAMP XB-H WHITE SMD

XBHAWT-02-0000-000HT20E7 Parametric

Parameter Name	Attribute value
color	white, warm color
CCT（K）	3000K
Flux, current at 85°C - Test	210 lm（200 lm ~ 220 lm）
Flux, current at 25°C - Test	-
Current - Test	700mA
Voltage - Forward (Vf) (Typical)	2.9V
Lumens/Watt at different test currents	103 lm/W
CRI (high color rendering index)	80
Current - maximum	1.5 A
perspective	110°
Installation type	surface mount
Package/casing	1010 (2525 metric)
Supplier device packaging	SMD
size/dimensions	0.096" long x 0.096" wide (2.45mm x 2.45mm)
Height - Installation (maximum)	0.095"（2.41mm）
Package thermal resistance	4°C/W

Preview

Download Datasheet

View All

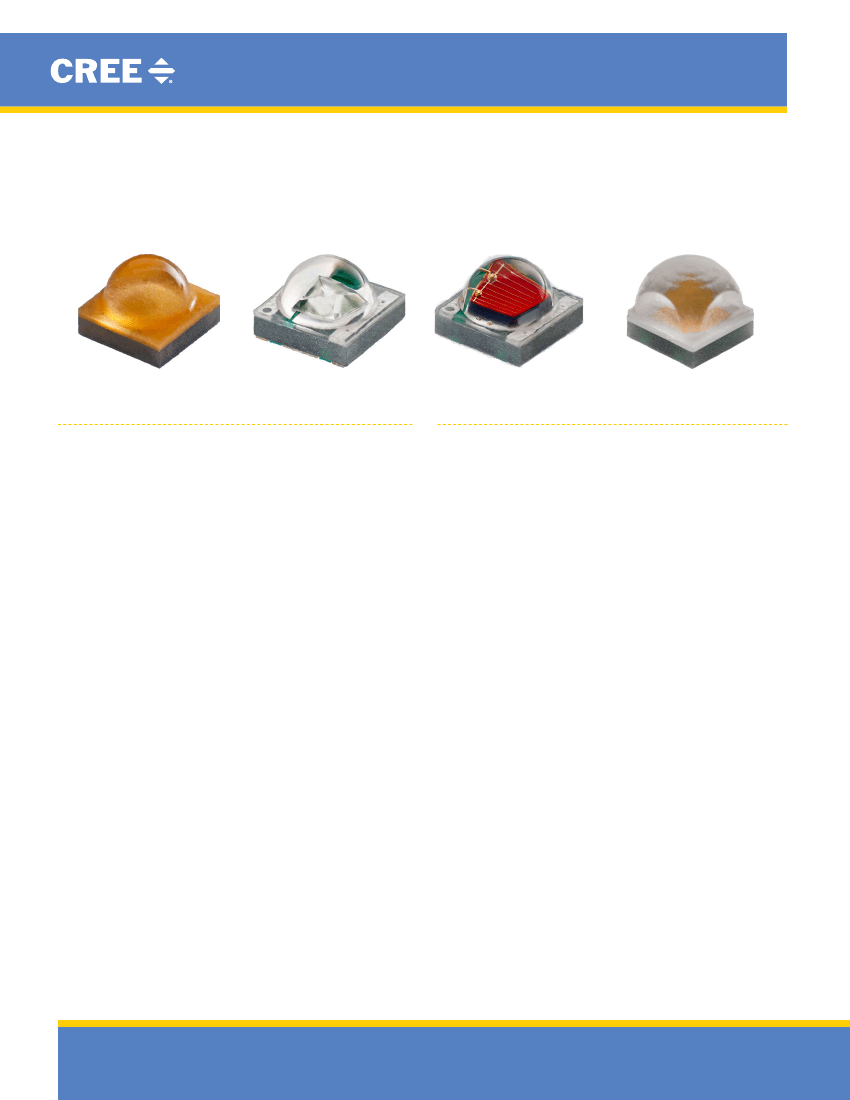

CLD-AP91 rev 11A

Binning & LaBeLing

Cree

XLamp

XB Family LEDs

TaBLE oF ConTEnTs

Bin and Order Code Formats ........................................................2

Performance Groups – Luminous Flux........................................4

Performance Groups – radiant Flux ...........................................5

Performance Groups – Dominant Wavelength ...........................5

Performance Groups – Forward voltage ....................................6

Performance Groups – Chromaticity...........................................7

Cree’s Standard Chromaticity regions Plotted on the 1931

CIe Curve .....................................................................................11

Cree’s Standard Cool White Kits Plotted on ANSI Standard

Chromaticity regions .................................................................12

Cree’s Standard Warm and Neutral White Kits Plotted on

ANSI Standard Chromaticity regions ........................................13

Cree’s PC Amber Kit Plotted on the 1931 CIe Curve .................14

Cree’s Standard Chromaticity Kits .............................................15

Standard Order Codes and Bins

XB-D ANSI Cool White .........................................................16

XB-D Neutral White ..............................................................17

XB-D Warm White ................................................................18

XB-D Color ............................................................................20

XB-H ANSI Cool White .........................................................25

XB-H Neutral White ..............................................................26

www.Cree.Com/XLAmp

XB-H Warm White ................................................................27

InTroDuCTIon

This document describes the product nomenclature required

to select and order Cree’s XLamp

XB family LeDs. XLamp

XB family LeDs are tested and sorted into bins which are then

combined into orderable kits, identified by an order code.

All XLamp LeDs are tested and sorted by color and brightness

into a unique bin. each bin contains LeDs from only one color and

brightness group and is uniquely identified by a bin code. White

XLamp LeDs are sorted by chromaticity (color) and luminous

flux (brightness). Color XLamp LEDs are sorted by dominant

wavelength (color) and luminous or radiant flux (brightness).

LeDs are shipped in reels containing LeDs from a single bin and

labeled with the corresponding bin code. XLamp LeD packaging

details are provided in product data sheets.

Kits contain LeDs from a number of similar bins and are fully

defined by their order codes. A full explanation of the order

codes for XLamp XB family LeDs, as well as a list of standard

order codes, is provided in this document.

, the Cree logo and

XLamp

are registered trademarks of Cree, Inc. This document is provided for informational purposes only and is not a warranty or a specification. For

product specifications, please see the data sheets available at www.cree.com.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300
