IL-WX-20SB-VF-A1-B-E1000E datasheet, PDF

Datasheet> All Categories > The connector> IL-WX-20SB-VF-A1-B-E1000E

IL-WX-20SB-VF-A1-B-E1000E: DescriptionCONN 20POS 0.8MM SMT; CategoryThe connector; File Size435KB，1 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

IL-WX-20SB-VF-A1-B-E1000E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IL-WX-20SB-VF-A1-B-E1000E	-	-	View	Buy Now

IL-WX-20SB-VF-A1-B-E1000E Overview

CONN 20POS 0.8MM SMT

IL-WX-20SB-VF-A1-B-E1000E Parametric

Parameter Name	Attribute value
Connector type	socket
Contact type	Forked
style	board to board
Number of pins	20
Number of pins loaded	all
Spacing - Mating	0.031"（0.80mm）
Number of rows	2
Line spacing - patching	0.049"（1.25mm）
Installation type	surface mount
Termination	welding
Fastening type	push-pull
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	-
Insulation color	black
Insulation height	0.128"（3.25mm）
Contact length - terminal	-
Operating temperature	-40°C ~ 85°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	-
Joint stack height	4.5mm
Intrusion protection	-
characteristic	Board guide, fixed solder tail
Rated current	0.5A
Rated voltage	-
application	Universal
Insulation Materials	Polyphenylene sulfide (PPS), glass fiber reinforced
Contact shape	Square
Contact material	copper alloy
Contact Surface Treatment Thickness - Column	-

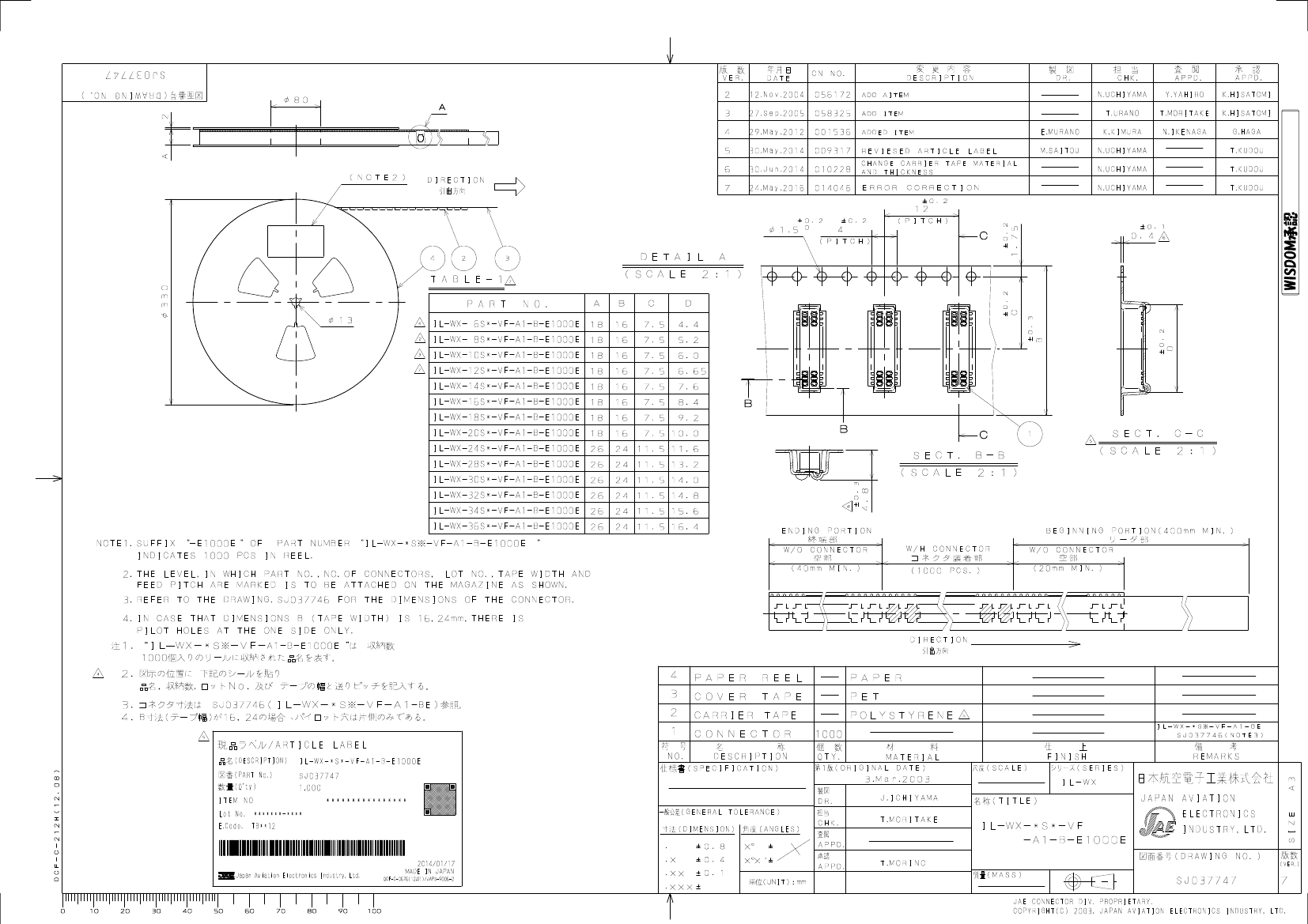

Preview

Download Datasheet

View All

JAE-CONNECTOR.COM

Reference Only

2016/05/26

IL-WX-20SB-VF-A1-B-E1000E Related Products

	IL-WX-20SB-VF-A1-B-E1000E	IL-WX-30SB-VF-A1-B-E1000E	IL-WX-28SB-VF-A1-B-E1000E	IL-WX-24SB-VF-A1-B-E1000E	IL-WX-20S-VF-A1-B-E1000E	IL-WX-12SB-VF-A1-B-E1000E	IL-WX-16SB-VF-A1-B-E1000E	IL-WX-28SB-VF-B-E1000E	IL-WX-28S-VF-A1-B-E1000E
Description	CONN 20POS 0.8MM SMT	CONN 30POS 0.8MM SMT	CONN 28POS 0.8MM SMT	CONN 24POS 0.8MM SMT	CONN 20POS 0.8MM SMT	CONN 12POS 0.8MM SMT	CONN 16POS 0.8MM SMT	CONN 28POS 0.8MM SMT	CONN 28POS 0.8MM SMT
Connector type	socket	socket	socket	socket	socket	socket	socket	socket	socket
Contact type	Forked	Forked	Forked	Forked	Forked	Forked	Forked	Forked	Forked
style	board to board	board to board	board to board	board to board	board to board	board to board	board to board	board to board	board to board
Number of pins	20	30	28	24	20	12	16	28	28
Number of pins loaded	all	all	all	all	all	all	all	all	all
Spacing - Mating	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）
Number of rows	2	2	2	2	2	2	2	2	2
Line spacing - patching	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Termination	welding	welding	welding	welding	welding	welding	welding	welding	welding
Fastening type	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull
Contact surface treatment - mating	gold	gold	gold	gold	gold	gold	gold	tin	gold
Insulation color	black	black	black	black	black	black	black	black	black
Insulation height	0.128"（3.25mm）	0.128"（3.25mm）	0.128"（3.25mm）	0.128"（3.25mm）	0.128"（3.25mm）	0.128"（3.25mm）	0.128"（3.25mm）	0.128"（3.25mm）	0.128"（3.25mm）
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Joint stack height	4.5mm	4.5mm	4.5mm	4.5mm	4.5mm	4.5mm	4.5mm	4.5mm	4.5mm
characteristic	Board guide, fixed solder tail	Board guide, fixed solder tail	Board guide, fixed solder tail	Board guide, fixed solder tail	Fixed solder tail	Board guide, fixed solder tail	Board guide, fixed solder tail	Board guide, fixed solder tail	Fixed solder tail
Rated current	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A
application	Universal	Universal	Universal	Universal	Universal	Universal	Universal	Universal	Universal
Insulation Materials	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced
Contact shape	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
