ASA2-14.7456MHZ-L-T3 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASA2-14.7456MHZ-L-T3

ASA2-14.7456MHZ-L-T3: DescriptionOSC XO 14.7456MHZ HCMOS SMD; CategoryPassive components oscillator; File Size107KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASA2-14.7456MHZ-L-T3 Overview

OSC XO 14.7456MHZ HCMOS SMD

ASA2-14.7456MHZ-L-T3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	SOLCC4,.06
Reach Compliance Code	compliant
Factory Lead Time	12 weeks
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	80 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	14.7456 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Package body material	METAL
Encapsulate equivalent code	SOLCC4,.06
power supply	1.8 V
Certification status	Not Qualified
Nominal supply voltage	1.8 V
surface mount	YES

Preview

Download Datasheet

View All

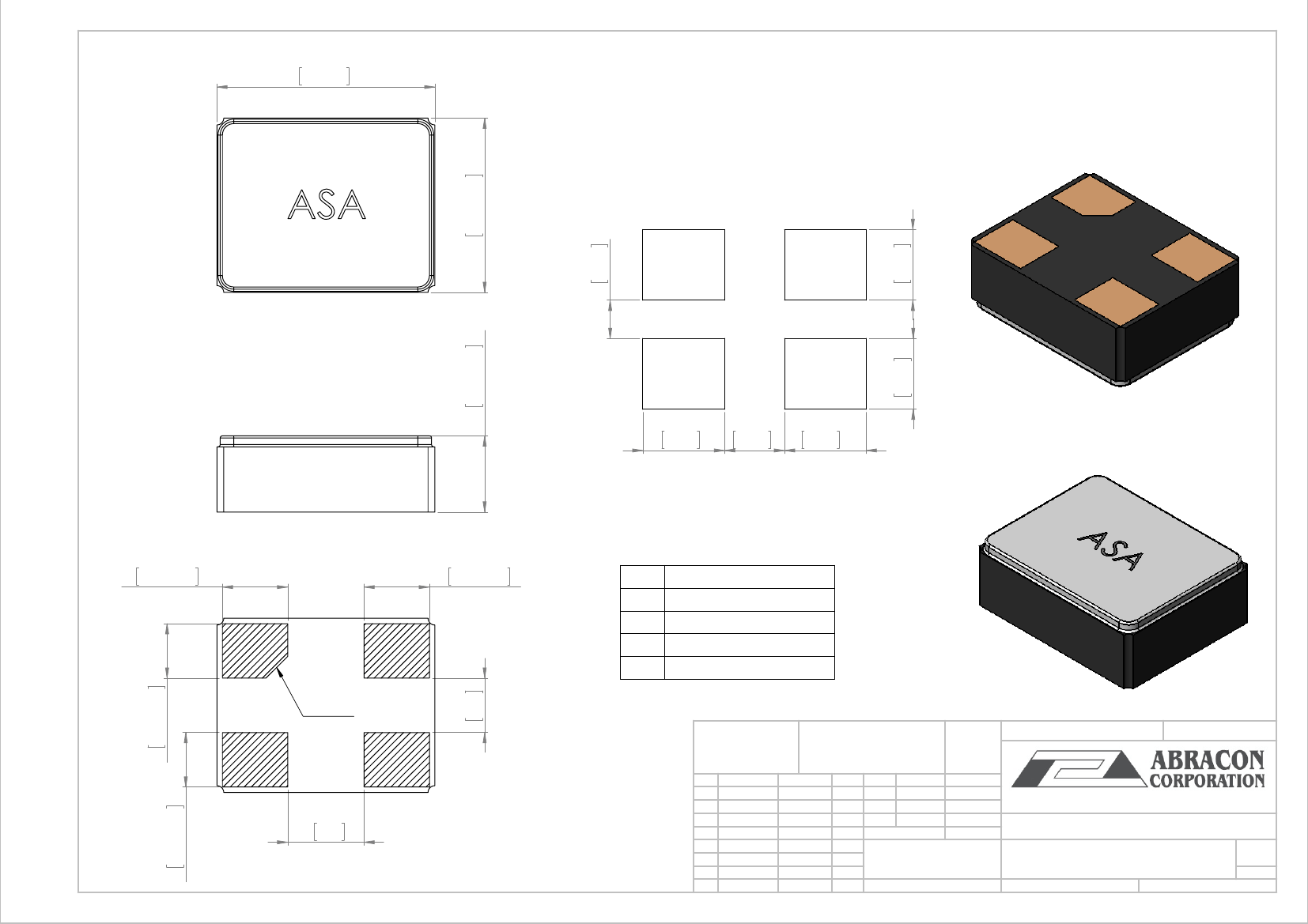

0.079 ±0.004

2 ±0.1

Reommended Land Pattern

0.063 ±0.004

1.6 ±0.1

0.014

0.35

0.028 ±0.004

0.7 ±0.1

Top View

0.026

0.65

0.030

0.75

0.022

0.55

0.030

0.75

0.024 ±0.004

0.6 ±0.1

Front View

0.02 ±0.004

0.6 ±0.1

PIN #

Name

Tri-state (Stand-by)

GND

Output

Vdd

0.020 ±0.004

0.5 ±0.1

0.020

0.5

C0.008

[0.2]

0.026

0.65

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

FINISH:

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

SIGNATURE

DATE

0.020 ±0.004

0.5 ±0.1

DRAWN

SAAZVAT

XXXXXX

0.028

0.7

CHK'D

APPV'D

MFG

Q.A

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

HCMOS SURFACE-MOUNT CRYSTAL CLOCK

OSCILLATOR

MATERIAL:

DWG NO.

Bottom View

WEIGHT:

ASA

SHEET 1 OF 1

SCALE:35:1
