BAS56
SURFACE MOUNT
DUAL, ISOLATED HIGH CURRENT
SILICON SWITCHING DIODES
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR BAS56 consists
of two electrically isolated ultra-high speed silicon
switching diodes manufactured by the epitaxial planar
process and packaged in an epoxy molded surface
mount SOT-143 case. This device is designed for high
speed switching applications.
MARKING CODE: L51 or WL5
SOT-143 CASE
MAXIMUM RATINGS:
(TA=25°C)
Continuous Reverse Voltage
Peak Repetitive Reverse Voltage
Continuous Forward Current
Peak Repetitive Forward Current
Peak Forward Surge Current, tp=1.0μs
Peak Forward Surge Current, tp=1.0s
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VR
VRRM
IF
IFRM
IFSM
IFSM
PD
TJ, Tstg
Θ
JA
60
60
200
400
4.0
1.0
350
-65 to +150
357
UNITS
V
V
mA
mA
A
A
mW
°C
°C/W
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
MAX
IR
IR
IR
VF
VF
VF
CT
trr
Qs
VFR
VFR
VR=60V
VR=60V, TA=150°C
VR=75V
IF=10mA
IF=200mA
IF=500mA
VR=0, f=1.0MHz
IF=IR=400mA, Irr=40mA, RL=100Ω
IF=10mA, VR=5.0V, RL=500Ω
IF=400mA, tr=30ns
IF=400mA, tr=100ns
100
100
10
0.75
1.0
1.25
2.5
6.0
50
1.2
1.5
UNITS
nA
μA
μA
V
V
V
pF
ns
pC
V
V
R7 (25-August 2010)
BAS56
SURFACE MOUNT
DUAL, ISOLATED HIGH CURRENT
SILICON SWITCHING DIODES

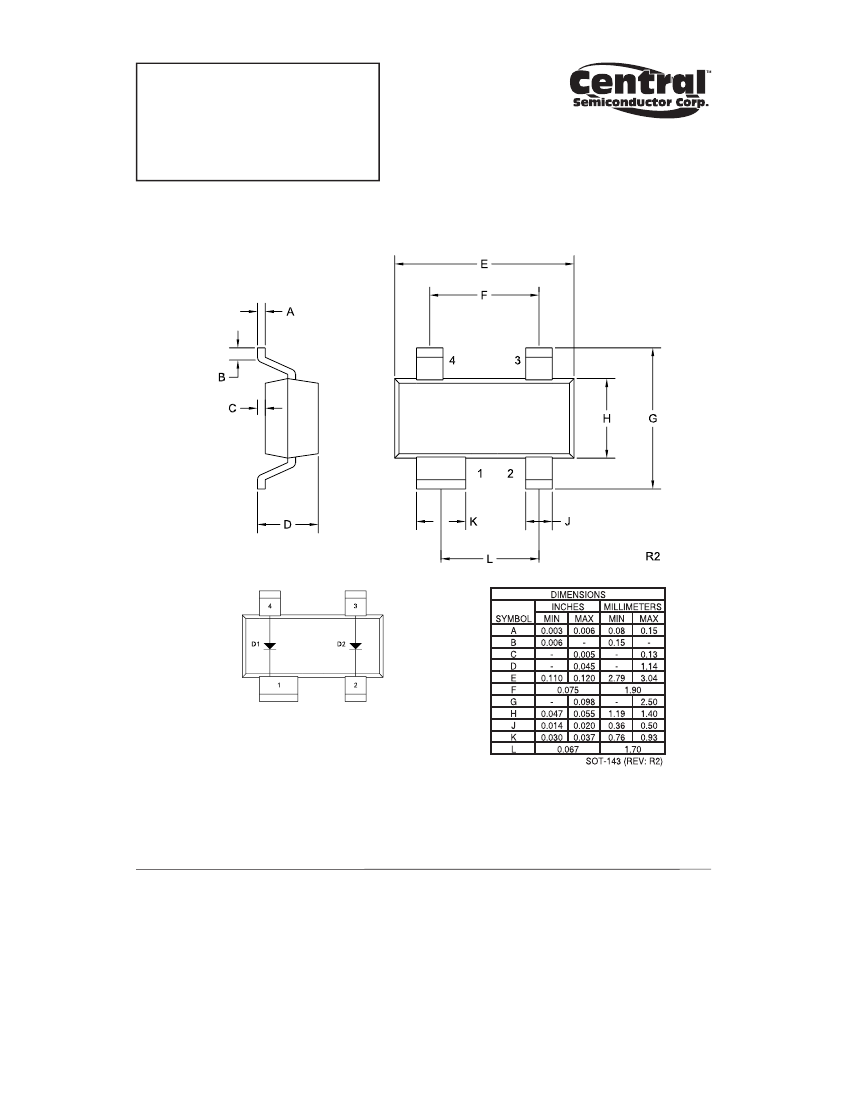

SOT-143 CASE - MECHANICAL OUTLINE
PIN CONFIGURATION
LEAD CODE:
1) CATHODE D1
2) CATHODE D2
3) ANODE D2
4) ANODE D1
MARKING CODE: L51 or WL5
