M80-5000000MB-11-315-00-000

Description
CABLE CONNECTOR KIT
CategoryThe connector    The connector
File Size378KB,4 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric View All

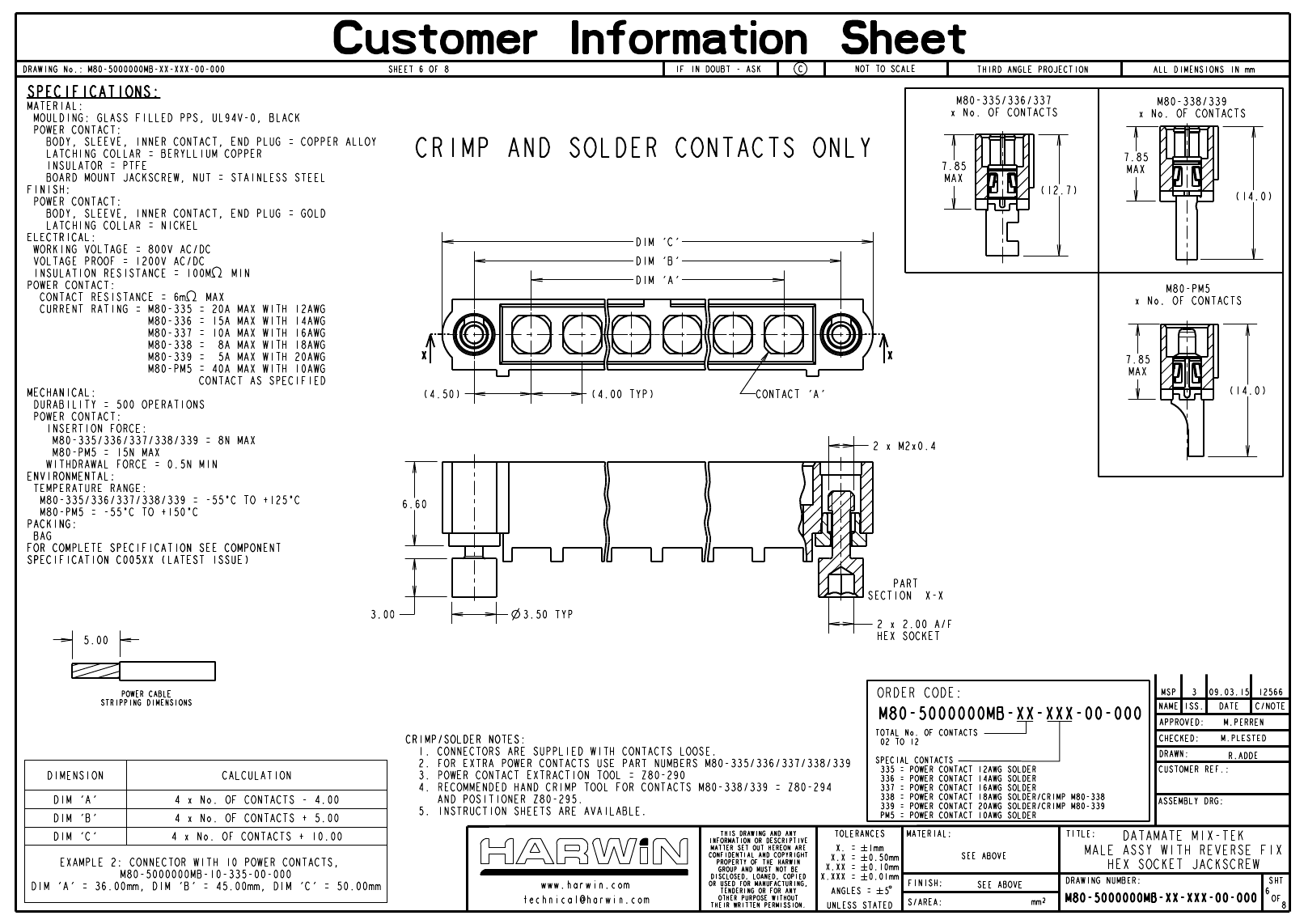

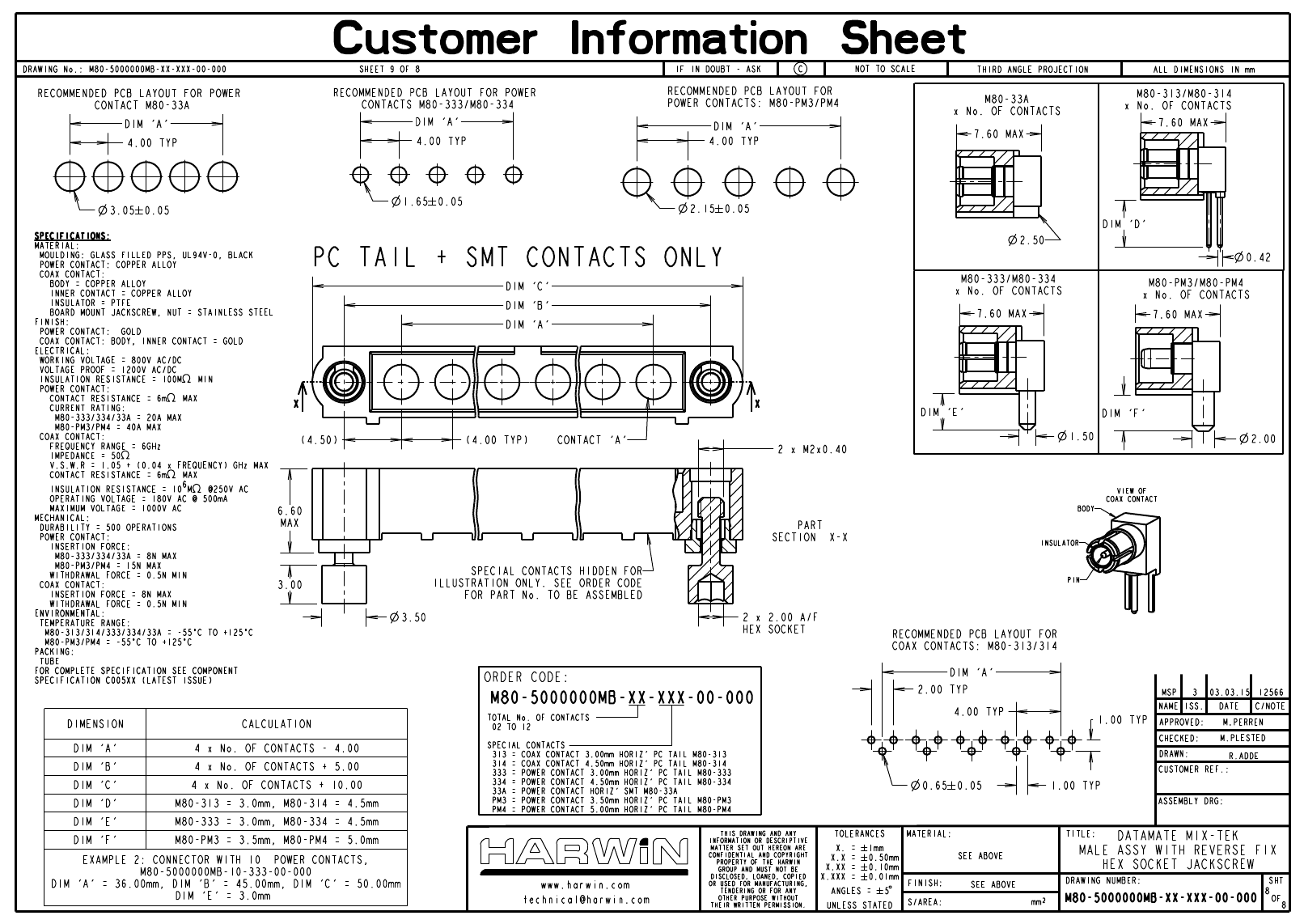

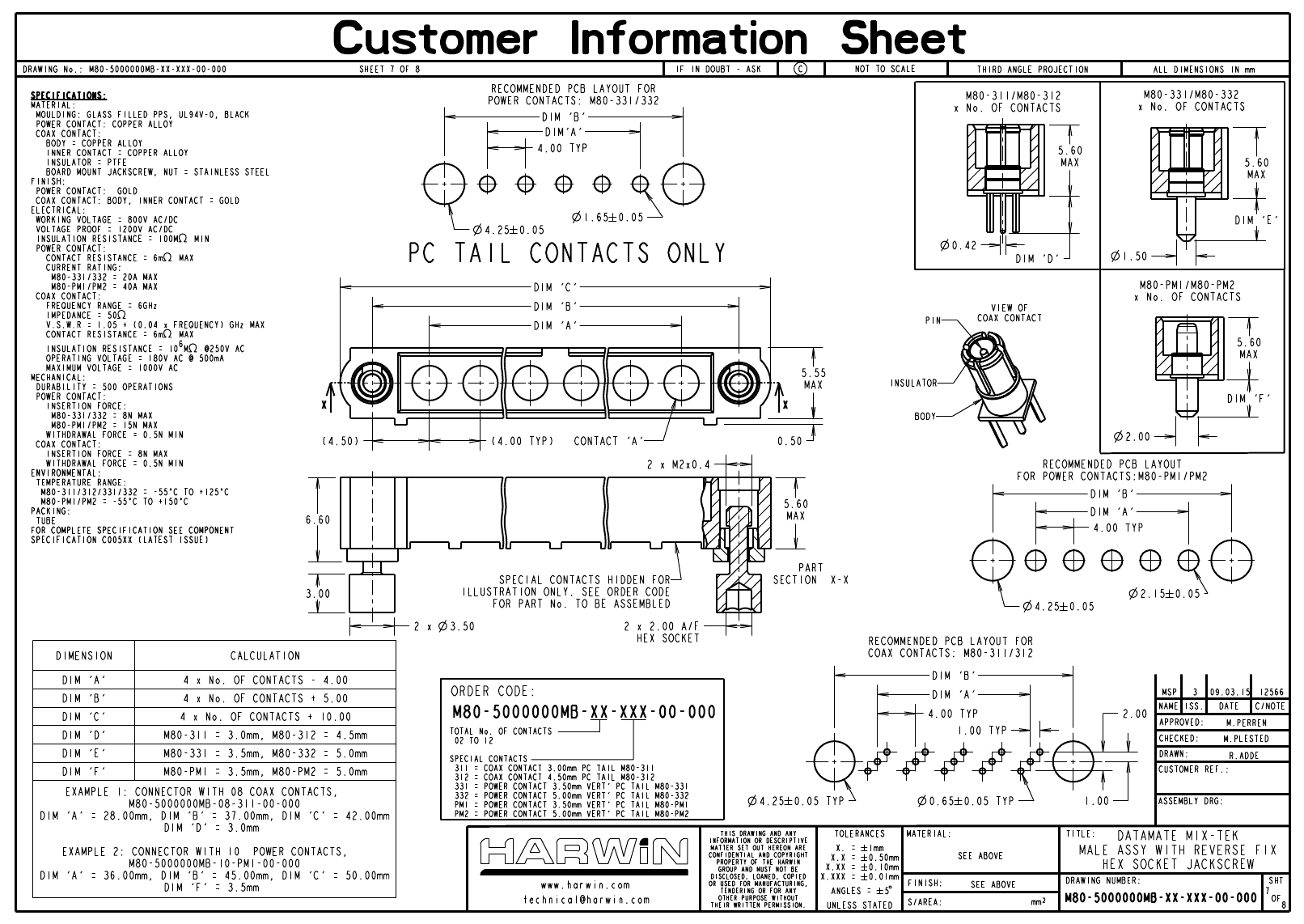

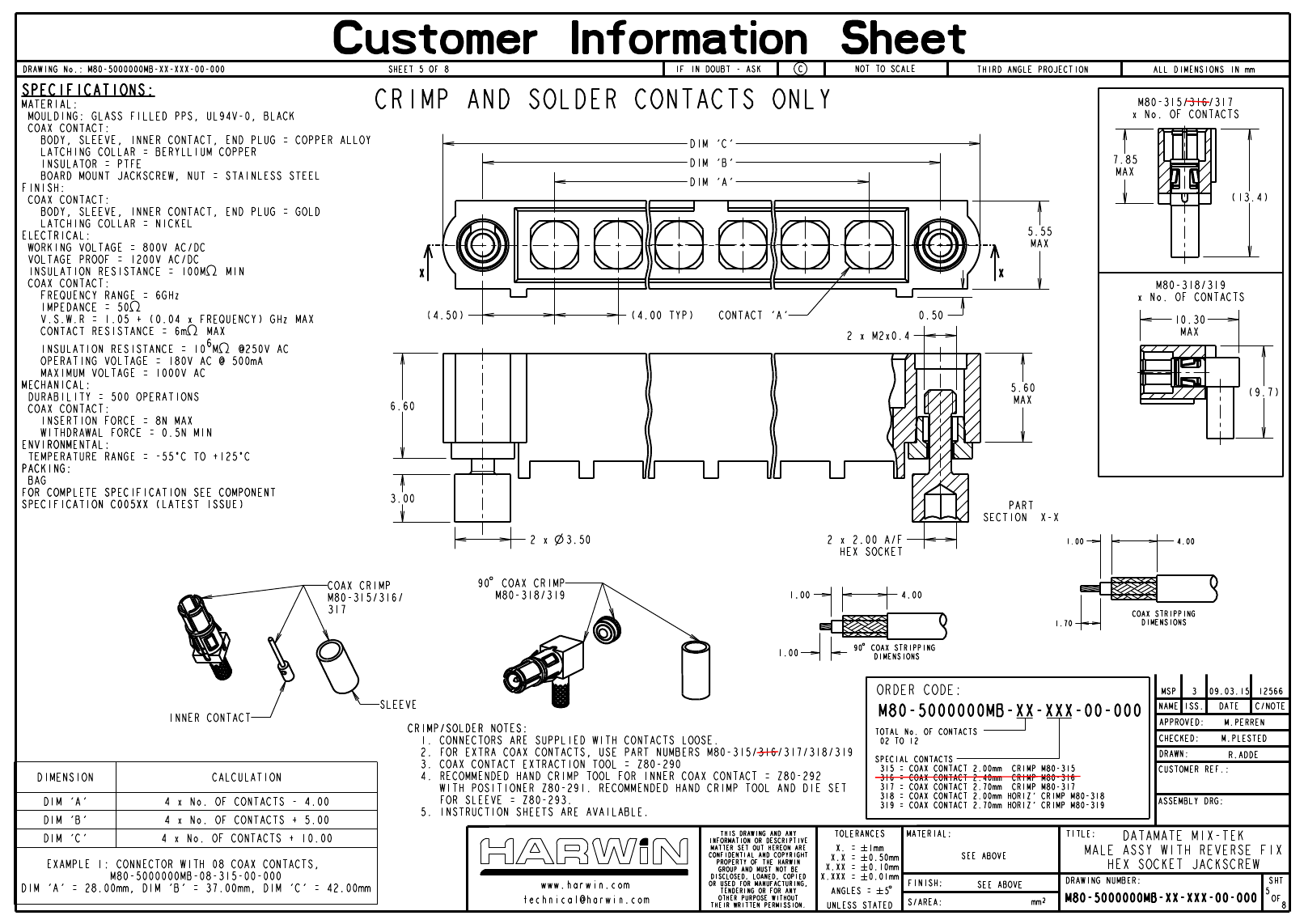

M80-5000000MB-11-315-00-000 Overview

CABLE CONNECTOR KIT

M80-5000000MB-11-315-00-000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresREVERSE JACKSCREW
body width0.238 inch
subject depth0.309 inch
body length2.126 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS0C11
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance6 mΩ
Contact styleHYBRID
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force4.8928 N
Insulation resistance1000000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
MIL complianceNO
Mixed contactsNO
Installation option 1M2X0.4
Installation option 2JACKSCREW
Installation methodSTRAIGHT
Installation typeCABLE
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts11
UL Flammability Code94V-0
Evacuation force-minimum value.5004 N
Base Number Matches1
