12TW808-2 datasheet, PDF - EEWORLD Datasheet

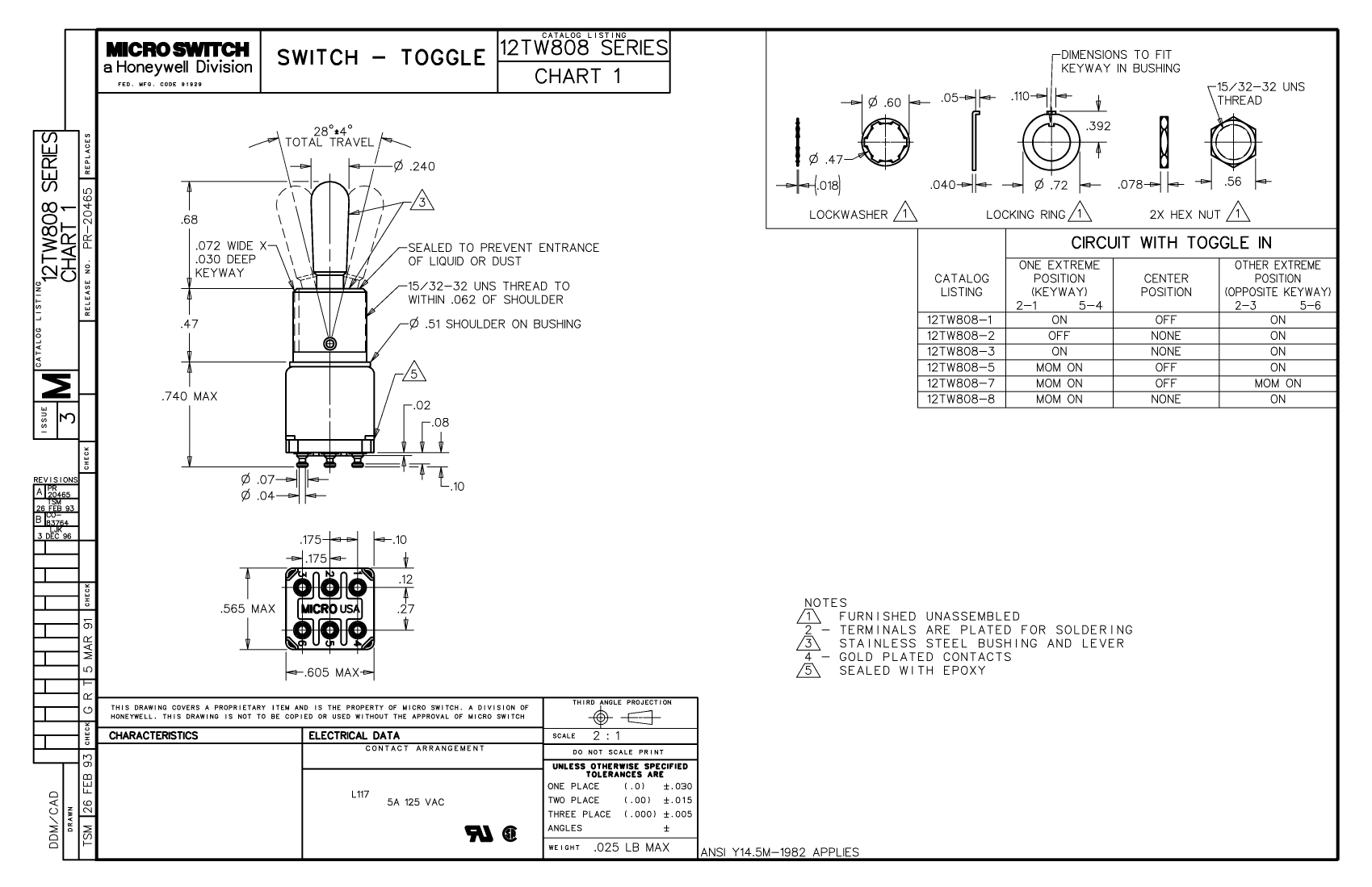

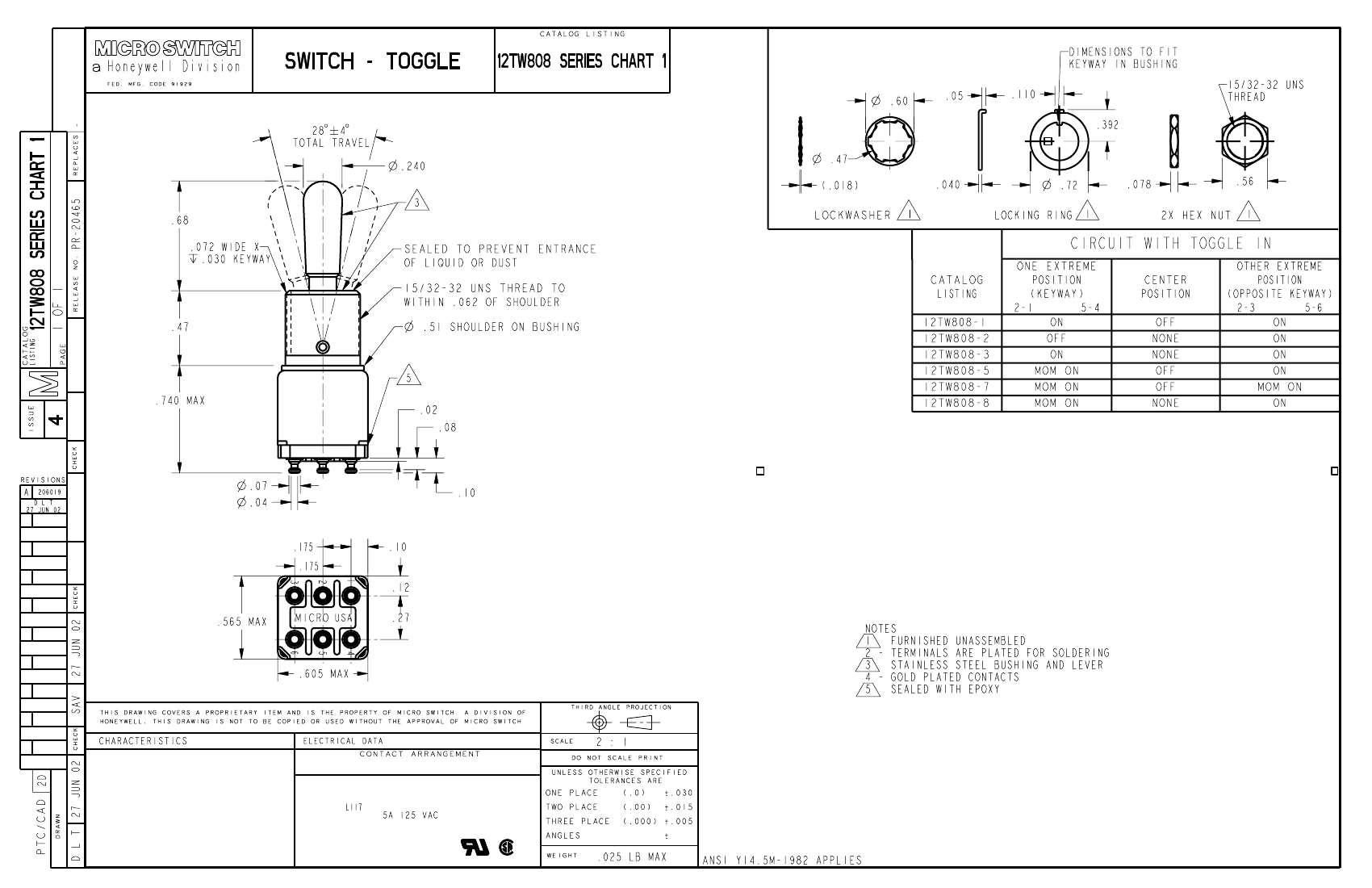

12TW808-2: DescriptionToggle Switch, DPST, Latched, Wire Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size137KB，2 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

12TW808-2 Overview

Toggle Switch, DPST, Latched, Wire Terminal, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	14.35 mm
body height	18.8 mm
Body length or diameter	15.37 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Manufacturer's serial number	12TW808
Installation features	PANEL MOUNT-THREADED
seal	DUST PROOF; EPOXY TERMINAL SEALED; WATER PROOF
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

	12TW808-2	12TW808-1	12TW808-3	12TW808-5	12TW808-8
Description	Toggle Switch, DPST, Latched, Wire Terminal, Panel Mount-threaded	Toggle Switch, DPDT, Latched, Wire Terminal, Panel Mount-threaded	Toggle Switch, DPDT, Latched, Wire Terminal, Panel Mount-threaded	Toggle Switch, DPDT, Latched And Momentary, Wire Terminal, Panel Mount-threaded	Toggle Switch, DPDT, Momentary, Wire Terminal, Panel Mount-threaded
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	14.35 mm	14.35 mm	14.35 mm	14.35 mm	14.35 mm
body height	18.8 mm	18.8 mm	18.8 mm	18.8 mm	18.8 mm
Body length or diameter	15.37 mm	15.37 mm	15.37 mm	15.37 mm	15.37 mm
Contact (AC) maximum rated R load	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V
Manufacturer's serial number	12TW808	12TW808	12TW808	12TW808	12TW808
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
seal	DUST PROOF; EPOXY TERMINAL SEALED; WATER PROOF	DUST PROOF; EPOXY TERMINAL SEALED; WATER PROOF	DUST PROOF; EPOXY TERMINAL SEALED; WATER PROOF	DUST PROOF; EPOXY TERMINAL SEALED; WATER PROOF	DUST PROOF; EPOXY TERMINAL SEALED; WATER PROOF
surface mount	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED AND MOMENTARY	MOMENTARY
switch function	DPST	DPDT	DPDT	DPDT	DPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	WIRE	WIRE	WIRE	WIRE	WIRE
Base Number Matches	1	1	1	1	1
