4-1415546-6 Overview

RM825615

4-1415546-6 Parametric

Parameter NameAttribute value
Power relay typeIndustrial panel plug-in
Terminal limit breaking current (A)25
Coil excitation systemmonostable, AC
Coil Power Rating Class (VA)2 – 3
Coil Power Rating (AC) (VA)2.22, 2.65
Coil resistance (Ω)1850
Coil characteristicsUL Coil Insulation Class B
Coil Voltage Rating (VAC)115
Terminal switch load (minimum)100mA @ 24V
Terminal switching voltage (max) (VAC)400
Terminal Voltage Rating (VAC)400
Insulation leakage between terminal and coil14.9 mm [ .587 in ]
Initial dielectric between terminal and coil (Vrms)2500
Initial dielectric between adjacent terminals (Vrms)4000
Insulation leakage type (mm)10 – 20
Terminal limit continuous current (A)25
Terminal limit closing current (A)60
Open terminal insulation initial dielectric (Vrms)1500
Coil/terminal insulation initial dielectric type (V)1500 – 2500, 2500 – 3000
product weight81 g [ 2.857 oz ]
Insulating properties5000 V initial surge withstand voltage between terminals and coil
Terminal arrangement2 Form C (2 CO)
Terminal current type (A)20 – 30
Contact Current Rating (Max) (A)25
Terminal materialAgNi90/10
Number of terminal poles2
Terminal typequick-connect, plug-in
Relay installation typeQuick connect, flange mounting
Product height73.5 mm [ 2.894 in ]
Product length35.5 mm [ 1.398 in ]
Product width38.5 mm [ 1.516 in ]
Width type (mechanical) (mm)30 – 40
Insulation gap between terminal and coil4 mm [ .157 in ]
Height type (mechanical) (mm)70 – 80
Insulation gap type (mm)2.5 – 4
Length type (mechanical) (mm)30 – 40, 35 – 40
Working group temperature range-40 – 40 °C [ -40 – 104 °F ]
Environmental Protection CategoryRTI
Ambient temperature (maximum)40 °C [ 104 °F ]
Encapsulation methodBox, Carton

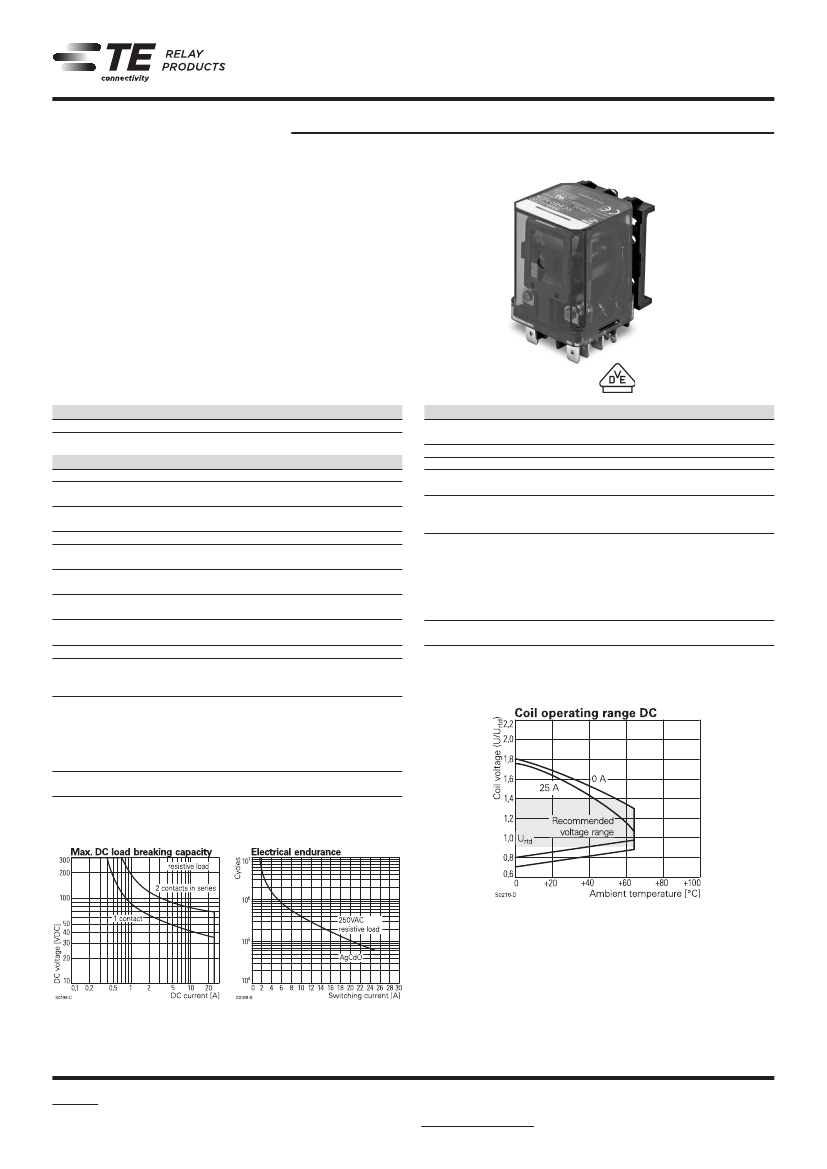

General Purpose
Panel/Plug-in Relays
Power Relay RM 8
n
n
n
n
n
SCHRACK
2 pole 25 A, 2 form C (2 CO) contacts
DC or AC coil
Mechanical indicator
Push-to-test button
Chassis or DIN rail mount
Typical applications
Cleaning equipment, heating and cooling equipment.
Z
Approvals
VDE Cert. No. 40003144, UL E214025,
Technical data of approved types on request.
Coil Data
Coil voltage range
Operative range, IEC 61810
Coil insulation system according UL
Coil versions, DC coil
Coil code
STD
LED
PD
3)
bipolar
006
L06
0A6
012
L12
0B2
024
L24
0C4
048
L48
0E8
060
L60
0G0
110
M10
1B0
221
N21
2C1
Operate voltage, DC coil
Release voltage, DC coil
Contact Data
Contact arrangement
Rated voltage
Max. switching voltage
Rated current
Limiting making current, 20ms max.
Switching power
Contact material
Min. recommended contact load
Frequency of operation,
with/without load, DC coil
Operate/release time max., DC coil
Bounce time max., form A/form B, DC coil
Contact ratings
Type
Contact
IEC 61810
RM82 C (CO)
RM82 C (CO)
UL 508
RM80 A/B (NO/NC)
RM8
RM82
RM82
A/B (NO/NC)
C (CO)
A/B (NO/NC)
Load
2 form C (CO)
400VAC
400VAC
25A
60A
6000VA
AgCdO, AgNi90/10
24VDC/100mA
960/6000h
-1
15/10ms
4/6ms
Cycles
10x10
3
10x10
3
6x10
3
10x10
3
30x10
3
6x10
3
6 to 220VDC
6 to 400VAC
2
class 130 (B)
Rated
Coil
Rated coil
voltage
resistance
power
VDC
Ω±10%
1)2)
W
6
32
1.1
12
110
1.3
24
475
1.2
48
2000
1.2
60
2850
1.3
110
10000
1)
1.2
220
40000
2)
1.2
75% of rated coil voltage
10% of rated coil voltage
LED+
PD
3)
LA6
LB2
LC4
LE8
LG0
MB0
NC1
25 A, 250 VAC, cosφ=1 DC-coil, 65°C
25 A, 250 VAC, cosφ=1 AC-coil, 40°C
25 A, 240 VAC, 1 phase per pole,
general purpose 40°C
25 A, 415 VAC, resistive, 45°C
16 A, 415 VAC, resistive, 70°C
240 VAC, 1phase, 2HP, 50°C
10x10
6
operations
1) Coil resistance ±12%, 2) Coil resistance ±15%.
3) Protection diode PD; standard polarity: +A1 / -A2.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Mechanical endurance
02-2018, Rev. 0118
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
1

4-1415546-6 Related Products

4-1415546-6 4-1415546-4 4-1415546-5 4-1415546-7 4-1415546-9 5-1415546-0 5-1415546-3 5-1415546-4
Description RM825615 RM825012 RM825524 RM829024 RM875024 RM875048 RM878024 RM879024
Power relay type Industrial panel plug-in Industrial panel plug-in Industrial panel plug-in Industrial panel plug-in Industrial panel plug-in Industrial panel plug-in - Industrial panel plug-in
Terminal limit breaking current (A) 25 25 25 25 25 25 - 25
Coil excitation system monostable, AC Monostable, DC monostable, AC Monostable, DC Monostable, DC Monostable, DC - Monostable, DC
Coil resistance (Ω) 1850 110 80 475 475 2000 - 475
Coil characteristics UL Coil Insulation Class B UL Coil Insulation Class B UL Coil Insulation Class B UL Coil Insulation Class B UL Coil Insulation Class B UL Coil Insulation Class B - UL Coil Insulation Class B
Terminal switch load (minimum) 100mA @ 24V 100mA @ 24V 100mA @ 24V 100mA @ 24V 100mA @ 24V 100mA @ 24V - 100mA @ 24V
Terminal switching voltage (max) (VAC) 400 400 400 400 400 400 - 400
Terminal Voltage Rating (VAC) 400 400 400 400 400 400 - 400
Insulation leakage between terminal and coil 14.9 mm [ .587 in ] 14.9 mm [ .587 in ] 14.9 mm [ .587 in ] 14.9 mm [ .587 in ] 14.9 mm [ .587 in ] 14.9 mm [ .587 in ] - 14.9 mm [ .587 in ]
Initial dielectric between terminal and coil (Vrms) 2500 2500 2500 2500 2500 2500 - 2500
Initial dielectric between adjacent terminals (Vrms) 4000 4000 4000 4000 4000 4000 - 4000
Insulation leakage type (mm) 10 – 20 10 – 20 10 – 20 10 – 20 10 – 20 10 – 20 - 10 – 20
Terminal limit continuous current (A) 25 25 25 25 25 25 - 25
Terminal limit closing current (A) 60 60 60 60 60 60 - 60
Open terminal insulation initial dielectric (Vrms) 1500 1500 1500 1500 1500 1500 - 1500
Coil/terminal insulation initial dielectric type (V) 1500 – 2500, 2500 – 3000 1500 – 2500, 2500 – 3000 1500 – 2500, 2500 – 3000 1500 – 2500, 2500 – 3000 1500 – 2500, 2500 – 3000 1500 – 2500, 2500 – 3000 - 1500 – 2500, 2500 – 3000
product weight 81 g [ 2.857 oz ] 81 g [ 2.857 oz ] 81 g [ 2.857 oz ] 81 g [ 2.857 oz ] 81 g [ 2.857 oz ] 81 g [ 2.857 oz ] - 81 g [ 2.857 oz ]
Insulating properties 5000 V initial surge withstand voltage between terminals and coil 5000 V initial surge withstand voltage between terminals and coil 5000 V initial surge withstand voltage between terminals and coil 5000 V initial surge withstand voltage between terminals and coil 5000 V initial surge withstand voltage between terminals and coil 5000 V initial surge withstand voltage between terminals and coil - 5000 V initial surge withstand voltage between terminals and coil
Terminal arrangement 2 Form C (2 CO) 2 Form C (2 CO) 2 Form C (2 CO) 2 Form C (2 CO) 2 Form C (2 CO) 2 Form C (2 CO) - 2 Form C (2 CO)
Terminal current type (A) 20 – 30 20 – 30 20 – 30 20 – 30 20 – 30 20 – 30 - 20 – 30
Contact Current Rating (Max) (A) 25 25 25 25 25 25 - 25
Terminal material AgNi90/10 AgNi90/10 AgNi90/10 AgNi90/10 AgNi90/10 AgNi90/10 - AgNi90/10
Number of terminal poles 2 2 2 2 2 2 - 2
Terminal type quick-connect, plug-in quick-connect, plug-in quick-connect, plug-in quick-connect, plug-in quick-connect, plug-in quick-connect, plug-in - quick-connect, plug-in
Relay installation type Quick connect, flange mounting Quick connect, flange mounting Quick connect, flange mounting DIN rail, quick connect Quick connect, flange mounting Quick connect, flange mounting - DIN rail, quick connect
Product height 73.5 mm [ 2.894 in ] 73.5 mm [ 2.894 in ] 73.5 mm [ 2.894 in ] 48.5 mm [ 1.909 in ] 73.5 mm [ 2.894 in ] 73.5 mm [ 2.894 in ] - 48.5 mm [ 1.909 in ]
Product length 35.5 mm [ 1.398 in ] 35.5 mm [ 1.398 in ] 35.5 mm [ 1.398 in ] 44.5 mm [ 1.752 in ] 35.5 mm [ 1.398 in ] 35.5 mm [ 1.398 in ] - 44.5 mm [ 1.752 in ]
Product width 38.5 mm [ 1.516 in ] 38.5 mm [ 1.516 in ] 38.5 mm [ 1.516 in ] 38.5 mm [ 1.516 in ] 38.5 mm [ 1.516 in ] 38.5 mm [ 1.516 in ] - 38.5 mm [ 1.516 in ]
Width type (mechanical) (mm) 30 – 40 30 – 40 30 – 40 30 – 40 30 – 40 30 – 40 - 30 – 40
Insulation gap between terminal and coil 4 mm [ .157 in ] 4 mm [ .157 in ] 4 mm [ .157 in ] 4 mm [ .157 in ] 4 mm [ .157 in ] 4 mm [ .157 in ] - 4 mm [ .157 in ]
Height type (mechanical) (mm) 70 – 80 70 – 80 70 – 80 40 – 50 70 – 80 70 – 80 - 40 – 50
Insulation gap type (mm) 2.5 – 4 2.5 – 4 2.5 – 4 2.5 – 4 2.5 – 4 2.5 – 4 - 2.5 – 4
Length type (mechanical) (mm) 30 – 40, 35 – 40 30 – 40, 35 – 40 30 – 40, 35 – 40 40 – 50 30 – 40, 35 – 40 30 – 40, 35 – 40 - 40 – 50
Working group temperature range -40 – 40 °C [ -40 – 104 °F ] -40 – 65 °C [ -40 – 149 °F ] -40 – 40 °C [ -40 – 104 °F ] -40 – 65 °C [ -40 – 149 °F ] -40 – 65 °C [ -40 – 149 °F ] -40 – 65 °C [ -40 – 149 °F ] - -40 – 65 °C [ -40 – 149 °F ]
Environmental Protection Category RTI RTI RTI RTI RTI RTI - RTI
Ambient temperature (maximum) 40 °C [ 104 °F ] 65 °C [ 149 °F ] 40 °C [ 104 °F ] 65 °C [ 149 °F ] 65 °C [ 149 °F ] 65 °C [ 149 °F ] - 65 °C [ 149 °F ]
Encapsulation method Box, Carton Box, Carton Box, Carton Box, Carton Box, Carton Box, Carton - Box, Carton
Coil Power Rating Class (mW) - 1000 – 2000 - 1000 – 2000 1000 – 2000 1000 – 2000 - 1000 – 2000
Coil Power Rating (DC) (mW) - 1300 - 1200 1200 1200 - 1200
Coil Voltage Rating (VDC) - 12 - 24 24 48 - 24
