Data Sheet
50 Amp SCHOTTKY
BARRIER RECTIFIERS
Mechanical Dimensions
JEDEC
T0-3P
2
CASE
Common Cathode Suffix C
FBR5030 . . . 5060 Series
Description
Case
1
3
1
1
2
3
3
2
CASE
Common Anode Suffix A
Features
n
HIGH CURRENT CAPABILITY
WITH LOW V
F
n
HIGH EFFICIENCY w/LOW POWER LOSS
n
HIGH SURGE VOLTAGE AND
TRANSIENT PROTECTION
n
MEETS UL SPECIFICATION 94V-0
FBR5030 . . . 5060 Series
Maximum Ratings
Peak Repetitive Reverse Voltage...V
RRM
Working Peak Reverse Voltage...V
RWM
DC Blocking Voltage...V
DC
RMS Reverse Voltage...V
R
(rms)
Average Forward Rectified Current...I
O
@ T
C
= 110°C V
R
(equiv.) < = 0.2V
R(DC)
Non-Repetitive Peak Forward Surge Current...I
FSM
@ Rated Load Conditions, ½ Sine Wave, Single Phase, 60Hz
Operating & Storage Temperature Range...T
J,
T
STRG
Electrical Characteristics
Maximum Forward Voltage...V
F
@ I
F
= 25 Amps
Maximum DC Reverse Current...I
R
@ Rated DC Blocking Voltage
T
C
= 25°C
T
C
=125°C
< ........................ .60 ........................ >
< ........ .70 ......... >
FBR5030 FBR5035 FBR5040 FBR5045 FBR5050 FBR5060
30
30
30
21
35
35
35
24
40
40
40
28
45
45
45
31
50
50
50
35
60
60
60
42
Units
Volts
Volts
Volts
Volts
Amps
Amps
°C
............................................. 5 0 ...............................................
............................................. 500 ...............................................
........................................ -65 to 150 .........................................
Volts
............................................. 5.0 ............................................... mAmps
< ........................ 100 ........................ >
< .......... 150 ........ > mAmps
Page 7-42
Data Sheet
50 Amp SCHOTTKY
BARRIER RECTIFIERS

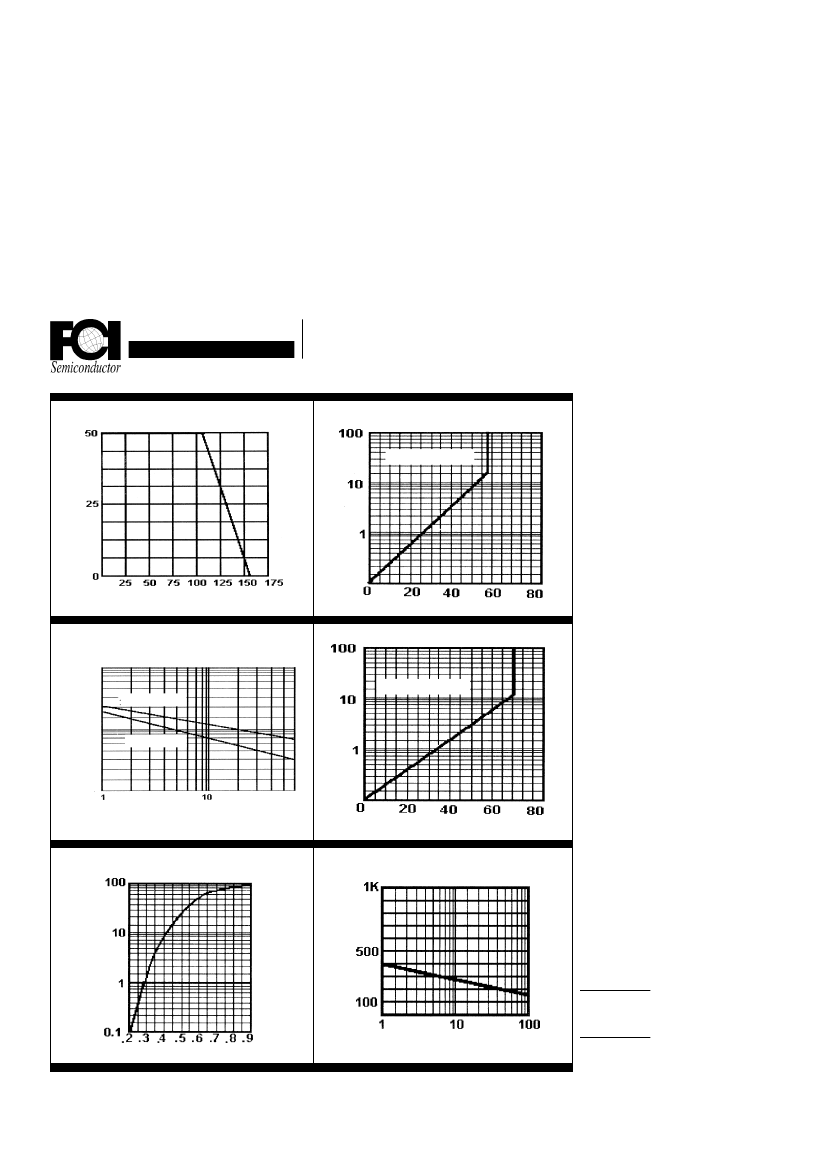

Typical Reverse Characteristics
Reverse Current (mA)
Forward Current Derating Curve
Average Forward Current (A)
FBR5030...5045
Case Temperature (
o
C)
Typical Junction Capacitance
Junction Capacitance (pF)
1000
Reverse Voltage (V)
Typical Reverse Characteristics
FBR5030...5045
100
FBR5050...4050
Reverse Voltage (V)
Typical Forward Characteristics
Peak Forward Surge Current (A)
Reverse Current (mA)
FBR5050...4050
Reverse Voltage (V)
Peak Forward Surge Current
Forward Current (A)
Ratings at
25 Deg. C ambient
temperature
unless otherwise
specified.
Single Phase Half
Wave, 60 Hz
Resistive or
Inductive Load.
Forward Voltage (V)
Number of Cycles @ 60 Hz
For Capacitive
Load, Derate
Current by 20%.
Page 7-43
FBR5030 . . . 5060 Series
